LED TUBE T5 HF SHORT VALUE

Choose your product version

288 mm 4W 830

288 mm 4W 840

517 mm 7W 830

517 mm 7W 840

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED TUBE T5 HF L8 SHORT VALUE 288 mm 4W 830 G5 4 W 17…40 V 30000 h 380 lm 8 W 190 ° No
LED TUBE T5 HF L8 SHORT VALUE 288 mm 4W 840 G5 4 W 17…40 V 30000 h 400 lm 8 W 190 ° No
LED TUBE T5 HF L13 SHORT VALUE 517 mm 7W 830 G5 7 W 30…55 V 30000 h 770 lm 13 W 190 ° No
LED TUBE T5 HF L13 SHORT VALUE 517 mm 7W 840 G5 7 W 30…55 V 30000 h 850 lm 13 W 190 ° No


LED TUBE T5 HF L8 SHORT VALUE 288 mm 4W 830

Product benefits
  • No bending thanks to glass technology
  • Quick, simple and safe replacement without rewiring
  • Also suitable for operation at low temperatures
  • Please follow all safety advices
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 4 W
Construction wattage 4.00 W
Nominal voltage 17…40 V
Operating mode ECG 1)
Nominal current 223 mA
Type of current AC
Inrush current 21 A
Operating frequency 25…75 kHz
Mains frequency 25…75 kHz
Total harmonic distortion 120 %
Power factor λ 0.55

1) Check ECG compatibility at ledvance.com/compatibility

Photometrical data

Luminous flux 380 lm
Nominal useful luminous flux 90° 400 lm
Luminous efficacy 100 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 3000 K
Color rendering index Ra 80
Light color 830
Standard deviation of color matching ≤5 sdcm
Rated LLMF at 6,000 h 0.90
Flickering metric (Pst LM) 1
Stroboscope effect metric (SVM) 0.4

Light technical data

Beam angle 190 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 302.00 mm
Length with base excl. base pins/connection 288.00 mm
Diameter 18.50 mm
Product weight 42.00 g

Temperatures & operating conditions

Ambient temperature range -20…+45 °C 1)
Maximum temperature at tc test point 60 °C
Performance temp. acc. to IEC 62717 40 °C 2)

1) Temperature surrounding the lamp - for enclosed luminaires: temperature inside of the luminaire
2) Tp rated. Tp point coincides with Tc point - marked on device

Lifespan

Lifespan L70/B50 at 25 °C 30000 h
Number of switching cycles 200000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) G5
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class F 1)
Energy consumption 4.00 kWh/1000h
Type of protection IP20
Standards CE, UKCA, EAC
Photobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LEDTUBE T5HF L8

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains NMLS
Light source cap-type (or other electric interface) G5
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0 W
Networked standby power for CLS 0 W
Claim of equivalent power No
Length 302.00 mm
Height 18.50 mm
Width 18.50 mm
Chromaticity coordinate x 0.434
Chromaticity coordinate y 0.403
R9 Colour rendering index 1
Beam angle correspondence SPHERE_360
Survival factor 0.9
Displacement factor 0,89
LED light source replaces a fluorescent light source No
EPREL ID 2199975
Model number AC70917

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • No bending thanks to glass technology
  • Quick, simple and safe replacement without rewiring
  • Also suitable for operation at low temperatures
  • Please follow all safety advices
Areas of application
  • General illumination within ambient temperatures from -20…+45 °C
  • Public buildings
  • Kitchens
  • Under-cabinet lighting
Product features
  • Retrofit replacement of existing T5 lamps on HF ballast installations
  • Lamp tube made of glass with splinter protection
  • High color consistency: ≤ 5 sdcm
  • Lifetime up to 30,000 h
  • Low flicker according to EU 2019-2020 (SVM ≤ 0.4 / PstLM ≤ 1)
  • Type of protection: IP20
  • Compatible with many common electronic control gears (see also compatibility list)
Legal advice
  • When used to replace a T5 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.
Safety advice
  • Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
  • The operating temperature range of LED tube is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
  • Not suitable for emergency lighting.
References / Links
  • For current information see www.ledvance.com/ledtube
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854552403 Sleeve
1		 22 mm x 22 mm x 304 mm 51.00 g 0.15 dm³
4099854552410 Shipping box
25		 316 mm x 116 mm x 124 mm 1355.00 g 4.55 dm³
User instruction / safety instructions
LED TUBE T5 HF SHORT PDF (2.98 MB)
User instruction / safety instructions
PDF (2.85 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Declarations of conformity
LEDTUBE T5HF L8 PDF (270.59 KB)
ECG compatibility list
Ballast compatibility LEDVANCE LED TUBE T5 H F_T8 HF_T8 UNIVERSAL 2 025 PDF (1.39 MB)
Product image: white background, diagonal with LEDVANCE logo
LED TUBE T5 LEDVANCE JPG (906.84 KB)
Product image: white background, diagonal
LED TUBE T5 AC HF JPG (877.8 KB)
Product image: white background, horizontal, LEDVANCE logo
LED TUBE T5 Short LEDV ANCE JPG (700.88 KB)
Product image: white background, horizontal
LED TUBE T5 SHORT JPG (665.44 KB)
Product image: white background, upright LEDVANCE logo
LED TUBE T5 Short LEDV ANCE JPG (701.95 KB)
Product image: white background, upright
LED TUBE T5 SHORT JPG (666.56 KB)
Product line drawing with letters
LED TUBE T5 AC HF SVG (13.26 KB)
Product line drawing with numbers
LED TUBE T5 Short 288 SVG (16.81 KB)
Product line drawing - technical
LEDTUBE T5 HF_AC SVG (7.5 KB)

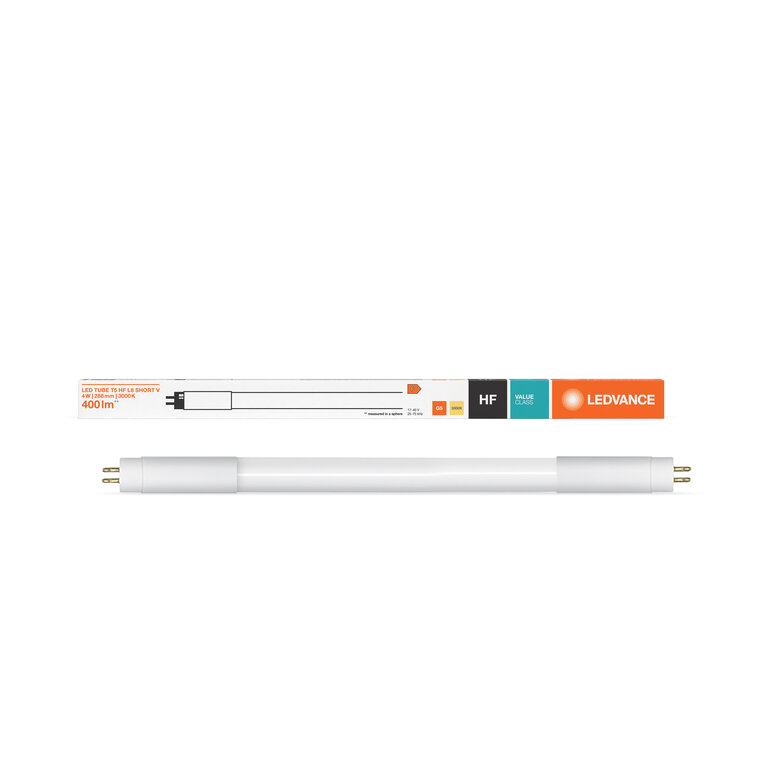

Combo Shot = Product Beauty Shot + Packaging Image
FC1 LEDTUBE T5 HF L8 S hort V 288 4W 830 G5 JPG (396.74 KB)
Packaging image, frontal
FC1 LEDTUBE T5 HF L8 S hort V 288 4W 830 G5 JPG (382.22 KB)
Packaging image, spacial
FC1 LEDTUBE T5 HF L8 S hort V 288 4W 830 G5 JPG (424.94 KB)
Catalog info 6
LEDTUBE T5HF L8 SHORT 288 SVG (7.06 KB)
Energy label
EL-4099854552403-AC709 17 PDF (21.31 KB)
Logos and pictos
F left SVG (1.83 KB)
Logos and pictos
F left BW SVG (1.07 KB)
Logos and pictos
F right SVG (1.81 KB)
Logos and pictos
F right BW SVG (1.06 KB)
IES file (IES)
LEDTUBE T5 HF L8 SHORT V 288 4W 830 LEDV IES (14.44 KB)
LDT file (Eulumdat)
LEDTUBE T5 HF L8 SHORT V 288 4W 830 LEDV LDT (8.92 KB)
UGR file (UGR table)
LEDTUBE T5 HF L8 SHORT V 288 4W 830 LEDV PNG (64.6 KB)
Light distribution curve type polar
LEDTUBE T5 HF L8 SHORT V 288 4W 830 LEDV SVG (14.65 KB)
Spectral power distribution
EPREL data spectral di agram PROF LEDr 3000K PNG (115.07 KB)
Tender documents
LED TUBE T5 HF SHORT V 288 mm 4W 830-en TXT (3.39 KB)
EAN SEG number STK number EFO number ELDAS number
4099854552403 8289480 4935402 3771141 941903492
