LED TUBE T5 AC MAINS PERFORMANCE

Choose your product version

549 mm 7W 830

549 mm 7W 830

549 mm 7W 840

549 mm 7W 840

549 mm 7W 865

849 mm 11W 830

849 mm 10W 830

849 mm 11W 840

849 mm 11W 865

849 mm 10W 865

549 mm 11W 830

549 mm 11W 840

549 mm 10W 840

549 mm 11W 865

549 mm 10W 865

1149 mm 16W 830

1149 mm 16W 840

1149 mm 16W 865

1449 mm 18W 830

1449 mm 18W 840

1449 mm 18W 865

849 mm 18W 830

849 mm 18W 840

849 mm 18W 865

849 mm 16W 865

1449 mm 26W 830

1449 mm 26W 840

1449 mm 26W 865

1149 mm 26W 830

1149 mm 26W 840

1149 mm 26W 865

1449 mm 36W 830

1449 mm 36W 840

1449 mm 36W 865

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED TUBE T5 AC HE14 PERFORMANCE 549 mm 7W 830 G5 7 W 220…240 V 50000 h 1000 lm 14 W 190 ° No
LED TUBE T5 AC HE14 PERFORMANCE 549 mm 7W 830 G5 7 W 220…240 V 50000 h 900 lm 14 W 190 ° No
LED TUBE T5 AC HE14 PERFORMANCE 549 mm 7W 840 G5 7 W 220…240 V 50000 h 1100 lm 14 W 190 ° No
LED TUBE T5 AC HE14 PERFORMANCE 549 mm 7W 840 G5 7 W 220…240 V 50000 h 1000 lm 14 W 190 ° No
LED TUBE T5 AC HE14 PERFORMANCE 549 mm 7W 865 G5 7 W 220…240 V 50000 h 1100 lm 14 W 190 ° No
LED TUBE T5 AC HE21 PERFORMANCE 849 mm 11W 830 G5 11 W 220…240 V 50000 h 1550 lm 21 W 190 ° No
LED TUBE T5 AC HE21 PERFORMANCE 849 mm 10W 830 G5 10 W 220…240 V 50000 h 1350 lm 21 W 190 ° No
LED TUBE T5 AC HE21 PERFORMANCE 849 mm 11W 840 G5 11 W 220…240 V 50000 h 1700 lm 21 W 190 ° No
LED TUBE T5 AC HE21 PERFORMANCE 849 mm 11W 865 G5 11 W 220…240 V 50000 h 1700 lm 21 W 190 ° No
LED TUBE T5 AC HE21 PERFORMANCE 849 mm 10W 865 G5 10 W 220…240 V 50000 h 1500 lm 21 W 190 ° No
LED TUBE T5 AC HO24 PERFORMANCE 549 mm 11W 830 G5 11 W 220…240 V 50000 h 1550 lm 24 W 190 ° No
LED TUBE T5 AC HO24 PERFORMANCE 549 mm 11W 840 G5 11 W 220…240 V 50000 h 1700 lm 24 W 190 ° No
LED TUBE T5 AC HO24 PERFORMANCE 549 mm 10W 840 G5 10 W 220…240 V 50000 h 1500 lm 24 W 190 ° No
LED TUBE T5 AC HO24 PERFORMANCE 549 mm 11W 865 G5 11 W 220…240 V 50000 h 1700 lm 24 W 190 ° No
LED TUBE T5 AC HO24 PERFORMANCE 549 mm 10W 865 G5 10 W 220…240 V 50000 h 1500 lm 24 W 190 ° No
LED TUBE T5 AC HE28 PERFORMANCE 1149 mm 16W 830 G5 16 W 220…240 V 50000 h 2150 lm 28 W 190 ° No
LED TUBE T5 AC HE28 PERFORMANCE 1149 mm 16W 840 G5 16 W 220…240 V 50000 h 2400 lm 28 W 190 ° No
LED TUBE T5 AC HE28 PERFORMANCE 1149 mm 16W 865 G5 16 W 220…240 V 50000 h 2400 lm 28 W 190 ° No
LED TUBE T5 AC HE35 PERFORMANCE 1449 mm 18W 830 G5 18 W 220…240 V 50000 h 2550 lm 35 W 190 ° No
LED TUBE T5 AC HE35 PERFORMANCE 1449 mm 18W 840 G5 18 W 220…240 V 50000 h 2800 lm 35 W 190 ° No
LED TUBE T5 AC HE35 PERFORMANCE 1449 mm 18W 865 G5 18 W 220…240 V 50000 h 2800 lm 35 W 190 ° No
LED TUBE T5 AC HO39 PERFORMANCE 849 mm 18W 830 G5 18 W 220…240 V 50000 h 2550 lm 39 W 190 ° No
LED TUBE T5 AC HO39 PERFORMANCE 849 mm 18W 840 G5 18 W 220…240 V 50000 h 2800 lm 39 W 190 ° No
LED TUBE T5 AC HO39 PERFORMANCE 849 mm 18W 865 G5 18 W 220…240 V 50000 h 2800 lm 39 W 190 ° No
LED TUBE T5 AC HO39 PERFORMANCE 849 mm 16W 865 G5 16 W 220…240 V 50000 h 2400 lm 39 W 190 ° No
LED TUBE T5 AC HO49 PERFORMANCE 1449 mm 26W 830 G5 26 W 220…240 V 50000 h 3600 lm 49 W 190 ° No
LED TUBE T5 AC HO49 PERFORMANCE 1449 mm 26W 840 G5 26 W 220…240 V 50000 h 4000 lm 49 W 190 ° No
LED TUBE T5 AC HO49 PERFORMANCE 1449 mm 26W 865 G5 26 W 220…240 V 50000 h 4000 lm 49 W 190 ° No
LED TUBE T5 AC HO54 PERFORMANCE 1149 mm 26W 830 G5 26 W 220…240 V 50000 h 3600 lm 54 W 190 ° No
LED TUBE T5 AC HO54 PERFORMANCE 1149 mm 26W 840 G5 26 W 220…240 V 50000 h 4000 lm 54 W 190 ° No
LED TUBE T5 AC HO54 PERFORMANCE 1149 mm 26W 865 G5 26 W 220…240 V 50000 h 4000 lm 54 W 190 ° No
LED TUBE T5 AC HO80 PERFORMANCE 1449 mm 36W 830 G5 36 W 220…240 V 50000 h 5050 lm 80 W 190 ° No
LED TUBE T5 AC HO80 PERFORMANCE 1449 mm 36W 840 G5 36 W 220…240 V 50000 h 5600 lm 80 W 190 ° No
LED TUBE T5 AC HO80 PERFORMANCE 1449 mm 36W 865 G5 36 W 220…240 V 50000 h 5600 lm 80 W 190 ° No


LED TUBE T5 AC HE14 PERFORMANCE 549 mm 7W 830

Product benefits
  • No bending thanks to glass technology
  • Shatter protection thanks to special PET coating
  • High luminous flux for sophisticated lighting tasks
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 7 W
Construction wattage 7.00 W
Nominal voltage 220…240 V
Operating mode AC Mains
Nominal current 33 mA
Type of current AC
Inrush current 4 A
Suitable for DC input Yes
Input voltage DC 186…260 V 1)
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 81
Max. lamp number on MCB B16 A 103
Total harmonic distortion 20 %
Power factor λ > 0.90

1) Permitted voltage range

Photometrical data

Luminous flux 1000 lm
Luminous efficacy 142 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 3000 K
Color rendering index Ra ≥80
Light color 830
Standard deviation of color matching ≤5 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) 1
Stroboscope effect metric (SVM) 0.4

Light technical data

Beam angle 190 °
Warm-up time (60 %) ‹ 2.00 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 563.00 mm
Length with base excl. base pins/connection 549.00 mm
Diameter 19.00 mm
Product weight 75.00 g

Temperatures & operating conditions

Ambient temperature range -20…+45 °C 1)
Maximum temperature at tc test point 63 °C
Performance temp. acc. to IEC 62717 50 °C 2)

1) Temperature surrounding the lamp - for enclosed luminaires: temperature inside of the luminaire
2) Tp rated. Tp point coincides with Tc point - marked on device

Lifespan

Lifespan L70/B50 at 25 °C 50000 h
Lifespan L80/B50 at 25 °C 50000 h
Number of switching cycles 200000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) G5
Mercury content 0.0 mg
Mercury-free Yes
Design / version Frosted

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class D 1)
Energy consumption 7.00 kWh/1000h
Type of protection IP20
Standards CE, UKCA, EAC
Photobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LEDTUBE T5 AC H

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) G5
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0 W
Networked standby power for CLS 0 W
Claim of equivalent power No
Length 563.00 mm
Height 19.00 mm
Width 19.00 mm
Chromaticity coordinate x 0.434
Chromaticity coordinate y 0.403
R9 Colour rendering index 1
Beam angle correspondence SPHERE_360
Survival factor 0.9
Displacement factor 0.90
LED light source replaces a fluorescent light source No
EPREL ID 2209911
Model number AC71287

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • No bending thanks to glass technology
  • Shatter protection thanks to special PET coating
  • High luminous flux for sophisticated lighting tasks
Areas of application
  • General illumination within ambient temperatures from -20…+45 °C
  • Offices, public buildings
  • Supermarkets and department stores
  • Industry
Product features
  • LED replacement for T5 fluorescent lamps with G5 base on AC mains
  • Lamp tube made of glass with splinter protection e.g. for food industry applications
  • High color consistency: ≤ 5 sdcm
  • Lifetime up to 50,000 h
  • Low flicker according to EU 2019-2020 (SVM ≤ 0.4 / PstLM ≤ 1)
  • Type of protection: IP20
Safety advice
  • Not suitable for operation with electronic control gear.
  • Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
  • The operating temperature range of LED tube is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
  • After rewiring of a luminaire the installer will be responsible for all technical and safety consequences.
  • All electrical connections must be made by a qualified person.
  • Disconnect mains before installation.
  • Lamp not suitable for emergency operation.
References / Links
  • For current information see www.ledvance.com/ledtube
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854552762 Sleeve
1		 565 mm x 20 mm x 24 mm 88.00 g 0.27 dm³
4099854552779 Shipping box
10		 645 mm x 140 mm x 85 mm 1105.00 g 7.68 dm³
User instruction / safety instructions
LED TUBE T5 AC MAINS PDF (3.23 MB)
Extended installation guide
Installation instructi ons LED TUBE T8, T5 un d DULUX LED 2024 10 EN PDF (3.36 MB)
Extended installation guide
LEDVANCE Luminaire con version checklist PDF (168.28 KB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Declarations of conformity
LEDTUBE PDF (268.71 KB)
Product image: white background, diagonal with LEDVANCE logo
LED TUBE T5 LEDVANCE JPG (906.84 KB)
Product image: white background, diagonal
LED TUBE T5 AC HF JPG (877.8 KB)
Product image: white background, horizontal, LEDVANCE logo
LED TUBE T5 LEDVANCE JPG (684.83 KB)
Product image: white background, horizontal
LED TUBE T5 AC HF JPG (653.78 KB)
Product image: white background, upright LEDVANCE logo
LED TUBE T5 LEDVANCE JPG (685.13 KB)
Product image: white background, upright
LED TUBE T5 AC HF JPG (654.05 KB)
Product line drawing with letters
LED TUBE T5 AC HF SVG (13.26 KB)
Product line drawing with numbers
LEDTUBET5 AC P SVG (13.01 KB)
Product line drawing - technical
LEDTUBE T5 HF_AC SVG (7.5 KB)

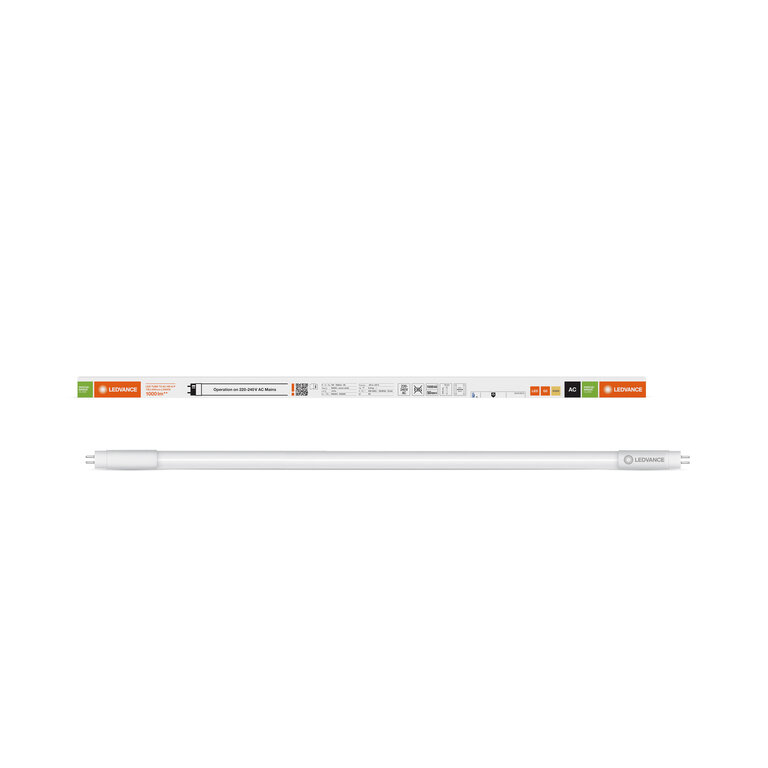

Combo Shot = Product Beauty Shot + Packaging Image
AdTp LEDTUBE T5 AC HE1 4 P 549 7W 830 G5 JPG (408.46 KB)
Packaging image, frontal
AdTp LEDTUBE T5 AC HE1 4 P 549 7W 830 G5 JPG (391.96 KB)
Packaging image, spacial
AdTp LEDTUBE T5 AC HE1 4 P 549 7W 830 G5 JPG (404.75 KB)
Energy label
EL-4099854552762-AC712 87 PDF (21.38 KB)
Logos and pictos
D left SVG (1.8 KB)
Logos and pictos
D left BW SVG (1.07 KB)
Logos and pictos
D right SVG (1.77 KB)
Logos and pictos
D right BW SVG (1.07 KB)
Spectral power distribution
EPREL data spectral di agram PROF LEDr 3000K PNG (115.07 KB)
Tender documents
LED TUBE T5 AC MAINS P 549 mm 7W 830-en TXT (3.64 KB)
EAN SEG number STK number EFO number ELDAS number
4099854552762 8289477 4935390 3771138 941903252
