LED TUBE T8 UNIVERSAL ULTRA OUTPUT PERFORMANCE

Choose your product version

1200 mm 15W 840

1200 mm 15W 865

1500 mm 23W 840

1500 mm 23W 865

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED TUBE T8 UNIVERSAL ULTRA OUTPUT PERFORMANCE 1200 mm 15W 840 G13 15 W 220…240 V 60000 h 2400 lm 36 W 190 ° No
LED TUBE T8 UNIVERSAL ULTRA OUTPUT PERFORMANCE 1200 mm 15W 865 G13 15 W 220…240 V 60000 h 2400 lm 36 W 190 ° No
LED TUBE T8 UNIVERSAL ULTRA OUTPUT PERFORMANCE 1500 mm 23W 840 G13 23 W 220…240 V 60000 h 3700 lm 58 W 190 ° No
LED TUBE T8 UNIVERSAL ULTRA OUTPUT PERFORMANCE 1500 mm 23W 865 G13 23 W 220…240 V 60000 h 3700 lm 58 W 190 ° No


LED TUBE T8 UNIVERSAL ULTRA OUTPUT PERFORMANCE 1200 mm 15W 840

Product benefits
  • No bending thanks to glass technology
  • Quick, simple and safe replacement without rewiring
  • Energy savings of up to 60 % (compared to T8 fluorescent lamp)
  • Very high resistance to switching loads
  • High luminous flux for sophisticated lighting tasks
  • Support the implementation of the HACCP concepts from production through to presentation
  • Also suitable for operation at low temperatures
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 15 W
Construction wattage 15.00 W
Nominal voltage 220…240 V
Operating mode ECG, CCG, AC Mains 1)
Nominal current 70 mA
Type of current AC
Inrush current 7 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 70
Max. lamp number on MCB B10 A - CCG without compensation 70
Max. lamp number on MCB B10 A - CCG with compensation 28
Max. lamp number on MCB B16 A 110
Max. lamp number on MCB B16 A - CCG without compensation 110
Max. lamp number on MCB B16 A - CCG with compensation 47
Total harmonic distortion < 30 %
Power factor λ 0.90

1) Check ECG compatibility at ledvance.com/compatibility

Photometrical data

Luminous flux 2400 lm
Luminous efficacy 160 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Cool White
Color temperature 4000 K
Color rendering index Ra 80
Light color 840
Standard deviation of color matching ≤5 sdcm
Rated LLMF at 6,000 h 0.90
Flickering metric (Pst LM) 1.0
Stroboscope effect metric (SVM) ≤0.4

Light technical data

Beam angle 190 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 1211.00 mm
Length with base excl. base pins/connection 1200.00 mm
Diameter 27.80 mm
Product weight 254.00 g

Temperatures & operating conditions

Ambient temperature range -20…+50 °C 1)
Maximum temperature at tc test point 65 °C
Performance temp. acc. to IEC 62717 45 °C 2)

1) Temperature surrounding the lamp - for enclosed luminaires: temperature inside of the luminaire
2) In operation with CCG/AC. Tp: 50°C in ECG operation. / Tp rated. Tp point coincides with Tc point - marked on device

Lifespan

Lifespan L70/B50 at 25 °C 60000 h
Lifespan L80/B50 at 25 °C 60000 h
Number of switching cycles 200000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

Additional product data

Base (standard designation) G13
Mercury content 0.0 mg
Mercury-free Yes

Capabilities

Dimmable No

Certificates & Standards

Energy efficiency class C 1)
Energy consumption 15.00 kWh/1000h
Type of protection IP20
Standards CE
Photobiological safety group acc. to EN62778 RG0

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LEDTUBE T8 UN P

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) G13
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Claim of equivalent power No
Length 1211.00 mm
Height 27.80 mm
Width 27.80 mm
Chromaticity coordinate x 0.3818
Chromaticity coordinate y 0.3797
R9 Colour rendering index 1
Beam angle correspondence SPHERE_360
Survival factor ˃0.9
Displacement factor 0.9
LED light source replaces a fluorescent light source No
EPREL ID 1317778
Model number AC42576,AC42576

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • No bending thanks to glass technology
  • Quick, simple and safe replacement without rewiring
  • Energy savings of up to 60 % (compared to T8 fluorescent lamp)
  • Very high resistance to switching loads
  • High luminous flux for sophisticated lighting tasks
  • Support the implementation of the HACCP concepts from production through to presentation
  • Also suitable for operation at low temperatures
Areas of application
  • General illumination within ambient temperatures from -20…+45 °C
  • Illumination of production areas
  • Traffic zones and corridors
  • Supermarkets and department stores
  • Industry
Product features
  • LED replacement for classic T8 fluorescent lamps with G13 socket for use in CCG, ECG luminaires or on AC mains
  • Compatible with conventional and many common electronic control gears (see also compatibility list) and line voltage
  • Low flicker according to EU 2019-2020 (SVM ≤ 0.4 / PstLM ≤ 1)
  • Lamp tube made of glass with splinter protection
  • For especially uniform illumination
  • Mercury-free and RoHS compliant
  • Type of protection: IP20
  • Lifetime up to 60,000 h
Legal advice
  • When used to replace a T8 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.
Safety advice
  • Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
  • The operating temperature range of LED tube is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
  • For operation of LED TUBE T8 UN with a conventional control gear, the existing starter must be exchanged with the including LED starter in the LED tube packaging.
  • All electrical connections must be made by a qualified person.
  • Not suitable for emergency lighting.
References / Links
  • For current information see www.ledvance.com/ledtube
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854026294 Sleeve
1		 1,305 mm x 29 mm x 29 mm 283.00 g 1.10 dm³
4099854026300 Shipping box
10		 1,352 mm x 210 mm x 115 mm 3519.00 g 32.65 dm³
User instruction / safety instructions
LEDTUBE T8 UNIVERSAL L edvance PDF (3.01 MB)
Extended installation guide
Installation instructi ons LED TUBE T8, T5 un d DULUX LED 2024 10 EN PDF (3.36 MB)
Extended installation guide

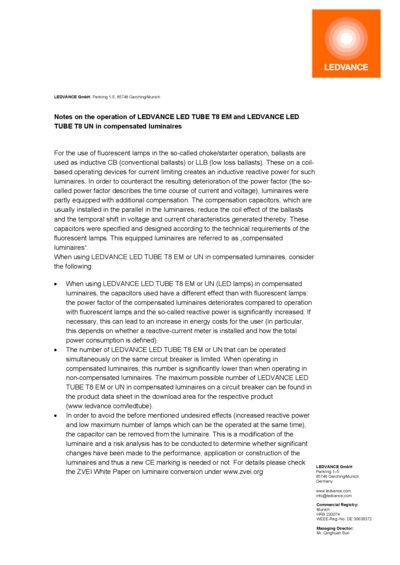

Notes on the operation of LEDVANCE LED tubes in compensated lumina ires PDF (551.59 KB)
Extended installation guide
LEDVANCE Luminaire con version checklist PDF (168.28 KB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Declarations of conformity
LED TUBES T8 HF/UN PDF (385.95 KB)
ECG compatibility list
Ballast compatibility LEDVANCE LED TUBE T5 H F_T8 HF_T8 UNIVERSAL 2 025 PDF (1.39 MB)
Product image: white background, diagonal with LEDVANCE logo
LED TUBE T8 HF UN LEDV ANCE 1200 JPG (901.86 KB)
Product image: white background, upright LEDVANCE logo
LED TUBE T8 HF UN LEDV ANCE 1200 JPG (644.06 KB)
Product line drawing with letters
LED TUBE T8 UN SVG (22.07 KB)
Product line drawing with numbers
LED TUBE T8 HF/UN 1200 SVG (15.61 KB)
Combo Shot = Product Beauty Shot + Packaging Image
LEDTUBE T8 UN UO P 120 0 15W 840 LEDV JPG (367.02 KB)
Packaging image, frontal
LEDTUBE T8 UN UO P 120 0 15W 840 LEDV JPG (358.94 KB)
Packaging image, spacial
LEDTUBE T8 UN UO P 120 0 15W 840 LEDV JPG (370.65 KB)
Catalog info 6
LIFETIME CURVE TC_LEDT UBE T8 UN P UO 1200 15 W JPG (1.34 MB)
Energy label
EL-4099854026294-AC425 76 PDF (21.49 KB)
Logos and pictos
C left SVG (2.36 KB)
Logos and pictos
C left BW SVG (1.07 KB)
Logos and pictos
C right SVG (2.35 KB)
Logos and pictos
C right BW SVG (1.06 KB)
IES file (IES)
LEDTUBE T8 UN UO P 120 0 15W 840 LEDV IES (14.42 KB)
LDT file (Eulumdat)
LEDTUBE T8 UN UO P 120 0 15W 840 LEDV LDT (11.09 KB)
UGR file (UGR table)
LEDTUBE T8 UN UO P 120 0 15W 840 LEDV PNG (64.15 KB)
Light distribution curve type polar
LEDTUBE T8 UN UO P 120 0 15W 840 LEDV SVG (19.63 KB)
Spectral power distribution
EPREL data spectral di agram PROF LEDr 4000K PNG (116.83 KB)
Tender documents
LED TUBE T8 UNIVERSAL ULTRA OUTPUT P 1200 mm 15W 840-EN TXT (3.41 KB)
EAN SEG number STK number EFO number ELDAS number
4099854026294 8298492 4933316 3763238 941820210
