HTI DALI 315 DIM


HTI DALI 315 DIM

Product benefits
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 315.00 W
Nominal voltage 220…240 V
Nominal output voltage 220…240 V
Input voltage range 220…240 V
Mains frequency 50 Hz

Dimensions & Weight

Length 153.00 mm
Mounting hole spacing, length 146,0 mm
Width 54.00 mm
Height 36.00 mm
Product weight 137.00 g

Colors & materials

Product color Grey
Casing material Plastic
Body material Plastic

Temperatures & operating conditions

Ambient temperature range 0…+45 °C
Max.housing temperature in case of fault 110 °C
Permitted rel. humidity during operation 5…85 % 1)

1) Maximum 56 days/year at 85 %

Additional product data

Encapsulated No

Capabilities

Dimmable Yes
Dimming interface Phase cut-off
Dimming range 0.1…100 % 1)
Overheating protection Automatic reversible
Max. cable length to lamp/LED module 100 m
Type of connection, output side Screw connection

1) Depends on the lamp type (please see www.osram.com/dim)

Certificates & Standards

Protection class II
Type of protection IP20

LOGISTICAL DATA

Temperature range at storage -40…+85 °C

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product features
  • DALI trailing-edge phase dimmer
  • Dimming of high voltage halogen and incandescent lamps
  • Dimming of many common dimmable line voltage LED lamps
  • Dimming of electronic transformers
  • Standby power consumption: < 0.5 W
  • DALI/Touch DIM control signal
  • Short-circuit protection, overload protection, overtemperature protection: electronically reversible
  • RI suppression: to EN 55015 (A1: 2007)
  • Line harmonics according to EN 61000-3-2
  • Safety: to EN 61347
  • Immunity according to EN 61547
  • Device fits also for special applications where dimming below 1 % is required
Equipment / Accessories
  • Suitable for all OSRAM HALOTRONIC and ET-PARROT ECGs
  • Suitable for all dimmable OSRAM line voltage LED lamps
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4008321957344 Folding box
1		 213 mm x 49 mm x 49 mm 161.00 g 0.51 dm³
4008321957351 Shipping box
25		 292 mm x 300 mm x 260 mm 4368.00 g 22.78 dm³
User instruction / safety instructions

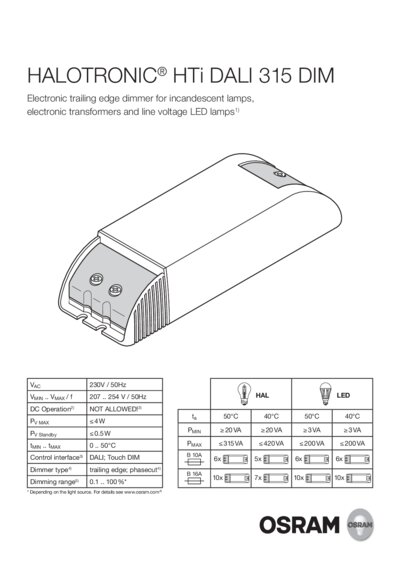

341073_HTi DALI 315 DI M Installation Guide PDF (1.01 MB)
Declarations of conformity

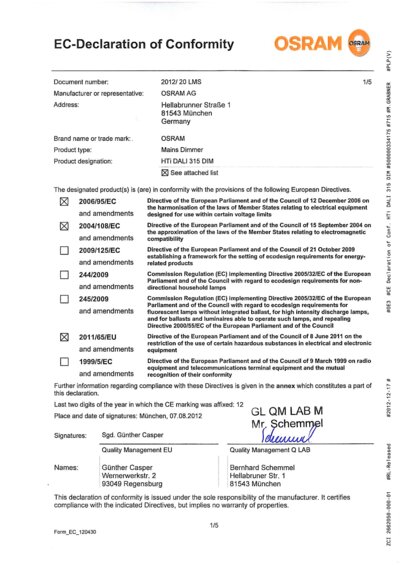

CE Declaration of Conf ormity 2012_20 LMS HTi DALI 315 DIM_20120807 PDF (478.59 KB)
Product image: white background, diagonal

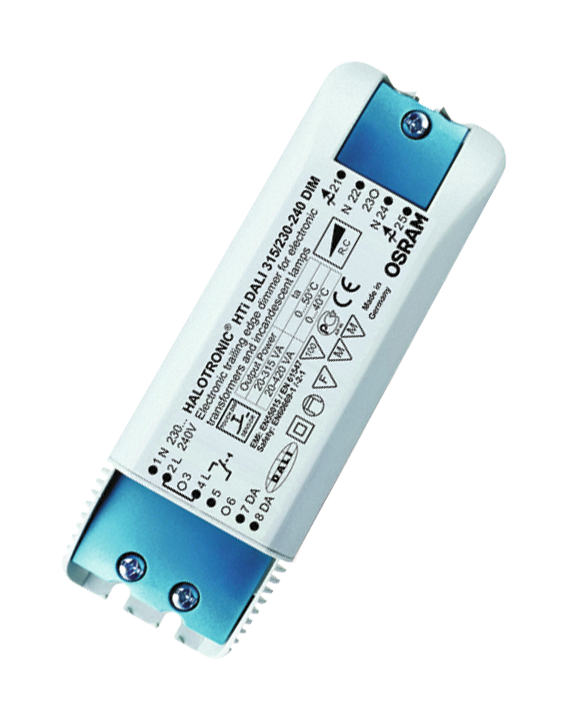

323150_HALOTRONIC HTi DALI 315 DIM TIF (1.67 MB)
