Choose your product version
| Product description |
|---|
| DR DALI-PFM -26/220-240/700 |
| DR DALI-PFM -44/220-240/1050 |
| DR DALI-PFM -60/220-240/1A4 |
| Nominal wattage | 26.00 W |
| Nominal output power | 26 W 1) |
| Nominal voltage | 220…240 V |
| Nominal output voltage | 9…52 V 2) |
| Input voltage AC | 198…264 V 3) |
| Input voltage DC | 196…245 V |
| U-OUT (working voltage) | 60 V |
| Type of current | DC |
| Nominal current | 176 mA |
| Nominal output current | 700 mA 4) |
| Inrush current | 30 A |
| Output current tolerance | ±5 % |
| Output ripple current (100 Hz) | +/- 5 % |
| Mains frequency | 0/50/60 Hz |
| Total harmonic distortion | < 10 % 5) |
| Power factor λ | 0.95 6) |
| ECG efficiency | 86 % 7) |
| Device power loss | 7 W 8) |
| Max. ECG no. on circuit breaker 10 A (B) | 13 |
| Max. ECG no. on circuit breaker 16 A (B) | 21 |
| Max. ECG no. on circuit breaker 25 A (B) | 34 |
| Surge capability (L/N-Ground) | 2 kV |
| Surge capability (L-N) | 1 kV |
| Galvanic isolation | SELV |
| Operating frequency | 0/50/60 Hz |
| Power loss in stand-by mode | < 0.5 W |
1) Partial load 1.35…26.3 W
2) Within rated power
3) Permitted voltage range
4) ±5%
5) At full load, 220…240 V, 50 Hz
6) Full load at 230 V
7) At full load and 230 V
8) At maximum LED load of 33 W
| Length | 90.00 mm |
| Mounting hole spacing, length | 90 mm |
| Width | 44.00 mm |
| Height | 32.00 mm |
| Cable cross-section, input side | 0,5…1,0 mm² |
| Cable cross-section, output side | 0,5…1,0 mm² |
| Prewired | No |
| Wire preparation length, input side | 6…7 mm |
| Wire preparation length, output side | 6…7 mm |
| Product weight | 115.00 g |
| Product color | White |
| Casing material | Plastic |
| Body material | Plastic |
| Ambient temperature range | -20…+50 °C |
| Maximum temperature at tc test point | 85 °C |
| Max.housing temperature in case of fault | 110 °C |
| Temperature range in operation | -20…+50 °C |
| Permitted rel. humidity during operation | 5…85 % 1) |
1) Maximum 56 days/year at 85 %
| ECG lifetime | 50000 h 1) |
1) At maximum Tc / 10% failure rate
| Encapsulated | Yes |
| Dimmable | Yes |
| Dimming interface | DALI-2 |
| Dimming range | 1…100 % |
| Overheating protection | Yes |
| Overload protection | Yes |
| Short-circuit protection | Yes |
| No-load proof | Yes |
| Max. cable length to lamp/LED module | 2,0 m |
| Suitable for fixtures with prot. class | I, II |
| Suitable for emergency lighting | Yes |
| Type of connection, output side | Push terminal |
| Approval marks – approval | CE, CB, ENEC |
| Standards | Acc. to EN 61347-1, Acc. to EN 61347-2-13, Acc. to EN 55015, Acc. to EN 61547, Acc. to EN 61000-3-2, Acc. to EN 62384 |
| Protection class | I |
| Type of protection | IP00 |
| Temperature range at storage | -40…+85 °C |
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075421882 | Folding box 1 |
|||
| 4058075421899 | Shipping box 10 |
311 mm x 154 mm x 116 mm | 1584.00 g | 5.56 dm³ |
| Product image | Product name | EAN |
|---|---|---|
|

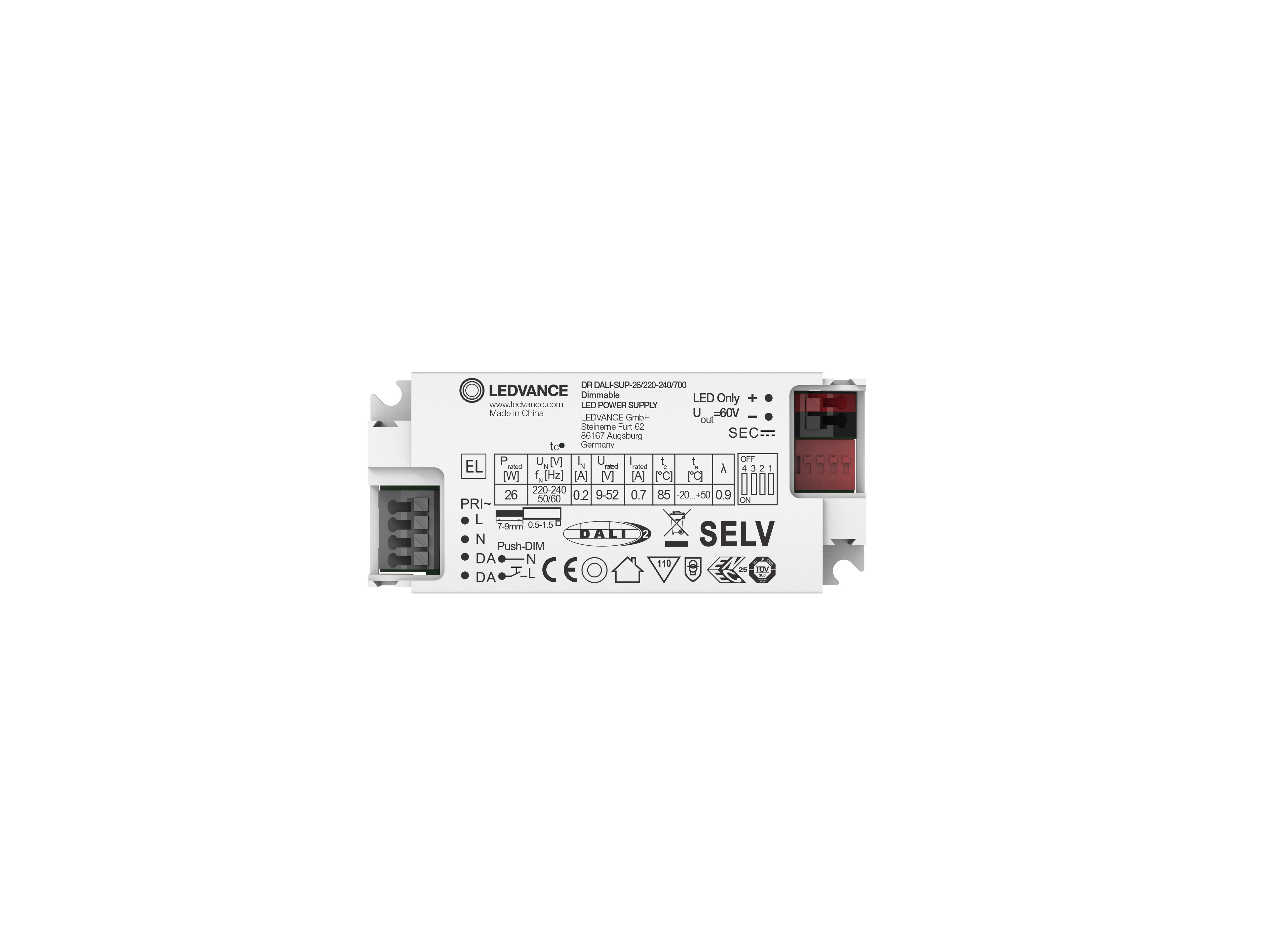

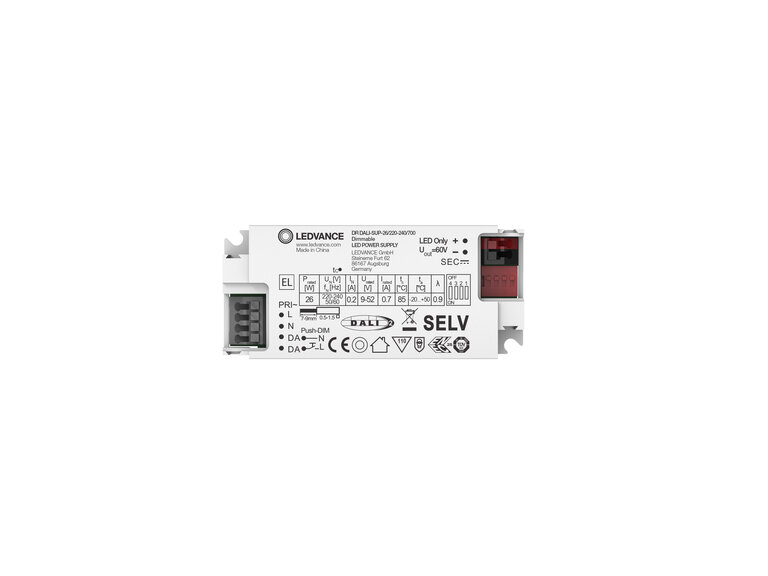

DR AY ZB+DALI CLAMP DUO | 4058075483125 |
| EAN | SEG number | STK number | ELDAS number |
|---|---|---|---|
| 4058075421882 | 7982320 | 4031433 | 919390610 |
