Choose your product version
| Product description |
|---|

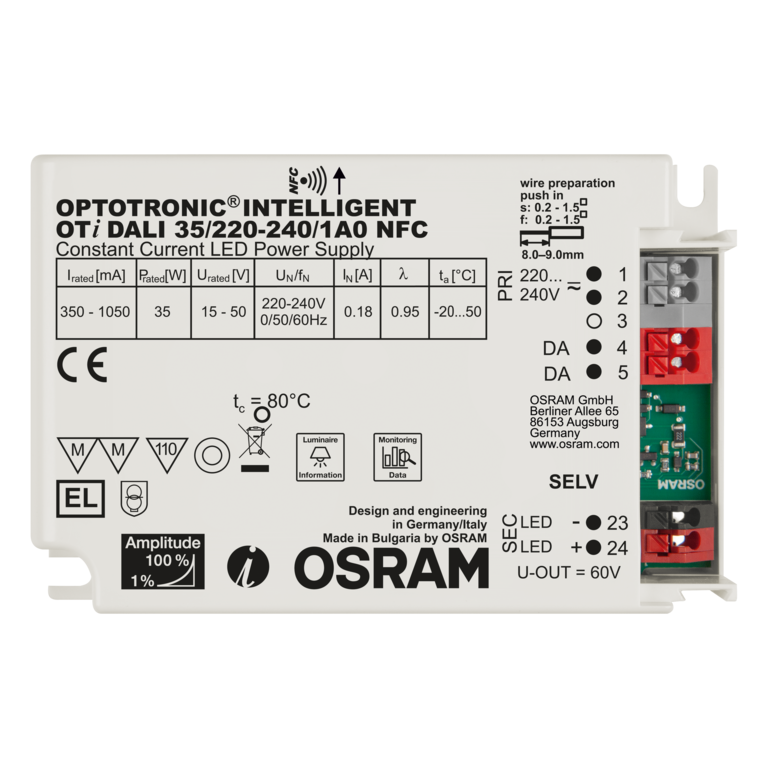

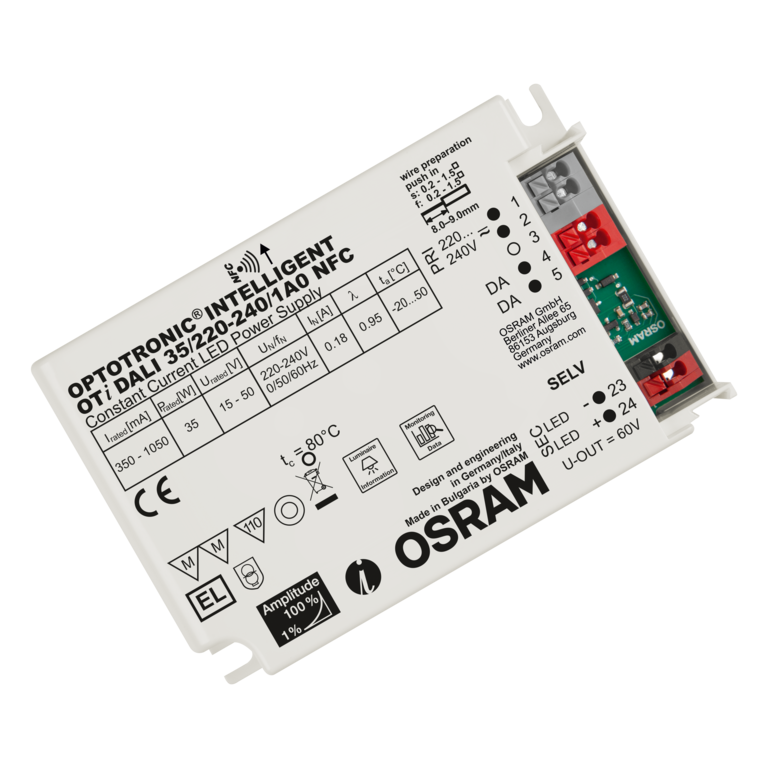

| OTi DALI 35/220…240/1A0 NFC |
| OTi DALI 50/220...240/1A4 NFC |
| Nominal wattage | 35.00 W |
| Nominal output power | 35 W 1) |
| Nominal voltage | 220…240 V |
| Nominal output voltage | 15…50 V 2) |
| Input voltage range | 220…240 V |
| Input voltage AC | 198…264 V 3) |
| Input voltage DC | 176…276 V |
| U-OUT (working voltage) | 60 V |
| Nominal output current | 350…1050 mA 4) |
| Inrush current | 15 A 5) |
| Output current tolerance | ±3 % |
| Output ripple current (100 Hz) | < 3 % 6) |
| Mains frequency | 0/50/60 Hz |
| Total harmonic distortion | < 10 % 7) |
| Power factor λ | > 0.95 |
| ECG efficiency | 90 % 8) |
| Surge capability (L/N-Ground) | 2 kV |
| Surge capability (L-N) | 1 kV |
| Power loss in stand-by mode | 0.1 W |
| Flickering metric (Pst LM) | ≤1 |
1) Partial load 15…35 W
2) Maximum 60 V
3) Permitted voltage range
4) ±3%
5) twidth = 220 µs (measured at 50 % Ipeak)
6) Ripple average at 100 Hz %
7) At full load, 220…240 V, 50 Hz / see graphs
8) at 230 V, 50 Hz
| Flickering metric (Pst LM) | ≤1 |
| Stroboscope effect metric (SVM) | ≤0.4 |
| Length | 103.00 mm |
| Mounting hole spacing, length | 94,0 mm |
| Width | 67.00 mm |
| Height | 29.50 mm |
| Cable cross-section, input side | 0.2…1.5 mm² 1) |
| Cable cross-section, output side | 0.2…1.5 mm² 1) |
| Wire preparation length, input side | 8.0…9.0 mm |
| Wire preparation length, output side | 8.0…9.0 mm |
| Product weight | 145.00 g |
1) Solid or flexible leads
| Product color | White |
| Casing material | Plastic |
| Body material | Plastic |
| Ambient temperature range | -20…+50 °C |
| Maximum temperature at tc test point | 80 °C 1) |
| Max.housing temperature in case of fault | 110 °C |
| Permitted rel. humidity during operation | 5…85 % 2) |
1) Maximum at the Tc-point
2) Maximum 56 days/year at 85 %
| ECG lifetime | 50000 h, 100000 h 1) |
1) Tc = 75°C, 0.2% / 1,000 h failure rate / Tc = 65°C, 0.1% / 1,000 h failure rate
| Encapsulated | No |
| Dimmable | Yes |
| Dimming interface | Touch DIM, Touch DIM Sensor, DALI-2 |
| Dimming range | 1…100 % 1) |
| Overheating protection | Automatic reversible |
| Overload protection | Automatic reversible |
| Short-circuit protection | Automatic reversible |
| No-load proof | Yes |
| Max. cable length to lamp/LED module | 2,0 m 2) |
| Suitable for fixtures with prot. class | I, II |
| Suitable for emergency lighting | Yes |
| Type of connection, output side | Push terminal |
1) For maximum nominal output current
2) Output wires must be routed as close as possible to each other

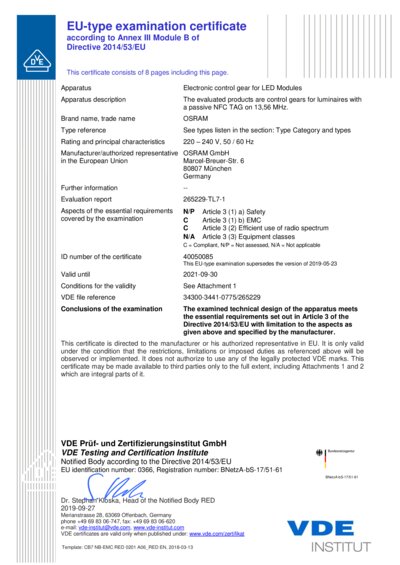

| Approval marks – approval | CE, EL, ENEC 10, VDE, VDE-EMC, DALI-2, EAC, MM |
| Standards | Acc. to EN 61347-1, Acc. to EN 61347-2-13, Acc. to EN 55015, Acc. to EN 61547, Acc. to EN 61000-3-2, Acc. to EN 62384, Acc. to EN 62386, Acc. to IEC 62386-101:Ed2, Acc. to IEC 62386-102:Ed2, Acc. to IEC 62386-207:Ed1 |
| Protection class | II |
| Type of protection | IP20 |
| Temperature range at storage | -40…+85 °C |
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4062172017923 | Unpacked 1 |
145.00 g | ||
| 4062172017930 | Shipping box 20 |
357 mm x 222 mm x 96 mm | 3225.00 g | 7.61 dm³ |
