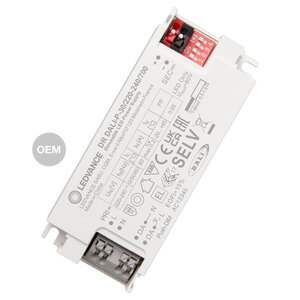

DR DALI-P -30/220-240/700

Nominal wattage	30.00 W
Nominal output power	30 W
Nominal voltage	220…240 V
Nominal output voltage	2.5…49 V
Input voltage AC	198…264 V ¹⁾
Input voltage DC	198…264 V
U-OUT (working voltage)	60 V
Type of current	DC
Nominal current	200 mA
Nominal output current	150 mA, 200 mA, 250 mA, 300 mA, 350 mA, 400 mA, 450 mA, 500 mA, 550 mA, 600 mA, 650 mA, 700 mA ²⁾
Inrush current	5.13 A
Output current tolerance	+/- 5 %
Output ripple current (120 Hz)	+/- 3.0 %
Mains frequency	0/50/60 Hz
Total harmonic distortion	5 % ³⁾
Power factor λ	> 0.95 ³⁾
ECG efficiency	89 %
Device power loss	3.7 W
Max. ECG no. on circuit breaker 10 A (B)	40
Max. ECG no. on circuit breaker 16 A (B)	64
Max. ECG no. on circuit breaker 25 A (B)	100
Max. ECG no. on circuit breaker 32 A (B)	128
Max. ECG no. on circuit breaker 10 A (C)	40
Max. ECG no. on circuit breaker 16 A (C)	64
Max. ECG no. on circuit breaker 25 A (C)	100
Max. ECG no. on circuit breaker 32 A (C)	128
Surge capability (L/N-Ground)	2 kV
Surge capability (L-N)	1 kV
Galvanic isolation	SELV
Operating frequency	0/50/60 Hz
Power loss in stand-by mode	≤0.3 W

¹⁾ Permitted voltage range
²⁾ +/- 5 %
³⁾ Full load at 230 V/50 Hz

Length	105.00 mm
Mounting hole spacing, length	97,0 mm
Width	45.00 mm
Height	25.00 mm
Cable cross-section, input side	0.5…1.5 mm²
Cable cross-section, output side	0.5…1.5 mm²
Prewired	No
Wire preparation length, input side	7…9 mm
Wire preparation length, output side	7…9 mm
Product weight	98.00 g

Ambient temperature range	-20…+45 °C
Maximum temperature at tc test point	85 °C
Max.housing temperature in case of fault	<110 °C
Temperature range in operation	-20…+45 °C
Permitted rel. humidity during operation	20…90 %

ECG lifetime	100000 h ¹⁾
Number of switching cycles	60000

¹⁾ At Tc max. - 10°C

Encapsulated

Yes

Dimmable	Yes
Dimming interface	DALI-2
Dimming range	1…100 %
Overheating protection	Yes
Overload protection	Yes
Short-circuit protection	Yes
No-load proof	Yes
Max. cable length to lamp/LED module	0,8 m
Suitable for fixtures with prot. class	I, II
Suitable for emergency lighting	Yes
Type of connection, output side	Push terminal

Approval marks – approval	CE, UKCA, EAC, Nemco, ENEC, EL
Standards	Acc. to EN 61347-1, Acc. to EN 61347-2-13, Acc. to EN 55015, Acc. to EN 61547, Acc. to EN 61000-3-2, Acc. to EN 62384
Protection class	II
Type of protection	IP20

Temperature range at storage

-20…+80 °C

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	Lead (7439-92-1)

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits

Areas of application

Product features

1 channel DALI-2 certified LED driver
Available with output current range: from 150...1,050 mA
Type of installation: independent and built-in
Suitable for emergency lighting fixtures acc.to EN 60598-2-2 with emergency output factor EOFI=15%
Quick and easy current setting via Dip-Switch
Very long lifetime: up to 100,000 h
Supply voltage: 220…240 V
Operated with Safety extra-low voltage (SELV): < 60 V
