| Nominal wattage | 26.00 W |
| Nominal output power | 26 W |
| Nominal voltage | 220…240 V |
| Nominal output voltage | 40…220 V |
| Input voltage range | 198…264 V |
| Input voltage AC | 198…264 V 1) |
| Input voltage DC | 176…280 V |
| U-OUT (working voltage) | 40…220 V |
| Type of current | AC/DC |
| Nominal current | 170 mA |
| Nominal output current | 50…400 mA 2) |
| Inrush current | 16.3 A |
| Output current tolerance | +/- 5 % |
| Output ripple current (120 Hz) | ±1.5 % |
| Mains frequency | 0/50/60 Hz |
| Total harmonic distortion | < 10 % 3) |
| Power factor λ | > 0.95 4) |
| ECG efficiency | 90 % |
| Max. ECG no. on circuit breaker 10 A (B) | 20 |
| Max. ECG no. on circuit breaker 16 A (B) | 35 |
| Max. ECG no. on circuit breaker 10 A (C) | 35 |
| Max. ECG no. on circuit breaker 16 A (C) | 55 |
| Surge capability (L/N-Ground) | 2 kV |
| Surge capability (L-N) | 1 kV |
| Galvanic isolation | N-SELV |
| Operating frequency | 0/50/60 Hz |
| Power loss in stand-by mode | ≤0.3 W |
1) Permitted voltage range
2) Default value 50 mA
3) At full load, 220…240 V, 50 Hz
4) Full load at 230 V/50 Hz
| Length | 280.00 mm |
| Mounting hole spacing, length | 267 mm |
| Width | 30.00 mm |
| Height | 21.00 mm |
| Cable cross-section, input side | 0.5…1.5 mm² |
| Cable cross-section, output side | 0.5…1.5 mm² |
| Prewired | No |
| Wire preparation length, input side | 7…9 mm |
| Wire preparation length, output side | 7…9 mm |
| Product weight | 187.00 g |
| Product color | White |
| Casing material | Metal |
| Body material | Metal |
| Ambient temperature range | -30…+60 °C |
| Maximum temperature at tc test point | 80 °C |
| Max.housing temperature in case of fault | <110 °C |
| Temperature range in operation | -30…+60 °C |
| Permitted rel. humidity during operation | 20…90 % |
| ECG lifetime | 100000 h 1) |
| Number of switching cycles | 100000 |
1) At Tc max. - 10°C
| Encapsulated | Yes |
| Product remark | Available from September 2025 |
| Dimmable | Yes |
| Dimming interface | DALI-2 |
| Dimming range | 1…100 % |
| Overheating protection | Yes |
| Overload protection | Yes |
| Short-circuit protection | Yes |
| No-load proof | Yes |
| Max. cable length to lamp/LED module | 0,8 m |
| Suitable for fixtures with prot. class | I |
| Suitable for emergency lighting | Yes |
| Type of connection, output side | Push terminal |
| Approval marks – approval | CE, UKCA, EAC, ENEC, EL |

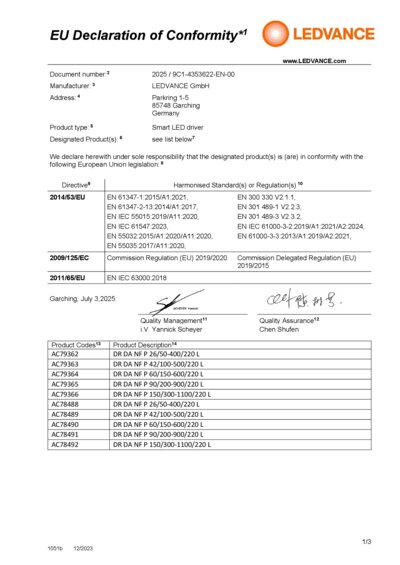

| Standards | Acc. to EN 61347-1, Acc. to EN 61347-2-13, Acc. to EN 55015, Acc. to EN 61547, Acc. to EN 61000-3-2, Acc. to EN 62384 |
| Protection class | I |
| Type of protection | IP20 |
| Temperature range at storage | -40…+80 °C |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|

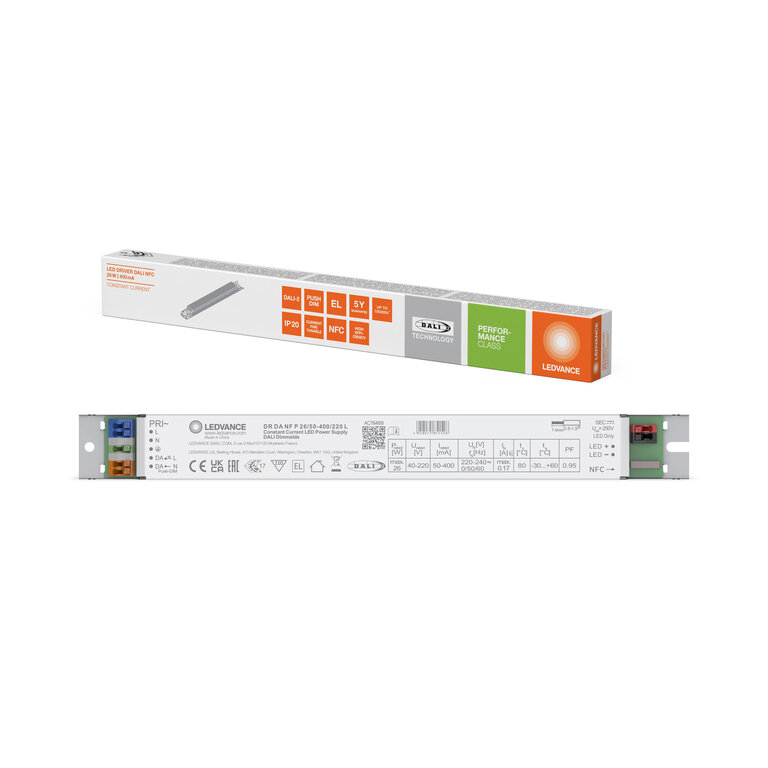

| 4058075851528 | Folding box 1 |
35 mm x 290 mm x 25 mm | 197.00 g | 0.25 dm³ |
| 4058075851535 | Shipping box 20 |
312 mm x 197 mm x 130 mm | 4230.00 g | 7.99 dm³ |
