Choose your product version
| Product description |
|---|

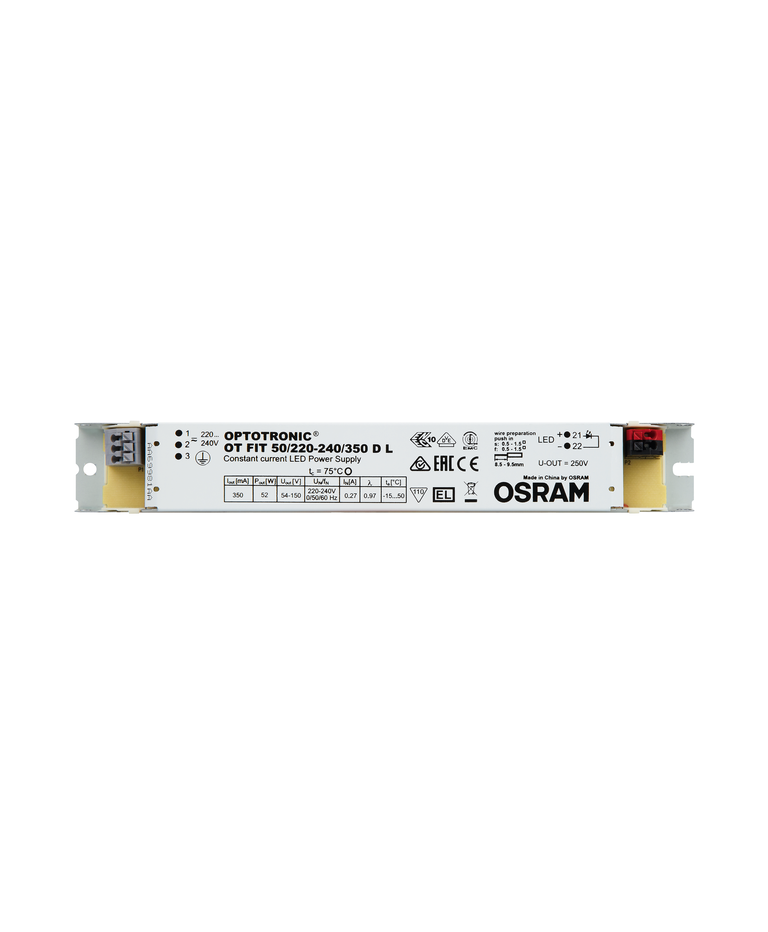

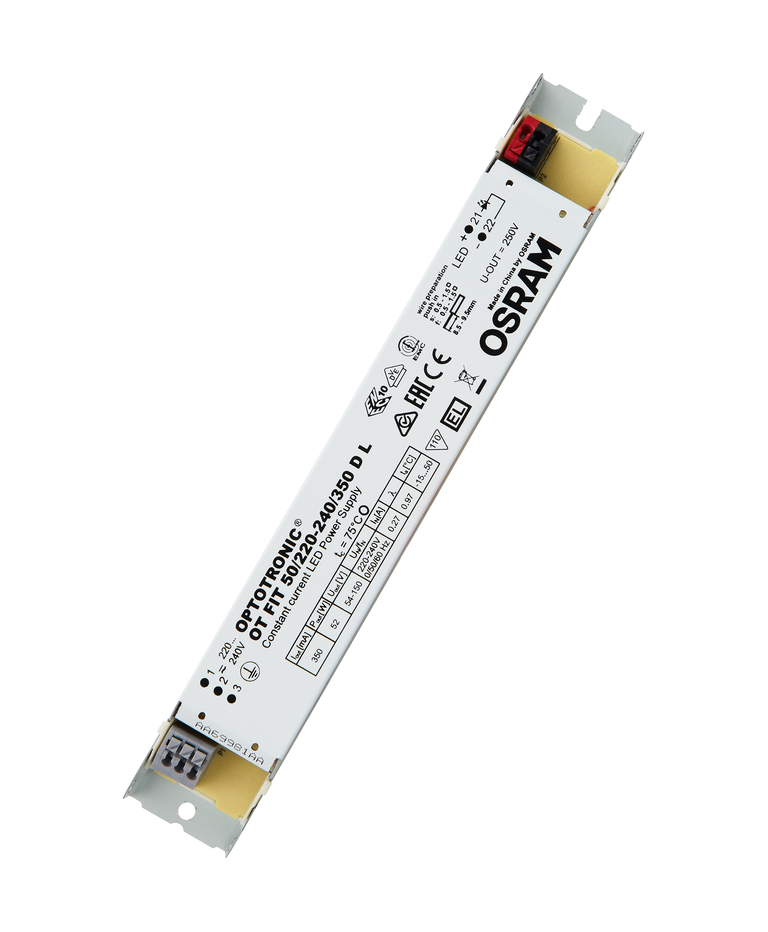

| OT FIT 50/220…240/350 D L |
| OT FIT 50/220…240/250 D L |
| Nominal wattage | 52.50 W |
| Nominal output power | 18.9…52.5 W |
| Nominal voltage | 220…240 V |
| Nominal output voltage | 54…150 V |
| Input voltage AC | 198…264 V 1) |
| Input voltage DC | 176…276 V |
| U-OUT (working voltage) | < 250 V |
| Nominal current | 0.27 A |
| Nominal output current | 350 mA 2) |
| Output current tolerance | ±10 % |
| Output ripple current (100 Hz) | < 10 % |
| Mains frequency | 0/50/60 Hz |
| Total harmonic distortion | < 20 % |
| Power factor λ | > 0.95 3) |
| ECG efficiency | > 90 % 4) |
| Device power loss | 5 W 5) |
| Max. ECG no. on circuit breaker 10 A (B) | 35 |
| Max. ECG no. on circuit breaker 16 A (B) | 56 |
| Max. ECG no. on circuit breaker 25 A (B) | - |
| Surge capability (L/N-Ground) | 2 kV |
| Surge capability (L-N) | 1 kV |
| Galvanic isolation | Non isolated |
| Flickering metric (Pst LM) | ≤1 |
1) Permitted voltage range
2) ±10%
3) Full load at 230 V
4) At full load and 230 V
5) Maximum
| Flickering metric (Pst LM) | ≤1 |
| Stroboscope effect metric (SVM) | ≤0.4 |
| Length | 210.00 mm |
| Mounting hole spacing, length | 200,0 mm |
| Width | 30.00 mm |
| Height | 21.00 mm |
| Cable cross-section, input side | 0.5…1.5 mm² 1) |
| Cable cross-section, output side | 0.5…1.5 mm² 1) |
| Wire preparation length, input side | 8,5…9,5 mm |
| Wire preparation length, output side | 8,5…9,5 mm |
| Product weight | 125.00 g |
1) Solid or flexible leads
| Product color | White |
| Casing material | Metal |
| Body material | Metal |
| Ambient temperature range | -15…+50 °C |
| Maximum temperature at tc test point | 75 °C 1) |
| Max.housing temperature in case of fault | 110 °C |
| Permitted rel. humidity during operation | 5…85 % 2) |
1) Maximum at the Tc-point
2) Maximum 56 days/year at 85 %
| ECG lifetime | 50000 h, 100000 h 1) |
1) At maximum Tc = 75°C / 10% failure rate / At Tc = 65 °C / 10 % failure rate
| Encapsulated | No |
| Dimmable | No |
| Overheating protection | Automatic reversible |
| Overload protection | Automatic reversible |
| Short-circuit protection | Automatic reversible |
| No-load proof | Yes |
| Max. cable length to lamp/LED module | 2,0 m |
| Suitable for fixtures with prot. class | I |
| Suitable for emergency lighting | Yes |
| Type of connection, output side | Push terminal |

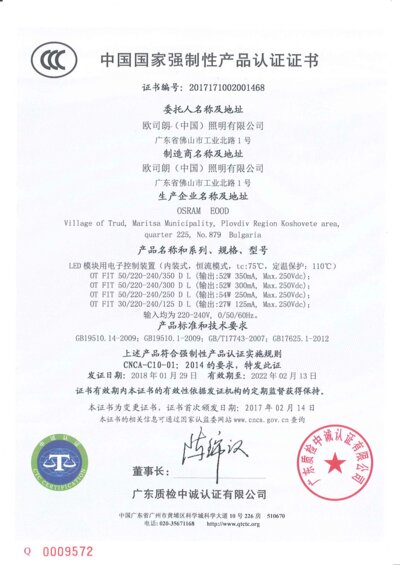

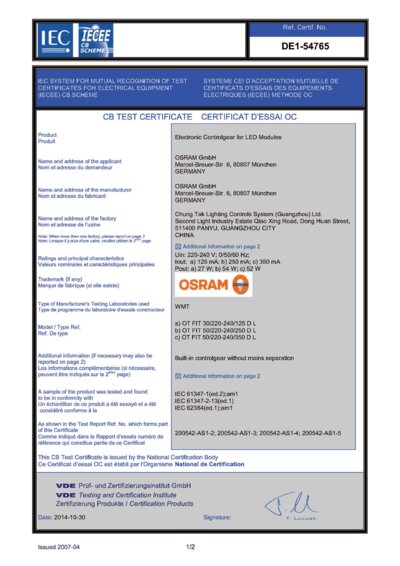

| Approval marks – approval | CE, EL, VDE-EMC, ENEC 10, CCC, RCM |
| Standards | Acc. to EN 61347-1, Acc. to EN 61347-2-13, Acc. to EN 55015, Acc. to EN 61547, Acc. to EN 61000-3-2, Acc. to EN 62384, Acc. to EN 62386 |
| Protection class | 1 |
| Type of protection | IP20 |
| Temperature range at storage | -25…85 °C |
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4052899222595 | Unpacked 1 |
125.00 g | ||
| 4052899222601 | Shipping box 20 |
234 mm x 161 mm x 101 mm | 2665.00 g | 3.81 dm³ |
