Choose your product version
| Nominal wattage | 5.90 W |
| Construction wattage | 5.90 W |
| Nominal voltage | 23.6 V |
| Type of current | DC |
| Nominal current | 0.25 A |
| Luminous efficacy | 196 lm/W |
| Luminous flux | 1142 lm |
| Luminous intensity | 367 cd |
| Nom. useful luminous flux 120° [PICOS] | 1100 lm |
| Color temperature | 4000 K |
| Color rendering index Ra | > 80 |
| Light color LED | White |
| Light color (designation) | Neutral White |
| Standard deviation of color matching | 3 sdcm |
| Rated peak intensity | 367 cd |
| Lumen main.fact.at end of nom.life time | 0.80 |
| Beam angle | 120 ° |
| Rated beam angle (half peak value) | 120.00 ° |
| Warm-up time (60 %) | ‹ 2.00 s |
| Number of LEDs per module | 36 |
| Length | 280.00 mm |
| Width | 20.00 mm |
| Height | 5.00 mm |
| Product weight | 20.00 g |
| Ambient temperature range | -20…+75 °C |
| Maximum temperature at tc test point | 75 °C |
| Temperature range in operation | -20…75 °C |
| Performance temp. acc. to IEC 62717 | 50 °C |
| Nominal lamp life time | 50000 h |
| Number of switching cycles | 100000 |

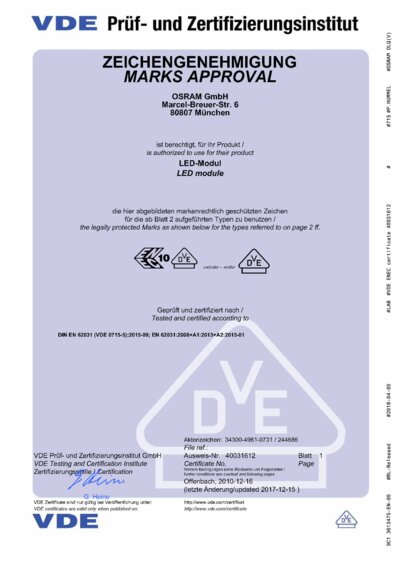

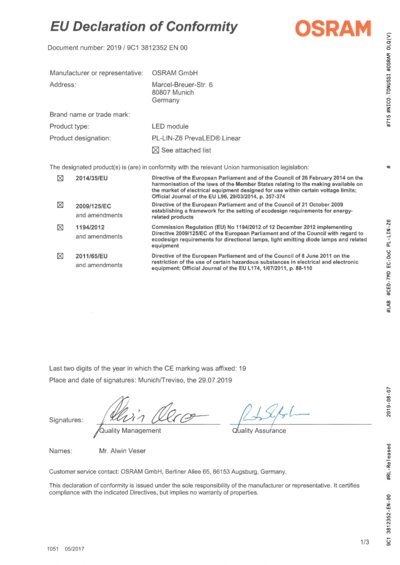

| Standards | CE, ENEC, VDE |
| Type of protection | IP20 |
| Energy consumption | 5.90 kWh/1000h |
| Energy efficiency class | C |
| Energy class of contained light source | C |
| Temperature range at storage | -30…85 °C |
| Lighting technology used | LED |
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4052899606081 | Unpacked 1 |
|||
| 4052899606487 | Shipping box 240 |
588 mm x 380 mm x 125 mm | 5377.00 g | 27.93 dm³ |
| 4062172214667 | Shipping box 60 |
592 mm x 252 mm x 100 mm | 1632.00 g | 14.92 dm³ |
