Choose your product version
| Nominal wattage | 25.30 W |
| Construction wattage | 25.30 W |
| Nominal voltage | 36.2 V |
| Input voltage range | 32.9…40.7 V |
| Type of current | DC |
| Nominal current | 700.000 mA |
| Luminous efficacy | 122 lm/W |
| Luminous flux | 2800 lm 1) |
| Luminous intensity | 14419 cd |
| Color temperature | 3900 K |
| Color rendering index Ra | 80 |
| Light color LED | White |
| Light color (designation) | 4000 K |
| Standard deviation of color matching | 2 sdcm |
| Rated peak intensity | 14419 cd |
1) 90 °
| Beam angle | 20 ° |
| Rated beam angle (half peak value) | 24.00 ° |
| Warm-up time (60 %) | ‹ 2.00 s |
| Number of LEDs per module | 1 |

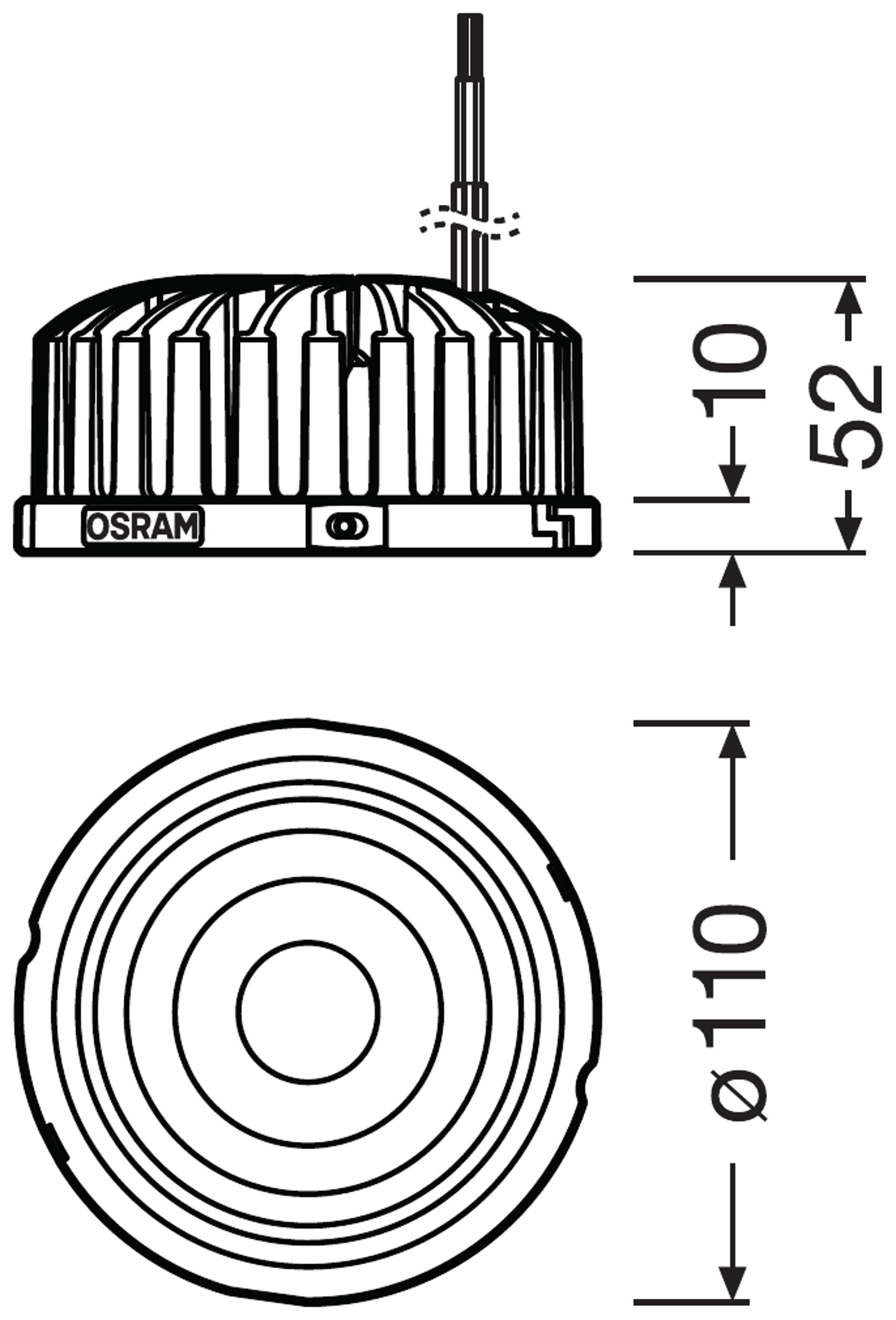

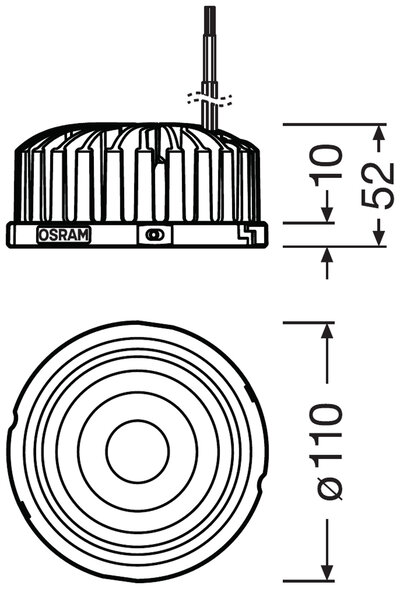

| Length | 110.00 mm 1) |
| Width | 110.00 mm |
| Height | 52.00 mm |
| Diameter | 110,0 mm |
| Product weight | 385.00 g |
1) ±0.5 mm
| Product color | White |
| Ambient temperature range | -25…+40 °C |
| Maximum temperature at tc test point | 90 °C |
| Temperature range in operation | -25…90 °C |
| Performance temp. acc. to IEC 62717 | 65 °C |
| Number of switching cycles | > 15000 |
| Product remark |
Modules perfectly matched to OSRAM OPTOTRONIC® LED drivers (see relevant table), For current photometric data and important safety, installation and application information, see |
| Dimmable | No |
| Standards | Acc. to IEC 62471, Acc. to EN 60598-1, Acc. to EN 60529, Acc. to EN 55015, Acc. to EN 61547, Acc. to EN62031 IEC 605981, CE |
| Type of protection | IP20 |
| Energy consumption | 25.30 kWh/1000h |
| Energy efficiency class | E |
| Energy class of contained light source | E |
| Temperature range at storage | -40…80 °C |
| Lighting technology used | LED |
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4052899621763 | Folding box 1 |
131 mm x 118 mm x 59 mm | 423.00 g | 0.91 dm³ |
| 4052899622395 | Shipping box 12 |
280 mm x 254 mm x 209 mm | 5442.00 g | 14.86 dm³ |
