KIT PrevaLED COIN 111

Choose your product version

4300-830-40D-G1

OVERVIEW

Product description
KIT-CN111-COB 4300-830-40D-G1


KIT-CN111-COB 4300-830-40D-G1

Product benefits

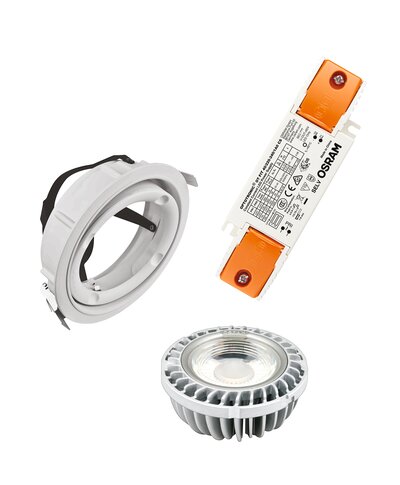

  • Supplied with heat sink, lens optics and ECG
  • Easy to install
  • 7 year guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 40.7 W
Claimed equiv. conventional lamp power 100 W
Nominal voltage 220…240 V
Input voltage range 220…240 V
Type of current AC
Nominal current 1.05 A

Photometrical data

Luminous efficacy 107 lm/W
Luminous flux 4340 lm
Luminous intensity 8370 cd
Color temperature 3000 K
Color rendering index Ra > 80
Light color LED White
Light color (designation) Warm White
Standard deviation of color matching ≤3 sdcm

Light technical data

Beam angle 40 °

LED MODULE INFORMATION

Number of LEDs per module 1

Dimensions & Weight

Length 154 mm
Width 154 mm
Height 86.0 mm
Diameter 154 mm
Product weight 895.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 100 °C
Performance temp. acc. to IEC 62717 75 °C

Additional product data

Product remark Modules perfectly matched to OSRAM OPTOTRONIC® LED drivers (see relevant table), For current photometric data and important safety, installation and application information, see www.osram.com/led-systems., All the technical parameters apply to the entire module. In view of the complex manufacturing process for light emitting diodes, the typical values given above for the technical LED parameters are merely statistical values that do not necessarily correspond to the actual technical parameters of an individual product; individual products may vary from the typical values, Tolerance for optical and electrical data: +/-10%

Capabilities

Dimmable No

Certificates & Standards

Standards CE
Type of protection IP20

LOGISTICAL DATA

Temperature range at storage -40…80 °C

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Supplied with heat sink, lens optics and ECG
  • Easy to install
  • 7 year guarantee
Areas of application
  • Complete solution for demanding general illumination and spotlight applications
  • LED replacement for halogen and HCI reflector lamps
  • Hospitality, hotels, restaurants
  • Shop lighting
  • Museums, galleries
Product features
  • Professional LED solution ready to install
  • Versions with high color rendering and high luminous flux available
  • Cardanic, matt white installation ring
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4052899990845 Folding box
1		 1065.00 g
4052899990852 Shipping box
10		 501 mm x 296 mm x 347 mm 11101.00 g 51.46 dm³

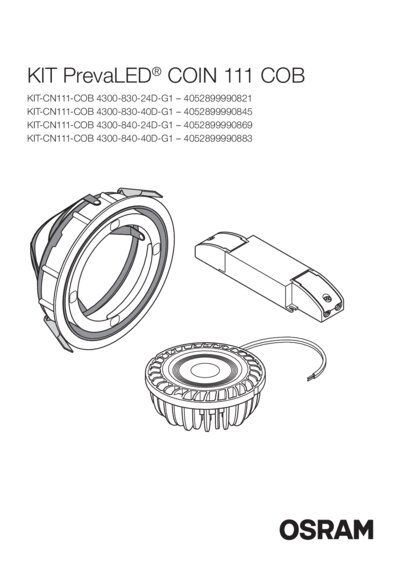

User instruction / safety instructions
KIT PrevaLED COIN 111 COB PDF (3.07 MB)
Product image: white background, diagonal, alternative image
Kit Coin 111 JPG (9.97 MB)
Product line drawing with numbers
COIN 111 COB G1 SVG (81.92 KB)
