PrevaLED Cube AC G4

Choose your product version

-G4-1100-840

-G4-2000-830

OVERVIEW

Product description
PL-CUBE-AC -G4-1100-840
PL-CUBE-AC -G4-2000-830


PL-CUBE-AC -G4-1100-840

Product benefits
  • Enables low-cost and compact luminaire designs
  • Low profile
  • Future-proof dimensions for reliable designs
  • Near Lambertian light distribution at 110° beam angle for high quality of light
  • Protection against overheating due to thermal derating
  • 5 year guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 10.50 W
Construction wattage 10.50 W
Nominal voltage 230 V
Input voltage range 220…240 V
Type of current AC
Nominal current 45.000 mA
Flickering metric (Pst LM) ≤1

Photometrical data

Luminous efficacy 115 lm/W
Luminous flux 964 lm 1)
Luminous intensity 423 cd
Color temperature 4000 K
Color rendering index Ra 80
Light color LED Neutral White
Light color (designation) Neutral White
Standard deviation of color matching ≤3 sdcm
Rated peak intensity 423 cd
Flickering metric (Pst LM) ≤1
Stroboscope effect metric (SVM) ≤0.9

1) 120 °

Light technical data

Beam angle 110 °
Warm-up time (60 %) ‹ 2.00 s

Dimensions & Weight

Length 82.80 mm
Width 81.60 mm
Height 21.10 mm
Product weight 60.00 g

Colors & materials

Product color White

Temperatures & operating conditions

Ambient temperature range -20…+50 °C 1)
Maximum temperature at tc test point 90 °C
Temperature range in operation -20…90 °C 2)
Performance temp. acc. to IEC 62717 70 °C

1) Ta(rated) = 25 °C
2) At the Tc point

Lifespan

Nominal lamp life time 50000 h
Number of switching cycles 100000

Capabilities

Dimmable No

Certificates & Standards

Standards CE, ENEC
Type of protection IP20
Energy consumption 10.50 kWh/1000h
Energy efficiency class F
Energy class of contained light source F

LOGISTICAL DATA

Temperature range at storage -20…85 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Enables low-cost and compact luminaire designs
  • Low profile
  • Future-proof dimensions for reliable designs
  • Near Lambertian light distribution at 110° beam angle for high quality of light
  • Protection against overheating due to thermal derating
  • 5 year guarantee
Areas of application
  • Suitable for diffuser and reflector luminaires
  • Hospitality, hotels, restaurants
  • Public and commercial buildings
  • Offices
  • Secondary rooms, garages, storerooms, cellars
Product features
  • Mains voltage driven LED engine
  • Integrated control gear
  • Diameter of light emitting surface: 61 mm
  • Common mechanic and photometric interfaces
  • Initial color consistency: < 3 SDCM
  • Lifetime (L70/B50): 50,000 h (temperature at Tc = 70 °C)
  • LED module is reinforced isolated to mounting surface
  • Photobiological safety according to IEC/TR 62778, risk group RG1
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4062172239479 Unpacked
1
4062172239486 Shipping box
20		 481 mm x 393 mm x 51 mm 1432.00 g 9.64 dm³
User instruction / safety instructions
20486769 PrevaLED Cube -AC G4 PDF (2.35 MB)

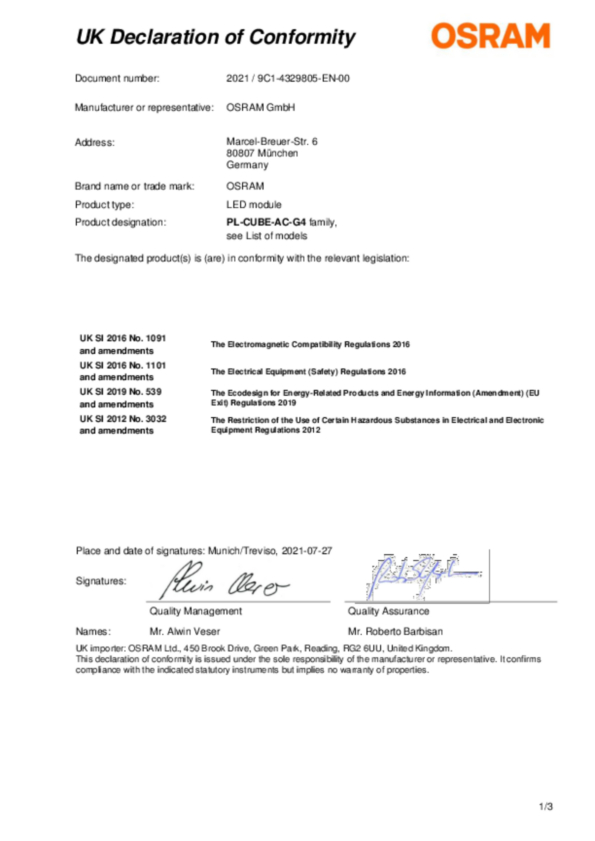

Certificates
PL-CUBE-AC -G4-1100-83 0 JPG (104.78 KB)

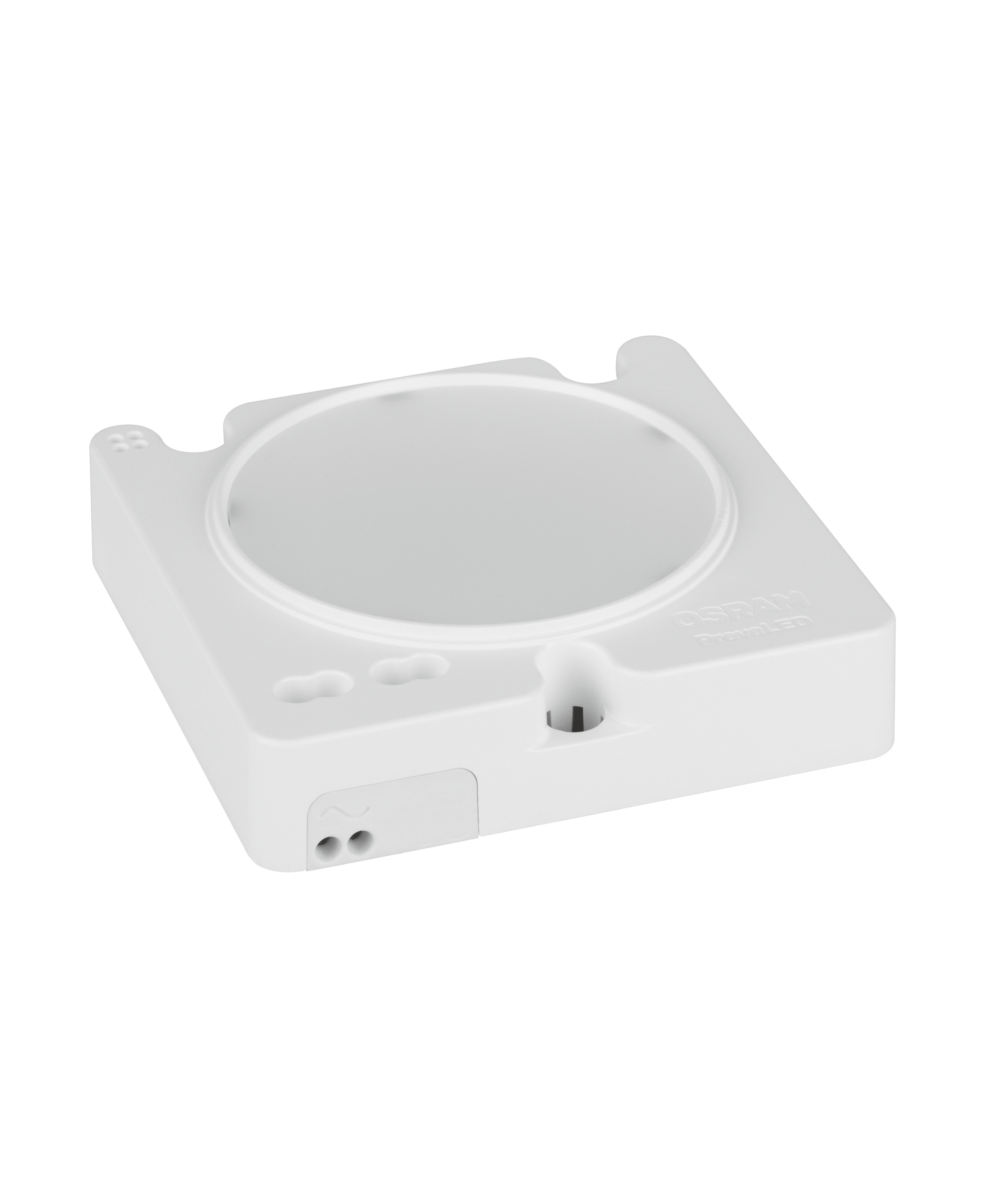

Product image: white background, diagonal
469185 643027 PL-CUBE- AC-XX00-8X0-230V-G3 JPG (517.19 KB)
Product line drawing with numbers
469261 643102 PL-CUBE- AC-XX00-8X0-230V-G3 SVG (43.91 KB)
Product line drawing with numbers
469258 643099 PL-CUBE- AC-XX00-8X0-230V-G3 SVG (40.83 KB)
Product line drawing, front, no dimensions
469264 643105 PL-CUBE- AC-XX00-8X0-230V-G3 SVG (20.76 KB)
Energy label
EL-4062172239479 PDF (71.58 KB)
EAN SEG number
4062172239479 8220107
