LC RF REMOTE RGBW

Choose your product version

REMOTE RGBW

OVERVIEW

Product description
LC RF REMOTE RGBW


LC RF REMOTE RGBW

Product benefits
  • Color change via touch wheel
  • Dimming of the set light colors
  • Control up to 4 zones
  • Separate control of the colors red, green, blue and white
  • Including wall bracket, battery (CR2032) and accessories
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 0.15 W
Nominal voltage 3 V
Type of current DC
Mains frequency 0 Hz
Operating frequency 2.4 GHz

Dimensions & Weight

Length 107.00 mm
Width 58.50 mm
Height 9.00 mm
Product weight 60.00 g

Colors & materials

Product color White

Temperatures & operating conditions

Ambient temperature range -30…+55 °C

Capabilities

Dimmable No
Overheating protection No
Transmitter range 30 m

Certificates & Standards

Approval marks – approval CE, EMC, LVD, RED
Standards Acc. to EN 300328, Acc. to EN 301489, Acc. to EN 60950, Acc. to EN 62479
Protection class III
Type of protection IP20

LOGISTICAL DATA

Temperature range at storage -30…+55 °C

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Color change via touch wheel
  • Dimming of the set light colors
  • Control up to 4 zones
  • Separate control of the colors red, green, blue and white
  • Including wall bracket, battery (CR2032) and accessories
Areas of application
  • General illumination
  • Architecture lighting
  • Dynamic light as an architectural effect in public zones
  • Cove lighting
  • Hotels
  • Offices
  • Residential interiors
Product features
  • Radio hand transmitter for the control of RGB and RGBW LED modules
  • Input voltage 3V - battery CR2032
  • Output signal: 2.4 GHz
Safety advice
  • All electrical connections must be made by a qualified person.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075435858 Folding box
1		 114 mm x 65 mm x 20 mm 72.00 g 0.15 dm³
4058075435865 Shipping box
10		 140 mm x 113 mm x 125 mm 787.00 g 1.98 dm³
4058075509818 Shipping box
120		 290 mm x 240 mm x 410 mm 9990.00 g 28.54 dm³

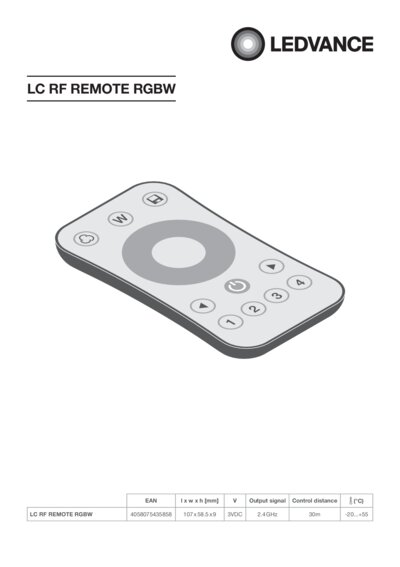

User instruction / safety instructions
LC RF REMOTE RGBW PDF (3.81 MB)

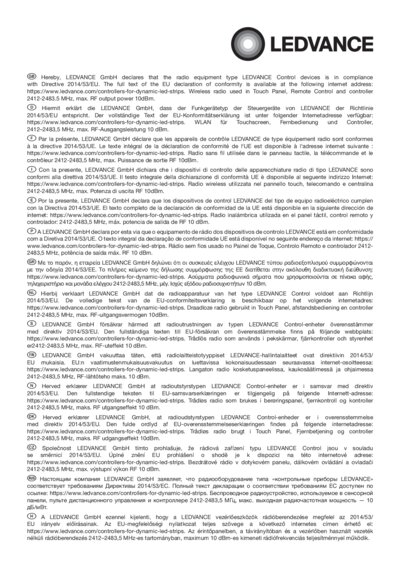

Legal information
LC RF Legal Insert PDF (2.69 MB)

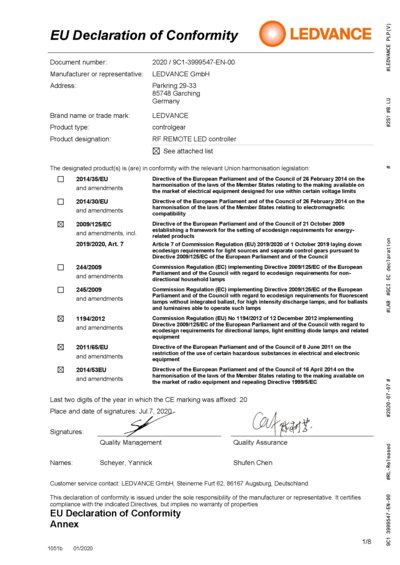

Declarations of conformity
LC RF REMOTE RGBW, TW PDF (225.04 KB)

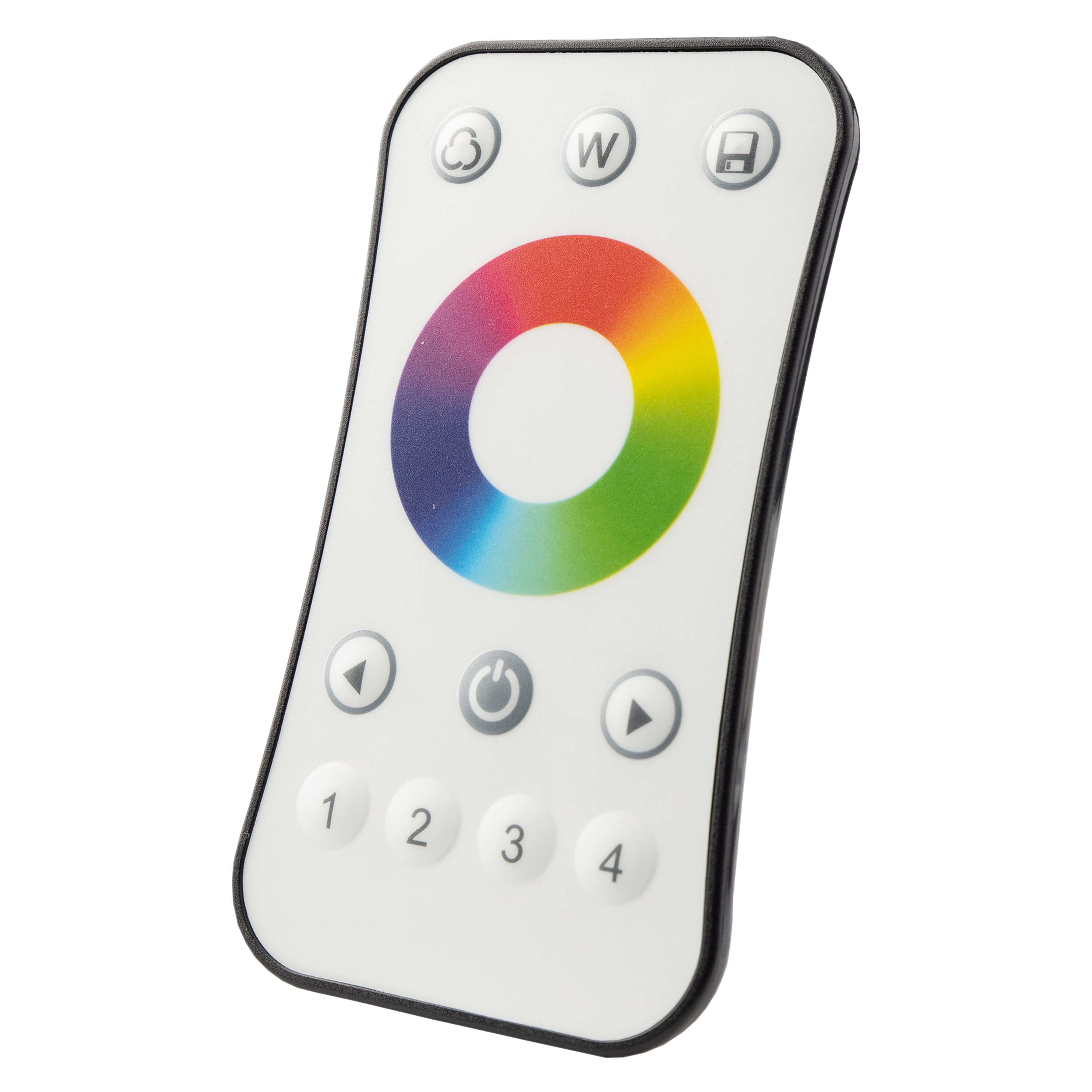

Product image: white background, diagonal
MS-CV-DIM RF 12/24V RG B RM JPG (1.5 MB)

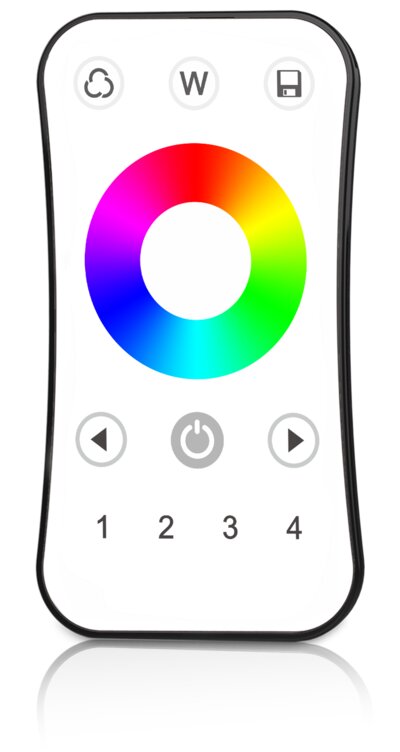

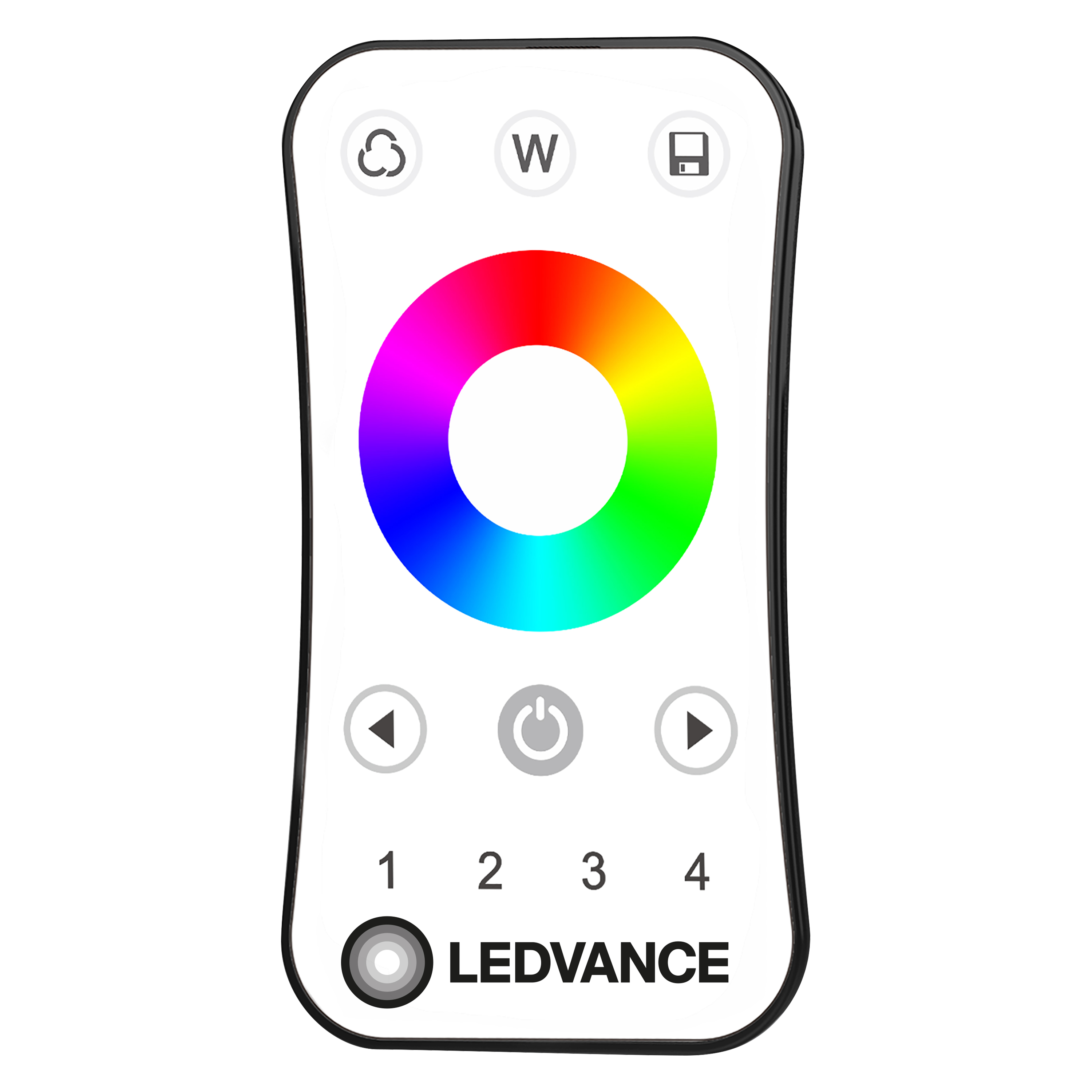

Product image: white background, horizontal
LC RF REMOTE RGBW JPG (1.02 MB)

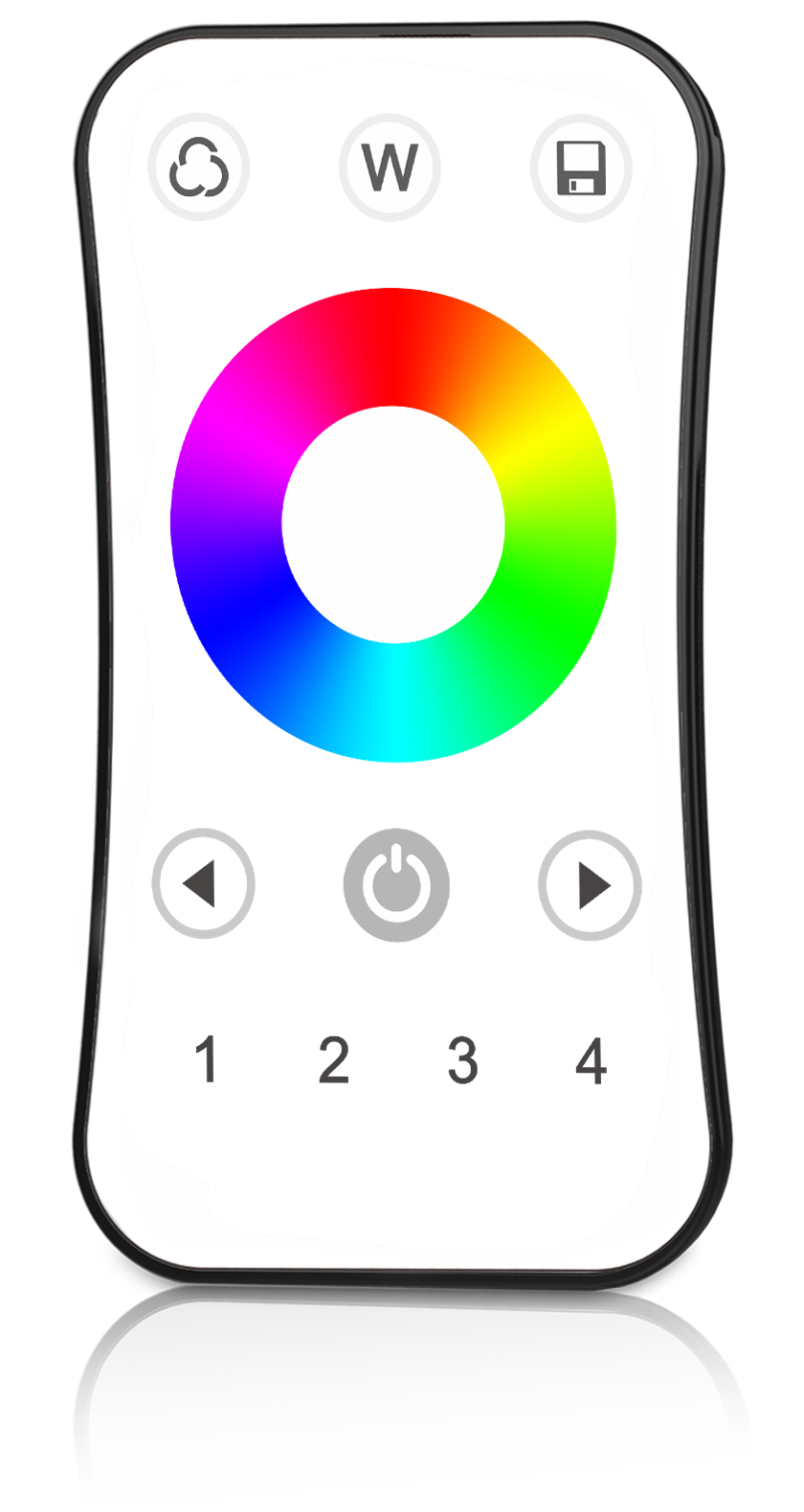

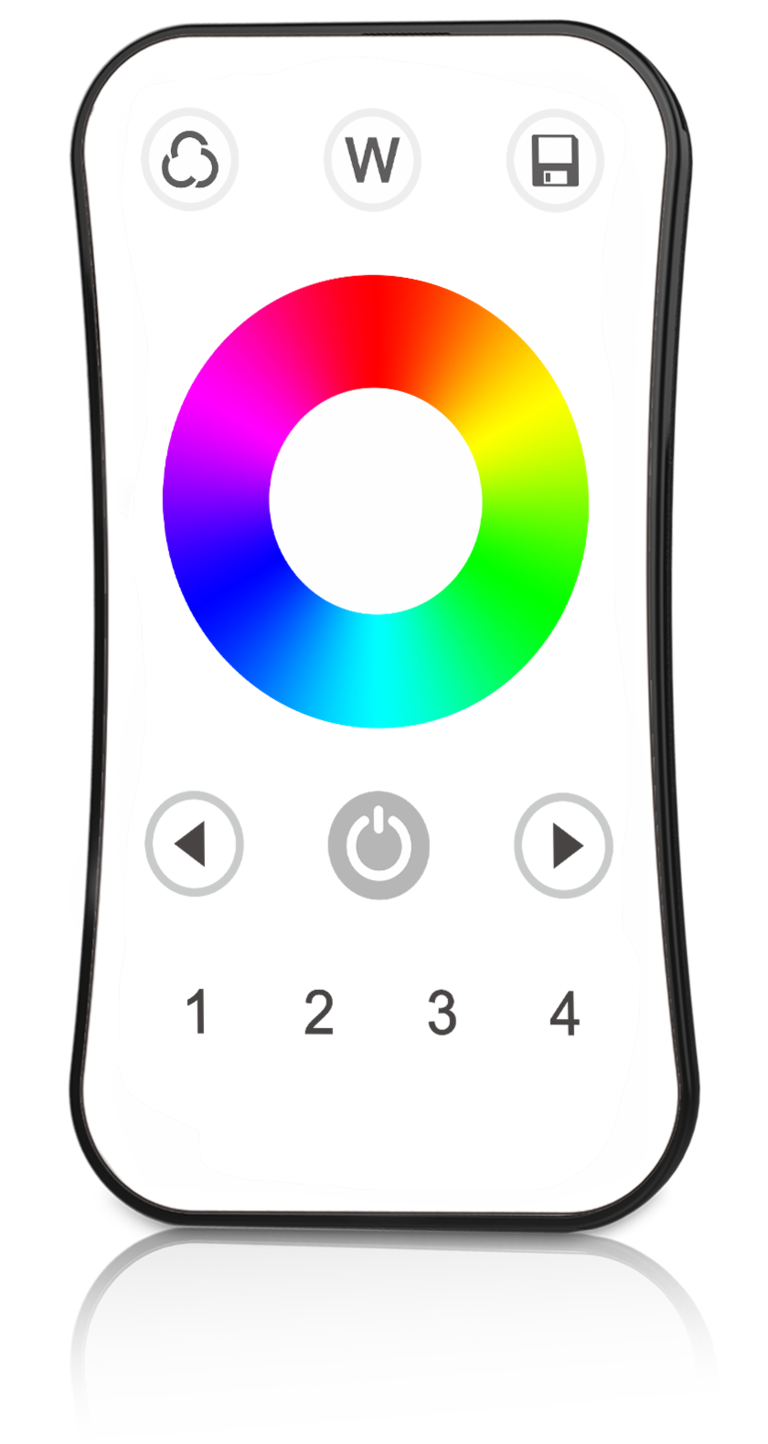

Product image: white background, upright
LC RF REMOTE RGBW PNG (387.53 KB)
Product line drawing with letters
LC RF REMOTE SVG (7.3 KB)
Product line drawing with numbers
LC RF REMOTE SVG (9.9 KB)
Product line drawing, front, no dimensions
LC RF REMOTE SVG (2.86 KB)
EAN SEG number STK number EFO number ELDAS number
4058075435858 7985306 4031438 6600970 919100160
