LC RF TOUCH PANEL TW

Choose your product version

TOUCH PANEL TW 220-240

OVERVIEW

Product description
LC RF TOUCH PANEL TW 220-240


LC RF TOUCH PANEL TW 220-240

Product benefits
  • Ultra sensitive high strength glass touch panel with touch color temperature slide in the middle and backlighting.
  • Control up to 4 zones
  • Dimming of the set light colors
  • Easy replaceable for standard light switch
View all details

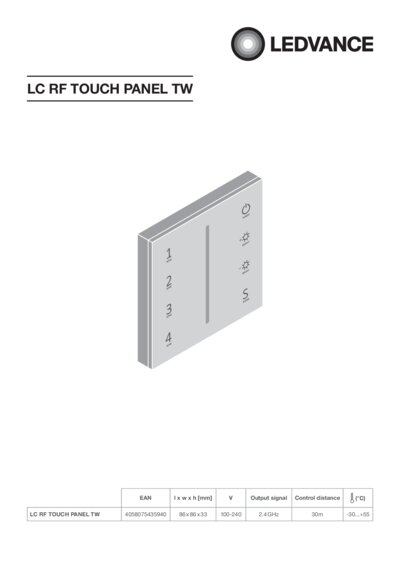

Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 23.00 W
Nominal voltage 100…240 V
Type of current AC
Mains frequency 50…60 Hz
Operating frequency 2.4 GHz

Dimensions & Weight

Length 86.00 mm
Width 86.00 mm
Height 33.00 mm
Product weight 230.00 g

Colors & materials

Product color White

Temperatures & operating conditions

Ambient temperature range -30…+55 °C

Additional product data

Mounting location Wall

Capabilities

Dimmable No
Overheating protection No
Type of installation Mounting/Wall
Transmitter range 30 m

Certificates & Standards

Approval marks – approval CE, EMC, LVD, RED, RF
Protection class II
Type of protection IP20

LOGISTICAL DATA

Temperature range at storage -30…+55 °C

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Ultra sensitive high strength glass touch panel with touch color temperature slide in the middle and backlighting.
  • Control up to 4 zones
  • Dimming of the set light colors
  • Easy replaceable for standard light switch
Areas of application
  • General illumination
  • Architecture lighting
  • Dynamic light as an architectural effect in public zones
  • Cove lighting
  • Hotels
  • Offices
  • Residential interiors
Product features
  • Radio wall control Touch panel for controlling Tunable White LED modules
  • Output signal: 2.4 GHz
  • Input voltage: 100…240 V
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075435940 Folding box
1		 110 mm x 110 mm x 50 mm 259.00 g 0.61 dm³
4058075435957 Shipping box
10		 265 mm x 120 mm x 235 mm 2468.00 g 7.47 dm³
4058075509849 Shipping box
40
User instruction / safety instructions
LC RF TOUCH PANEL TW PDF (4.1 MB)
Legal information
LC RF Legal Insert PDF (2.69 MB)
Declarations of conformity
LC RF TOUCH PANEL RGBW , TW PDF (178.08 KB)

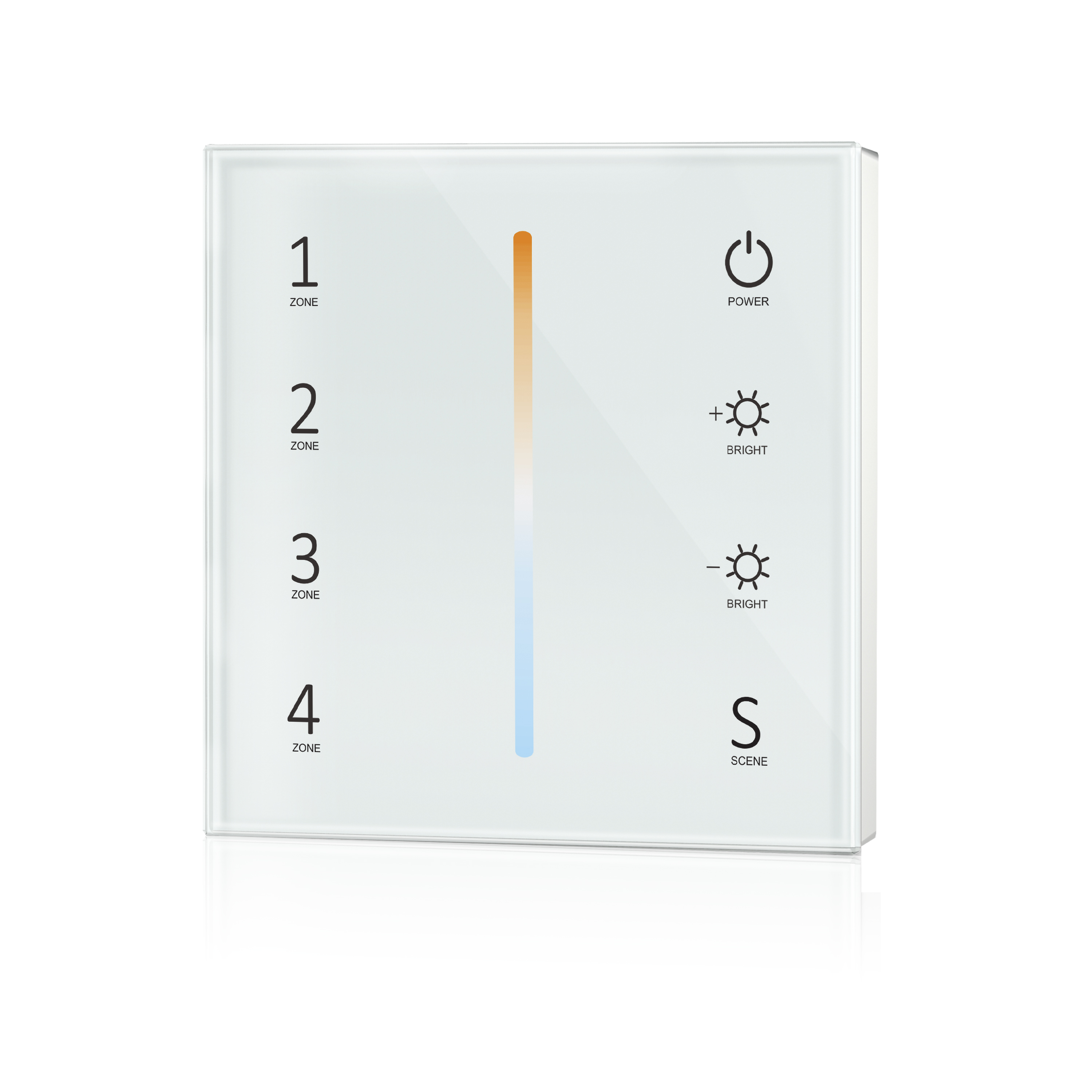

Product image: white background, horizontal
LC RF TOUCH PANEL TW PNG (2.29 MB)
Product line drawing with letters
LC RF TOUCH PANEL SVG (8.83 KB)
Product line drawing with letters
LC RF TOUCH PANEL TW SVG (8.83 KB)
Product line drawing with numbers
LC RF TOUCH PANEL SVG (14.44 KB)
Product line drawing with numbers
LC RF TOUCH PANEL TW SVG (14.44 KB)
Product line drawing, front, no dimensions
LC RF TOUCH PANEL SVG (4.59 KB)
Product line drawing, front, no dimensions
LC RF TOUCH PANEL TW SVG (4.59 KB)
EAN STK number EFO number ELDAS number
4058075435940 4031440 6600971 919100190
