LED STRIP CONTROL DIRECT

Choose your product version

Coming soon

TW RGB ZB

OVERVIEW

Product description
LED STRIP CONTROL DIRECT TW RGB ZB
Coming soon


LED STRIP CONTROL DIRECT TW RGB ZB

Product benefits
  • Slim Design for easy installation in narrow places
  • Control DIM, TW or RGB LED Strips wirelessly without the need for control cables
  • Zigbee 3.0 certified device for integration to any 3rd party Zigbee Control System
  • Works without gateway in Direct Easy or with Vivares Zigbee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 480.00 W
Nominal output power 480 W 1)
Nominal voltage 12…24 V
Input voltage DC 12…24 V
Type of current DC
Nominal current 20 A
Mains frequency 50/60 Hz
Total harmonic distortion < 20 %
Power factor λ > 0.9

1) Related to 24V input

Dimensions & Weight

Length 145.00 mm
Width 47.00 mm
Height 16.00 mm
Cable cross-section, input side 0.5…1.5 mm²
Wire preparation length, input side 6…7 mm
Product weight 79.00 g

Colors & materials

Product color White
Body material Polycarbonate (PC)

Temperatures & operating conditions

Ambient temperature range -20…+50 °C
Maximum temperature at tc test point 75 °C
Temperature range in operation -20…+50 °C

Additional product data

Product remark Available from September 2025

Capabilities

Dimmable Yes
Dimming interface Zigbee Direct, IoT
Overload protection No
Number of control outputs 5

Certificates & Standards

Standards CE, ROHS, REACH, UKCA
Protection class III
Type of protection IP20

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Slim Design for easy installation in narrow places
  • Control DIM, TW or RGB LED Strips wirelessly without the need for control cables
  • Zigbee 3.0 certified device for integration to any 3rd party Zigbee Control System
  • Works without gateway in Direct Easy or with Vivares Zigbee
Areas of application
  • Cove lighting
  • Architecture lighting
  • General illumination
  • Hotels
  • Offices
  • Residential interiors
Product features
  • Zigbee 3.0 certified control device for LED Strips
  • 5 channels for DIM, TW or RGB and TW Control
  • Overtemperature protection
  • High power per channel up to 96 W possible
  • Input Voltage 12...24 V
  • Direct commissioning via bluetooth possible
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
References / Links
  • For current information see www.ledvance.com/light-management-systems
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854550386 Folding box
1		 147 mm x 50 mm x 25 mm 119.00 g 0.18 dm³
4099854550393 Shipping box
100		 380 mm x 270 mm x 280 mm 12900.00 g 28.73 dm³
User instruction / safety instructions
LED STRIP CONTROL DIRE CT TW RGB ZB PDF (3.05 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Legal information

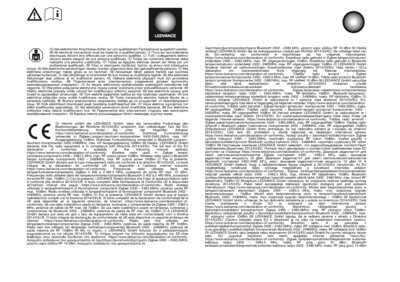

Safety Insert LED STRI P CONTROL DIRECT TW RG B ZB PDF (267.25 KB)
Legal information
App Download guide PDF (2.21 MB)
Declarations of conformity
LED STRIP CONTROL DIRE CT TW RGB ZB PDF (286.85 KB)

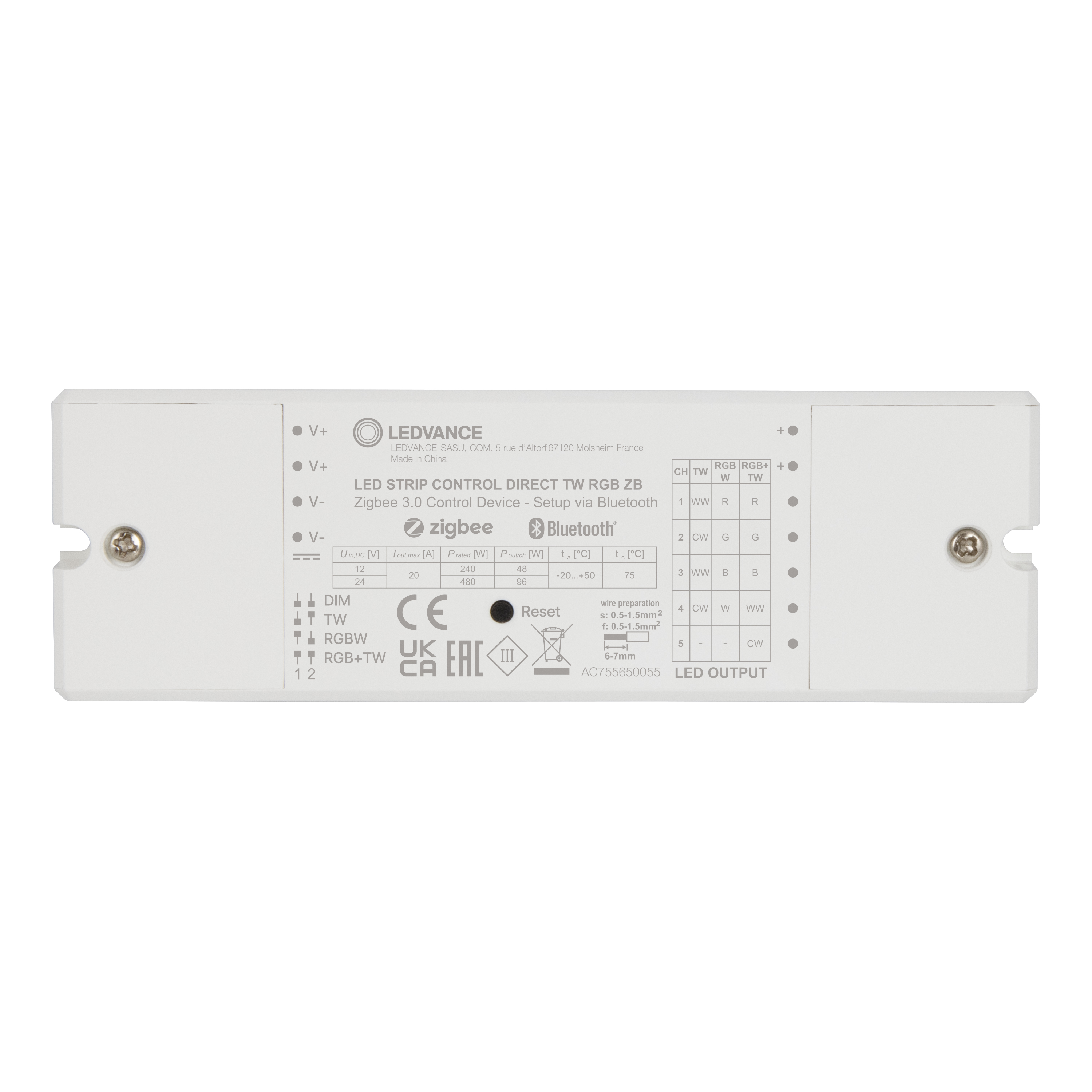

Product image: white background, horizontal
LED STRIP CONTROL DIRE CT TW RGB ZB JPG (895.86 KB)

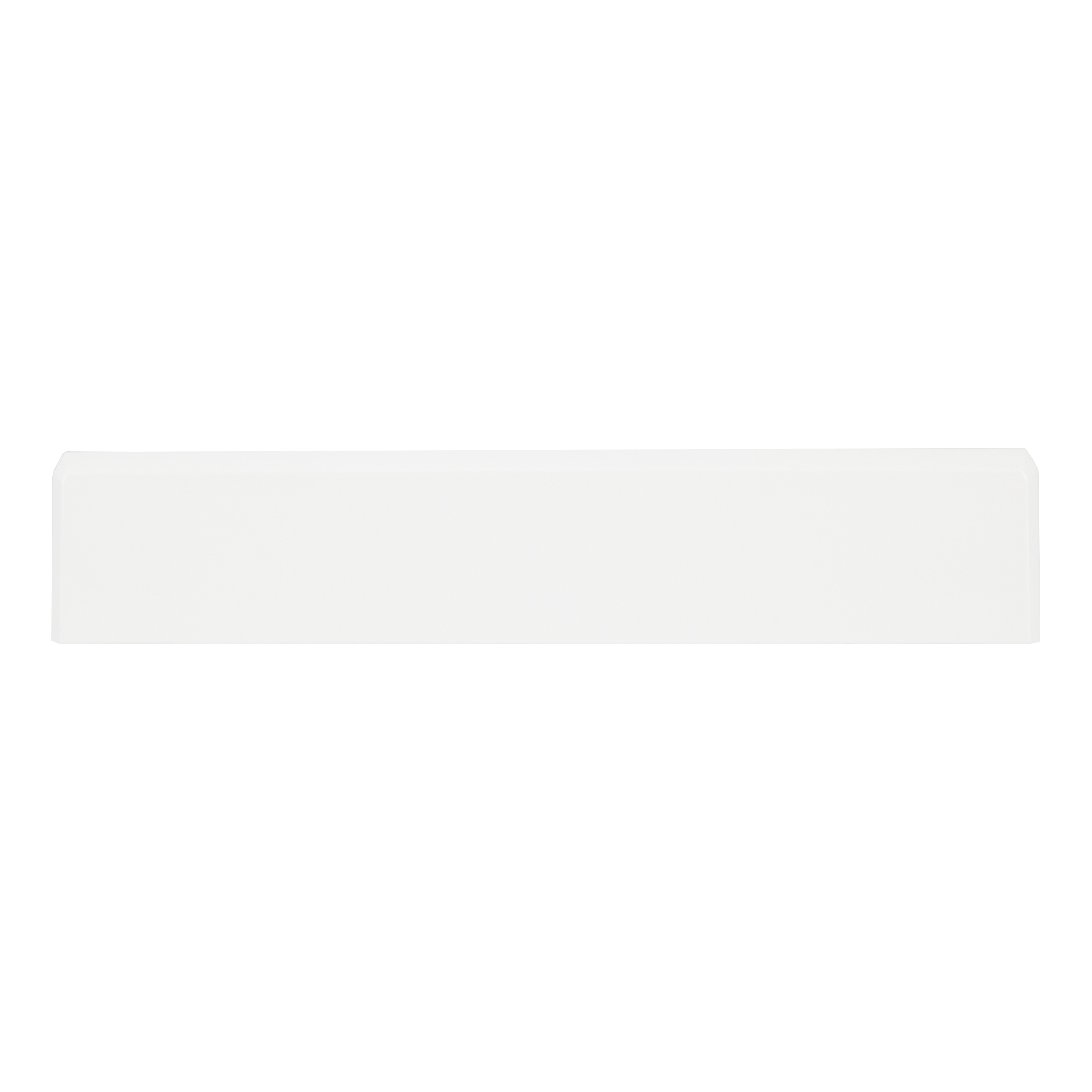

Product image: white background, horizontal
LED STRIP CONTROL DIRE CT TW RGB ZB JPG (1.1 MB)

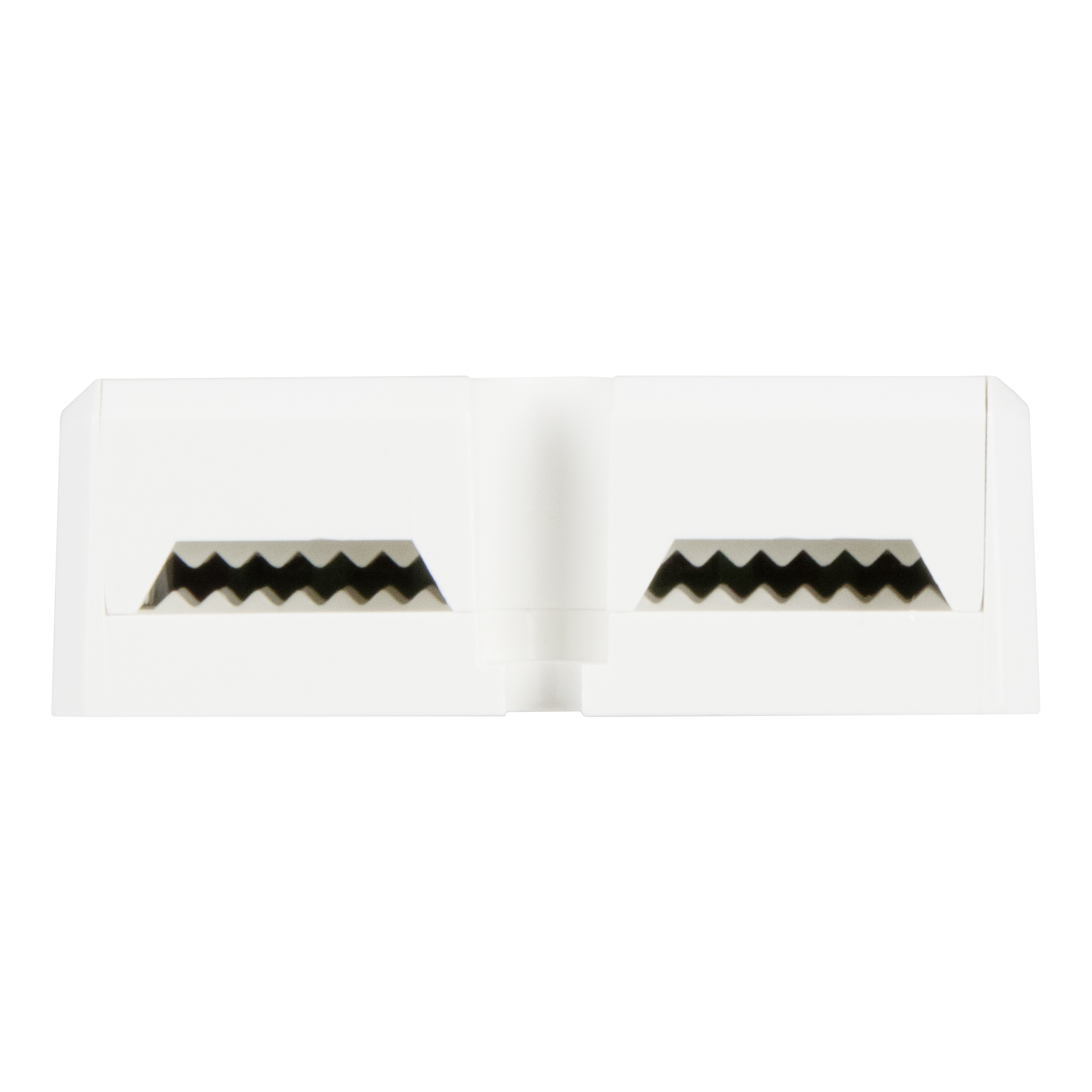

Product image: white background, upright
LED STRIP CONTROL DIRE CT TW RGB ZB JPG (1.46 MB)

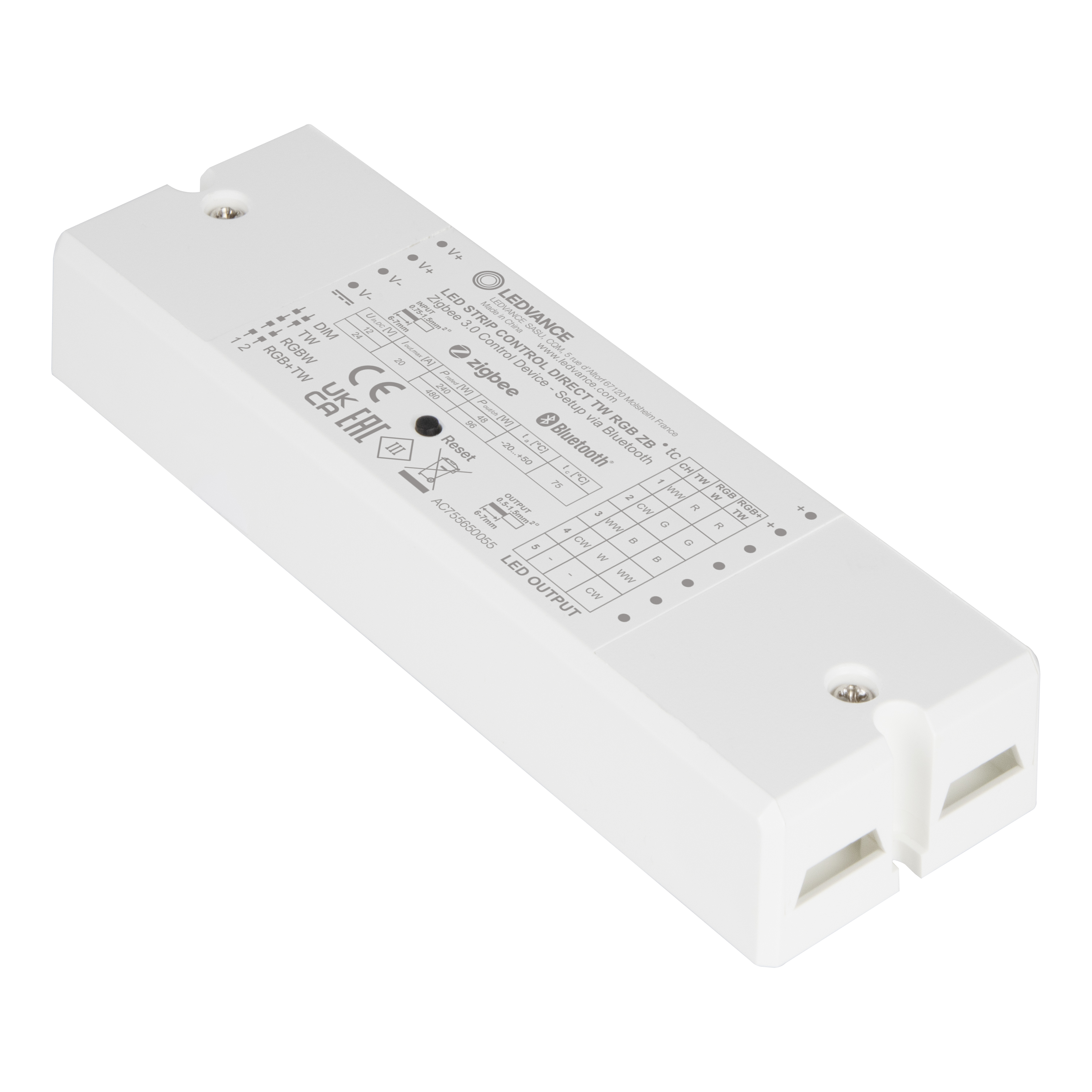

Product image: white background, spacial
