Y-CONNECTOR

Choose your product version

MULTI3

OVERVIEW

Product description
Y-CONNECTOR MULTI3


Y-CONNECTOR MULTI3

Product benefits
  • For parallel connection of sensors to a MULTIeco, MULTI 3, DALIeco system
  • Enables synchronization and connection of multiple EASY system components
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 1.00 W
Mains frequency 0 Hz

Dimensions & Weight

Length 34.00 mm
Width 18.00 mm
Height 16.00 mm
Product weight 80.00 g

Capabilities

Dimmable No

Certificates & Standards

Approval marks – approval CE
Protection class III
Type of protection IP20

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • For parallel connection of sensors to a MULTIeco, MULTI 3, DALIeco system
  • Enables synchronization and connection of multiple EASY system components
Areas of application
  • Suitable for all OSRAM components with modular 4p4c connector system
Product features
  • Passive distributor
  • Connections: 3x modular 4p4c socket
  • Type of installation: Adhesive pad mounting on smooth surfaces
Equipment / Accessories
  • 2 connecting cables included, modular 4p4c connector on both ends, length 2.1 m
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4050300803135 Folding box
1		 215 mm x 35 mm x 43 mm 92.00 g 0.32 dm³
4050300803142 Shipping box
25		 224 mm x 190 mm x 220 mm 2465.00 g 9.36 dm³

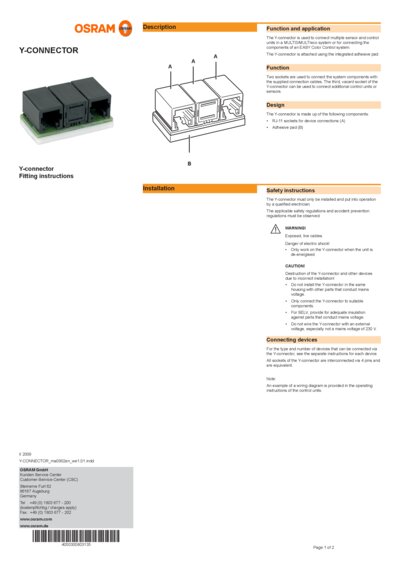

User instruction / safety instructions
334148_Y-CONNECTOR – b ranch element PDF (314.68 KB)
Declarations of conformity
334067_LMS MULTI3 SENS ORS PDF (425.01 KB)

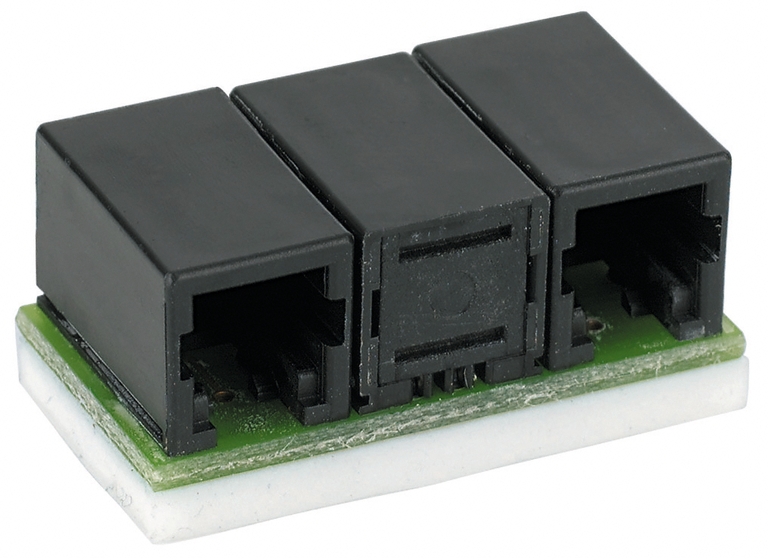

Product image: white background, diagonal
36421_Y-CONNECTOR MULT I 3 TIF (3 MB)
Product line drawing with letters
326417_Y-CONNECTOR SVG (9.83 KB)
EAN SEG number STK number EFO number ELDAS number
4050300803135 7980188 3511210 3322010 919000060
