DALIeco Control

Choose your product version

CONTROL

OVERVIEW

Product description
DALIECO CONTROL


DALIECO CONTROL

Product benefits
  • VDE/VDE EMC certified system
  • Simplified startup thanks to predefined operation modes
  • Automatic and manual setting of regulation set point
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 4.00 W
Nominal voltage 230 V
Mains frequency 50/60 Hz

Dimensions & Weight

Length 118.00 mm
Mounting hole spacing, length 110,0 mm
Width 30.00 mm
Height 21.00 mm
Product weight 48.5 g

Temperatures & operating conditions

Ambient temperature range -20…+50 °C

Additional product data

Number of control outputs 2

Capabilities

Dimmable No
Dimming interface DALI
Type of installation Luminaire integration

Certificates & Standards

Approval marks – approval CE
Protection class II
Type of protection IP20

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • VDE/VDE EMC certified system
  • Simplified startup thanks to predefined operation modes
  • Automatic and manual setting of regulation set point
Areas of application
  • Offices
  • Classrooms
  • Training rooms
  • Corridors
  • Ceiling or independent installation via ECO CI KIT possible
Product features
  • 2 channel light control with DALI interface
  • Daylight-dependent regulation and presence-dependent control of light
  • 100 hours burn-in function for fluorescent lamps
  • Operation via standard pushbutton or IR remote control
  • Outputs with adjustable offset
  • Outputs with electronical reversible overtemperature, short-circuit, overload protection
  • Connection of up to 4 DALIeco LS/PD LI or 6 DALI LS/PD LI sensors
  • Connection of up to 4 light and presence sensors via 4p4c plug system
  • Individual adjustment of functional parameters via IR remote control
  • Halogen free polycarbonate plastic housing
  • Sensor connection via polarity reversal protected 4p4c socket (RJ10)
Equipment / Accessories
  • Suitable for up to 32 electronic control gears
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4008321988645 Folding box
1		 45 mm x 45 mm x 170 mm 111.50 g 0.34 dm³
4008321789297 Shipping box
25		 240 mm x 238 mm x 189 mm 3194.00 g 10.80 dm³

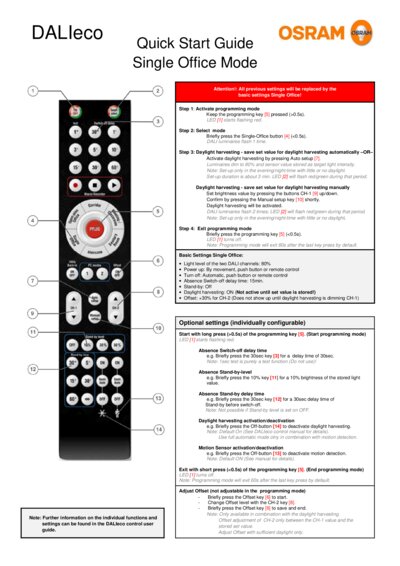

User instruction / safety instructions
350950_DALIeco Quickst artguide (GB) PDF (510.41 KB)
User instruction / safety instructions
507082_Operating instr uctions DALIeco contro l_ NORDIC PDF (5.5 MB)

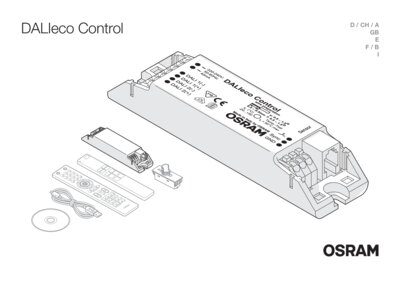

User instruction / safety instructions
507081_Operating instr uctions DALIeco contro l_WEU PDF (6.42 MB)

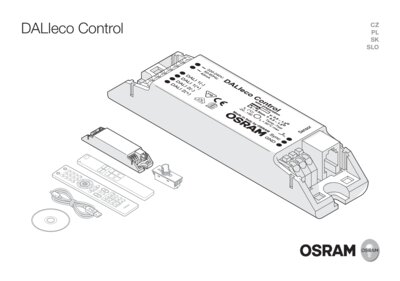

User instruction / safety instructions
507083_Operating instr uctions DALIeco contro l_EEU PDF (5.51 MB)
Declarations of conformity
341817_CE_declaration_ DALIecosystem PDF (1.54 MB)
Declarations of conformity
EU Declaration of Conf ormity 2019_9C1_287458 8_EN_09 PDF (1.13 MB)

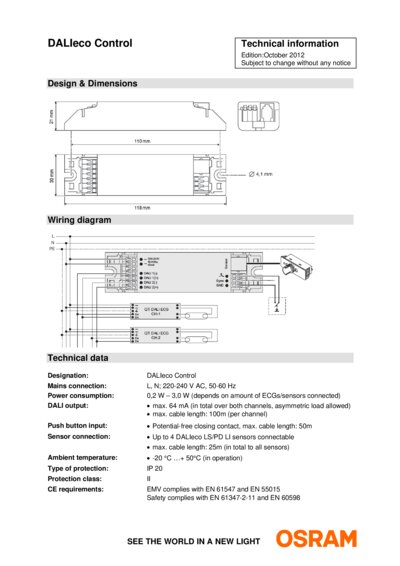

PRODUCT DATASHEET
341826_DALIeco Control datasheet (GB) PDF (115.7 KB)
EU Data Act
Connected Products and Related Software and Services PDF (346.28 KB)

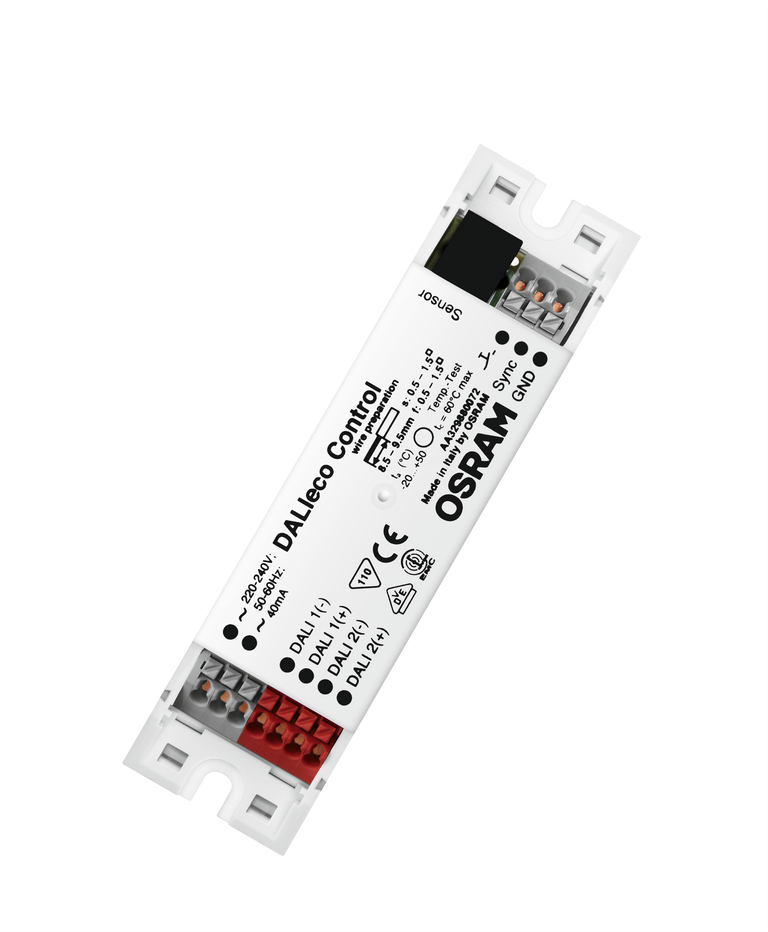

Product image: white background, diagonal
338458_DALIeco Control (EN) TIF (53.14 MB)

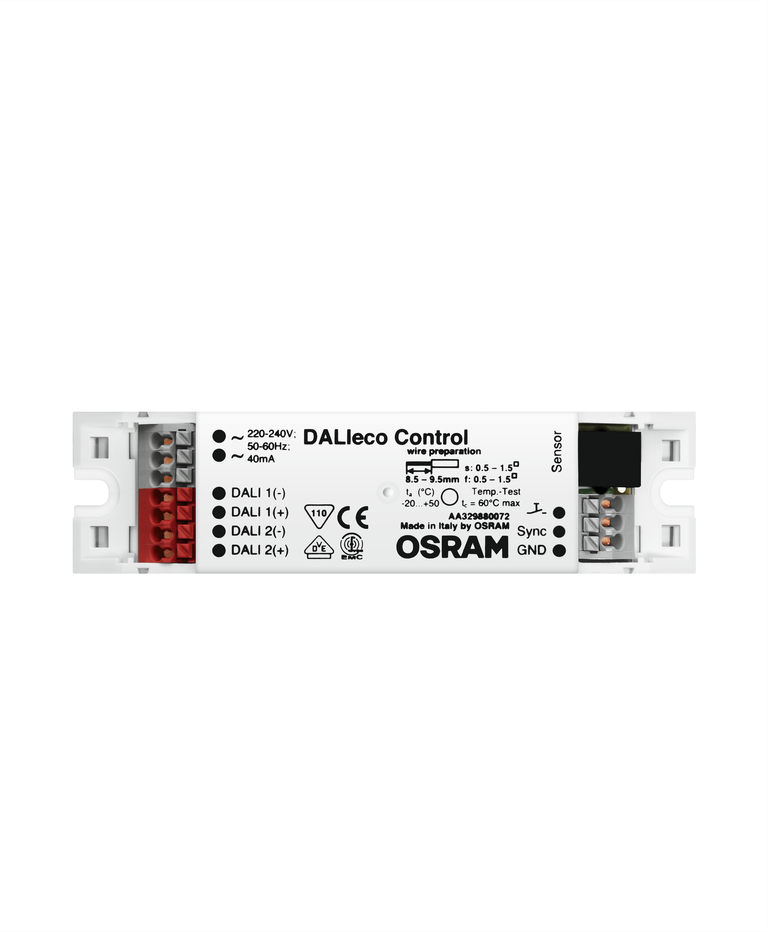

Product image: white background, horizontal
338457_DALIeco Control (EN) TIF (53.14 MB)
Product line drawing with letters
326408_MULTI ECO SVG (13.71 KB)
EAN SEG number STK number EFO number ELDAS number
4008321988645 7985123 2612523 4515528 919000050
