DALI PRO PB Coupler

Choose your product version

Phase out

PB Coupler

OVERVIEW

Product description
DALI PRO PB Coupler
Phase out


DALI PRO PB Coupler

Product benefits
  • Power supply from DALI
  • Standard pushbuttons/switches can be used
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 1.00 W
Nominal voltage 20 V
Mains frequency 0 Hz

Dimensions & Weight

Length 42.00 mm
Width 42.00 mm
Height 20.00 mm
Product weight 22.00 g

Temperatures & operating conditions

Ambient temperature range 0…+50 °C

Additional product data

Number of control outputs 1

Capabilities

Dimmable No
Dimming interface DALI

Certificates & Standards

Protection class II
Type of protection IP20

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Power supply from DALI
  • Standard pushbuttons/switches can be used
Areas of application
  • Classrooms
  • Conference rooms
  • Suitable for installation in flush-type boxes
  • Production and assembly facilities
  • Individual offices
Product features
  • DALI pushbutton coupler
  • 4 floating inputs
Equipment / Accessories
  • Can be used with DALI Professional or DALIeco light control system
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4008321496461 Folding box
1		 93 mm x 40 mm x 80 mm 43.00 g 0.30 dm³
4008321543134 Shipping box
20		 255 mm x 166 mm x 258 mm 1033.00 g 10.92 dm³

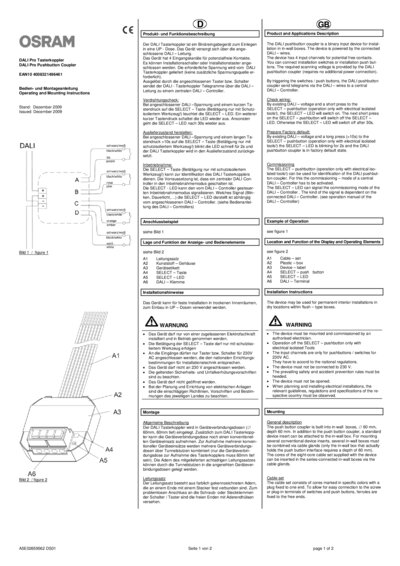

User instruction / safety instructions
334697_Technical instr uctions PDF (98.74 KB)
Declarations of conformity
334811_Declaration of conformity – DALI PRO CONT-4 – DALI PRO PB C oupler – DALI PRO Sen PDF (200.83 KB)

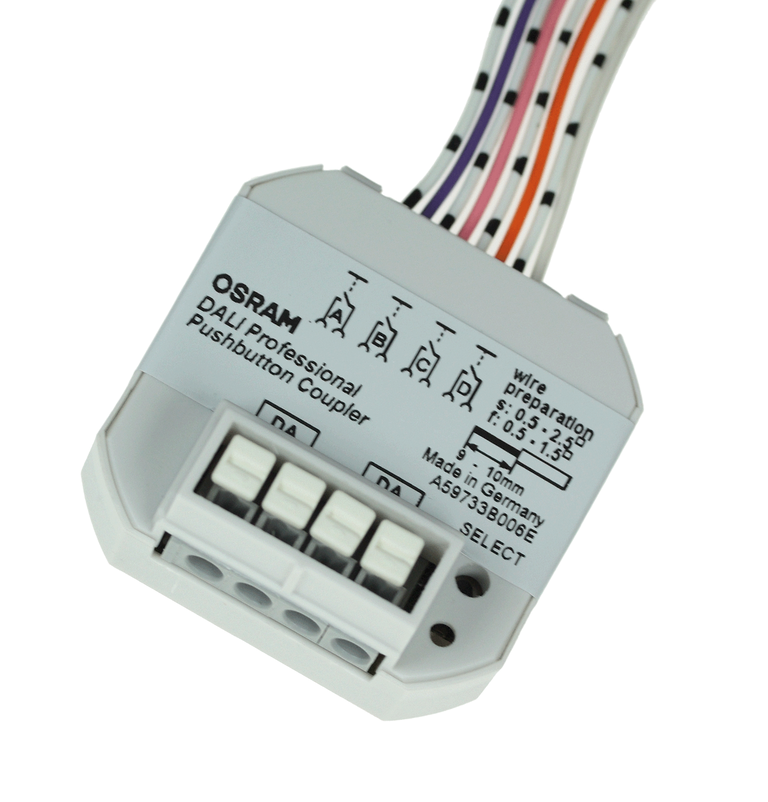

Product image: white background, diagonal
320301_DALI PRO PB Cou pler TIF (11.45 MB)
Product line drawing with letters
326384_DALI PRO PB COU PLER SVG (12.54 KB)
Product line drawing with numbers
318980_DALI PRO PB COU PLER SVG (16.69 KB)
EAN SEG number STK number EFO number ELDAS number
4008321496461 7985069 2612513 4515524 919036210
