Choose your product version
| Product description |
|---|

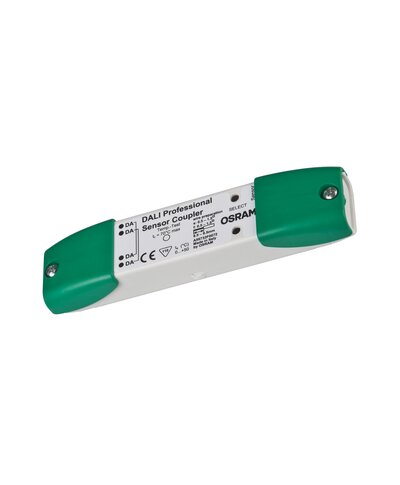

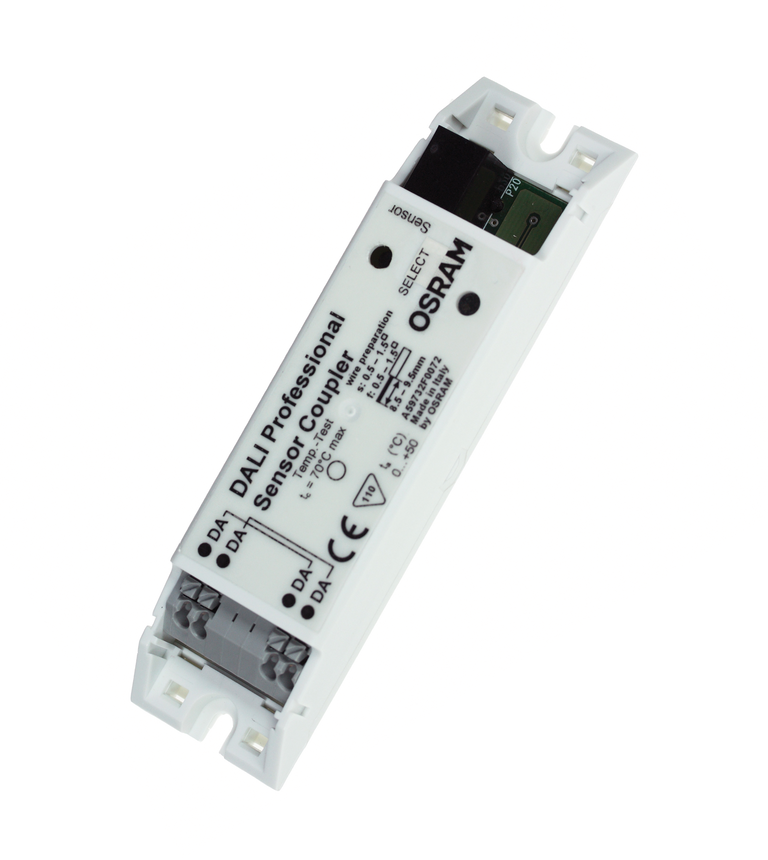

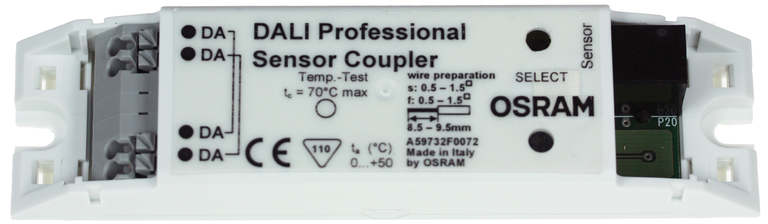

| DALI PRO Sensor Coupler |
| Nominal wattage | 0.10 W |
| Nominal voltage | 20 V |
| Mains frequency | 0 Hz |
| Length | 118.00 mm |
| Mounting hole spacing, length | 110,0 mm |
| Width | 30.00 mm |
| Height | 21.00 mm |
| Product weight | 35.00 g |
| Ambient temperature range | 0…+50 °C |
| Number of control outputs | 1 |
| Dimmable | No |
| Dimming interface | DALI |
| Type of installation | Luminaire integration/Ceiling integration |
| Approval marks – approval | CE |
| Protection class | II |
| Type of protection | IP20 |
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4008321379269 | Folding box 1 |
128 mm x 27 mm x 37 mm | 49.00 g | 0.13 dm³ |
| 4008321379276 | Shipping box 25 |
200 mm x 140 mm x 147 mm | 1268.00 g | 4.12 dm³ |
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4008321379269 | 7985063 | 2612512 | 4515525 | 535958100 |
