DALI Sensor Coupler HF LS LI

Choose your product version

HF LS LI

OVERVIEW

Product description
DALI Sensor Coupler HF LS LI


DALI Sensor Coupler HF LS LI

Product benefits
  • Sensor integration in DALI
  • Small housing design
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 0.45 W
Nominal voltage 230 V
Mains frequency 50 Hz

Dimensions & Weight

Length 118.00 mm
Mounting hole spacing, length 110,0 mm
Width 30.00 mm
Height 21.00 mm
Product weight 50.00 g

Temperatures & operating conditions

Ambient temperature range 0…+50 °C

Additional product data

Number of control outputs 1

Capabilities

Dimmable No
Dimming interface DALI
Type of installation Luminaire integration/Ceiling integration

Certificates & Standards

Approval marks – approval CE
Protection class II
Type of protection IP20

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Sensor integration in DALI
  • Small housing design
Areas of application
  • Connection of light and presence sensors in DALI systems
  • Ceiling or independent installation via ECO CI KIT possible
  • Luminaire and ceiling integration
  • Installation in industry and office luminaires
  • Installation in IP protected luminaires possible
  • Areas with high ceilings
Product features
  • Mounting height: 2…13 m
  • Combined daylight and motion detection
  • Suitable for daylight-dependent control
  • Presence detection via active radar sensor element
  • Light sensor operating range: 20…800 lx (measured at sensor)
Equipment / Accessories
  • Separate installation possible with ECO CI KIT
  • Suitable for many OSRAM DALI control systems
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4052899141728 Folding box
1		 128 mm x 37 mm x 27 mm 64.00 g 0.13 dm³
4052899141735 Shipping box
25		 200 mm x 140 mm x 147 mm 1617.00 g 4.12 dm³
User instruction / safety instructions

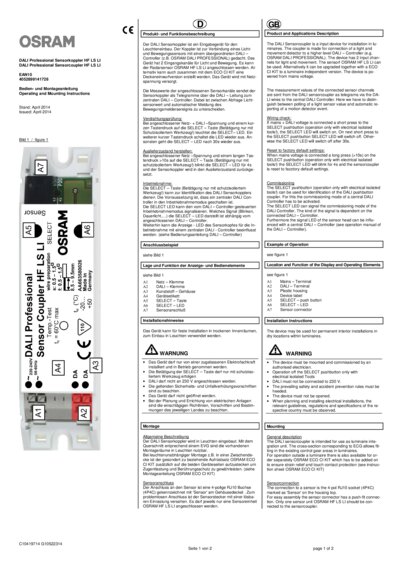

538505_Manual DALI Sen sor Coupler HF LS LI PDF (213.8 KB)
User instruction / safety instructions

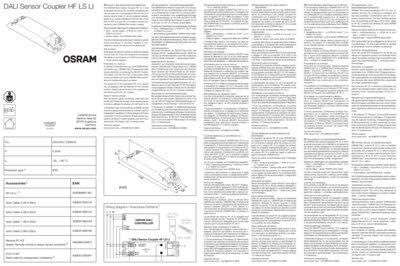

DALI Sensor Coupler HF LS LI PDF (3.25 MB)
Declarations of conformity

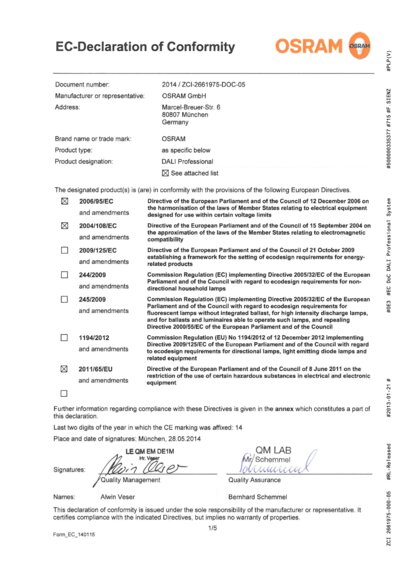

538499_CE declaration DALI Professional Syst em PDF (2.21 MB)
EU Data Act
Connected Products and Related Software and Services PDF (346.28 KB)

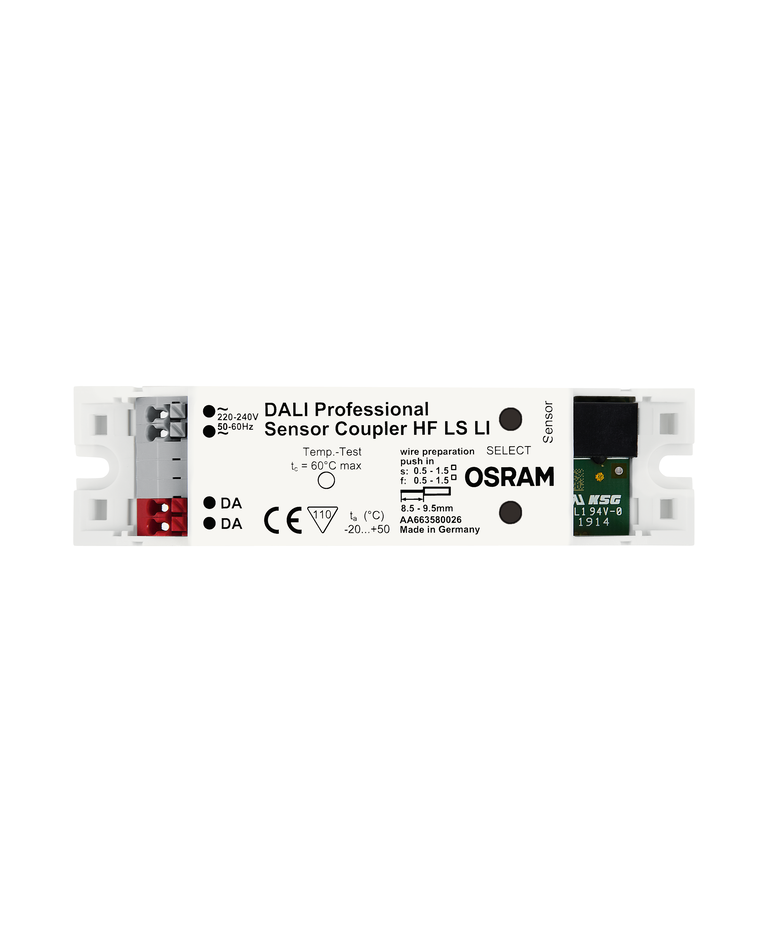

Product image: white background, diagonal
505625_DALI SENSORCOUP HF LS LI TIF (7.26 MB)

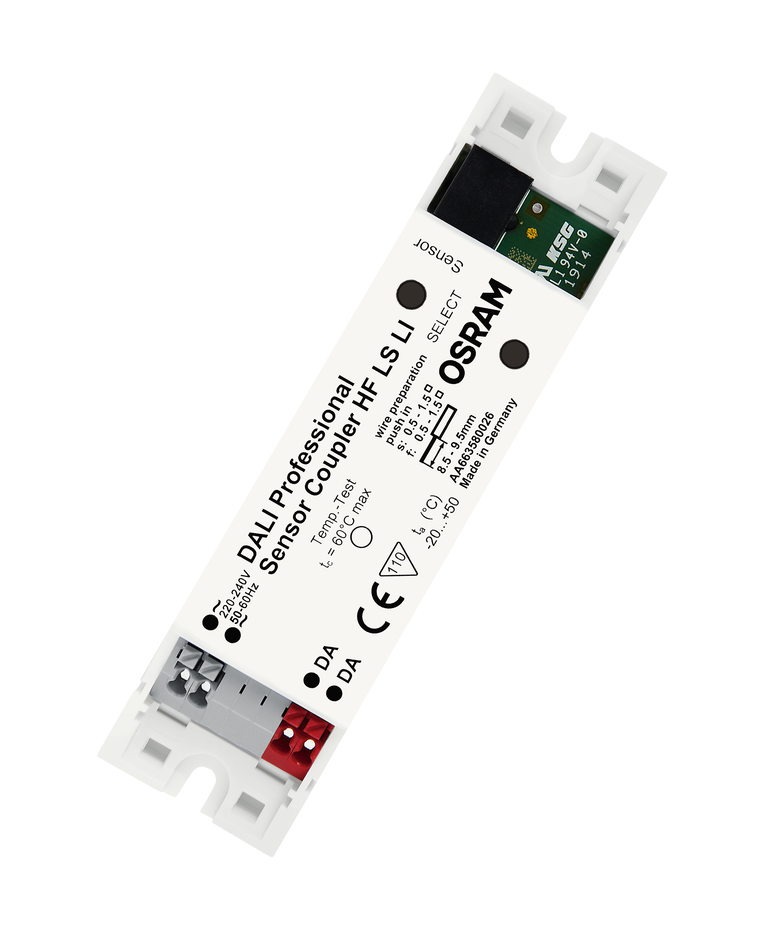

Product image: white background, horizontal
