SURFACE MOUNT FRAME

Choose your product version

MOUNT FRAME

OVERVIEW

Product description
SURFACE MOUNT FRAME


SURFACE MOUNT FRAME

Product benefits
  • Easy to mount on walls
  • Rear or side cable entry possible
View all details
Product data sheet

PRODUCT DETAILS

Dimensions & Weight

Length 80 mm
Width 80 mm
Height 42 mm
Product weight 135.00 g

Colors & materials

Product color White

Capabilities

Type of installation Surface mounting

Certificates & Standards

Approval marks – approval CE, UKCA, EAC

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Easy to mount on walls
  • Rear or side cable entry possible
Areas of application
  • Rooms with walls where installation of flush-mounted boxes is not possible
Product features
  • Wall mounting frame for mounting CU SELECT and CU TOUCH products
References / Links
  • For current information see www.ledvance.com/light-management-systems
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075843561 Folding box
1		 45 mm x 86 mm x 86 mm 152.00 g 0.33 dm³
4058075843578 Shipping box
36		 290 mm x 186 mm x 280 mm 5809.00 g 15.10 dm³

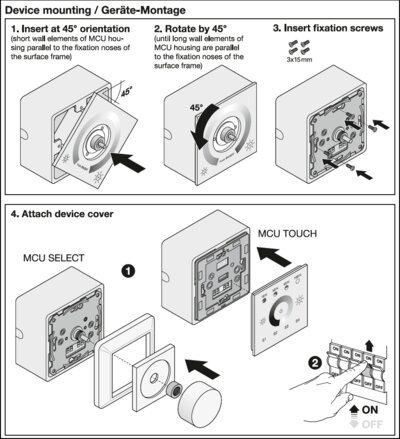

User instruction / safety instructions
SURFACE MOUNT FRAME PDF (2.75 MB)
Legal information
Legal Insert DALI COMP ONENTS PDF (4.96 MB)
Declarations of conformity
MCU DALI PDF (275.99 KB)

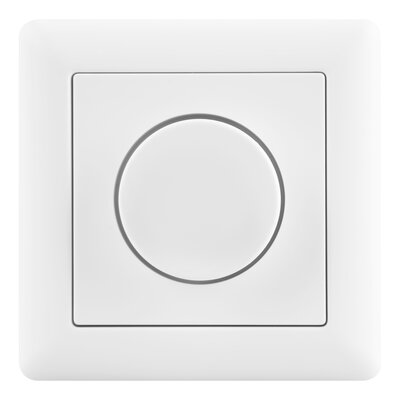

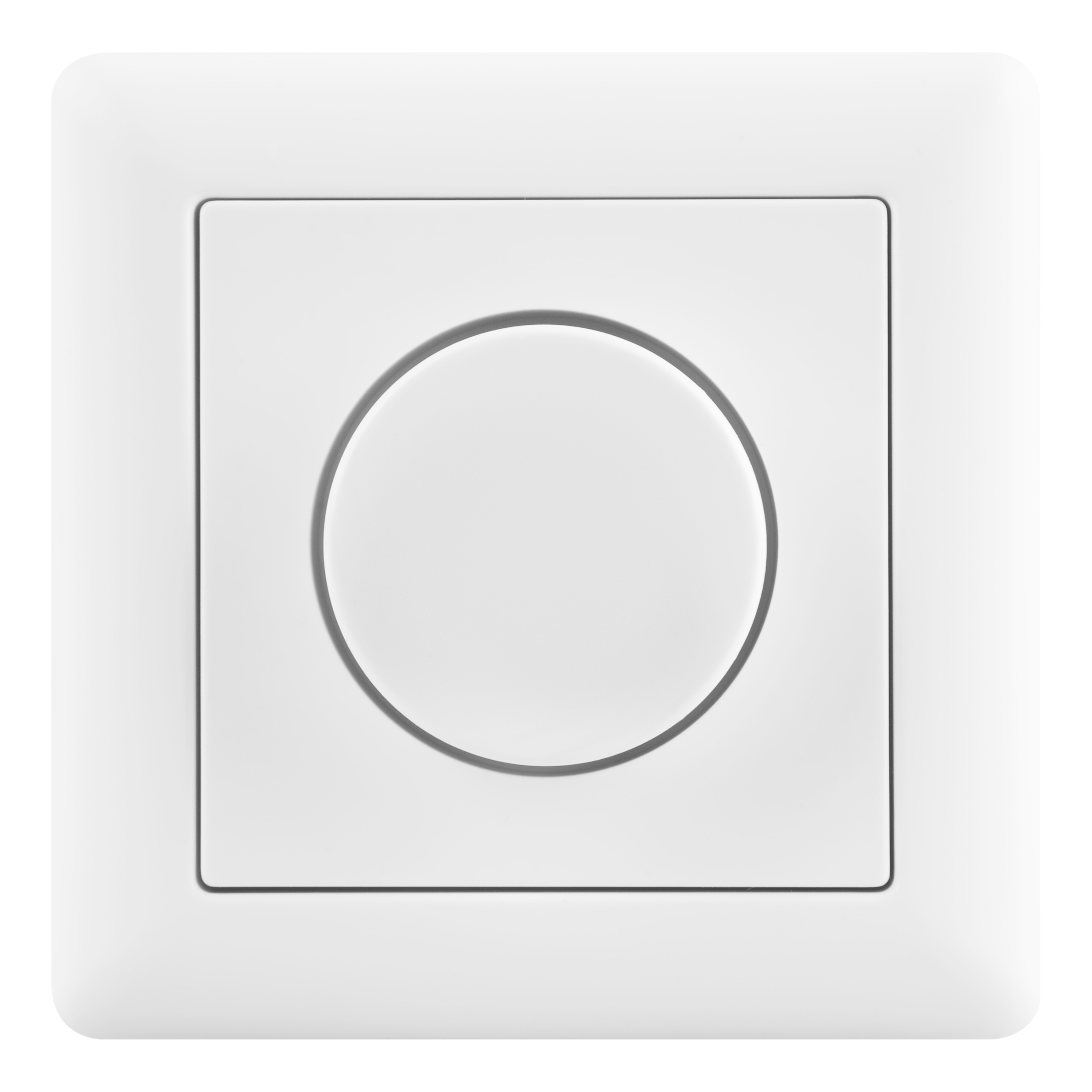

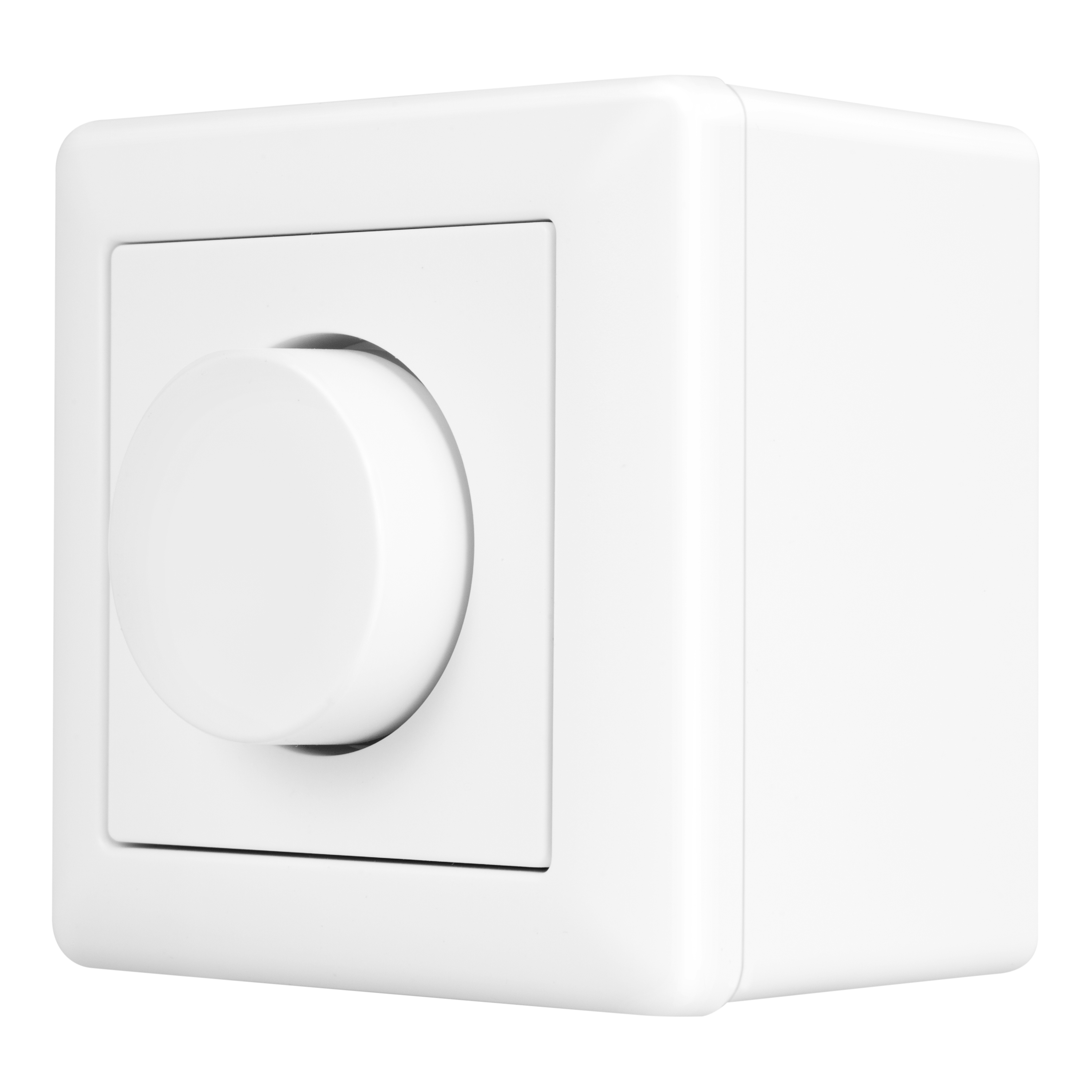

Product image: white background, diagonal
SURFACE MOUNT FRAME + MCU SELECT DALI-2 EXC TW JPG (1.98 MB)

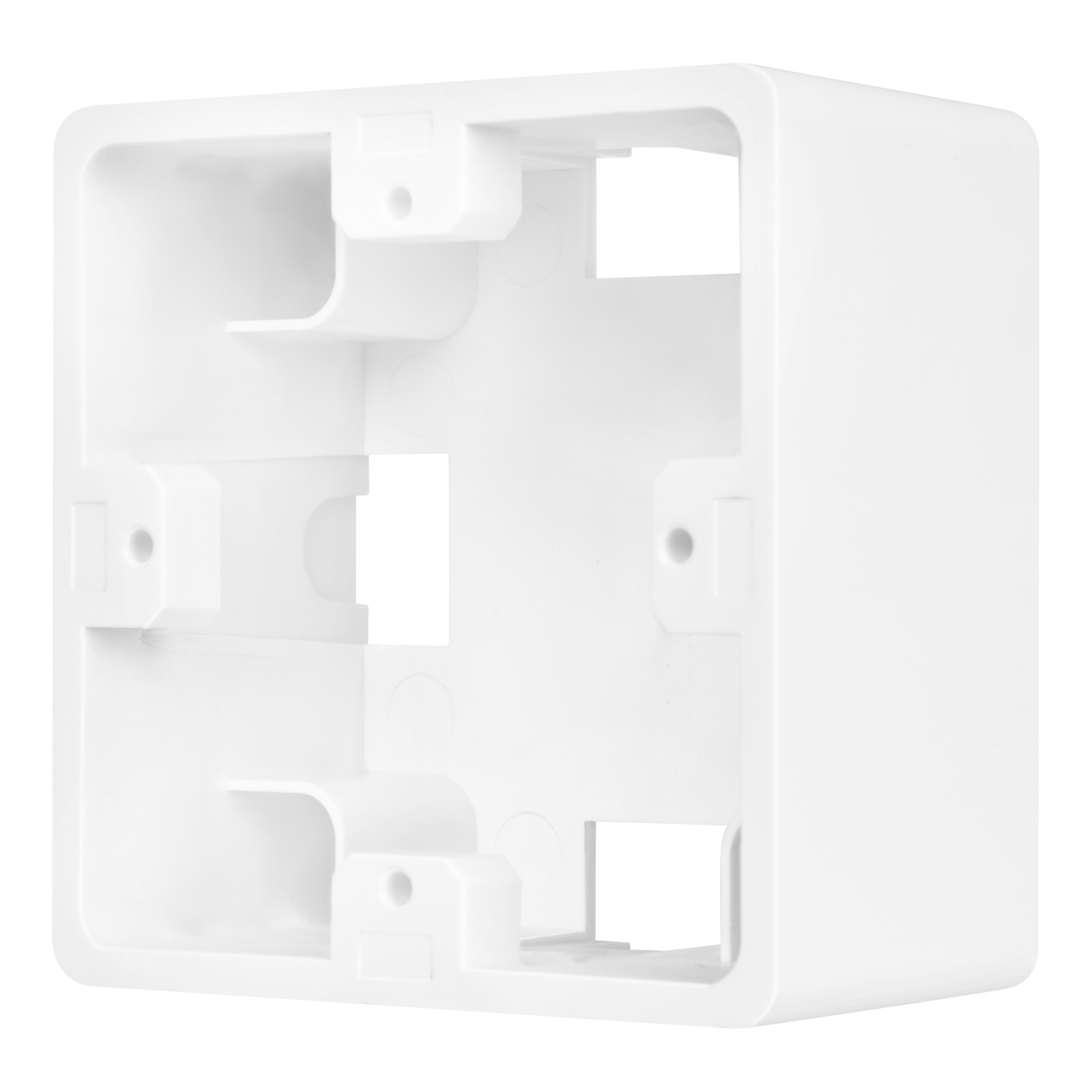

Product image: white background, diagonal
SURFACE MOUNT FRAME + MCU SELECT DALI-2 EXC TW JPG (1.76 MB)

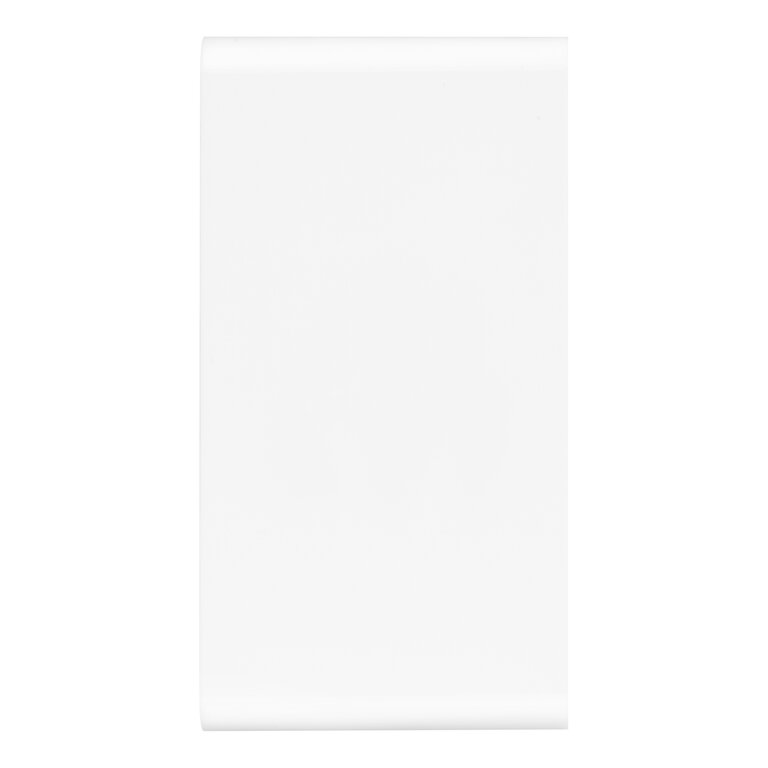

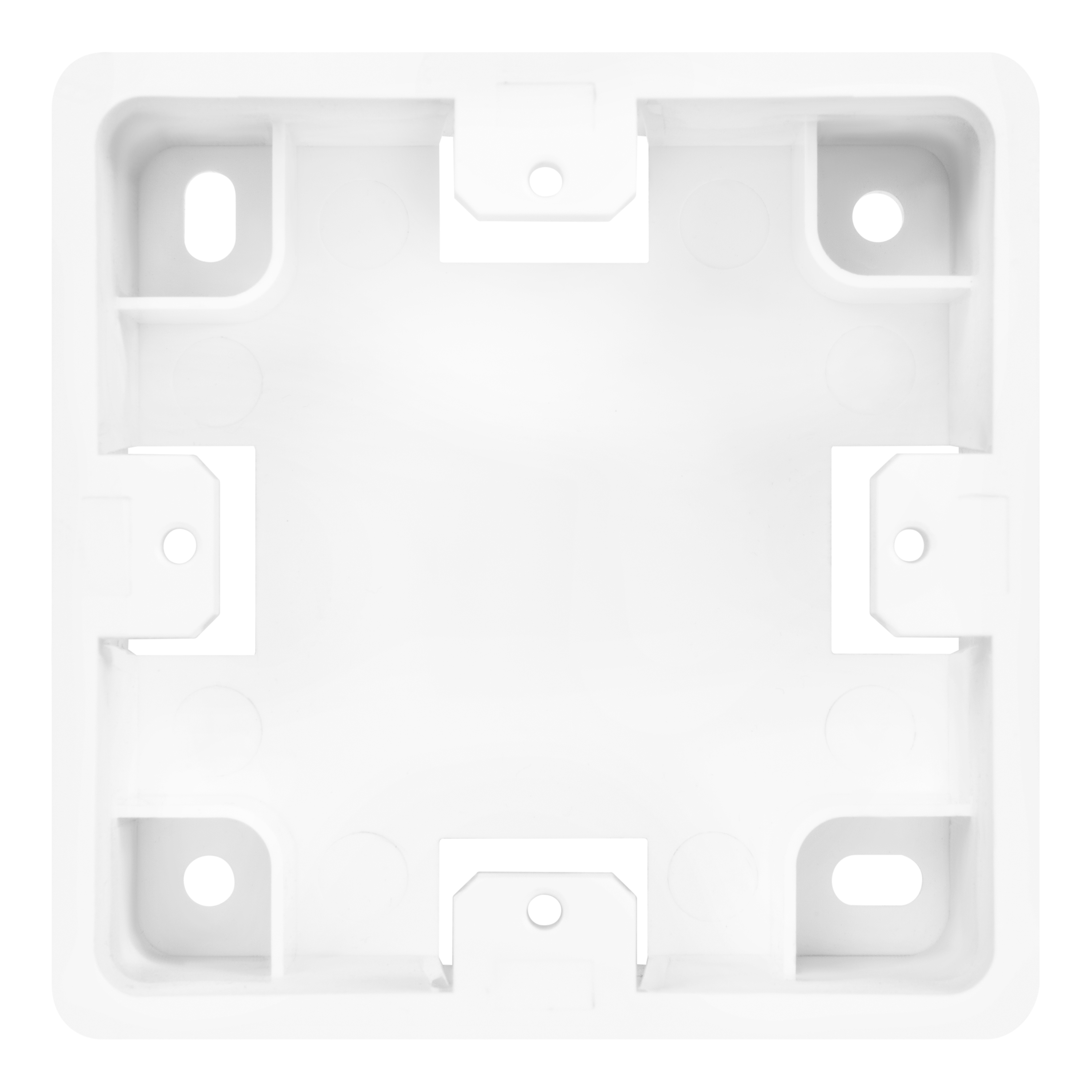

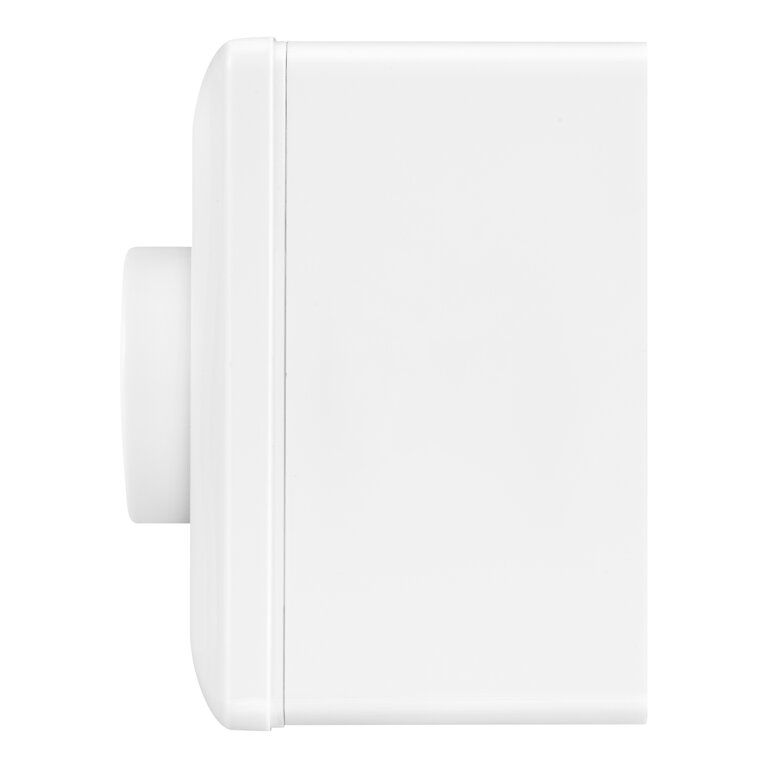

Product image: white background, upright
SURFACE MOUNT FRAME + MCU SELECT DALI-2 EXC TW JPG (1.79 MB)
Product image: white background, upright
SURFACE MOUNT FRAME + MCU SELECT DALI-2 EXC TW JPG (1.49 MB)
Product line drawing with letters
CU SELECT E TW SURFACE MOUNT FRAME SVG (22 KB)
Product line drawing with numbers
CU SELECT E TW SURFACE MOUNT FRAME SVG (24.29 KB)

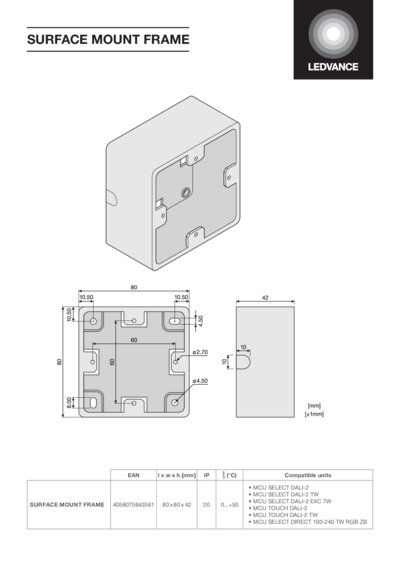

Product line drawing - technical
CU SELECT E TW SURFACE MOUNT FRAME SVG (15.71 KB)
Packaging image, frontal
FC Surface Mount Frame DALI JPG (573.07 KB)

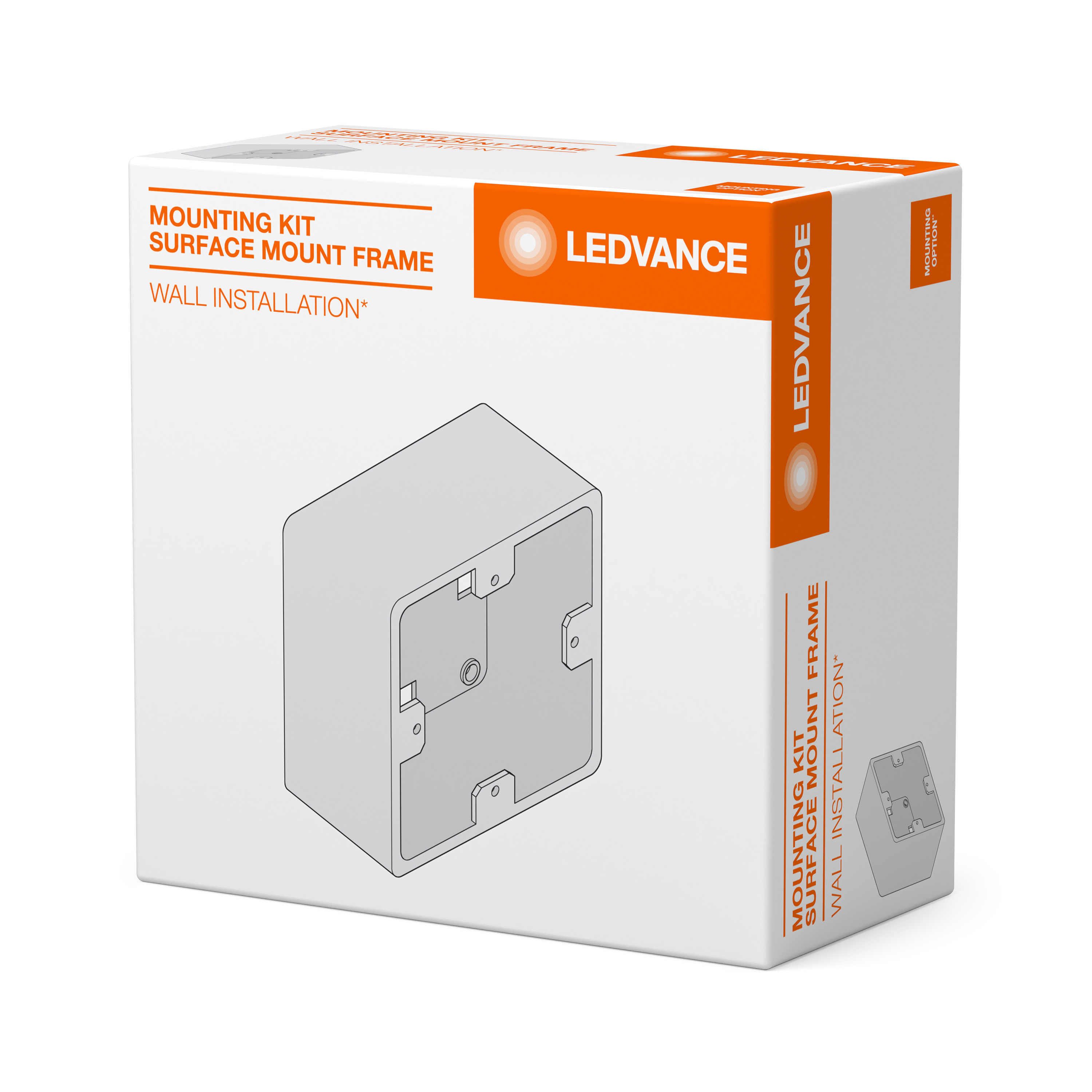

Packaging image, spacial
FC Surface Mount Frame DALI JPG (703.3 KB)

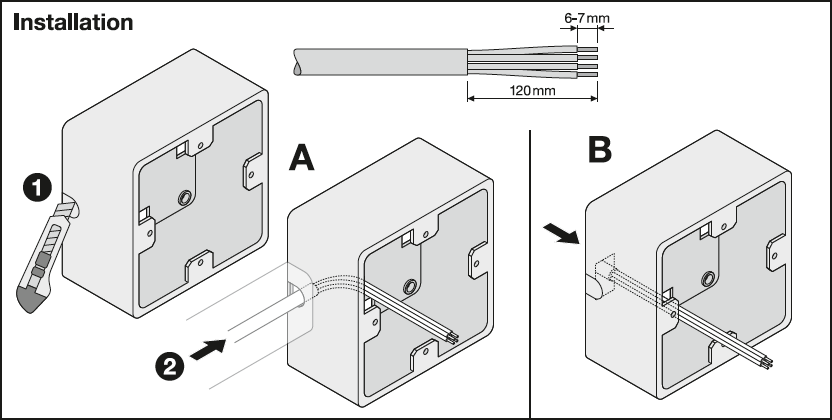

Catalog info 1
SURFACE MOUNT FRAME PNG (61.04 KB)

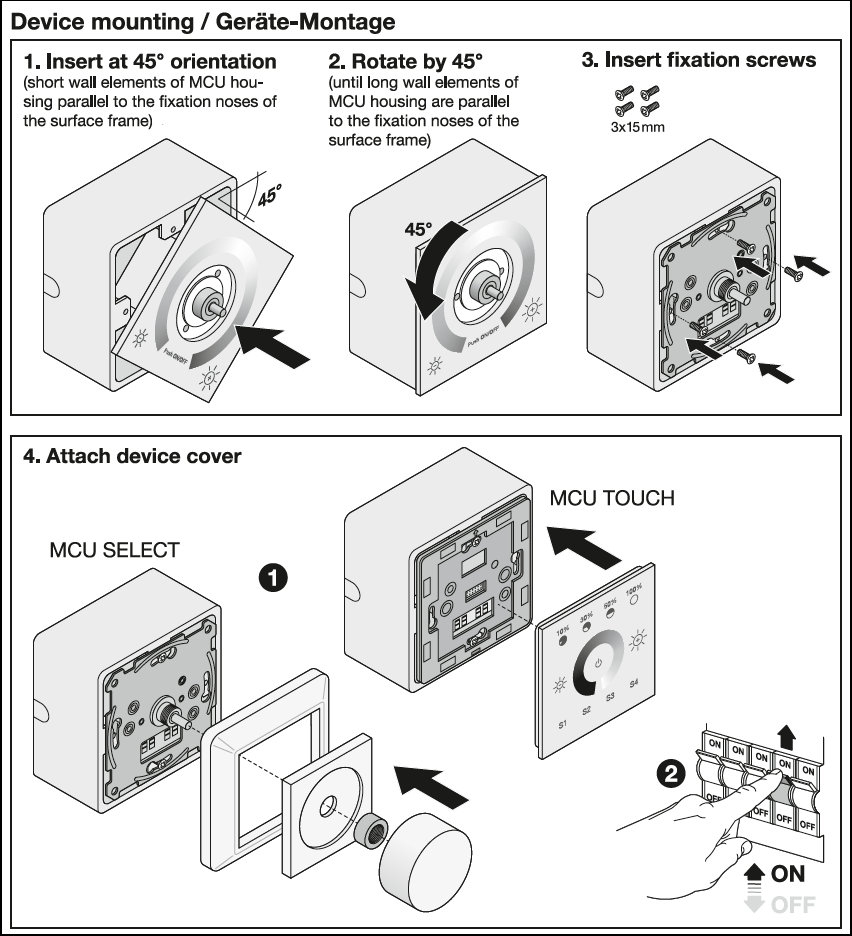

Catalog info 2
SURFACE MOUNT FRAME PNG (205.78 KB)
Tender documents
SURFACE MOUNT FRAME-EN TXT (516 B)
Video
DALI-2 MCUs LEDVANCE b rand Plug Play LMS sol utions MP4 (70.98 MB)
Video
DALI components LEDVAN CE brand full power of LMS solutions MP4 (124.98 MB)
EAN SEG number STK number EFO number ELDAS number
4058075843561 1361089 2628017 1475258 284951041
