REPEATER DALI-2 CEILING MOUNTING

Choose your product version

Coming soon

CEILING MOUNTING

OVERVIEW

Product description
REPEATER DALI-2 CEILING MOUNTING
Coming soon


REPEATER DALI-2 CEILING MOUNTING

Product benefits
  • Over temperature protection for save operation
  • Supports over voltage protection for long product lifetime
  • Protects the device's output circuit in case of failures
  • Integrated Push DIM function
  • Compatible with LEDVANCE VIVARES DALI light management system
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 5.30 W
Nominal voltage 230 V
Type of current AC
Input current 40 mA
Nominal output current 200 mA
Mains frequency 50…60 Hz

Dimensions & Weight

Length 120.00 mm
Width 30.00 mm
Height 22.00 mm
Cable cross-section, input side 0.5…1.5 mm²
Cable cross-section, output side 0.5…1.5 mm²
Wire preparation length, input side 8.5…9.5 mm
Wire preparation length, output side 8.5…9.5 mm
Product weight 42.00 g

Colors & materials

Product color White
Body material Polycarbonate (PC)

Temperatures & operating conditions

Ambient temperature range -20…+60 °C
Maximum temperature at tc test point 70 °C

Lifespan

Number of switching cycles 5000

Additional product data

Product remark Available from December 2025
Number of control outputs 1
Max. number of connected drivers 90

Capabilities

Dimmable Yes
Dimming interface DALI-2
Overheating protection Reversible
Short-circuit protection Reversible
Type of installation Independent mounting
Reverse polarity protection Yes
Over voltage protection Yes

Certificates & Standards

Standards CE, UKCA
Protection class II
Type of protection IP20

LOGISTICAL DATA

Temperature range at storage -20…+75 °C

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Over temperature protection for save operation
  • Supports over voltage protection for long product lifetime
  • Protects the device's output circuit in case of failures
  • Integrated Push DIM function
  • Compatible with LEDVANCE VIVARES DALI light management system
Areas of application
  • Big buildings with long cable distances to luminaires of more than 300m
  • Integration of additional DALI devices into DALI systems
Product features
  • Pre-mounted endcap with strain relief function for flexible product installations
  • Integrated DALI Power supply for up to 90 DALI drivers
  • Enables simple extension of DALI wire length
  • Behaves like a DALI ballast with a DALI address
  • Plug&Play for DT6 and DT8 applications
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
References / Links
  • For current information see www.ledvance.com/light-management-systems
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854709098 Folding box
1		 33 mm x 163 mm x 24 mm 54.00 g 0.13 dm³
4099854709104 Shipping box
100		 337 mm x 257 mm x 184 mm 5570.00 g 15.94 dm³

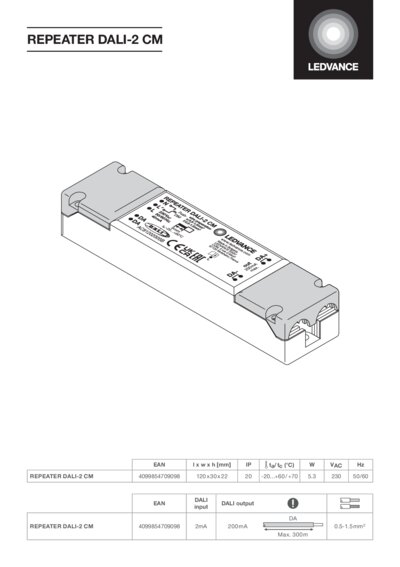

User instruction / safety instructions
REPEATER DALI 2 CM PDF (2.79 MB)
Legal information
Safety Insert G1120142 0 PDF (302.65 KB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Legal information
Legal Insert G11185544 PDF (2.33 MB)
Declarations of conformity
CE declaration REPEATE R DALI-2 PDF (365.84 KB)

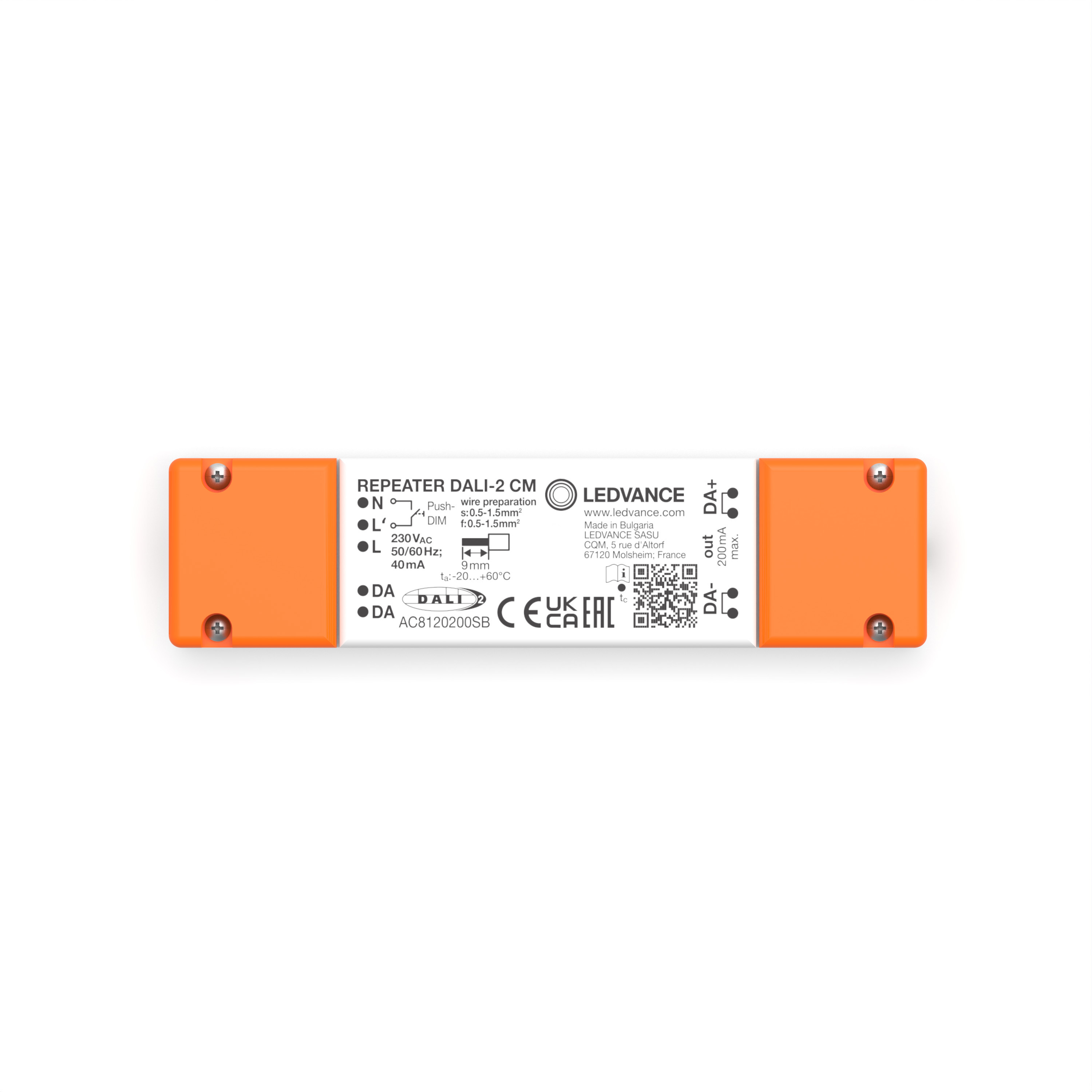

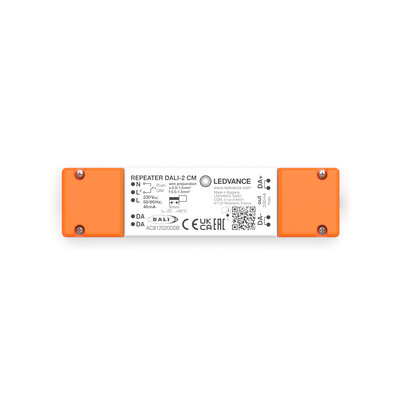

Product image: white background, upright
REPEATER DALI-2 CM JPG (423.99 KB)
Product line drawing with letters
REPEATER DALI-2 CM SVG (18.67 KB)
Product line drawing with numbers
REPEATER DALI-2 CM SVG (20.92 KB)
Product line drawing - technical
REPEATER DALI-2 CM SVG (12.4 KB)
EAN STK number
4099854709098 2628038
