Choose your product version
| Product description |
|---|

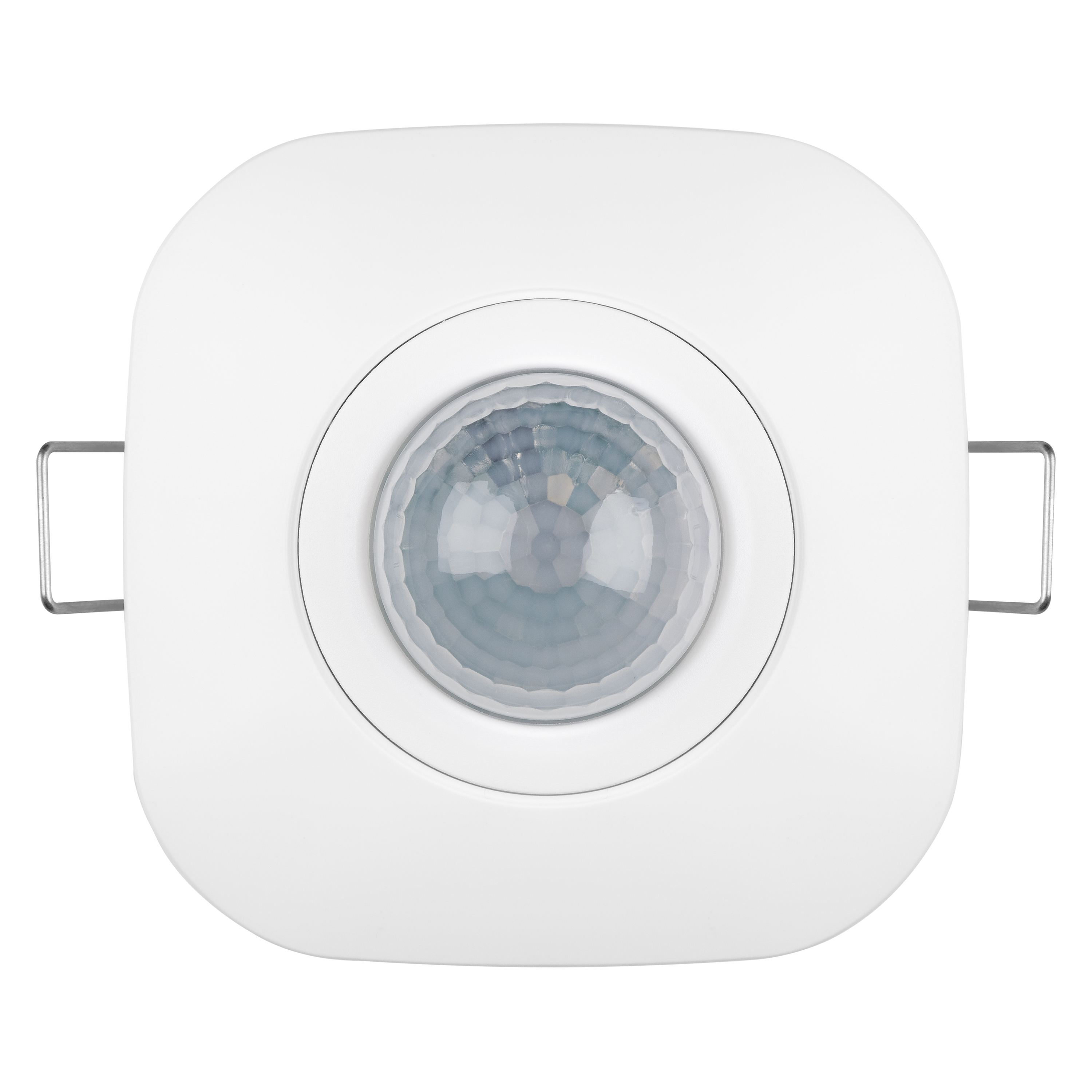

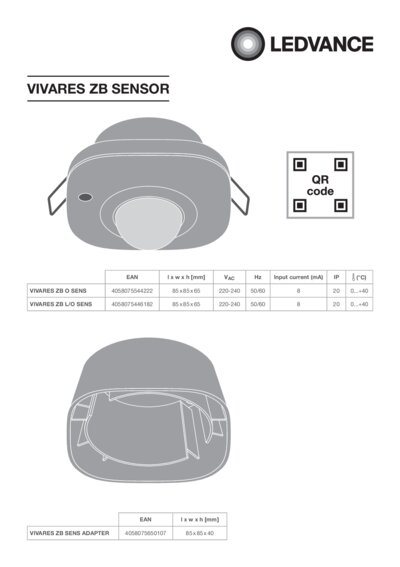

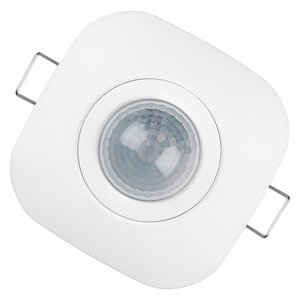

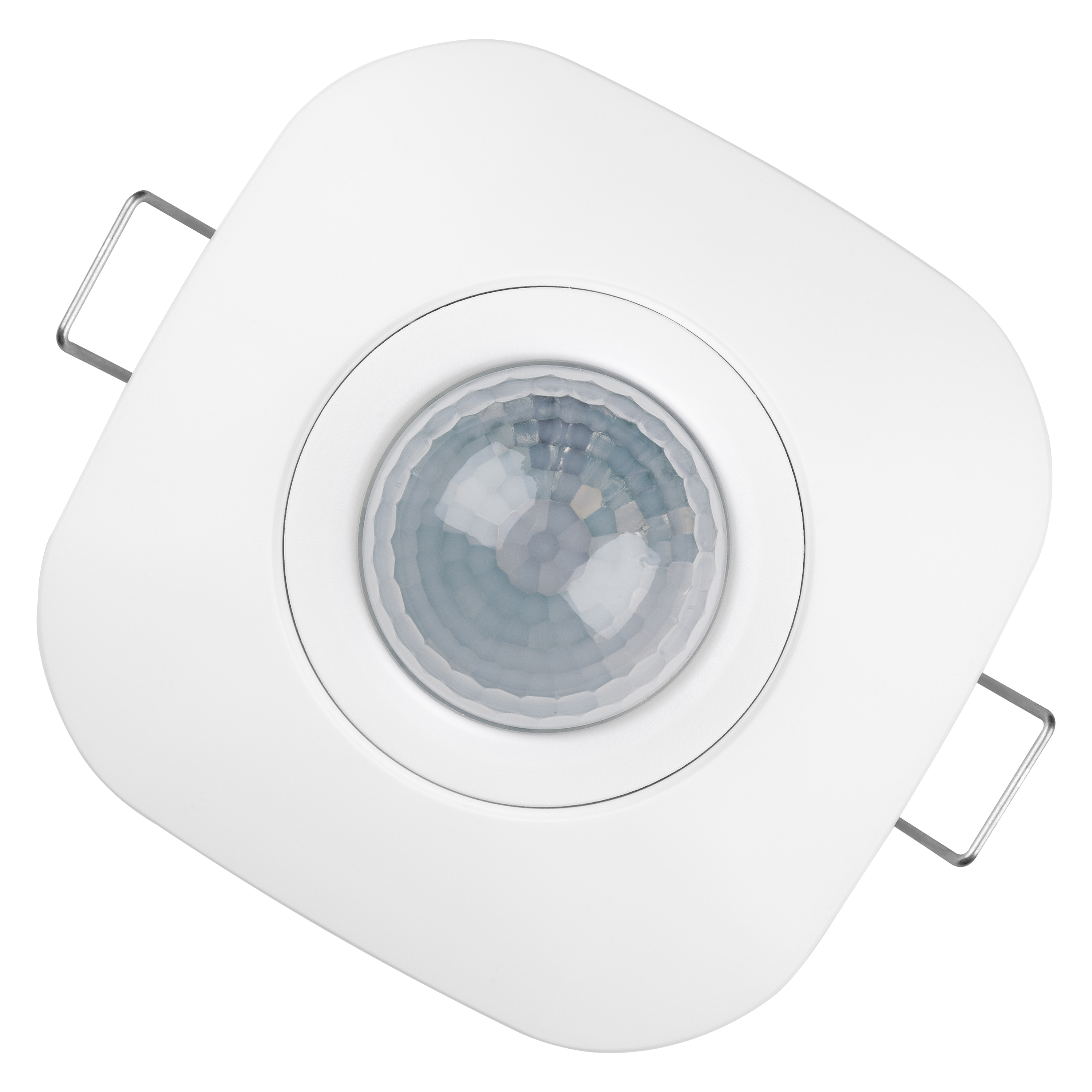

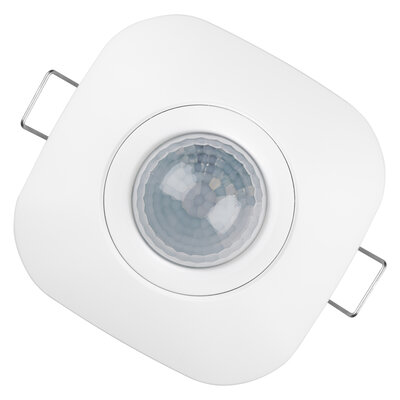

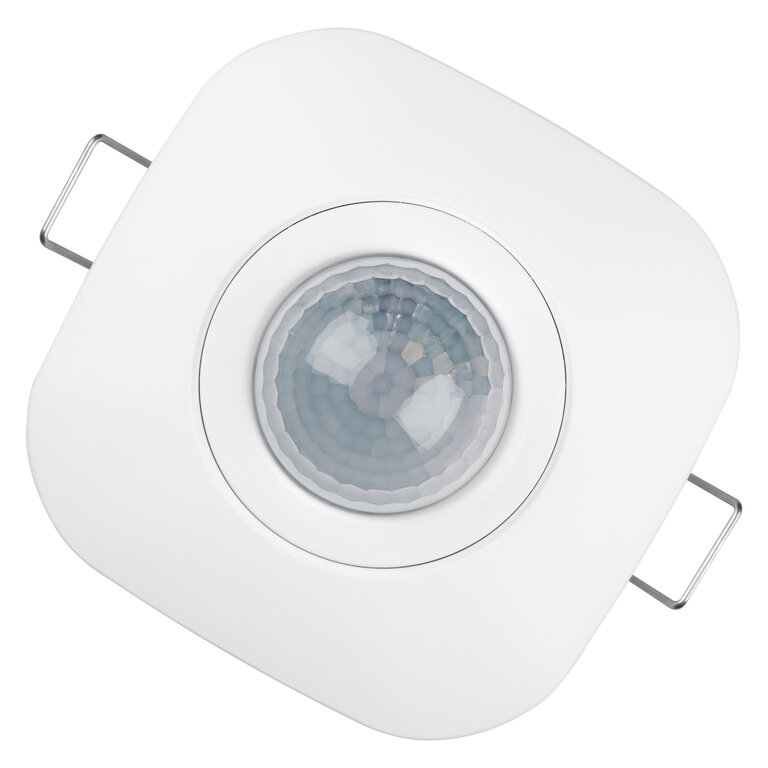

| VIVARES ZB O SENS 220-240 |
| Nominal wattage | 1.84 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Surge capability (L-N) | 2 kV |
| Length | 85.00 mm |
| Width | 85.00 mm |
| Height | 64.00 mm |
| Product weight | 120.00 g |
| Product color | White |
| Cover material | Polycarbonate (PC) |
| Ambient temperature range | -20…+50 °C 1) |
| Temperature range in operation | +10…+35 °C |
| Permitted rel. humidity during operation | 10…85 % |
1) Max. temperature range only valid for component safety
| Dimmable | No |
| Dimming interface | Zigbee 3.0 |

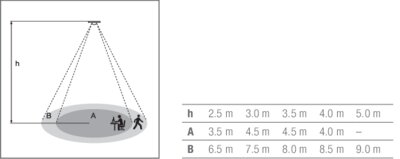

| Maximum installation height | 5 m |
| Detection angle | 90 ° |
| Type of installation | Recessed |
| Transmitter range | 10 m 1) |
1) Applicable for indoor installation

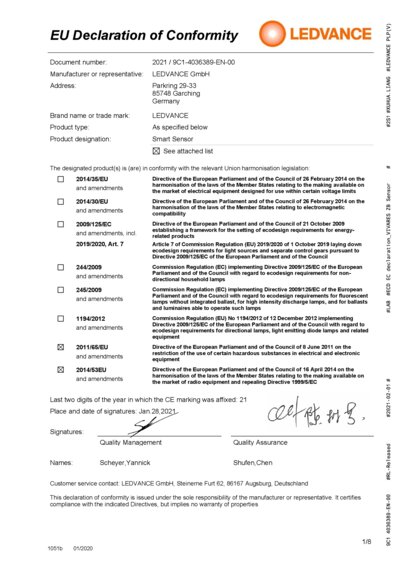

| Approval marks – approval | CE, RED, RoHS |
| Standards | Acc. to EN 60669-1, Acc. to EN 60669-2-1, Acc. to EN 60669-2-5, Acc. to EN 61000-3-2, Acc. to EN 50663, Acc. to EN 300328, Acc. to EN 301489 |
| Type of protection | IP20 |
| Temperature range at storage | -10…+65 °C |
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075544222 | Folding box 1 |
111 mm x 110 mm x 86 mm | 167.00 g | 1.05 dm³ |
| 4058075544239 | Shipping box 10 |
528 mm x 243 mm x 120 mm | 2066.00 g | 15.40 dm³ |
| Product image | Product name | EAN |
|---|---|---|
|
VIVARES ZB SENS ADAPTER | 4058075650107 |
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4058075544222 | 7985346 | 2628010 | 1407935 | 535954200 |
