DAMP PROOF HOUSING DALI

Choose your product version

1200 P 1XLAMP IP65

1200 P 2XLAMP IP65

1500 P 1XLAMP IP65

1500 P 2XLAMP IP65

OVERVIEW

Product description Dimmable
DP HOUSING DALI 1200 P 1XLAMP IP65 Yes
DP HOUSING DALI 1200 P 2XLAMP IP65 Yes
DP HOUSING DALI 1500 P 1XLAMP IP65 Yes
DP HOUSING DALI 1500 P 2XLAMP IP65 Yes


DP HOUSING DALI 1200 P 1XLAMP IP65

Product benefits
  • Easy and quick installation
  • Prewired for easy installation of LED TUBE T8 EXTERNAL SYSTEM
  • Toolless installation
  • Robust housing
  • Sustainable solution thanks to exchangeable light sources
  • 5 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal voltage 220…240 V
Mains frequency 0/50/60 Hz
Protection class I
Operating mode Integrated LED driver

Photometrical data

Flickering metric (Pst LM) < 1
Stroboscope effect metric (SVM) < 0.4

Dimensions & Weight

Length 1280.00 mm
Height 70.00 mm
Width 65.00 mm
Product weight 966.00 g

Materials & Colors

Product color Gray
Housing color Gray
RAL Color (most similar) RAL 7040
Body material Polycarbonate (PC)
Cover material Polycarbonate (PC)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 850 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C

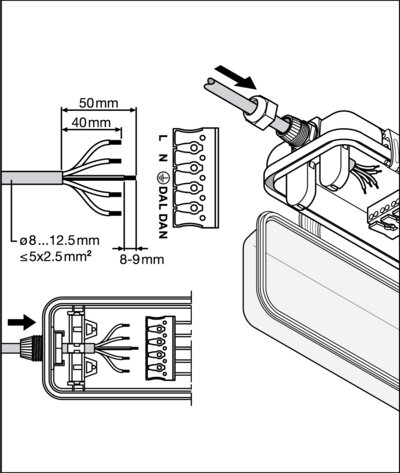

Type of connection Screwless terminal, 5-Pole (L, N, PE, DA+, DA-)
Type of protection IP65
Protection class IK (shock resistance) IK08
Dimmable Yes
Type of dimming DALI2
IoT ready Support of DALI data type PART 251, 252, 253 1)
Mounting type Surface
Mounting location Ceiling
Application environment Indoor
With light source No
Replaceable light source No
Holder designation G13

1) Internet of Things. Supports data transfer via gateway to cloud-based monitoring platforms, such as LEDVANCE VIVARES Cloud

Control gear

ECG - Output ripple current ≤ 5 %

Certificates & Standards

Standards CE, TÜV Rheinland, EAC, UKCA
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No

Additional product data

Product remark When used in very cold applications as in cold storage, a special membrane might be required to ensure lifetime
Added function VIVARES

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Easy and quick installation
  • Prewired for easy installation of LED TUBE T8 EXTERNAL SYSTEM
  • Toolless installation
  • Robust housing
  • Sustainable solution thanks to exchangeable light sources
  • 5 years guarantee
Areas of application
  • Parking lots, warehouses, production areas
  • Dimmable installations
  • Car parks and underpasses
  • Garages
Product features

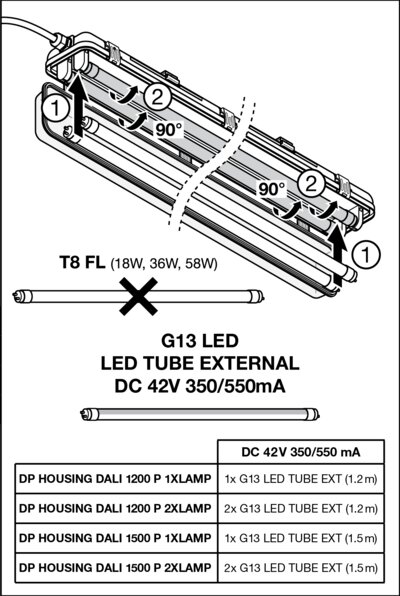

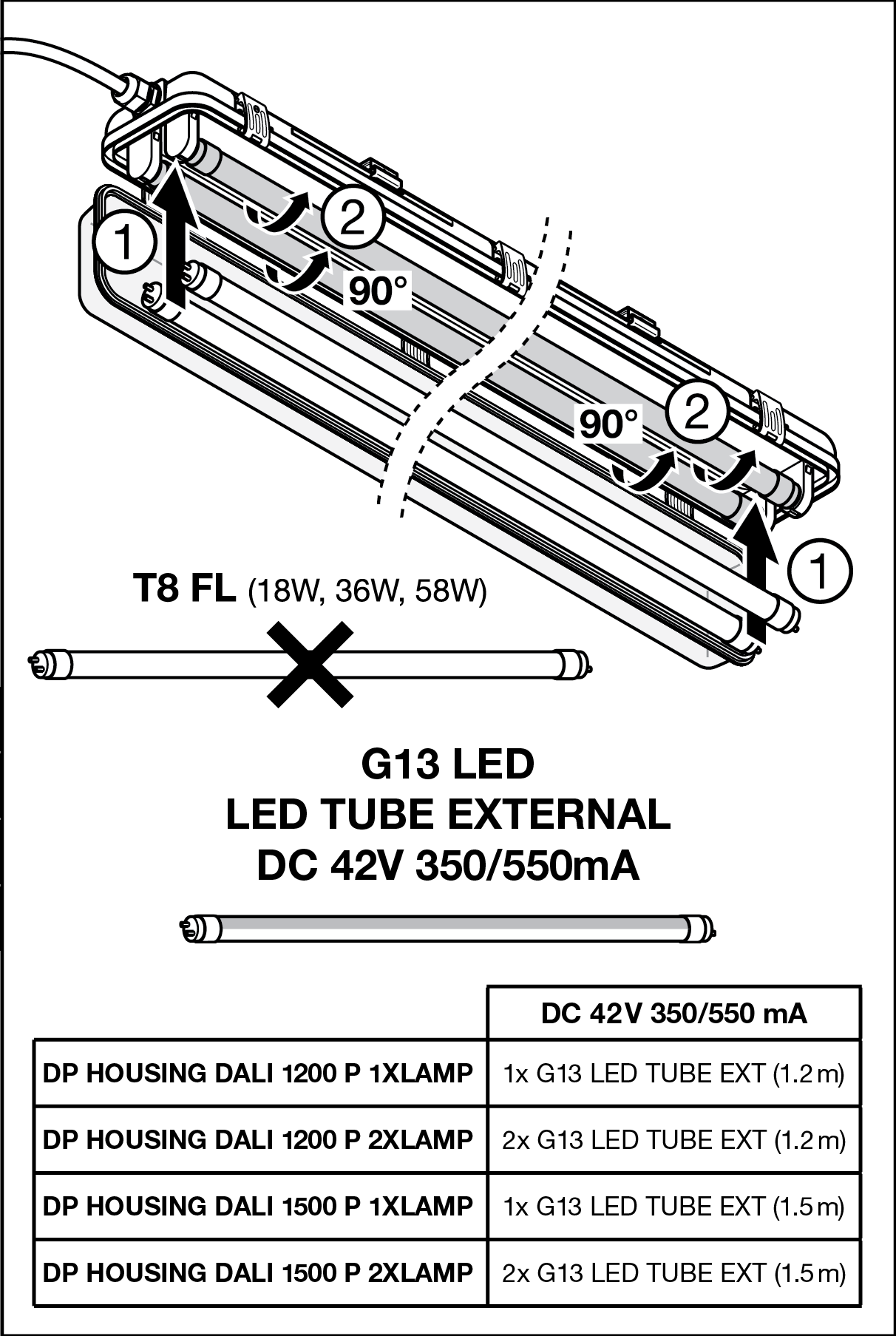

  • Luminaire housing, available for 1 or 2 T8 LED tubes
  • Dimmable EXTERNAL SYSTEM Driver is already installed
  • Suitable for LEDVANCE LED TUBE T8 EXTERNAL SYSTEM
  • DALI 2.0 interface for light management system integration
  • Integrated electrical fuse
  • Type of protection: IP65
Equipment / Accessories
  • Through-wiring cable kit available
  • Stainless steel clamps and M20 cable gland included
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854146442 Folding box
1		 68 mm x 1,272 mm x 75 mm 1096.00 g 6.49 dm³
4099854146459 Shipping box
9		 1,287 mm x 216 mm x 237 mm 10514.00 g 65.88 dm³
4099854246036 Shipping box
12		 1,287 mm x 284 mm x 237 mm 13802.00 g 86.63 dm³
Product image Product name Product brand Product component type GTIN
MANUAL CONTROL UNIT SELECT DALI-2 LEDVANCE Light control 4058075837485
MANUAL CONTROL UNIT SELECT DALI-2 TW LEDVANCE Light control 4058075837508
MANUAL CONTROL UNIT SELECT DALI-2 EXCHANGEABLE COVER TW LEDVANCE Light control 4058075837522
MANUAL CONTROL UNIT TOUCH DALI-2 TW LEDVANCE Light control 4058075837560
MANUAL CONTROL UNIT TOUCH DALI-2 LEDVANCE Light control 4058075837546
PUSH CONTROL UNIT FLUSH MOUNT DALI-2 TW LEDVANCE Light control 4058075837584
SURFACE MOUNT FRAME LEDVANCE Light control 4058075843561
PUSHBUTTON COUPLER DALI-2 LEDVANCE Light control 4058075837607
FLEX CONTROL UNIT IOT DALI-2 HCL TW LEDVANCE Light control 4058075841888
FLEX CONTROL UNIT FLUSH MOUNT DALI-2 TW LEDVANCE Light control 4058075841901
FLEX CONTROL UNIT DALI-2 TW LEDVANCE Light control 4058075843844
FLEX CONTROL UNIT REAL-TIME-CLOCK DALI-2 HCL TW LEDVANCE Light control 4058075841925
SENSOR DALI-2 LIGHT/PRESENCE-6 INFRARED CEILING INTEGRATION LEDVANCE Light control 4058075837621
SENSOR DALI-2 LIGHT/PRESENCE-8 INFRARED CEILING INTEGRATION LEDVANCE Light control 4058075841949
SENSOR DALI-2 LIGHT/PRESENCE-40X5 INFRARED CEILING INTEGRATION LEDVANCE Light control 4058075843868
SENSOR DALI-2 LIGHT/PRESENCE-24 INFRARED CEILING MOUNTING LEDVANCE Light control 4058075843882
SENSOR CEILING MOUNTING KIT LEDVANCE Light control 4058075843905

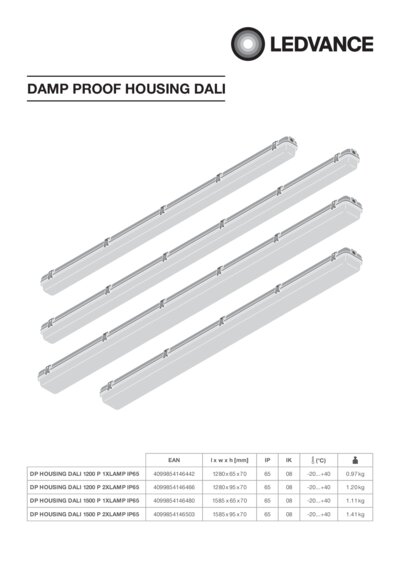

User instruction / safety instructions
UI DP HOUSING DALI PDF (3.8 MB)

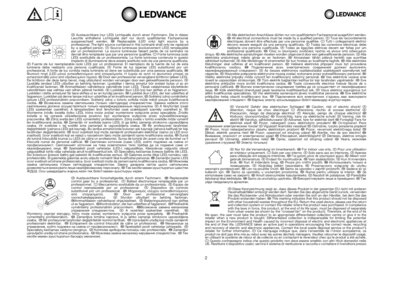

Legal information
LN INV DALI PDF (1.1 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)

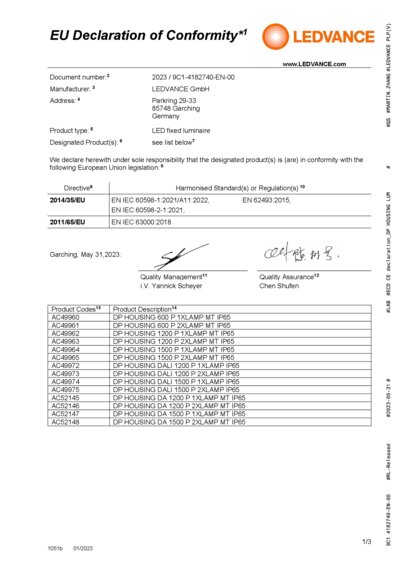

Declarations of conformity
CE Declaration DP HOUS ING PDF (238.47 KB)
EU Data Act
DALI LED Driver and Lu minaires PDF (469.42 KB)

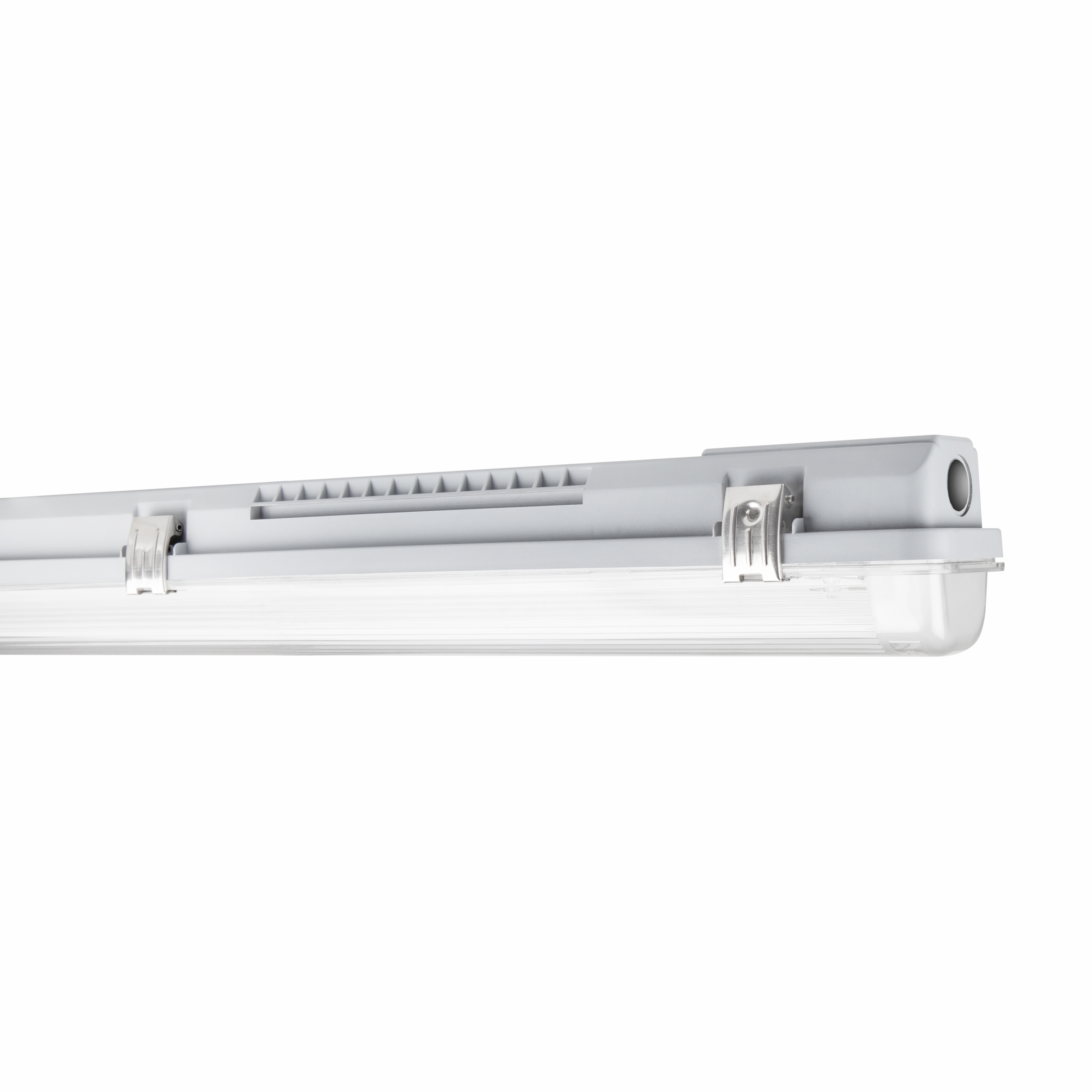

Product image: white background, diagonal
DP HOUSING 1200 P 1XLA MP IP65 JPG (1.01 MB)

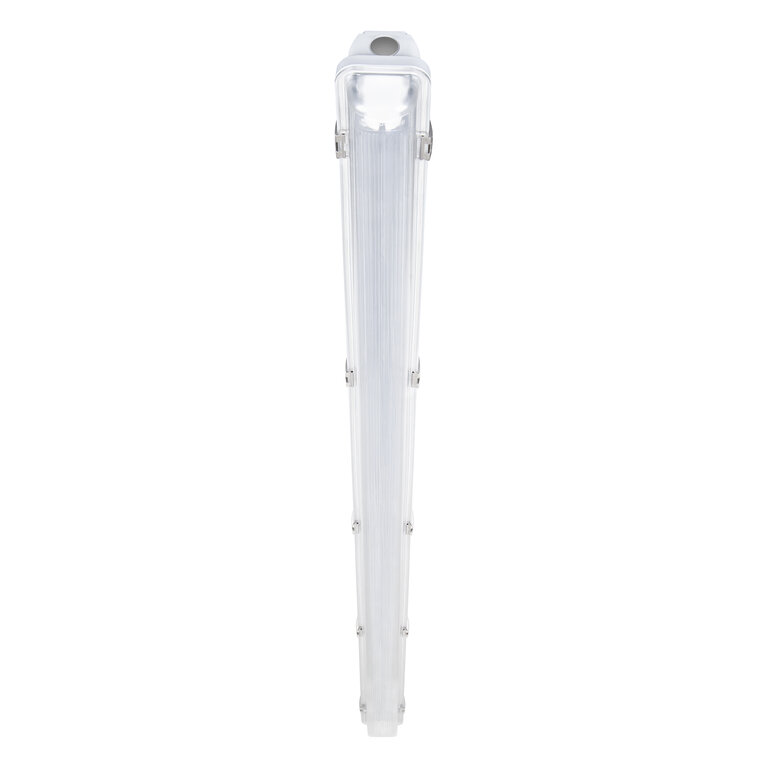

Product image: white background, upright
DP HOUSING 1200 P 1XLA MP IP65 JPG (1.51 MB)
Product line drawing with letters
DP HOUSING 1200 P 1XLA MP IP65 SVG (52.58 KB)
Product line drawing with numbers
DP HOUSING 1200 P 1XLA MP IP65 SVG (59.19 KB)
Product line drawing - technical
DP HOUSING 1200 P 1XLA MP IP65 SVG (48.78 KB)

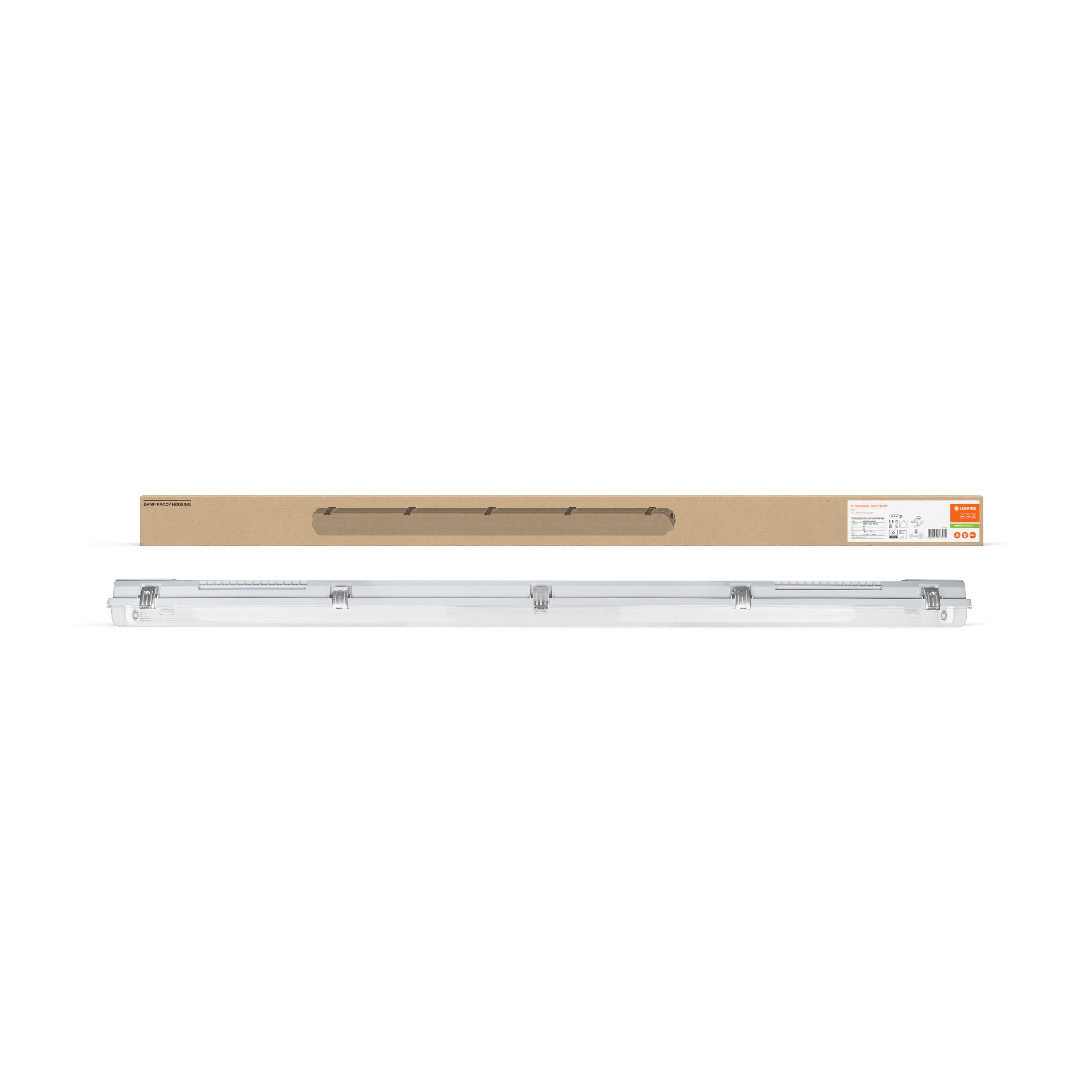

Combo Shot = Product Beauty Shot + Packaging Image
DP Housing DALI 1200 P 1xLamp JPG (682.18 KB)

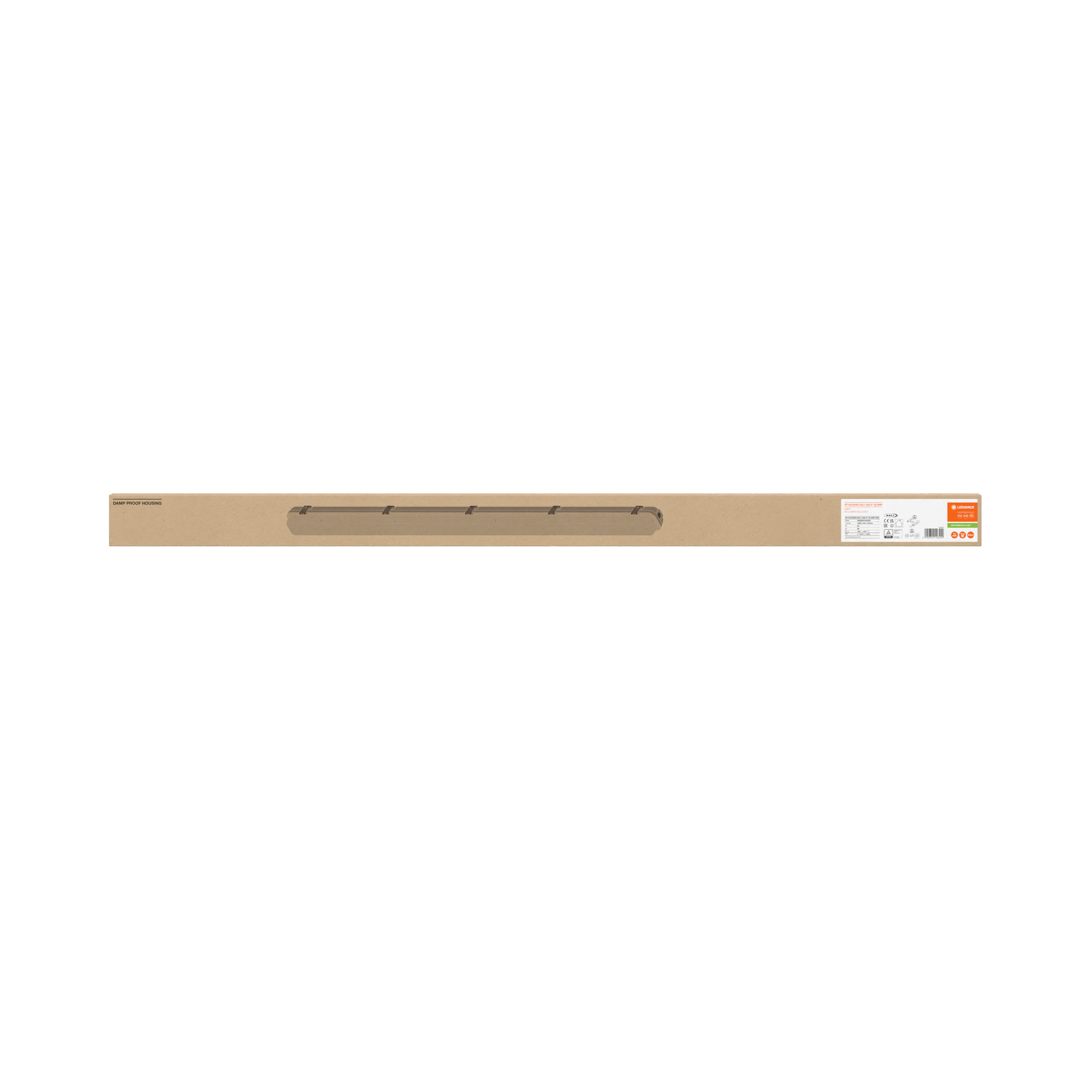

Packaging image, frontal
DP Housing DALI 1200 P 1xLamp JPG (612.07 KB)

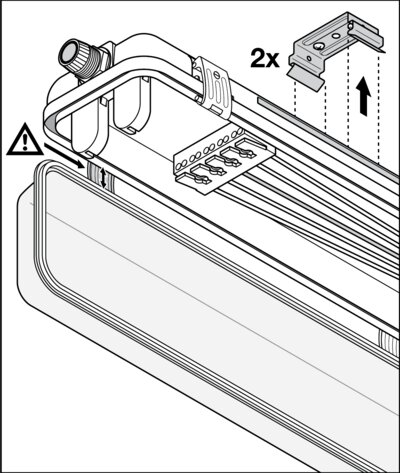

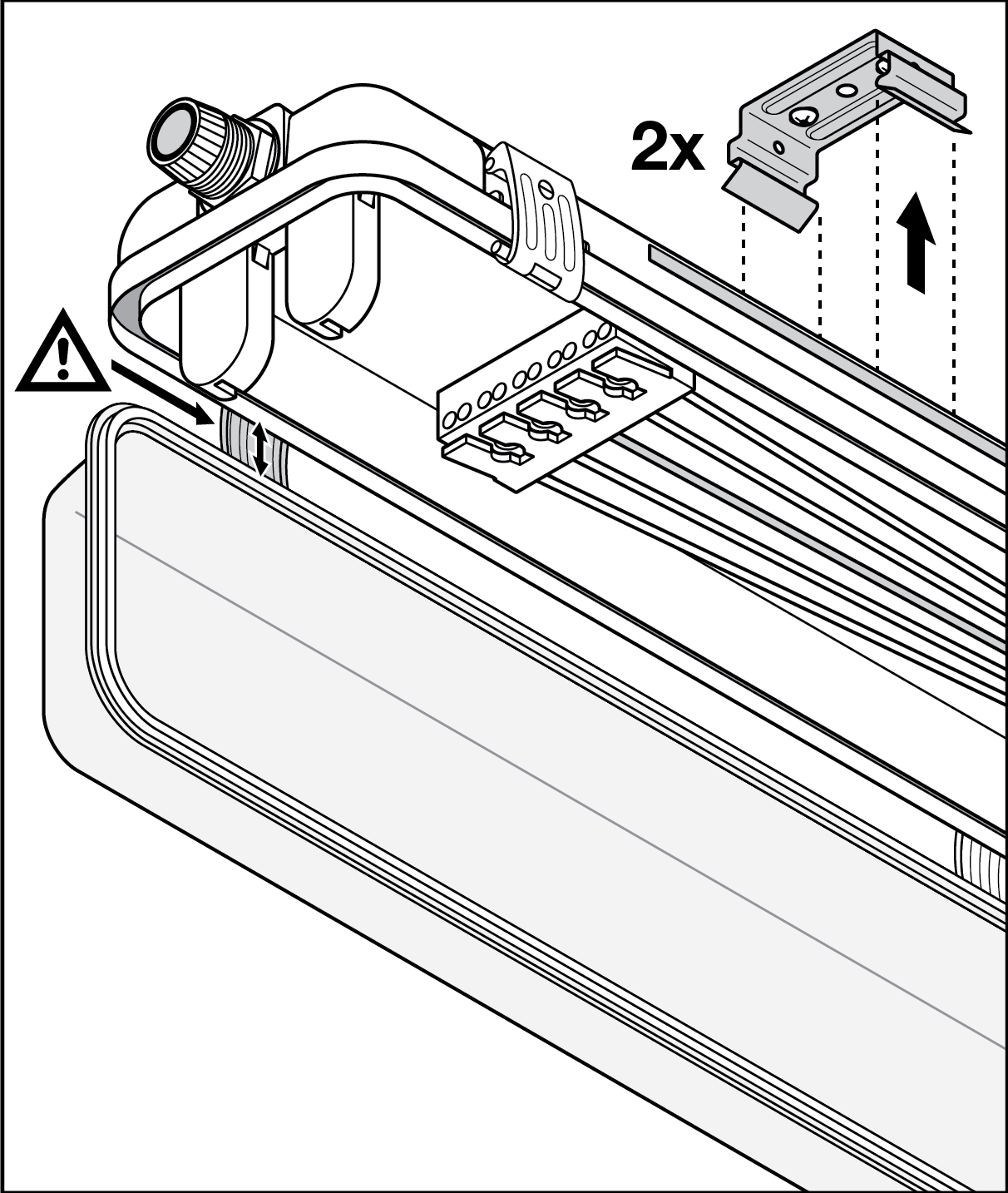

Catalog info 1
DP HOUSING DALI PNG (300.95 KB)
Catalog info 2
DP HOUSING DALI PNG (203.14 KB)
Catalog info 3
DP HOUSING DALI PNG (265.72 KB)
BIM Revit 3D
Damp Proof Housing G3 ZIP (4.37 MB)
CAD STEP 3D
DP HOUSING G3 1 1200 STEP (1.02 MB)
Tender documents
DAMP PROOF HOUSING DAL I 1200 P 1XLAMP IP65-E N TXT (1.93 KB)

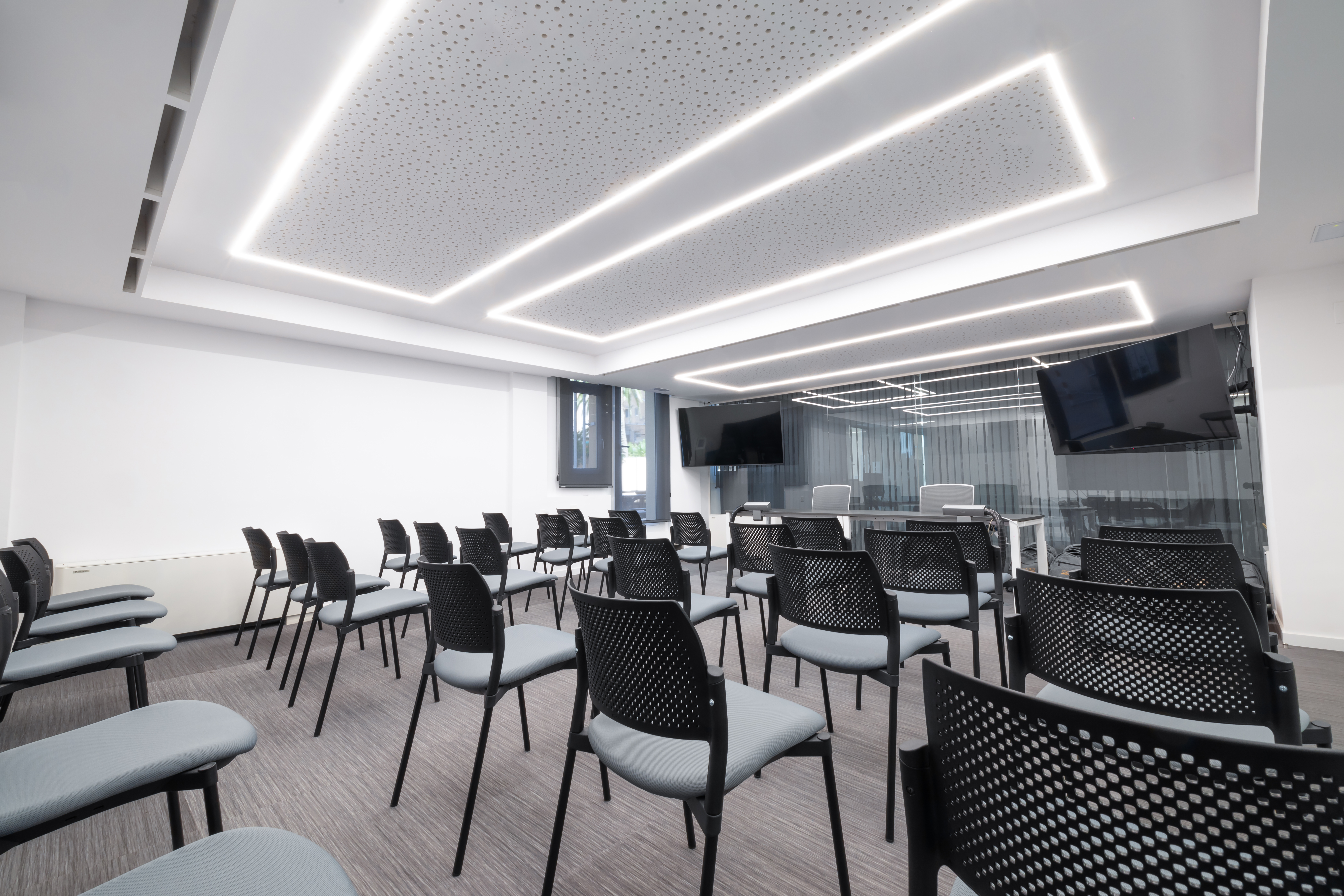

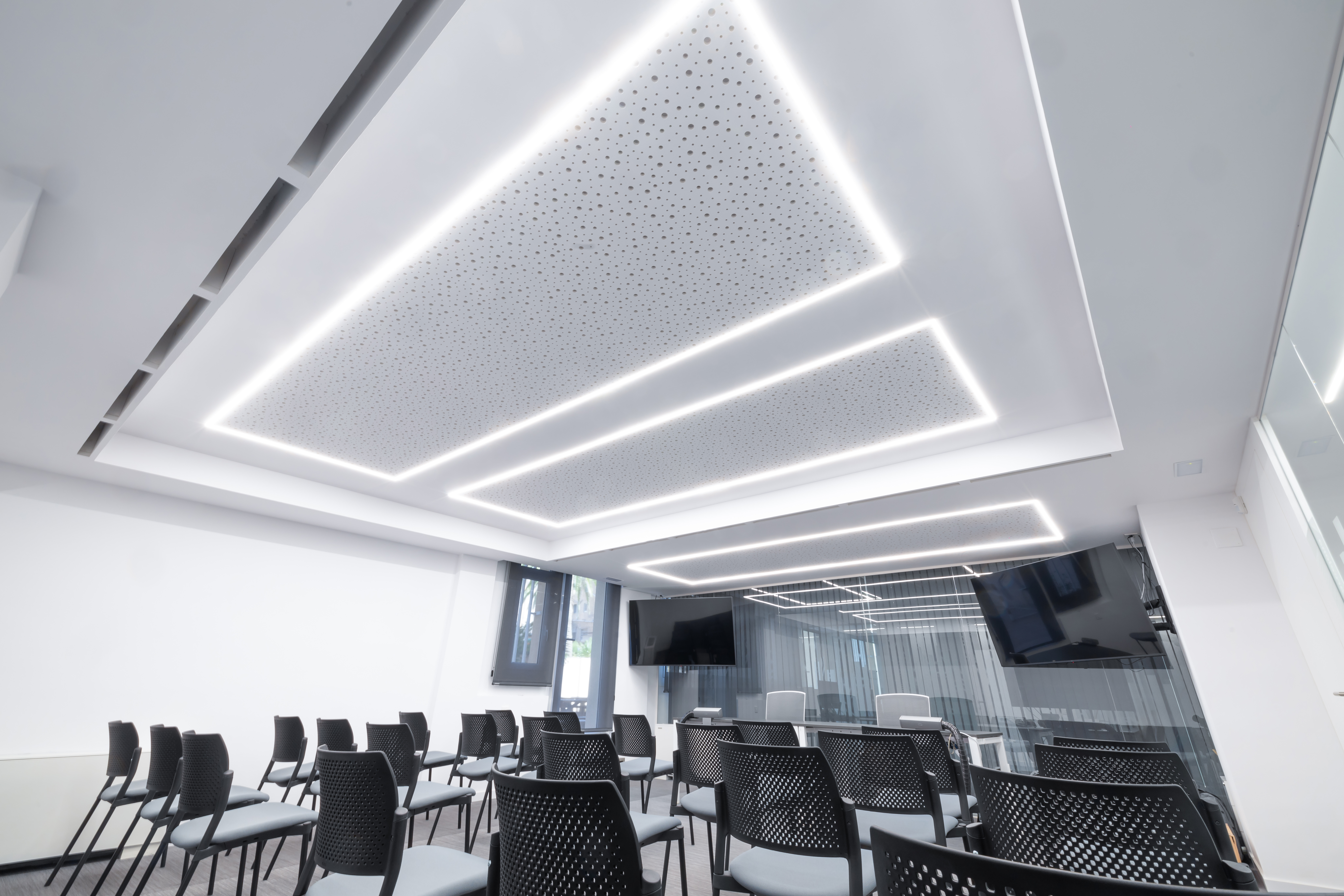

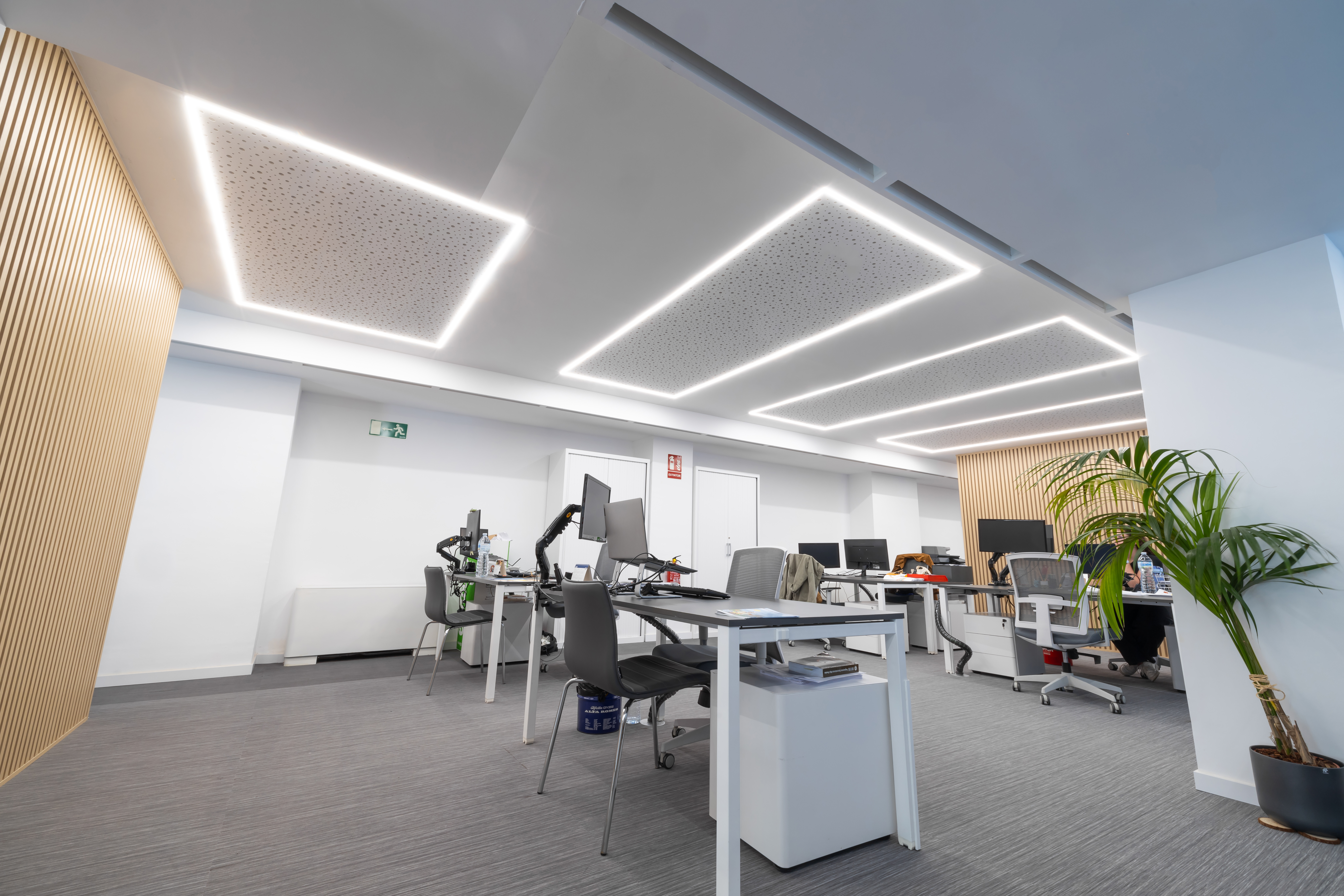

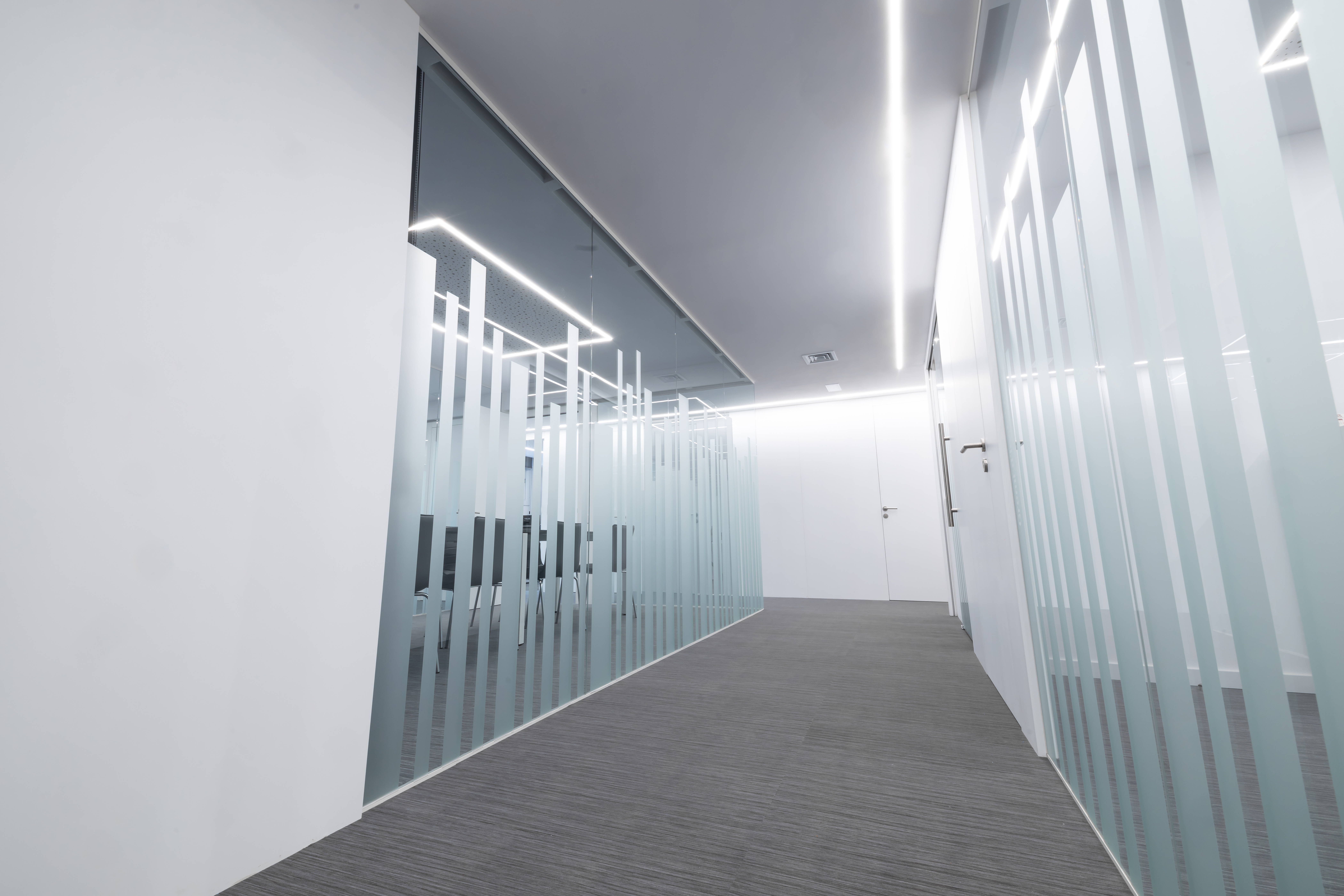

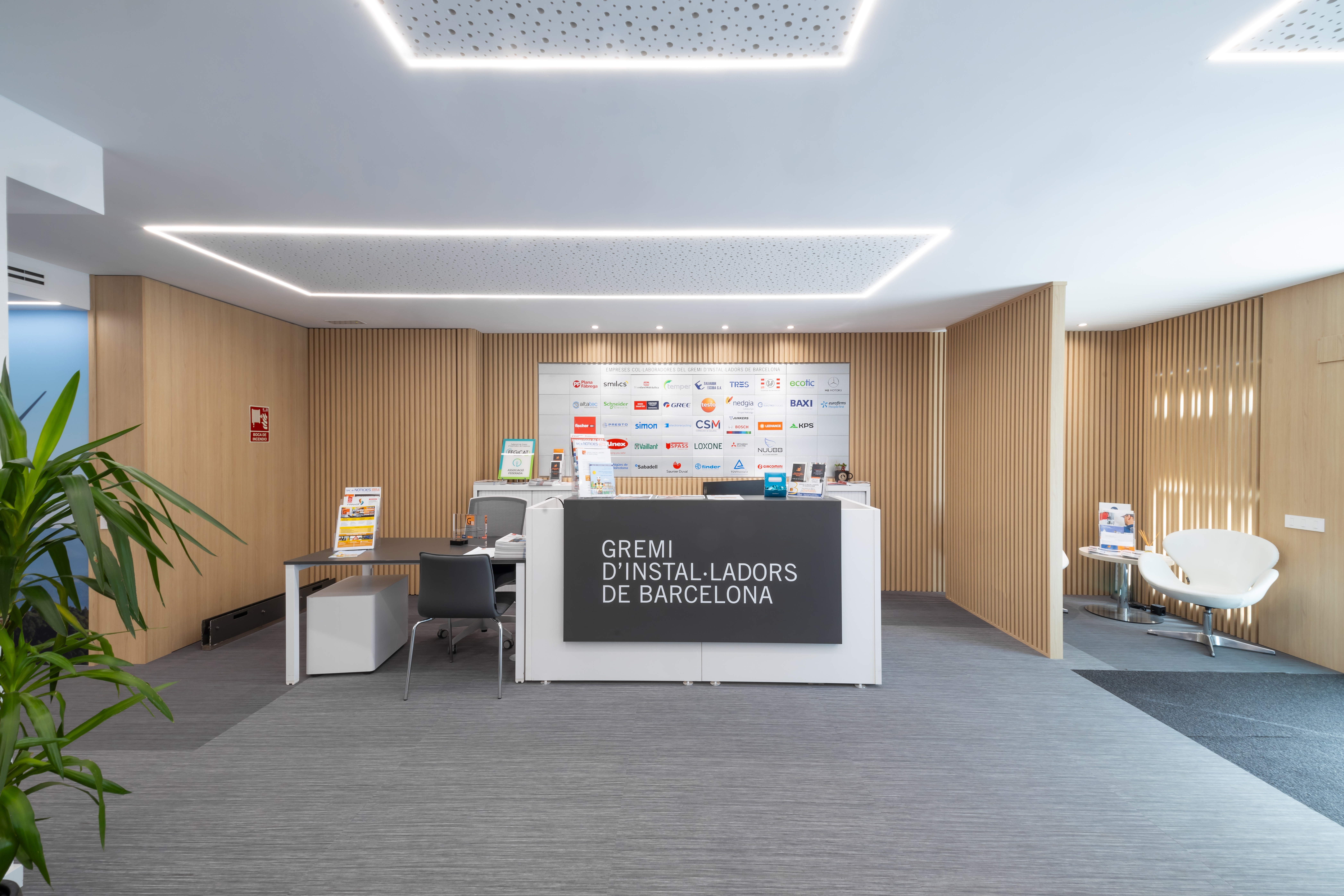

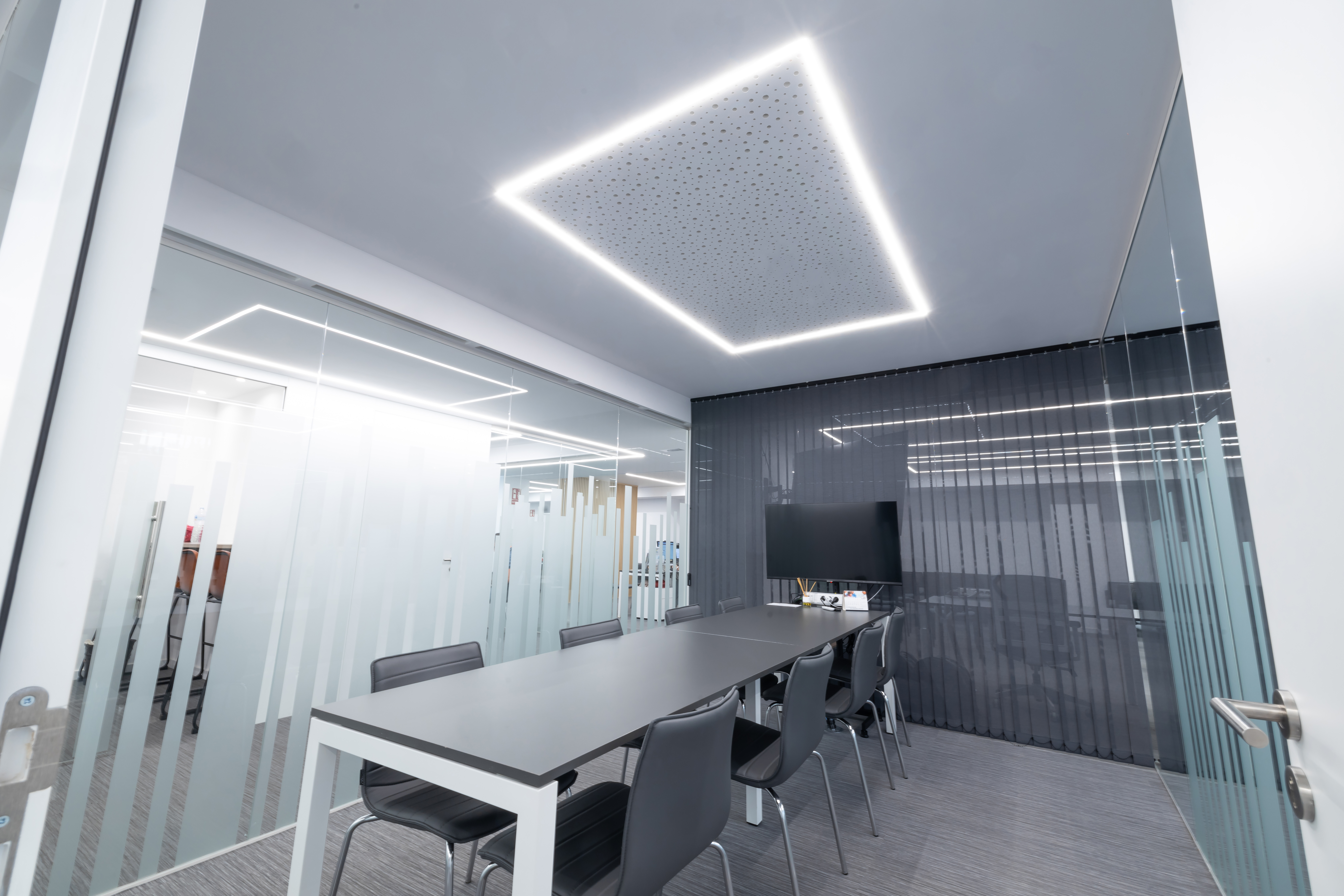

Application pictures
Oficinas del Gremi de Barcelona JPG (12.75 MB)
Application pictures
Oficinas del Gremi de Barcelona JPG (14.58 MB)
Application pictures
Oficinas del Gremi de Barcelona JPG (13.17 MB)
Application pictures
Oficinas del Gremi de Barcelona JPG (14.76 MB)
Application pictures
Oficinas del Gremi de Barcelona JPG (15.64 MB)
Application pictures
Oficinas del Gremi de Barcelona JPG (12.37 MB)

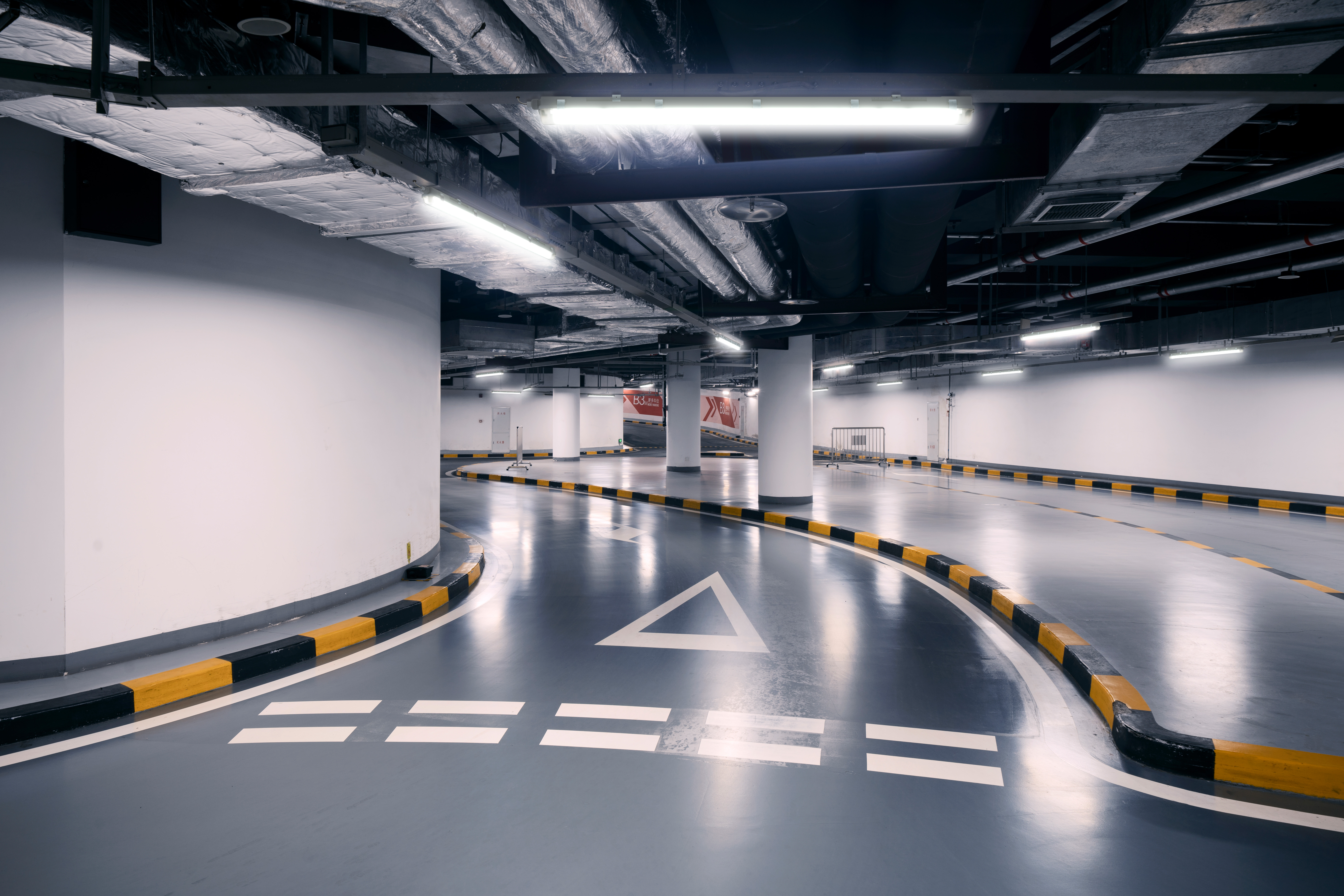

Application pictures Getty
