DAMP PROOF COMBO

Choose your product version

NEW

600 V 16W MS 840 IP66 GY

NEW

1200 V 32W MS 840 IP66 GY

NEW

1500 V 50W MS 840 IP66 GY

NEW

1800 V 60W MS 840 IP66 GY

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
DP CBO 600 V 16W MS 840 IP66 GY 16 W / 13 W / 11 W / 8 W 25000 110 ° 2400 lm / 1960 lm / 1670 lm / 1220 lm No
DP CBO 1200 V 32W MS 840 IP66 GY 32 W / 26 W / 21 W / 16 W 25000 110 ° 4800 lm / 3920 lm / 3190 lm / 2450 lm No
DP CBO 1500 V 50W MS 840 IP66 GY 50 W / 42 W / 33 W / 25 W 25000 110 ° 7500 lm / 6340 lm / 5010 lm / 3820 lm No
DP CBO 1800 V 60W MS 840 IP66 GY 60 W / 50 W / 40 W / 30 W 25000 110 ° 9000 lm / 7550 lm / 6080 lm / 4590 lm No
NEW


DP CBO 1800 V 60W MS 840 IP66 GY

Product benefits
  • Highly versatile due to selectable CCT and power steps (Multi Color / Multi Lumen) on the driver
  • Plug & Upgrade concept for easy conversion to sensor or emergency luminaire
  • Suitable for use in dusty and damp locations thanks to high IP rating
  • Suitable for use in public areas thanks to high IK rating
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 60 W / 50 W / 40 W / 30 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 260mA / 222mA / 178mA / 141 mA
Inrush current 20 A
Inrush current time Th50 118 µs
Max. number of luminaires per miniature circuit breaker B16 33
Max. number of luminaires per miniature circuit breaker C10 25
Max. number of luminaires per miniature circuit breaker C16 40
Power factor λ > 0.90
Total harmonic distortion < 20 %
Protection class I
Operating mode Integrated LED driver

Photometrical data

Luminous flux 9000 lm / 7550 lm / 6080 lm / 4590 lm
Luminous efficacy 150 lm/W / 151 lm/W / 152 lm/W / 153 lm/W
Color temperature 4000 K / 6500 K
Light color (designation) Cool White, Cool Daylight
Color rendering index Ra ≥80
Standard deviation of color matching < 5 sdcm
Low flicker Yes
Flickering metric (Pst LM) <1
Stroboscope effect metric (SVM) <0.4
Photobiological safety group acc. to EN62778 RG1
Beam angle 110 °

Adjustable attributes

Nominal wattage Color temperature Luminous flux Luminous efficacy
60 W 4000 K 9000 lm 150 lm/W
60 W 6500 K 9000 lm 150 lm/W
50 W 4000 K 7550 lm 151 lm/W
50 W 6500 K 7550 lm 151 lm/W
40 W 4000 K 6080 lm 152 lm/W
40 W 6500 K 6080 lm 152 lm/W
30 W 4000 K 4590 lm 153 lm/W
30 W 6500 K 4590 lm 153 lm/W

Dimensions & Weight

Length 1870.00 mm
Height 78.00 mm
Width 97.00 mm
Product weight 2120.00 g

Materials & Colors

Product color Gray
Housing color Gray
Body material Polycarbonate (PC)
Cover material Polycarbonate (PC)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Push-in
Type of protection IP66
Protection class IK (shock resistance) IK10
Dimmable No
Mounting type Suspended/Surface
Mounting location Ceiling, Wall
Application environment Indoor
With light source Yes
Replaceable light source No

Lifespan

Lifespan L70/B50 at 25 °C 54000 h 1)
Lifespan L80/B10 at 25 °C 50000 h 1)
Lifespan L90/B10 at 25 °C 25000 h
Number of switching cycles 25000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 190mA / 250mA / 310mA / 360 mA

Emergency lighting

Type of Emergency Lighting (EL) Optional EL unit (battery and controller) for decentral operation available separately

Certificates & Standards

Standards CE, CB, ERP, UKCA, EAC
Ball shot safe No
Replaceable light source (EPREL) Not replaceable

Additional product data

Product remark Available from May 2025
Added function MULTI SELECT

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Highly versatile due to selectable CCT and power steps (Multi Color / Multi Lumen) on the driver
  • Plug & Upgrade concept for easy conversion to sensor or emergency luminaire
  • Suitable for use in dusty and damp locations thanks to high IP rating
  • Suitable for use in public areas thanks to high IK rating
Areas of application
  • Industrial and storage facilities
  • Car parks and underpasses
  • Garages
  • Workshops, assembly lines
Product features
  • High luminous efficacy: up to 153 lm/W
  • Type of protection: IP66
  • Impact resistance: IK10
  • Luminous flux: up to 9,000 lm
  • Push wire terminal for tool-free connection
  • Lifetime (L70/B50) up to 50,000 h (at 25 °C)
  • Ambient temperature in operation: -20…+40 °C
  • Through wiring possible
Equipment / Accessories
  • Plug & Upgrade high frequency sensor and emergency kit separately available
  • Mounting screws and dowels included
Safety advice
  • Values of type of protection, impact resistance and ambient temperature range may differ depending on the installation of the components.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854521416 Folding box
1		 1,878 mm x 103 mm x 86 mm 2515.00 g 16.64 dm³
4099854521423 Shipping box
4		 1,896 mm x 221 mm x 186 mm 11210.00 g 77.94 dm³
Product image Product name EAN
DP BATTEN CBO SENSOR LS PD 8 MW INT 4099854521461
DP BATTEN CBO EL CG 200V 3H MT AT 4099854521430
DP BATTEN CBO EL BAT 6.4V 1.8AH 2WH 4099854521515
User instruction / safety instructions
DP CBO PDF (4.2 MB)
Legal information
DP COMBO PDF (2.68 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Legal information
Safety Insert G1120549 7 PDF (178.17 KB)
Legal information
Legal Insert DP CBO AN D BATTEN CBO PDF (841.65 KB)
Declarations of conformity
DP CBO PDF (285.76 KB)

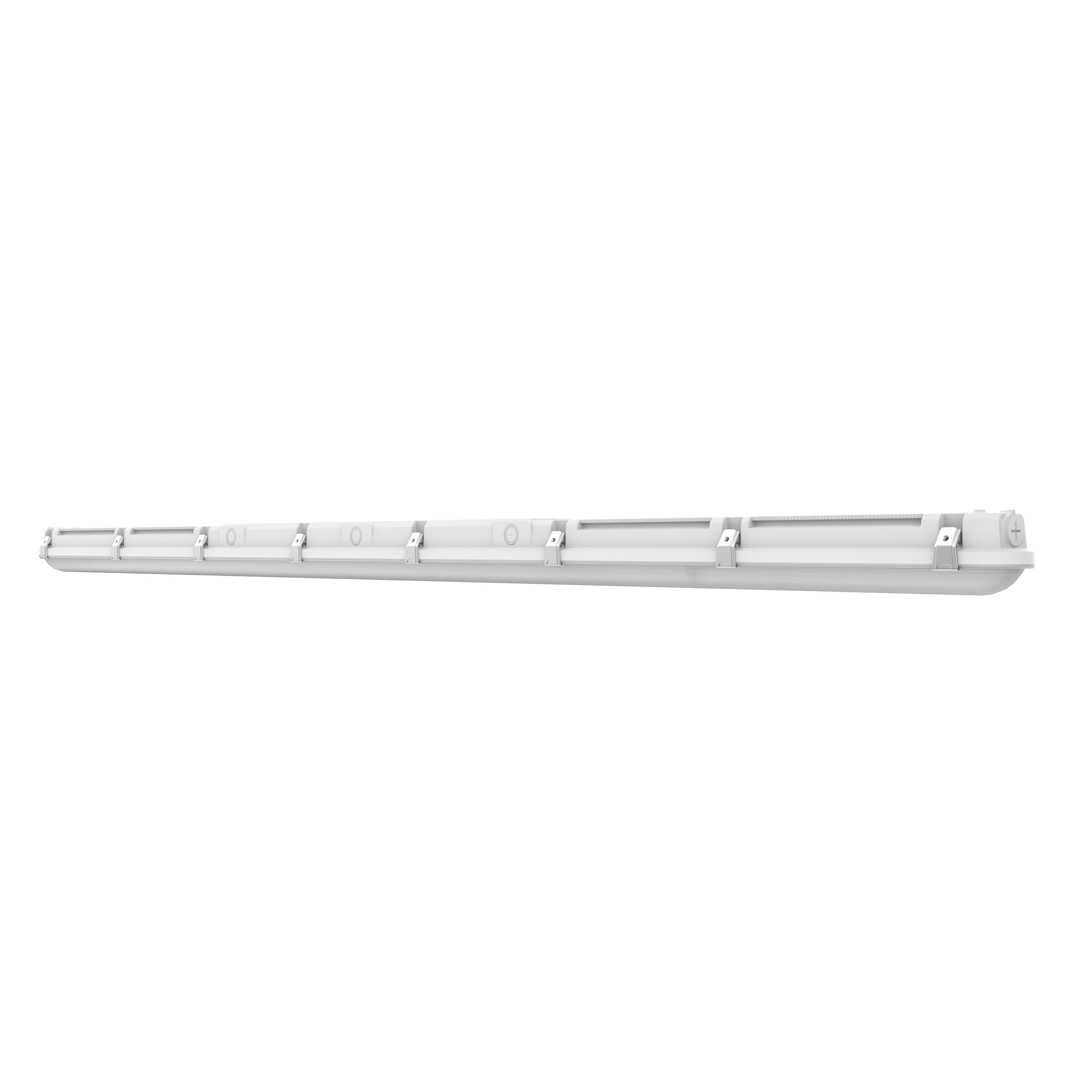

Product image: white background, diagonal
DP COMB diagonal 1800 JPG (337.21 KB)
Product image: white background, diagonal
DP COMB diagonal 1800 bracket JPG (339.7 KB)

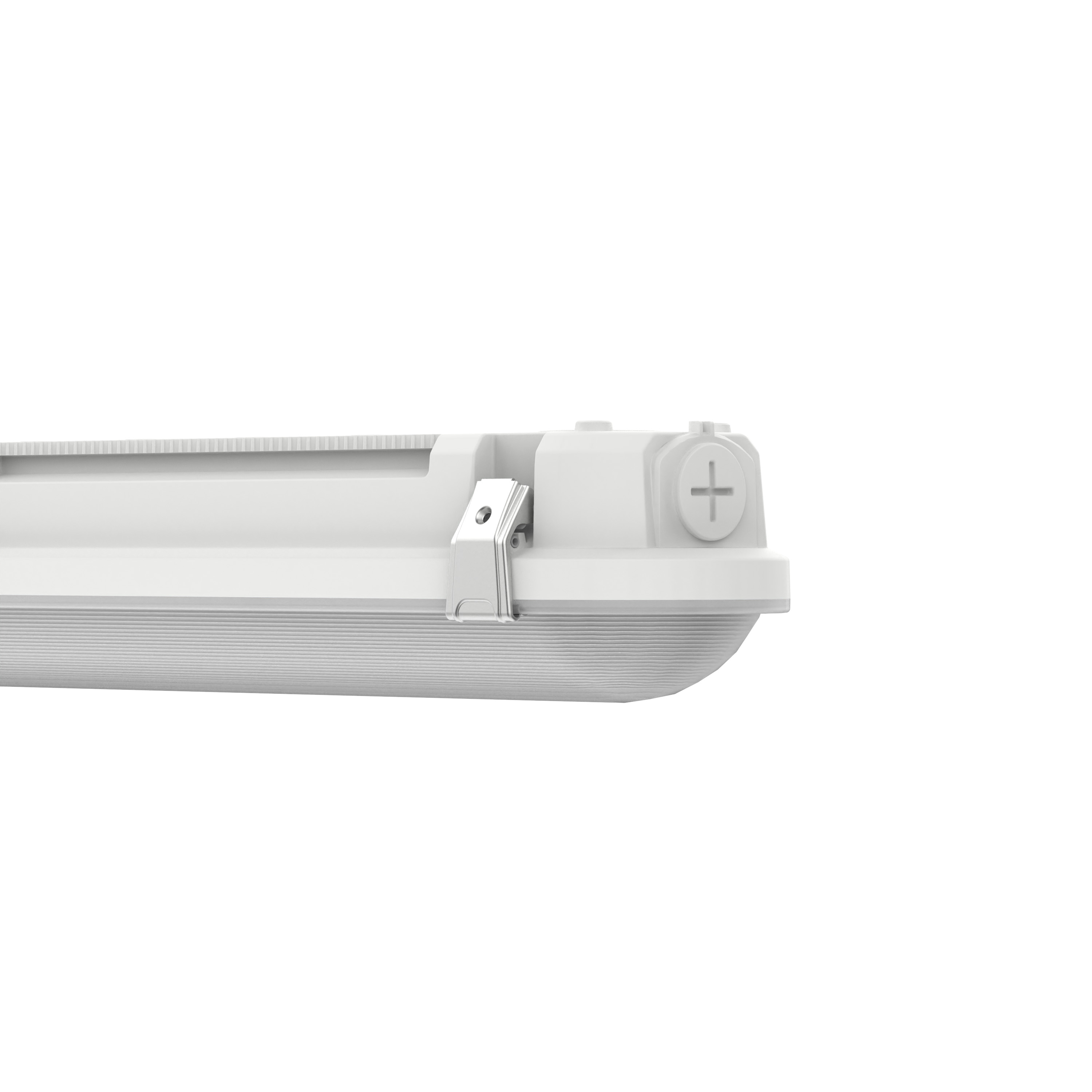

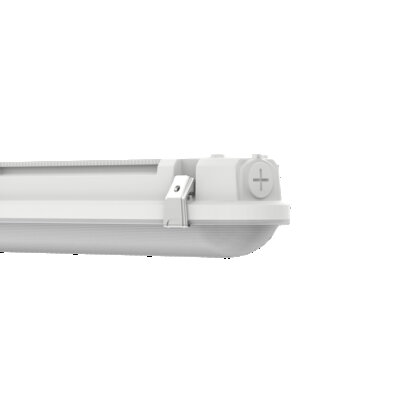

Product image: white background, diagonal, alternative image
DP COMB diagonal alter native 1800 JPG (405.62 KB)

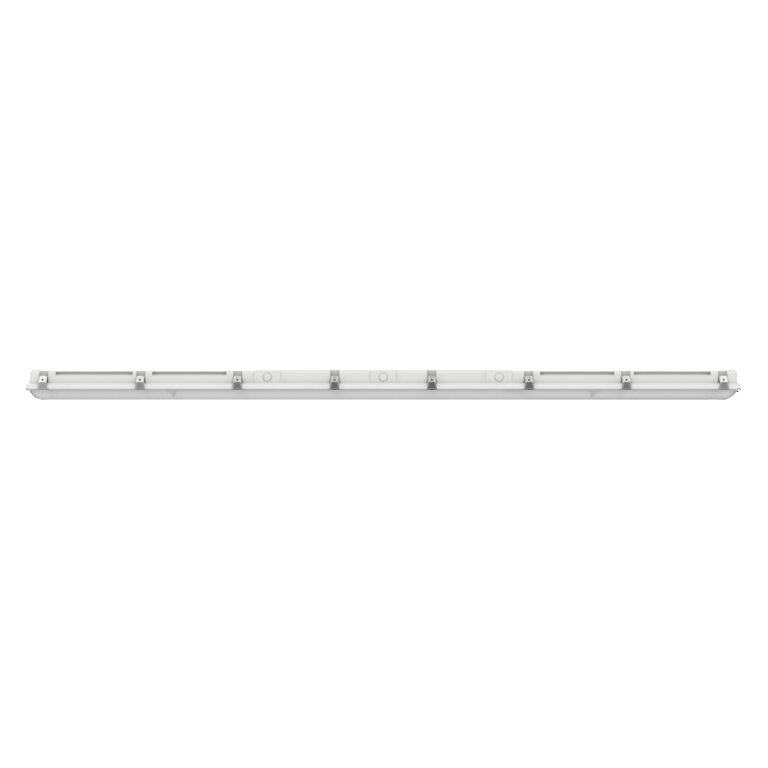

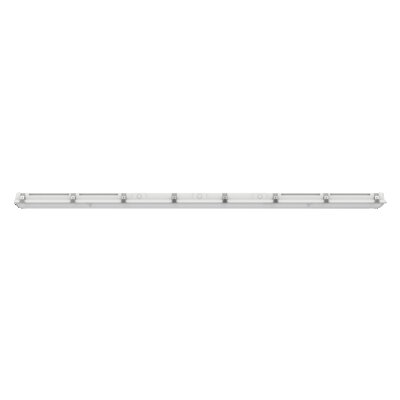

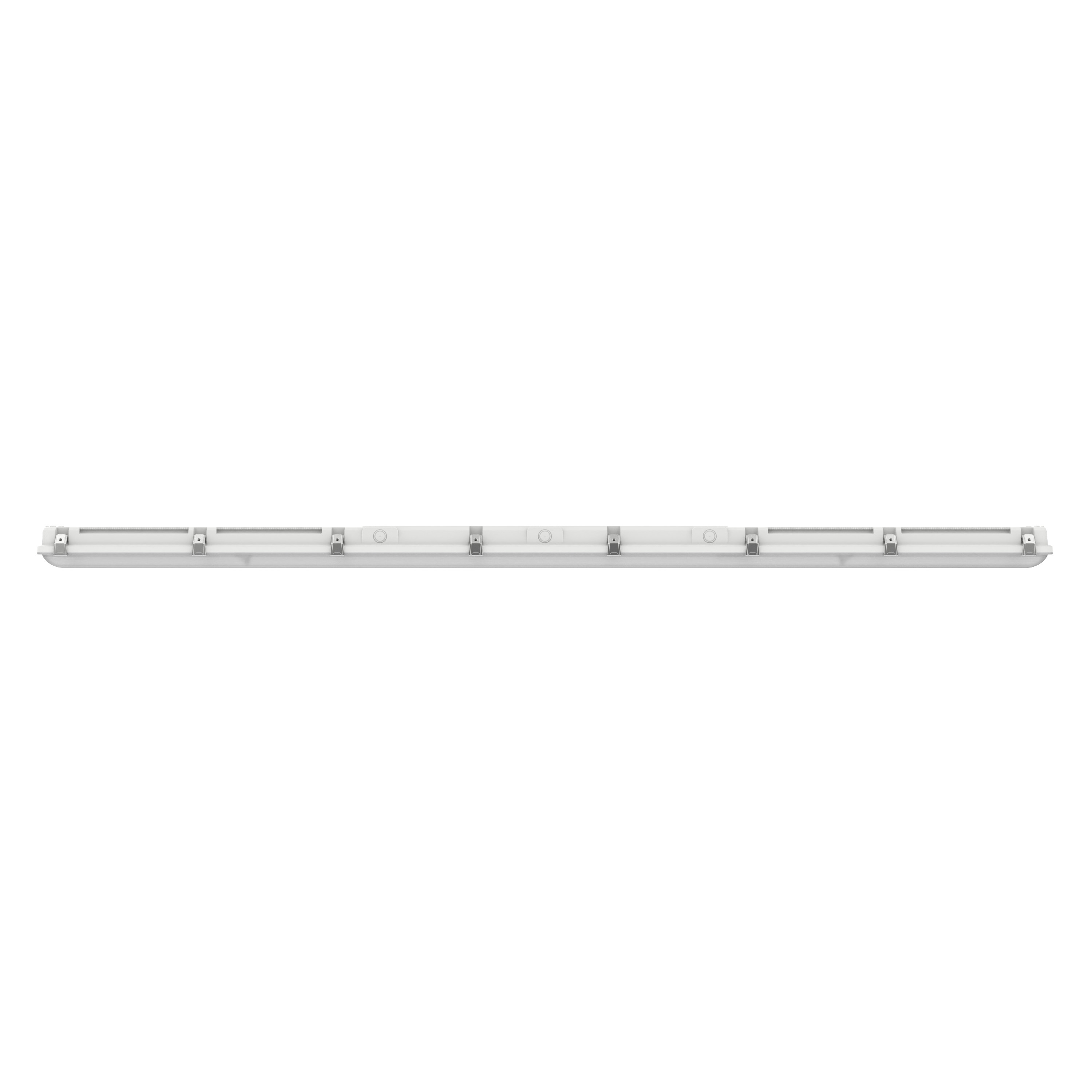

Product image: white background, horizontal
DP COMB horizontal 180 0 JPG (316.49 KB)

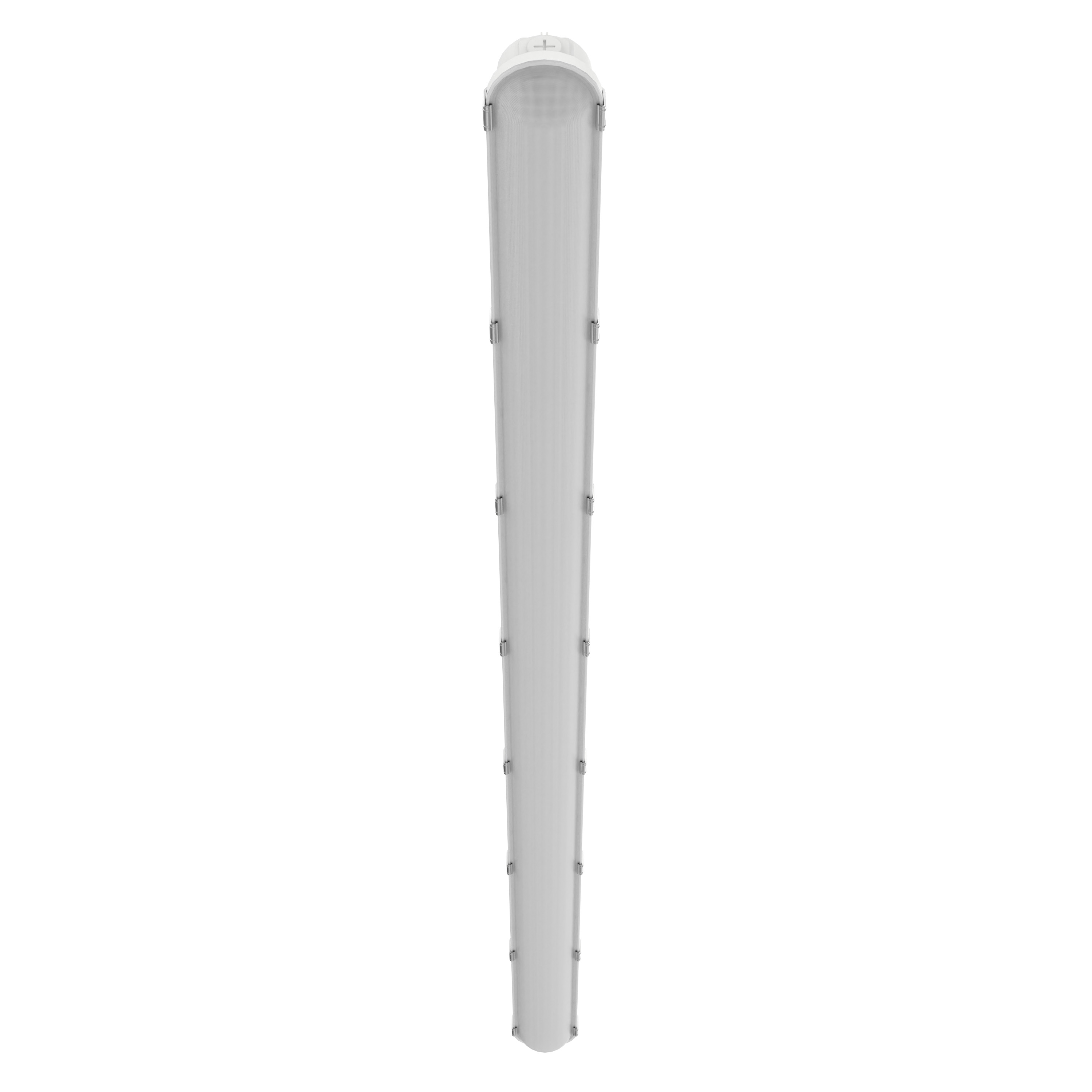

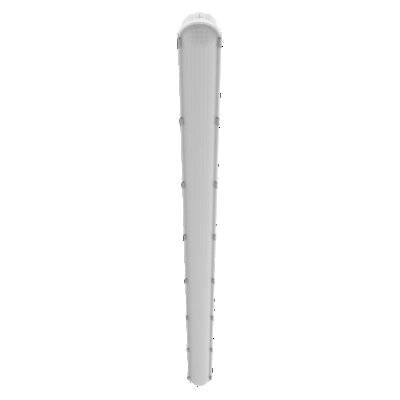

Product image: white background, upright
