DAMP PROOF FLEX EMERGENCY

Choose your product version

Coming soon

1200 P 34W ML 830 IP66

Coming soon

1200 P 34W ML 840 IP66

Coming soon

1200 P 34W ML 865 IP66

Coming soon

1500 P 42W ML 830 IP66

Coming soon

1500 P 42W ML 840 IP66

Coming soon

1500 P 42W ML 865 IP66

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
DP FLEX EL 1200 P 34W ML 830 IP66 34 W / 31 W / 26 W / 20 W 100000 120 ° 5500 lm / 4900 lm / 4200 lm / 3000 lm No
DP FLEX EL 1200 P 34W ML 840 IP66 34 W / 31 W / 26 W / 20 W 100000 120 ° 5600 lm / 5100 lm / 4300 lm / 3100 lm No
DP FLEX EL 1200 P 34W ML 865 IP66 34 W / 31 W / 26 W / 20 W 100000 120 ° 5600 lm / 5100 lm / 4300 lm / 3100 lm No
DP FLEX EL 1500 P 42W ML 830 IP66 42 W / 38 W / 31 W / 23 W 100000 120 ° 6800 lm / 6100 lm / 4900 lm / 3600 lm No
DP FLEX EL 1500 P 42W ML 840 IP66 42 W / 38 W / 31 W / 23 W 100000 120 ° 6900 lm / 6300 lm / 5000 lm / 3700 lm No
DP FLEX EL 1500 P 42W ML 865 IP66 42 W / 38 W / 31 W / 23 W 100000 120 ° 6900 lm / 6300 lm / 5000 lm / 3700 lm No
Coming soon


DP FLEX EL 1200 P 34W ML 830 IP66

Product benefits
  • Seamless integration of luminaires with emergency lighting function into general lighting
  • Easy wiring thanks to included prewired driver and battery for Emergency lighting function
  • Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
  • Convenient visualization of results of automatic test with an included control LED
  • Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
  • Uniform light distribution in normal operation
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 34 W / 31 W / 26 W / 20 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 158mA / 145mA / 126mA / 97 mA
Inrush current 20 A
Inrush current time Th50 187 µs
Max. number of luminaires per miniature circuit breaker B16 26
Max. number of luminaires per miniature circuit breaker C10 28
Max. number of luminaires per miniature circuit breaker C16 42
Power factor λ > 0.90
Total harmonic distortion ≤ 25 %
Protection class II
Surge capability (L-N) 1000 V
Operating mode Integrated LED driver

Photometrical data

Luminous flux 5500 lm / 4900 lm / 4200 lm / 3000 lm
Luminous efficacy 162 lm/W / 158 lm/W / 150 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra ≥80
Standard deviation of color matching ≤5 sdcm
Low flicker Yes
Flickering metric (Pst LM) < 1
Stroboscope effect metric (SVM) < 0.4
Photobiological safety group acc. to EN62778 RG0
Beam angle 120 °
UGR < 25.5

Adjustable attributes

Nominal wattage Color temperature Luminous flux Luminous efficacy
34 W 3000 K 5500 lm 162 lm/W
31 W 3000 K 4900 lm 158 lm/W
26 W 3000 K 4200 lm 162 lm/W
20 W 3000 K 3000 lm 150 lm/W

Dimensions & Weight

Length 1320.00 mm
Height 73.00 mm
Width 88.00 mm
Product weight 1585.00 g

Materials & Colors

Product color Gray
Housing color Gray
RAL Color (most similar) RAL 7045
Body material Polycarbonate (PC)
Cover material Polycarbonate (PC)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 850 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range +5…+35 °C
Temperature range at storage +5…+35 °C

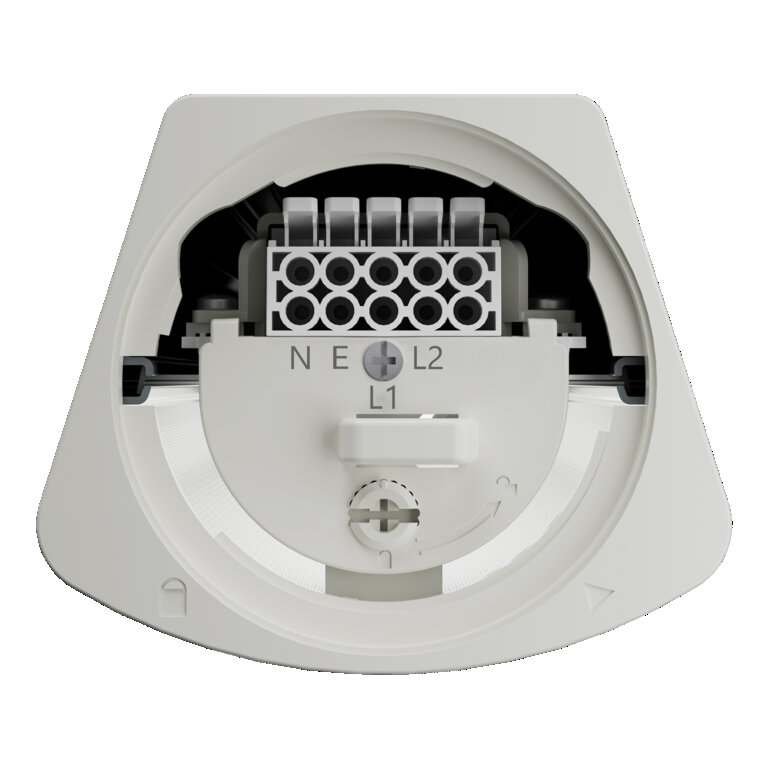

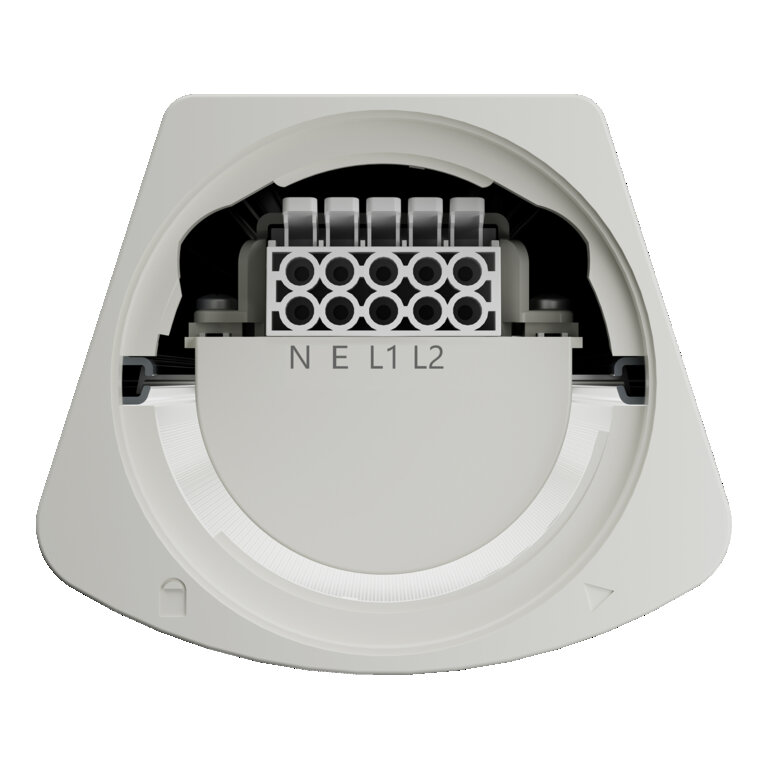

Type of connection Screwless terminal, 5-Pole
Type of protection IP66
Protection class IK (shock resistance) IK08
Dimmable No
Mounting type Suspended/Surface
Mounting location Ceiling
Application environment Indoor
With light source Yes
Replaceable light source Yes

Lifespan

Lifespan L70/B50 at 25 °C 100000 h 1)
Lifespan L80/B10 at 25 °C 100000 h 1)
Lifespan L90/B10 at 25 °C 83000 h
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 225/125 mA
ECG - Output ripple current 5 %

BATTERY

Type of Battery LiFePO4
Battery size [GMS] Others
Nominal voltage of battery 3.2 V
Nominal capacity of battery 6000 mAh
Battery charging time 24 h

Emergency lighting

Type of Emergency Lighting (EL) EL unit (battery and controller) for decentral operation included
Area of emergency application Anti-panic lighting, Escape route lighting
Type of emergency light operation Maintained, Non-maintained
Type of emergency operation test Automatic
Wattage in emergency operation mode 3.2 W
Luminous flux in emergency operation mode 500 lm
Battery life in emergency operation mode 3 h

Certificates & Standards

Standards CE, CB, ENEC, TÜV SÜD, UKCA, EAC
Luminaire with limited surface temperature, "D sign" Yes
Ball shot safe No
Replaceable light source (EPREL) Only by an expert

Additional product data

Product remark Available from December 2025
Added function EVERLOOP

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Seamless integration of luminaires with emergency lighting function into general lighting
  • Easy wiring thanks to included prewired driver and battery for Emergency lighting function
  • Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
  • Convenient visualization of results of automatic test with an included control LED
  • Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
  • Uniform light distribution in normal operation
Areas of application
  • Emergency illumination of escape routes
  • Antipanic lighting
  • Buildings requiring up to 3 h emergency light operation
  • Industrial and storage facilities
  • Workshops, assembly lines
  • Passages, underpasses
  • Parking garages
  • Underground parking
Product features
  • High luminous efficacy: up to 165 lm/W
  • Luminaire suitable for normal lighting and emergency lighting
  • Suitable for emergency central battery installations acc. to EN 60598-2-22
  • Self-contained luminaires
  • Luminous flux in emergency operation mode: 500 lm
  • Emergency lighting function: battery discharge time of 3 h
  • Function test of emergency lighting: automatic (AT)
  • Battery technology: LiFePO4
  • Protection rating: IP66
  • Impact resistance: IK08
Equipment / Accessories
  • Stainless steel clamps with safety screws included
  • Mounting accessories included (suspension kit, theft protection kit)
  • EVERLOOP luminaire: upgrades and replacements available
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854717796 Folding box
1		 1,328 mm x 95 mm x 78 mm 1817.00 g 9.84 dm³
4099854717802 Shipping box
6		 1,350 mm x 248 mm x 215 mm 12041.00 g 71.98 dm³
User instruction / safety instructions
User Instruction G1125 4811 DAMP PROOF FLEX E L PDF (5.77 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Legal information
Legal Insert DP HE EL PDF (929.85 KB)
Legal information
Safety Insert G1120142 0 PDF (302.65 KB)
Legal information
Light source insert G1 1255045 DAMP PROOF FLE X EL PDF (2.26 MB)
Product image: white background, diagonal
DP FLEX DA JPG (790.47 KB)
Product image: white background, diagonal, alternative image
DP FLEX DA JPG (933.98 KB)
Product image: white background, horizontal
DP FLEX DA JPG (725.74 KB)
Product image: white background, upright
DP FLEX DA JPG (849.61 KB)
Product image: white background, upright
DP FLEX DA JPG (819.83 KB)
Product line drawing with letters
DP FLEX DA SVG (23.69 KB)
Product line drawing with numbers
DP FLEX DA/EL SVG (30.98 KB)
Product line drawing - technical
DP FLEX DA SVG (20.11 KB)
IES file (IES)
DP FLEX EL 1200 P 34W ML 830 IP66 LEDV IES (0 B)
LDT file (Eulumdat)
DP FLEX EL 1200 P 34W ML 830 IP66 LEDV LDT (0 B)
UGR file (UGR table)
DP FLEX EL 1200 P 34W ML 830 IP66 LEDV PNG (61.63 KB)
Light distribution curve type cone
DP FLEX EL 1200 P 34W ML 830 IP66 LEDV SVG (15.42 KB)
Light distribution curve type polar
DP FLEX EL 1200 P 34W ML 830 IP66 LEDV SVG (19.73 KB)
BIM Revit 3D
Damp Proof Flex ZIP (1.51 MB)
CAD STEP 3D
DP FLEX EL 1200 STEP (5.42 MB)
Tender documents
DAMP PROOF FLEX EMERGE NCY 1200 P 34W ML 830 IP66-en TXT (3.32 KB)
EAN STK number
4099854717796 4325457
