DAMP PROOF

Choose your product version

1200 18W 840 IP65 GY

1200 18W 865 IP65 GY

1500 26W 840 IP65 GY

1500 26W 865 IP65 GY

1200 32W 830 IP65 GY

1200 32W 840 IP65 GY

1200 32W 865 IP65 GY

1500 46W 830 IP65 GY

1500 46W 840 IP65 GY

1500 46W 865 IP65 GY

1500 58W 840 IP65 GY

1500 58W 865 IP65 GY

1500 81W 840 IP65 GY

1500 81W 865 IP65 GY

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
DP 1200 18W 840 IP65 GY  18.00 W 100000 110 ° 2400 lm No
DP 1200 18W 865 IP65 GY        18.00 W 100000 110 ° 2400 lm No
DP 1500 26W 840 IP65 GY 26.00 W 100000 110 ° 3500 lm No
DP 1500 26W 865 IP65 GY 26.00 W 100000 110 ° 3500 lm No
DP 1200 32W 830 IP65 GY 32.00 W 100000 110 ° 4000 lm No
DP 1200 32W 840 IP65 GY 32.00 W 100000 110 ° 4400 lm No
DP 1200 32W 865 IP65 GY 32.00 W 100000 110 ° 4400 lm No
DP 1500 46W 830 IP65 GY 46.00 W 100000 110 ° 5750 lm No
DP 1500 46W 840 IP65 GY 46.00 W 100000 110 ° 6400 lm No
DP 1500 46W 865 IP65 GY 46.00 W 100000 110 ° 6400 lm No
DP 1500 58W 840 IP65 GY 58.00 W 100000 110 ° 8000 lm No
DP 1500 58W 865 IP65 GY 58.00 W 100000 110 ° 8000 lm No
DP 1500 81W 840 IP65 GY 81 W / 69 W / 57 W / 46 W 100000 110 ° 11000 lm / 9600 lm / 8200 lm / 6600 lm No
DP 1500 81W 865 IP65 GY   81 W / 69 W / 57 W / 46 W 100000 110 ° 11000 lm / 9600 lm / 8200 lm / 6600 lm No


DP 1200 32W 830 IP65 GY

Product benefits
  • Low flicker ≤ 10 %
  • Uniform light distribution
  • Energy savings of up to 60 % (compared to luminaires that use fluorescent lamps
  • Easy installation, no tools required for connection
  • 5 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 32.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 280.000 mA
Inrush current 12.2 A
Inrush current time Th50 210 µs
Max. number of luminaires per miniature circuit breaker B16 27
Max. number of luminaires per miniature circuit breaker C10 24
Max. number of luminaires per miniature circuit breaker C16 39
Power factor λ > 0.90
Total harmonic distortion < 20 %
Protection class I
Operating mode Integrated LED driver

Photometrical data

Luminous flux 4000 lm
Luminous efficacy 125 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra > 80
Standard deviation of color matching 4 sdcm
Low flicker Yes
Flickering metric (Pst LM) ≤ 1
Stroboscope effect metric (SVM) ≤ 0.4
Photobiological safety group acc. to EN62778 RG0
Beam angle 110 °

Dimensions & Weight

Length 1200.00 mm
Height 68.00 mm
Width 82.00 mm
Product weight 1360.00 g

Materials & Colors

Product color Gray
Housing color Gray
Body material Polycarbonate (PC)
Cover material Polycarbonate (PC)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 850 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -25…+40 °C
Temperature range at storage -25…+80 °C
Type of connection Terminal, 3-pin
Type of protection IP65
Protection class IK (shock resistance) IK08
Dimmable No
Mounting type Suspended/Surface
Mounting location Ceiling, Wall
Application environment Indoor
With light source Yes
Replaceable light source No

Lifespan

Lifespan L70/B50 at 25 °C 70000 h 1)
Lifespan L80/B10 at 25 °C 50000 h 1)
Lifespan L90/B10 at 25 °C 44000 h
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 370 mA

Emergency lighting

Type of Emergency Lighting (EL) EL certified driver (0Hz / DC operation) for central battery operation included
Type of emergency operation test None

Certificates & Standards

Standards CE, CB, ENEC, TÜV SÜD, EAC, RoHS, EPD
Luminaire with limited surface temperature, "D sign" Yes
Ball shot safe No
EPD LEDV-00002-V01.01-EN
Replaceable light source (EPREL) Not replaceable

Additional product data

Product remark When used in very cold applications as in cold storage, a special membrane might be required to ensure lifetime

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Low flicker ≤ 10 %
  • Uniform light distribution
  • Energy savings of up to 60 % (compared to luminaires that use fluorescent lamps
  • Easy installation, no tools required for connection
  • 5 years guarantee
Areas of application
  • Industrial and storage facilities
  • Car parks and underpasses
  • Garages
  • Workshops, assembly lines
Product features
  • High luminous efficacy: up to 139 lm/W
  • Beam angle: 110°
Equipment / Accessories
  • Stainless steel clamps with safety screws included
  • Mounting accessories included (suspension kit, theft protection kit)
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075541085 Folding box
1		 1,210 mm x 87 mm x 74 mm 1408.00 g 7.79 dm³
4058075541092 Shipping box
6		 1,232 mm x 191 mm x 245 mm 9468.00 g 57.65 dm³
User instruction / safety instructions
UI Damp Proof IP65 PDF (4.14 MB)
Legal information
LS Insert DP IP65 PDF (1.63 MB)
Legal information
LS DAMP PROOF IP65 GY PDF (2.83 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Declarations of conformity
CE Declaration DP 1200 and DP1500 PDF (260.73 KB)
Declarations of conformity
DP IP65 PDF (272.3 KB)
Certificates
DP 1500 PDF (418.5 KB)
EPD
EPD EN DAMP PROOF GEN 2 PDF (597.8 KB)
Product image: white background, spacial
DAMP PROOF 1200, DALI, EMERGENCY,SENSOR JPG (1.01 MB)
Product image: white background, with accessory, alternative image
Damp proof Gen 2 mount ing clips TIF (407.86 MB)
Product line drawing with letters
DP S 1200 32W 840 IP65 GY SVG (26.11 KB)
Product line drawing with numbers
DP S 1200 32W 840 IP65 GY SVG (33.25 KB)
Product line drawing, front, no dimensions
DP S 1200 32W 840 IP65 GY SVG (21.37 KB)

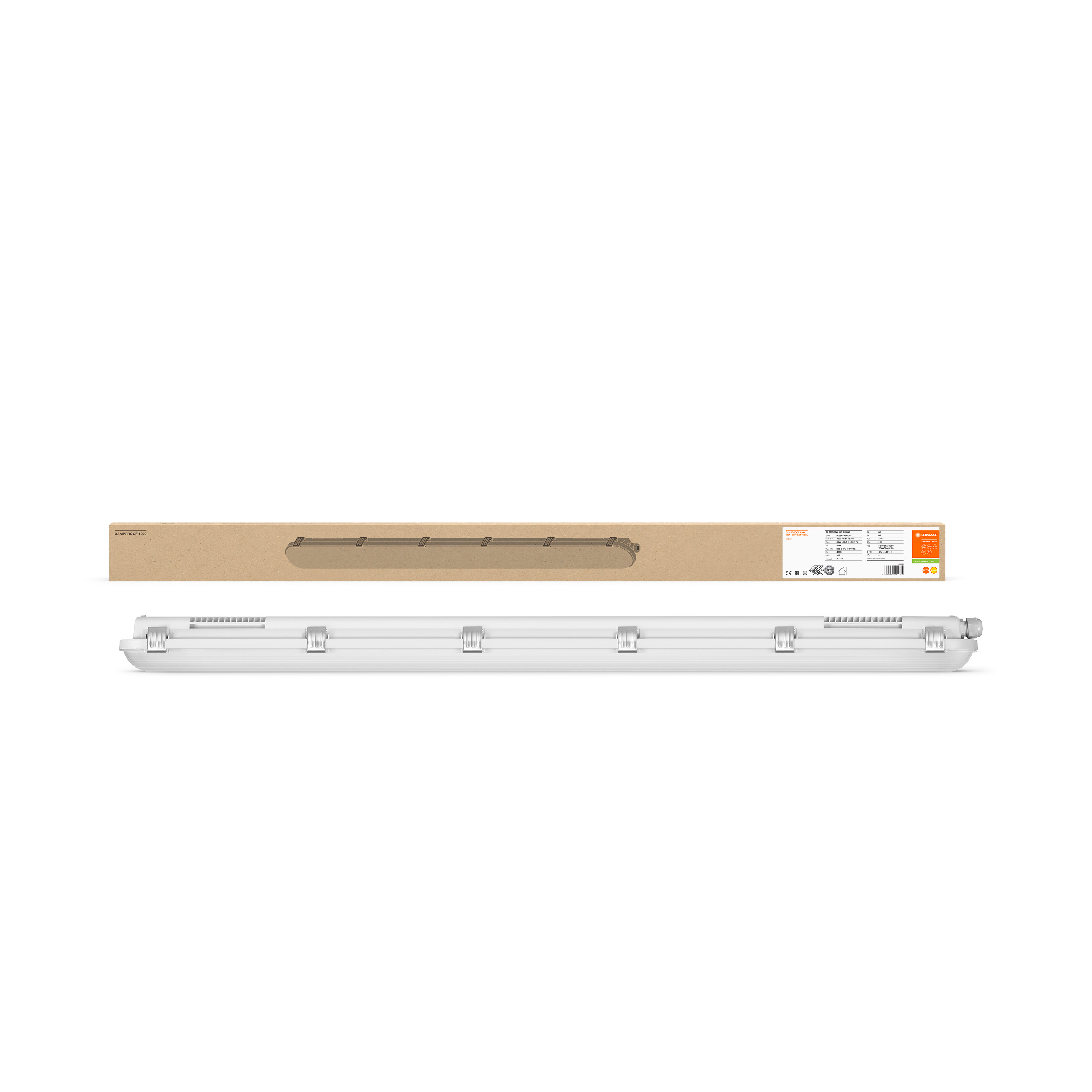

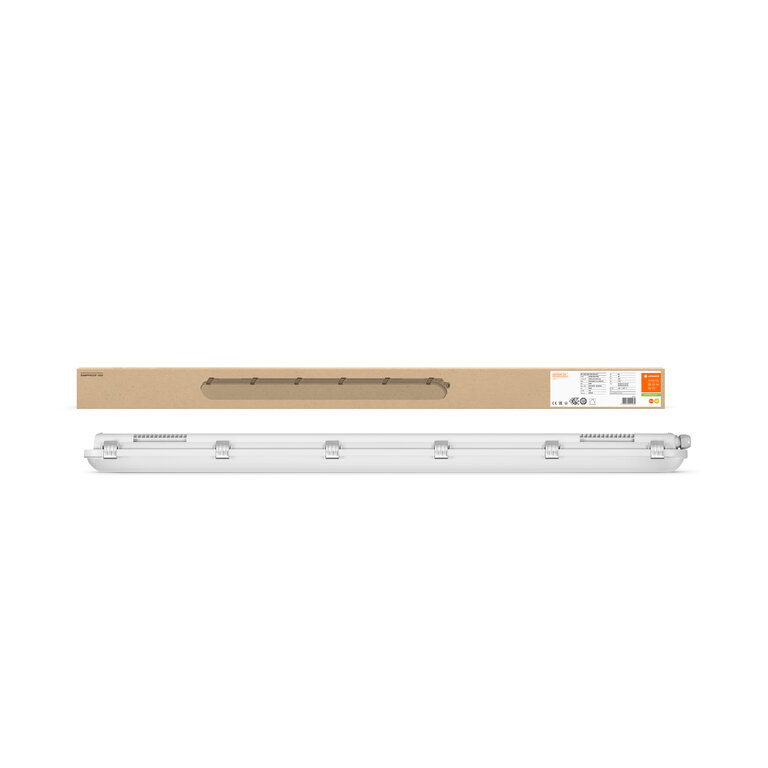

Combo Shot = Product Beauty Shot + Packaging Image
DP 1200 32W 830 IP65 G Y LEDV JPG (442.83 KB)

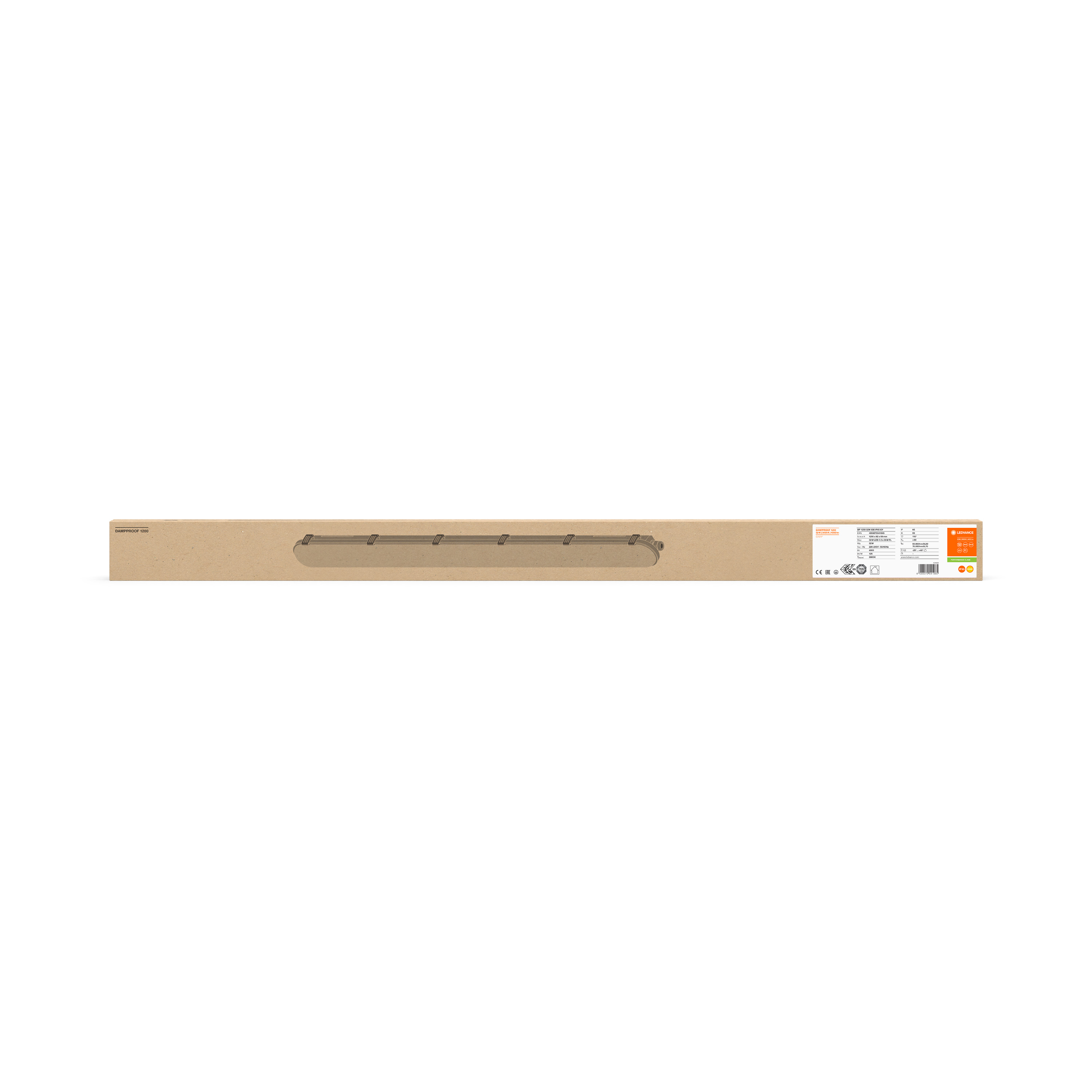

Packaging image, frontal
DP 1200 32W 830 IP65 G Y JPG (402.91 KB)

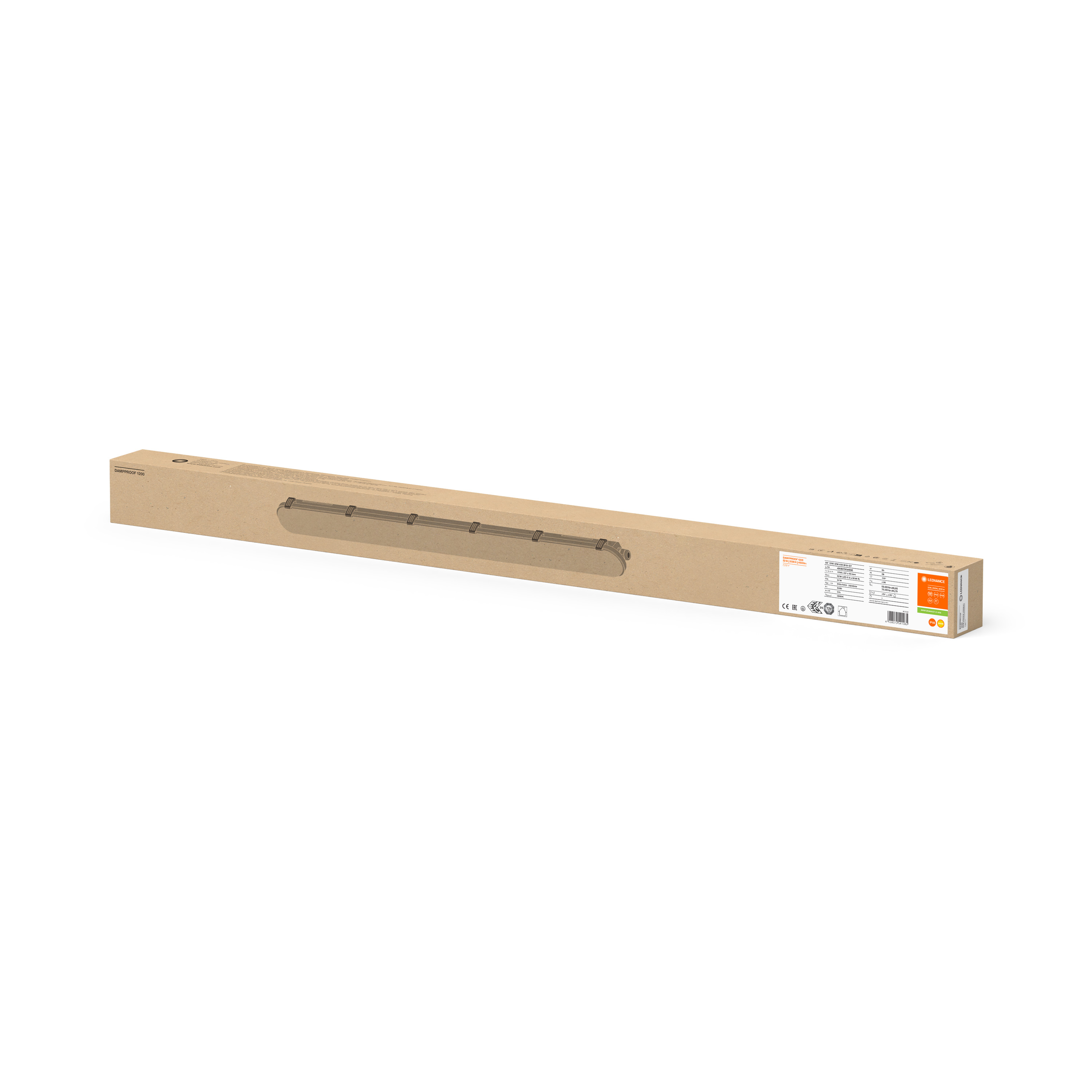

Packaging image, spacial
DampProof IP65 Gen2 12 00 MiCh TIF (436.35 KB)
Catalog info 1
Catalog info Damp Proo f IP65 PNG (12.45 KB)
IES file (IES)
DP 1200 32W 830 IP65 G Y IES (14.42 KB)
LDT file (Eulumdat)
DP 1200 32W 830 IP65 G Y LDT (10.59 KB)
ULD file (DIALux)
DP 1200 32W 830 IP65 ULD (397.31 KB)
ROLF file (RELUX)
DP 1200 32W 830 ROLF (326.66 KB)
UGR file (UGR table)
DP 1200 32W 830 IP65 G Y PNG (60.29 KB)
Light distribution curve type cone
DP 1200 32W 830 IP65 G Y SVG (16.77 KB)
Light distribution curve type polar
DP 1200 32W 830 IP65 G Y SVG (17.4 KB)
BIM Revit 3D
Damp Proof G2 ZIP (11.46 MB)
CAD STEP 3D
DP Gen2 1200 STEP (491.58 KB)
Tender documents
DAMP PROOF 1200 32W 83 0 IP65 GY-EN TXT (1.81 KB)
Application pictures
Inter Cars JPG (15.64 MB)
Application pictures
Tente Rollen Wermelski rchen RET Dampproof JPG (24.42 MB)
Application pictures
DAMPPROOF GEN2 KeyVisu al JPG (3.07 MB)
Application pictures
The Room Product Setup Comb LUMINAIRES JPG (6.99 MB)
Application pictures
The Room Product-Setup Comb LUMINAIRES cut o ut visual 3000x1750px JPG (2.14 MB)
EAN STK number EFO number ELDAS number
4058075541085 4315648 3304040 941001600
