Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|
| DP SPECIAL 1200 22 W 4000 K WT IP67 | 22.00 W | 100000 | 120 ° | 2800 lm | No |
| DP SPECIAL 1500 30 W 4000 K WT IP67 | 30.00 W | 100000 | 120 ° | 3900 lm | No |
| DP SPECIAL 1200 42 W 4000 K WT IP67 | 42.00 W | 100000 | 120 ° | 5500 lm | No |
| DP SPECIAL 1500 50 W 4000 K WT IP67 | 50.00 W | 100000 | 120 ° | 6500 lm | No |
| Nominal wattage | 22.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50/60 Hz |
| Nominal current | 110 mA |
| Inrush current | 13 A |
| Inrush current time Th50 | 230 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 25 |
| Max. number of luminaires per miniature circuit breaker C10 | 23 |
| Max. number of luminaires per miniature circuit breaker C16 | 36 |
| Power factor λ | ≥0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | I |
| Operating mode | Integrated LED driver |
| Luminous flux | 2800 lm |
| Luminous efficacy | 130 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | < 5 sdcm |
| Luminous intensity | - |
| Low flicker | Yes |
| Flickering metric (Pst LM) | - |
| Stroboscope effect metric (SVM) | - |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 120 ° |
| Diameter | 74.00 mm |
| Length | 1344.00 mm |
| Height | 82.00 mm |
| Product weight | 1130.00 g |
| Product color | White |
| Housing color | White |
| RAL Color (most similar) | RAL 9214 |
| Body material | Polymethylmethacrylate (PMMA) |
| Cover material | Polymethylmethacrylate (PMMA) |
| Light emitting surface material | PMMA |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -40…+70 °C |
| Type of connection | Screwless terminal, 3-Pole |
| Type of protection | IP67~IP69K |
| Protection class IK (shock resistance) | IK06 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Ceiling, Wall |
| Application environment | Outdoor |
| With light source | Yes |
| Replaceable light source | No |
| Lifespan L70/B50 at 25 °C | 80000 h 1) |
| Lifespan L80/B10 at 25 °C | 50000 h 1) |
| Lifespan L90/B10 at 25 °C | 30000 h |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| ECG - Output ripple current | < 10 % |

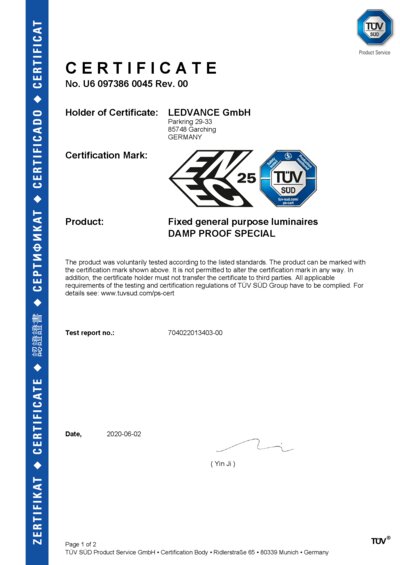

| Standards | CE, CB, ENEC, TÜV SÜD, EAC, RoHS |
| Luminaire with limited surface temperature, "D sign" | Yes |
| Replaceable light source (EPREL) | Not replaceable |
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075452114 | Folding box 1 |
1,347 mm x 108 mm x 108 mm | 2015.00 g | 15.71 dm³ |
| 4058075452121 | Shipping box 6 |
1,365 mm x 231 mm x 344 mm | 13673.00 g | 108.47 dm³ |
| EAN | SEG number | STK number | EFO number | ELDAS number | UK Org |
|---|---|---|---|---|---|
| 4058075452114 | 7215828 | 4315614 | 3304035 | 941002300 | 409013559 |
