DAMP PROOF MAX DALI

Choose your product version

1200 S 43W 840 VW IP69

1500 S 52W 840 VW IP69

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
DP MAX DA 1200 S 43W 840 VW IP69 43.00 W > 200000 133 ° x 107 ° 6500 lm Yes
DP MAX DA 1500 S 52W 840 VW IP69 52.00 W > 200000 133 ° x 107 ° 8000 lm Yes


DP MAX DA 1200 S 43W 840 VW IP69

Product benefits
  • High compatibility thanks to DALI-2 certification
  • Driver suitable for Emergency escape lighting systems acc. to EN 50172
  • Uniform light distribution
  • Versatile applications due to resistance to many chemicals and UV light
  • Easy to clean, even at high temperatures with a high-pressure cleaner
  • Energy savings up to 68 % (compared to luminaires that use fluorescent lamps)
  • Low flicker ≤ 5 %
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 43.00 W
Nominal voltage 220…240 V
Mains frequency 0/50/60 Hz
Nominal current 187.000 mA
Inrush current 5 A
Inrush current time Th50 870 µs
Max. number of luminaires per miniature circuit breaker B16 36
Max. number of luminaires per miniature circuit breaker C10 36
Max. number of luminaires per miniature circuit breaker C16 60
Power factor λ 0.97
Total harmonic distortion 13 %
Protection class I
Surge capability (L-N) 4 kV
Surge capability (L/N-Ground) 4 kV
Operating mode Integrated LED driver

Photometrical data

Luminous flux 6500 lm
Total luminous flux of contained light sources 7200 lm
Luminous efficacy 151 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra > 80
Standard deviation of color matching 3 sdcm
Low flicker Yes
Flickering metric (Pst LM) ≤1
Stroboscope effect metric (SVM) ≤ 0.4
Photobiological safety group acc. to EN62778 RG1
Beam angle 133 ° x 107 °
UGR < 25

Dimensions & Weight

Length 1450.00 mm
Height 138.00 mm
Width 125.00 mm
Product weight 4400.00 g

Materials & Colors

Product color Gray
Housing color Gray
Body material Polymethylmethacrylate (PMMA)
Cover material Polymethylmethacrylate (PMMA)
Light emitting surface material Polymethylmethacrylate (PMMA)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -40…+45 °C
Temperature range at storage -40…+45 °C
Type of connection Screwless terminal, 5-Pole
Type of protection IP66~IP69K
Protection class IK (shock resistance) IK10
Dimmable Yes
Type of dimming DALI2
Dimming range 1…100 %
Mounting type Surface/Suspended
Mounting location Ceiling, Wall
Application environment Outdoor
With light source Yes
Replaceable light source No

Lifespan

Lifespan L70/B50 at 25 °C 75000 h 1)
Lifespan L80/B10 at 25 °C 75000 h 1)
Number of switching cycles > 200000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L80 / B50 @ 35 °C (Ta)

Control gear

Output current 200…700 mA
ECG - Output ripple current < 1 %
Recommended control gear OTi DALI 100/220-240/700 D NFC IND L

Emergency lighting

Type of emergency operation test None

Certificates & Standards

Standards CE, CB, ENEC, UKCA, EAC
Luminaire with limited surface temperature, "D sign" Yes
Ball shot safe No
Replaceable light source (EPREL) Not replaceable

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • High compatibility thanks to DALI-2 certification
  • Driver suitable for Emergency escape lighting systems acc. to EN 50172
  • Uniform light distribution
  • Versatile applications due to resistance to many chemicals and UV light
  • Easy to clean, even at high temperatures with a high-pressure cleaner
  • Energy savings up to 68 % (compared to luminaires that use fluorescent lamps)
  • Low flicker ≤ 5 %
Areas of application
  • DALI installations
  • Food industry
  • Open car parks and underpasses
  • Car wash facilities
  • Outdoor applications
  • Industrial and storage facilities
  • Workshops, assembly lines
  • Passages, underpasses
Product features
  • High luminous efficacy: up to 154 lm/W
  • Lifetime (L80/B50): up to 100,000 h (at 35 °C)
  • Type of protection: IP66, IP69 (80 °C)
  • Impact resistance: IK10
  • Ammonia resistant
  • UV-resistant PMMA diffuser
  • Compatible to Zhaga Book 7 LED light sources
Equipment / Accessories
  • Stainless steel clamps and M25 cable gland included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854538285 Shipping box
1		 1,581 mm x 165 mm x 146 mm 5485.00 g 38.09 dm³
Product image Product name EAN
DP MAX MOUNTING BRACKET CLAMPS V4A 4099854583360
DP MAX MOUNTING TUBE CLAMPS V4A 4099854583384
User instruction / safety instructions
DAMP PROOF MAX PDF (11.12 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Legal information
DP MAX DA PDF (2.21 MB)
Legal information
Safety Insert G1120549 7 PDF (178.17 KB)
Legal information

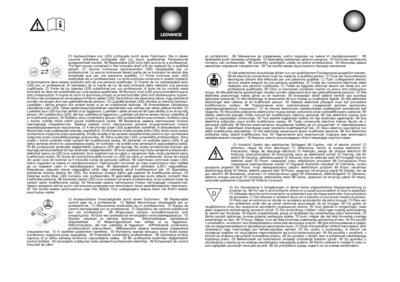

Legal Insert G11251140 PDF (849.35 KB)
Declarations of conformity
DP MAX PDF (253.85 KB)
EU Data Act
DALI LED Driver and Lu minaires PDF (469.42 KB)

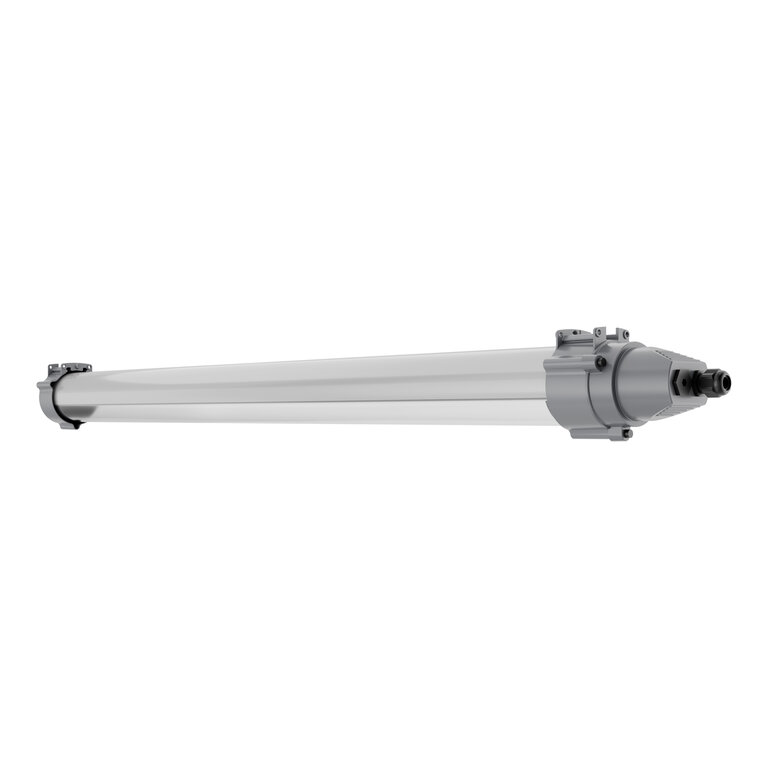

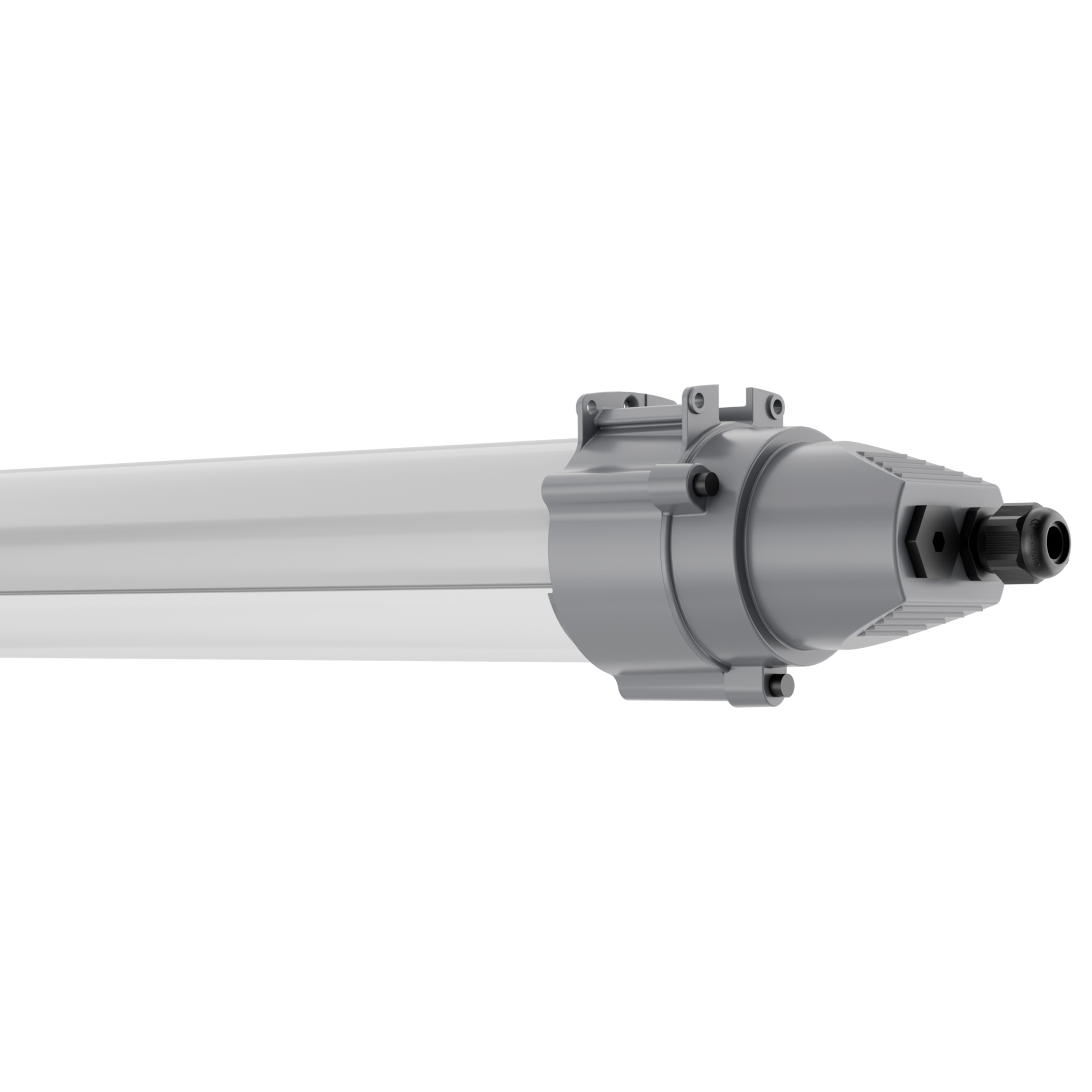

Product image: white background, spacial
DP MAX 1200 840 JPG (417.61 KB)

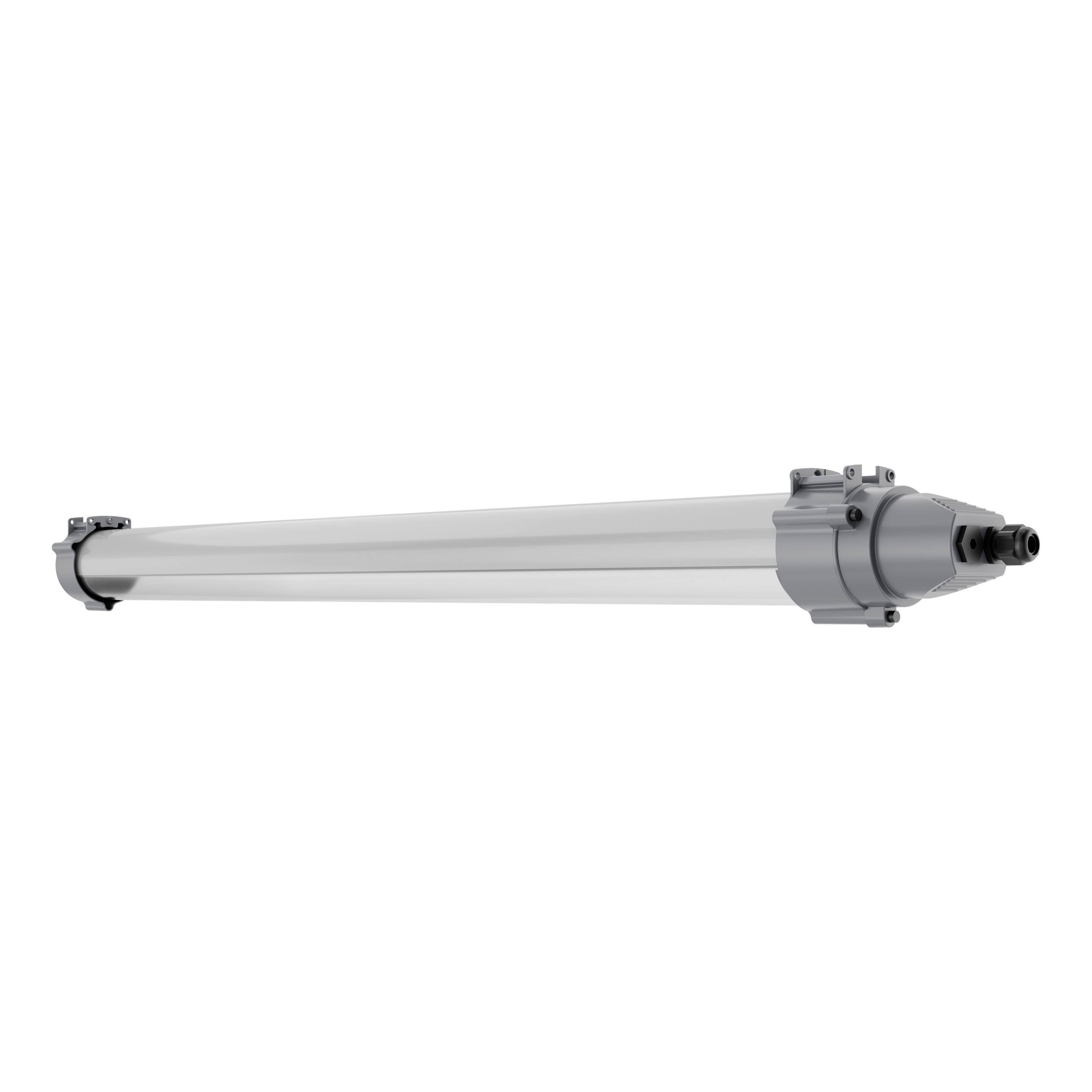

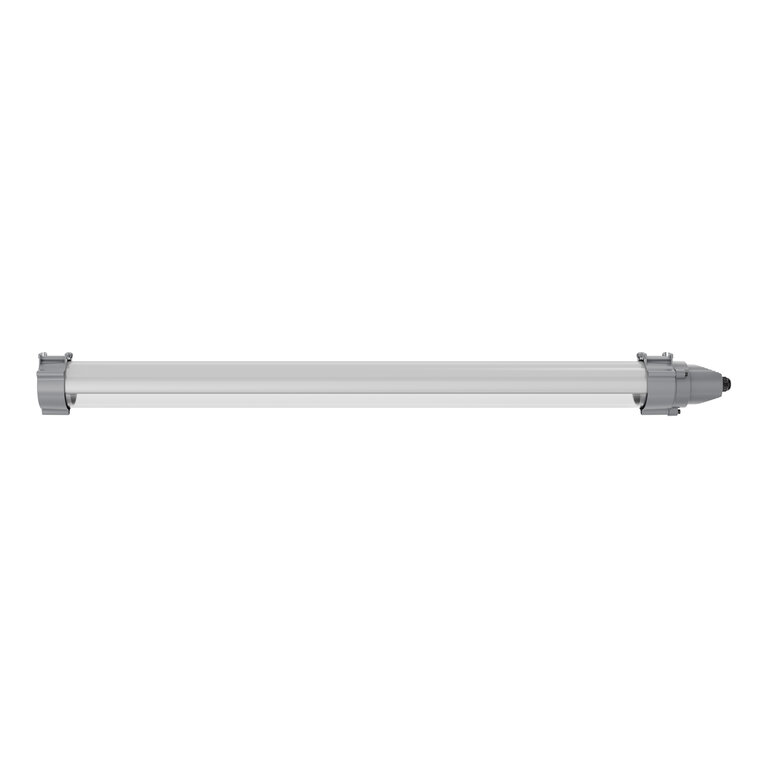

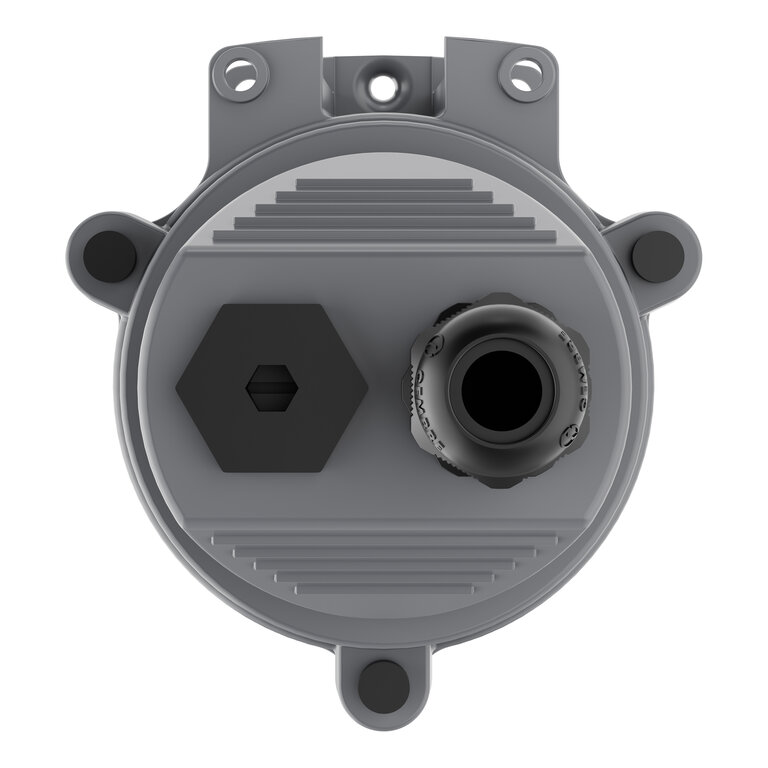

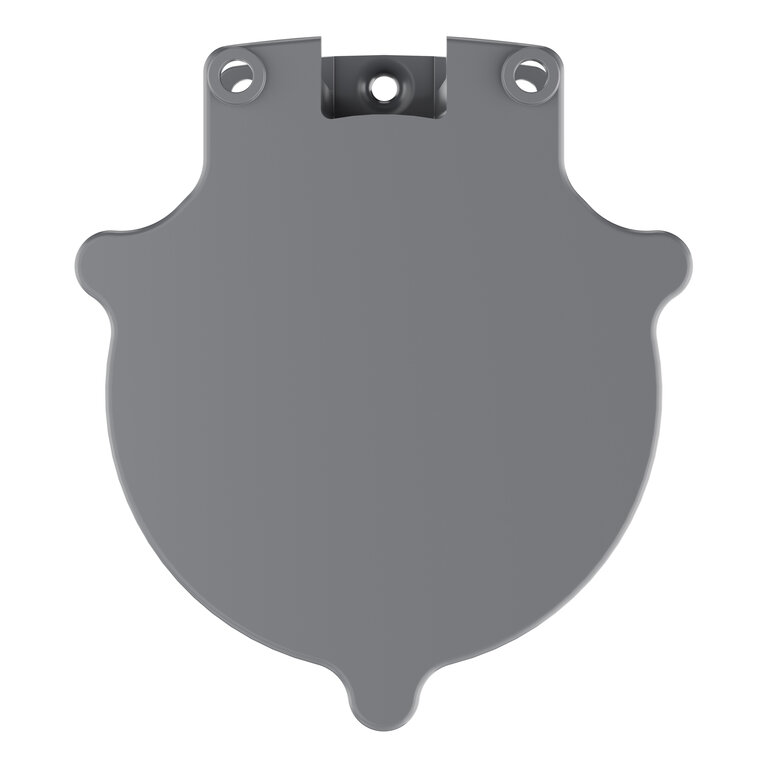

Product image: white background, spacial
DP MAX 1200 840 JPG (270.19 KB)
Product line drawing with letters
DP MAX 1200 840 SVG (21.84 KB)
Product line drawing with numbers
DP MAX 1200 840 SVG (28.78 KB)
Product line drawing - technical
DP MAX 1200 840 SVG (18.26 KB)
Catalog info 1
DP MAX PNG (52.11 KB)
Catalog info 2
DP MAX PNG (49.98 KB)
Catalog info 3
DP MAX PNG (36.18 KB)
Catalog info 4
DP MAX PNG (41.12 KB)
IES file (IES)
DP MAX DA 1200 S 43W 8 40 VW IP69 LEDV IES (6.03 KB)
LDT file (Eulumdat)
DP MAX DA 1200 S 43W 8 40 VW IP69 LEDV LDT (4.31 KB)

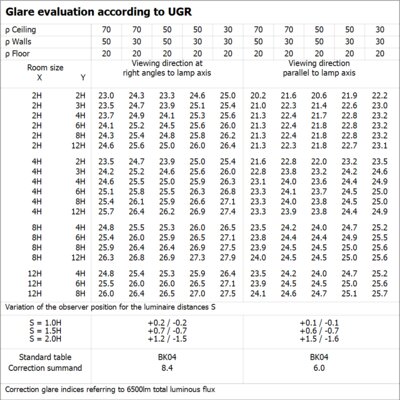

UGR file (UGR table)
