DAMP PROOF MAX EMERGENCY

Choose your product version

600 S 18W 840 VW IP69

1200 S 30W 840 VW IP69

1500 S 41W 840 VW IP69

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
DP MAX EL 600 S 18W 840 VW IP69 18.00 W > 200000 133 ° x 107 ° 2000 lm No
DP MAX EL 1200 S 30W 840 VW IP69 30.00 W > 200000 133 ° x 107 ° 4000 lm No
DP MAX EL 1500 S 41W 840 VW IP69 41.00 W > 200000 133 ° x 107 ° 6000 lm No


DP MAX EL 600 S 18W 840 VW IP69

Product benefits
  • Seamless integration of luminaires with emergency lighting function into general lighting
  • Easy wiring thanks to included prewired driver and battery for Emergency lighting function
  • Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
  • Convenient visualization of results of automatic test with an included control LED
  • Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
  • Uniform light distribution in normal operation
  • Versatile applications due to resistance to many chemicals and UV light
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 18.00 W
Nominal voltage 220…240 V
Mains frequency 0/50/60 Hz
Nominal current 65.000 mA
Inrush current 22.64 A
Inrush current time Th50 203 µs
Max. number of luminaires per miniature circuit breaker B16 27
Max. number of luminaires per miniature circuit breaker C10 28
Max. number of luminaires per miniature circuit breaker C16 45
Power factor λ 0.83
Total harmonic distortion < 15 %
Protection class I
Surge capability (L-N) 1 kV
Surge capability (L/N-Ground) 2 kV
Operating mode Integrated LED driver

Photometrical data

Luminous flux 2000 lm
Total luminous flux of contained light sources 2215 lm
Luminous efficacy 111 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra > 80
Standard deviation of color matching 3 sdcm
Low flicker Yes
Flickering metric (Pst LM) ≤1
Stroboscope effect metric (SVM) ≤ 0.4
Photobiological safety group acc. to EN62778 RG1
Beam angle 133 ° x 107 °
UGR < 25

Dimensions & Weight

Length 885.00 mm
Height 138.00 mm
Width 125.00 mm
Product weight 3300.00 g

Materials & Colors

Product color Gray
Housing color Gray
Body material Polymethylmethacrylate (PMMA)
Cover material Polymethylmethacrylate (PMMA)
Light emitting surface material Polymethylmethacrylate (PMMA)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range 0…+35 °C
Temperature range at storage -20…+35 °C
Type of connection Screwless terminal, 3-Pole
Type of protection IP66~IP69K
Protection class IK (shock resistance) IK10
Dimmable No
Mounting type Surface/Suspended
Mounting location Ceiling, Wall
Application environment Outdoor
With light source Yes
Replaceable light source No

Lifespan

Lifespan L70/B50 at 25 °C 100000 h 1)
Lifespan L80/B10 at 25 °C 100000 h 1)
Number of switching cycles > 200000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L80 / B50 @ 35 °C (Ta)

Control gear

Output current 75…400 mA
ECG - Output ripple current 1.5 %
Recommended control gear OT FIT 75/220-240/550 D NFC L

BATTERY

Type of Battery LiFePO4
Battery size [GMS] Others
Nominal voltage of battery 3.2 V
Nominal capacity of battery 4500 mAh
Battery charging time < 24 h

Emergency lighting

Area of emergency application Anti-panic lighting, Escape route lighting
Type of emergency light operation Maintained, Non-maintained

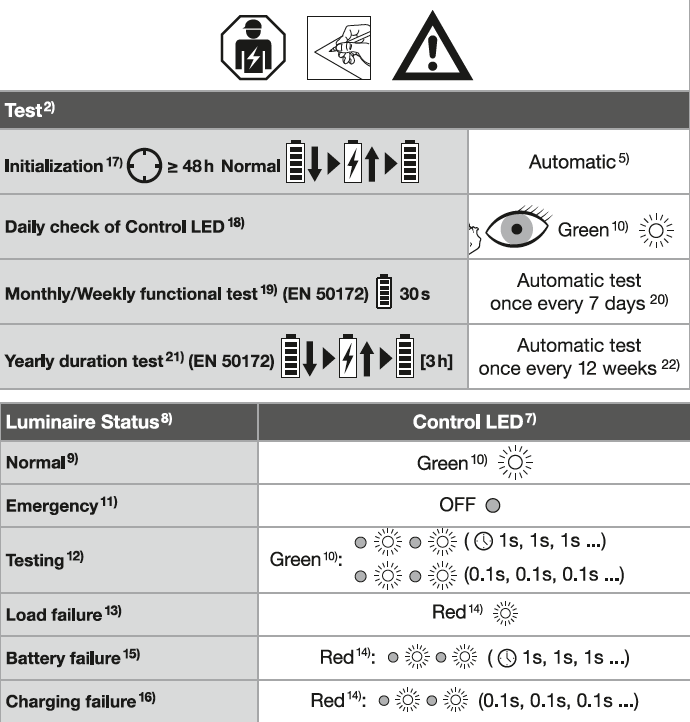

Type of emergency operation test Automatic
Wattage in maintained operation mode 18 W
Wattage in emergency operation mode 2.3 W
Luminous flux in maintained operation mode 2000 lm
Luminous flux in emergency operation mode 500 lm
Battery life in emergency operation mode 3 h

Certificates & Standards

Standards CE, CB, ENEC, UKCA, EAC
Luminaire with limited surface temperature, "D sign" Yes
Ball shot safe No
Replaceable light source (EPREL) Not replaceable

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Seamless integration of luminaires with emergency lighting function into general lighting
  • Easy wiring thanks to included prewired driver and battery for Emergency lighting function
  • Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
  • Convenient visualization of results of automatic test with an included control LED
  • Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
  • Uniform light distribution in normal operation
  • Versatile applications due to resistance to many chemicals and UV light
Areas of application
  • Emergency illumination of escape routes
  • Antipanic lighting
  • Buildings requiring up to 3 h emergency light operation
  • Food industry
  • Open car parks and underpasses
  • Car wash facilities
  • Outdoor applications
  • Industrial and storage facilities
Product features
  • Luminaire suitable for normal lighting and emergency lighting
  • Suitable for emergency central battery installations acc. to EN 60598-2-22
  • Self-contained luminaires
  • Emergency lighting function: battery discharge time of 3 h
  • Function test of emergency lighting: automatic (AT)
  • Battery technology: LiFePO4
  • Type of protection: IP66, IP69 (80 °C)
  • Impact resistance: IK10
  • Ammonia resistant
  • UV-resistant PMMA diffuser
  • Compatible to Zhaga Book 7 LED light sources
Equipment / Accessories
  • Stainless steel clamps and M25 cable gland included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854538254 Shipping box
1		 1,016 mm x 165 mm x 146 mm 4063.00 g 24.48 dm³
Product image Product name EAN
DP MAX MOUNTING BRACKET CLAMPS V4A 4099854583360
DP MAX MOUNTING TUBE CLAMPS V4A 4099854583384
User instruction / safety instructions
DAMP PROOF MAX PDF (11.12 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Legal information

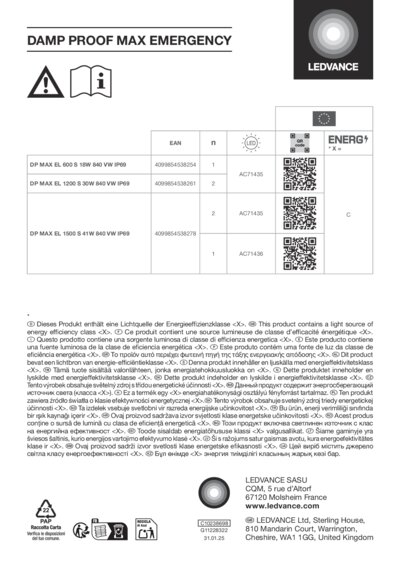

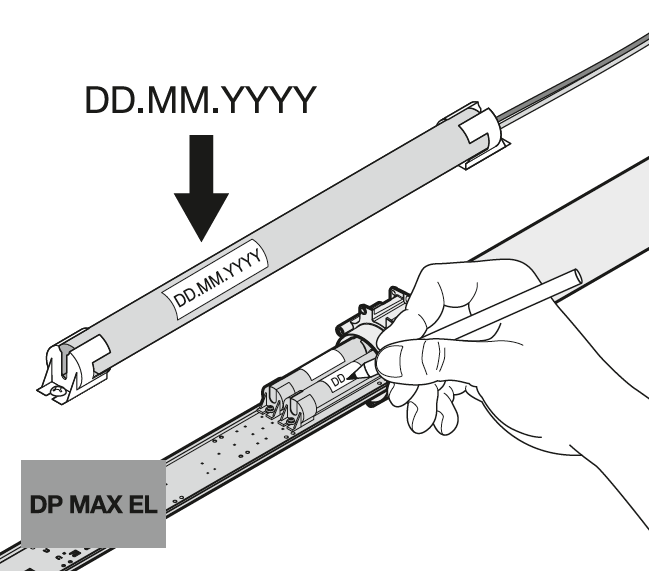

DP MAX EL PDF (2.28 MB)
Legal information
Safety Insert G1120549 7 PDF (178.17 KB)
Legal information

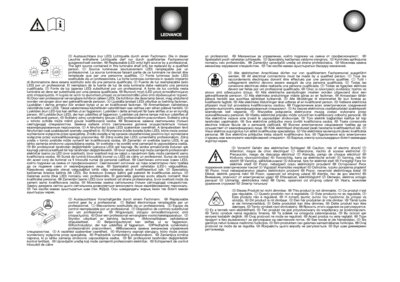

Legal Insert G11251141 PDF (888.21 KB)

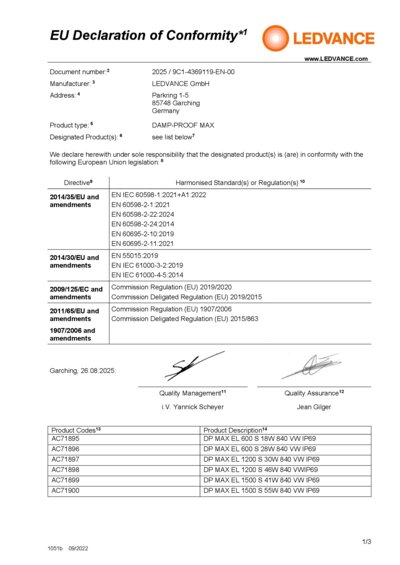

Declarations of conformity
