Product description	Nominal wattage	Number of switching cycles	Beam angle	Luminous flux	Dimmable
DL CMFT HE DA D150 P 15W 830 U19 WT	15 W / 12 W / 10 W	100000	55 °	1950 lm / 1620 lm / 1350 lm	Yes
DL CMFT HE DA D150 P 15W 840 U19 WT	15 W / 12 W / 10 W	100000	55 °	2100 lm / 1680 lm / 1400 lm	Yes
DL CMFT HE DA D200 P 25W 830 U19 WT	25 W / 20 W / 15 W	100000	55 °	3250 lm / 2700 lm / 2025 lm	Yes
DL CMFT HE DA D200 P 25W 840 U19 WT	25 W / 20 W / 15 W	100000	55 °	3625 lm / 2900 lm / 2175 lm	Yes
DL CMFT HE DA D250 P 36W 830 U19 WT	36 W / 30 W / 25 W	100000	60 °	4860 lm / 4050 lm / 3375 lm	Yes
DL CMFT HE DA D250 P 36W 840 U19 WT	36 W / 30 W / 25 W	100000	60 °	5200 lm / 4350 lm / 3750 lm	Yes

DL CMFT HE DA D150 P 15W 830 U19 WT

Product benefits

Energy savings thanks to high system efficacy: up to 145 lm/W
Through wiring possible via included connector box
High grade polycarbonate front frame for reduced overall luminaire weight
Flexible thanks to two operation modes: both UV tubes on or shielded UV tube on
Uniform light with minimized glare thanks to included reflector and diffuser
Well suited for retrofitting using an extension ring as separate accessory
DALI-2 certified incl. Parts 251, 252, 253
Push DIM application for easy control

View all details

Product data sheet

PRODUCT DETAILS

Technical data

Electrical data

Nominal wattage	15 W / 12 W / 10 W
Nominal voltage	220…240 V
Mains frequency	50…60 Hz
Nominal current	68mA / 59mA / 50 mA
Inrush current	25.2 A
Inrush current time T_h50	6.8 µs
Max. number of luminaires per miniature circuit breaker B16	29
Max. number of luminaires per miniature circuit breaker C10	23
Max. number of luminaires per miniature circuit breaker C16	38
Power factor λ	≥ 0.90
Total harmonic distortion	≤ 20 %
Protection class	II
Surge capability (L-N)	1000 V

Photometrical data

Luminous flux	1950 lm / 1620 lm / 1350 lm
Total luminous flux of contained light sources	1550 lm
Luminous efficacy	130 lm/W / 135 lm/W
Color temperature	3000 K
Light color (designation)	Warm White
Color rendering index Ra	> 80
Standard deviation of color matching	3 sdcm
Luminous intensity	2200 lm / 1900 lm / 1500 lm
Low flicker	Yes
Flickering metric (Pst LM)	<1
Stroboscope effect metric (SVM)	<0.4
Photobiological safety group acc. to EN62778	RG1
Photobiological safety group acc. to EN62471	RG1
Beam angle	55 °

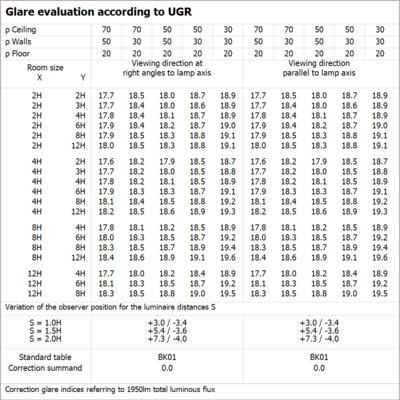

UGR	19

Adjustable attributes

Nominal wattage	Color temperature	Luminous flux	Luminous efficacy
15 W	3000 K	1950 lm	130 lm/W
12 W	3000 K	1620 lm	135 lm/W
10 W	3000 K	1350 lm	135 lm/W

Dimensions & Weight

Diameter	160.00 mm
Height	91.80 mm
Product weight	390.00 g

Materials & Colors

Product color	White
Housing color	White
Body material	Aluminum
Cover material	Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12	650 °C
Mercury content	0.0 mg

Application & Mounting

Ambient temperature range	-20…+40 °C
Temperature range at storage	-20…+80 °C
Type of connection	Screwless terminal, 5-Pole
Type of protection	IP44/IP20
Protection class IK (shock resistance)	IK03
Dimmable	Yes
Type of dimming	DALI2
IoT ready	Support of DALI data type PART 251, 252, 253 ¹⁾
Mounting location	Ceiling, Wall
Application environment	Indoor
Mounting diameter	150 mm
Mounting depth	92 mm
With light source	Yes
Replaceable light source	No

¹⁾ Internet of Things. Supports data transfer via gateway to cloud-based monitoring platforms, such as LEDVANCE VIVARES Cloud

Lifespan

Lifespan L70/B50 at 25 °C	100000 h ¹⁾
Lifespan L80/B10 at 25 °C	100000 h ¹⁾
Lifespan L90/B10 at 25 °C	63000 h
Number of switching cycles	100000

¹⁾ t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current	350mA / 300mA / 250 mA
ECG - Output ripple current	≤ 10 %
Recommended control gear	DR DALI-P-30/220-240/700

Emergency lighting

Type of emergency operation test	None
Wattage in emergency operation mode	3 W
Luminous flux in emergency operation mode	350 lm

Certificates & Standards

Standards	ENEC, CE, EAC, CB, UKCA
Luminaire with limited surface temperature, "D sign"	No
Ball shot safe	No
Replaceable light source (EPREL)	Not replaceable

Additional product data

Product remark

Available from December 2025

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	Lead (7439-92-1)

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product description

Product benefits

Energy savings thanks to high system efficacy: up to 145 lm/W
Through wiring possible via included connector box
High grade polycarbonate front frame for reduced overall luminaire weight
Flexible thanks to two operation modes: both UV tubes on or shielded UV tube on
Uniform light with minimized glare thanks to included reflector and diffuser
Well suited for retrofitting using an extension ring as separate accessory
DALI-2 certified incl. Parts 251, 252, 253
Push DIM application for easy control

Areas of application

Direct replacement for recessed luminaires with fluorescent lamps
Offices, conference rooms
Reception areas, foyers, corridors, elevators

Product features

Lifetime (L80/B10): up to 100,000 h (at 25 °C)
Consistent lighting color ≤ 3 SDCM
External driver with Multi Lumen function of up to 5220 lm
Aluminum luminaires with 3 different cut-outs and mirror-finished reflector UGR ≤ 19
Very homogenous light distribution and reduced glare of UGR ≤ 19

Equipment / Accessories

Security rope for luminaire included
External control gear included
Connector box with 5-pole terminal included
Surface mounting frame options only available for DALI versions D200 and D250
Gray and black exchangeable rings available as separate accessory
Extension rings are available as separate accessory
Extension ring D190 for retrofitting D150 luminaire, extension ring D240 for retrofitting D200 luminaire

Safety advice

All electrical connections must be made by a qualified person.
Caution, risk of electric shock.
The luminaires are not suitable for covering with thermally insulated material.

References / Links

For Guarantee see www.ledvance.com/guarantee

GTIN and Packaging information

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4099854687082	Folding box 1	185 mm x 185 mm x 115 mm	482.00 g	3.94 dm³
4099854687099	Shipping box 8	390 mm x 390 mm x 260 mm	4856.00 g	39.55 dm³

Accessories Optional

Product image	Product name	EAN
	DL CMFT EXCH RING D150 GY	4099854515439
	DL CMFT EXCH RING D150 BK	4099854515316
	DL CMFT EXT RING D190 WT	4099854687723
	DL CMFT EXT RING D190 GY	4099854687600
	DL CMFT EXT RING D190 BK	4099854687570
