DOWNLIGHT COMFORT HIGH EFFICIENCY UGR<19

Choose your product version

Coming soon

D150 P 15W ML 830 U19 WT

Coming soon

D150 P 15W ML 840 U19 WT

Coming soon

D200 P 25W ML 830 U19 WT

Coming soon

D200 P 25W ML 840 U19 WT

Coming soon

D250 P 36W ML 830 U19 WT

Coming soon

D250 P 36W ML 840 U19 WT

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
DL CMFT HE D150 P 15W ML 830 U19 WT 15 W / 12 W / 10 W 100000 55 ° 1950 lm / 1620 lm / 1350 lm No
DL CMFT HE D150 P 15W ML 840 U19 WT 15 W / 12 W / 10 W 100000 55 ° 2100 lm / 1680 lm / 1400 lm No
DL CMFT HE D200 P 25W ML 830 U19 WT 25 W / 20 W / 15 W 100000 55 ° 3250 lm / 2700 lm / 2025 lm No
DL CMFT HE D200 P 25W ML 840 U19 WT 25 W / 20 W / 15 W 100000 55 ° 3625 lm / 2900 lm / 2175 lm No
DL CMFT HE D250 P 36W ML 830 U19 WT 36 W / 30 W / 25 W 100000 60 ° 4860 lm / 4050 lm / 3375 lm No
DL CMFT HE D250 P 36W ML 840 U19 WT 36 W / 30 W / 25 W 100000 60 ° 5200 lm / 4350 lm / 3750 lm No
Coming soon


DL CMFT HE D150 P 15W ML 830 U19 WT

Product benefits
  • Energy savings thanks to high system efficacy: up to 145 lm/W
  • Through wiring possible via included connector box
  • High grade polycarbonate front frame for reduced overall luminaire weight
  • Easy and quick installation thanks to connector box with 3-pole toolless terminal
  • Uniform light with minimized glare thanks to included reflector and diffuser
  • Highly versatile due to selectable power steps (Multi Lumen) via dip switches on the driver
  • Well suited for retrofitting using an extension ring as separate accessory
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 15 W / 12 W / 10 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 68mA / 59mA / 50 mA
Inrush current 25.2 A
Inrush current time Th50 6.8 µs
Max. number of luminaires per miniature circuit breaker B16 29
Max. number of luminaires per miniature circuit breaker C10 23
Max. number of luminaires per miniature circuit breaker C16 38
Power factor λ ≥ 0.90
Total harmonic distortion ≤ 20 %
Protection class II
Surge capability (L-N) 1000 V

Photometrical data

Luminous flux 1950 lm / 1620 lm / 1350 lm
Total luminous flux of contained light sources 1550 lm
Luminous efficacy 130 lm/W / 135 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra > 80
Standard deviation of color matching 3 sdcm
Luminous intensity 2200 lm / 1900 lm / 1500 lm
Low flicker Yes
Flickering metric (Pst LM) <1
Stroboscope effect metric (SVM) <0.4
Photobiological safety group acc. to EN62778 RG1
Photobiological safety group acc. to EN62471 RG1
Beam angle 55 °
UGR 19

Adjustable attributes

Nominal wattage Color temperature Luminous flux Luminous efficacy
15 W 3000 K 1950 lm 130 lm/W
12 W 3000 K 1620 lm 135 lm/W
10 W 3000 K 1350 lm 135 lm/W

Dimensions & Weight

Diameter 160.00 mm
Height 91.80 mm
Product weight 330.00 g

Materials & Colors

Product color White
Housing color White
Body material Aluminum
Cover material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Screwless terminal, 3-Pole
Type of protection IP44/IP20
Protection class IK (shock resistance) IK03
Dimmable No
Mounting location Ceiling, Wall
Application environment Indoor
Mounting diameter 150 mm
Mounting depth 92 mm
With light source Yes
Replaceable light source No

Lifespan

Lifespan L70/B50 at 25 °C 100000 h 1)
Lifespan L80/B10 at 25 °C 100000 h 1)
Lifespan L90/B10 at 25 °C 63000 h
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 350mA / 300mA / 250 mA
ECG - Output ripple current ≤ 10 %
Recommended control gear P0-PB18ML-4035

Emergency lighting

Type of emergency operation test None
Wattage in emergency operation mode 3 W
Luminous flux in emergency operation mode 350 lm

Certificates & Standards

Standards ENEC, CE, EAC, CB, UKCA
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Replaceable light source (EPREL) Not replaceable

Additional product data

Product remark Available from December 2025

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Energy savings thanks to high system efficacy: up to 145 lm/W
  • Through wiring possible via included connector box
  • High grade polycarbonate front frame for reduced overall luminaire weight
  • Easy and quick installation thanks to connector box with 3-pole toolless terminal
  • Uniform light with minimized glare thanks to included reflector and diffuser
  • Highly versatile due to selectable power steps (Multi Lumen) via dip switches on the driver
  • Well suited for retrofitting using an extension ring as separate accessory
Areas of application
  • Direct replacement for recessed luminaires with fluorescent lamps
  • Offices, conference rooms
  • Reception areas, foyers, corridors, elevators
Product features
  • Lifetime (L80/B10): up to 100,000 h (at 25 °C)
  • Consistent lighting color ≤ 3 SDCM
  • External driver with Multi Lumen function of up to 5220 lm
  • Aluminum luminaires with 3 different cut-outs and mirror-finished reflector UGR ≤ 19
  • Very homogenous light distribution and reduced glare of UGR ≤ 19
Equipment / Accessories
  • Security rope for luminaire included

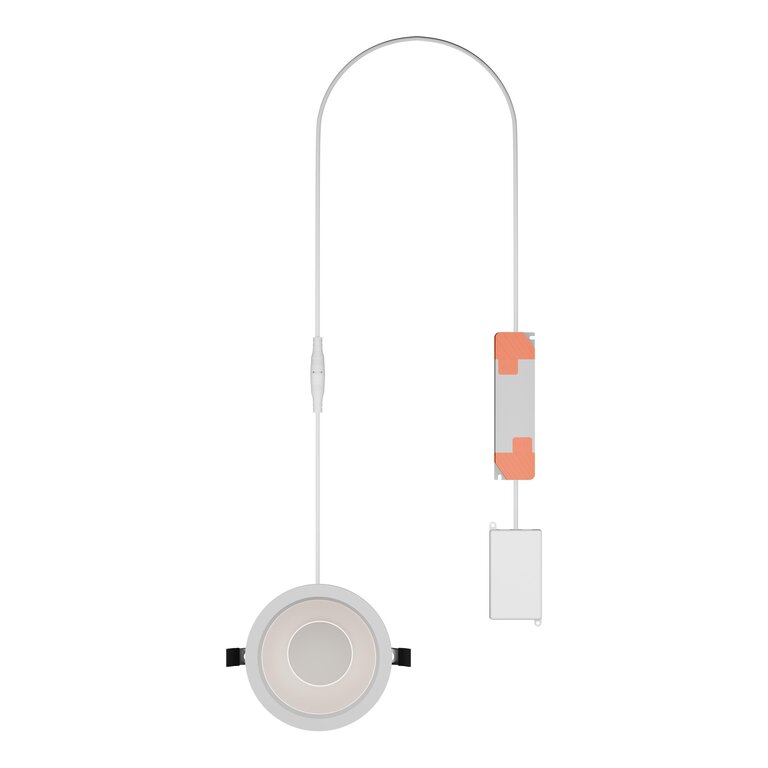

  • External control gear included
  • Connector box with 3-pole terminal included
  • Surface mounting frame options available
  • Gray and black exchangeable rings available as separate accessory
  • Extension rings are available as separate accessory
  • Extension ring D190 for retrofitting D150 luminaire, extension ring D240 for retrofitting D200 luminaire
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • The luminaires are not suitable for covering with thermally insulated material.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854686962 Folding box
1		 185 mm x 185 mm x 115 mm 422.00 g 3.94 dm³
4099854686979 Shipping box
8		 390 mm x 390 mm x 260 mm 4376.00 g 39.55 dm³
Product image Product name EAN
DL CMFT EXCH RING D150 GY 4099854515439
DL CMFT EXCH RING D150 BK 4099854515316
DL CMFT EXT RING D190 WT 4099854687723
DL CMFT EXT RING D190 GY 4099854687600
DL CMFT EXT RING D190 BK 4099854687570
DL CMFT FRAME D150 GY 4099854500008
DL CMFT FRAME D150 WT 4099854499968
DL CMFT FRAME D150 BK 4099854499982
User instruction / safety instructions
User Instruction G1125 2879 DOWNLIGHT COMFORT HE ON OFF PDF (4.53 MB)
Legal information
Legal Insert G11120030 PDF (859.18 KB)
Legal information
LUM PANELS_SI PDF (332.93 KB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Legal information
LSI G11253077 DL CMFT HE PDF (2.34 MB)
Declarations of conformity
DL CMFT LUM PDF (415.19 KB)

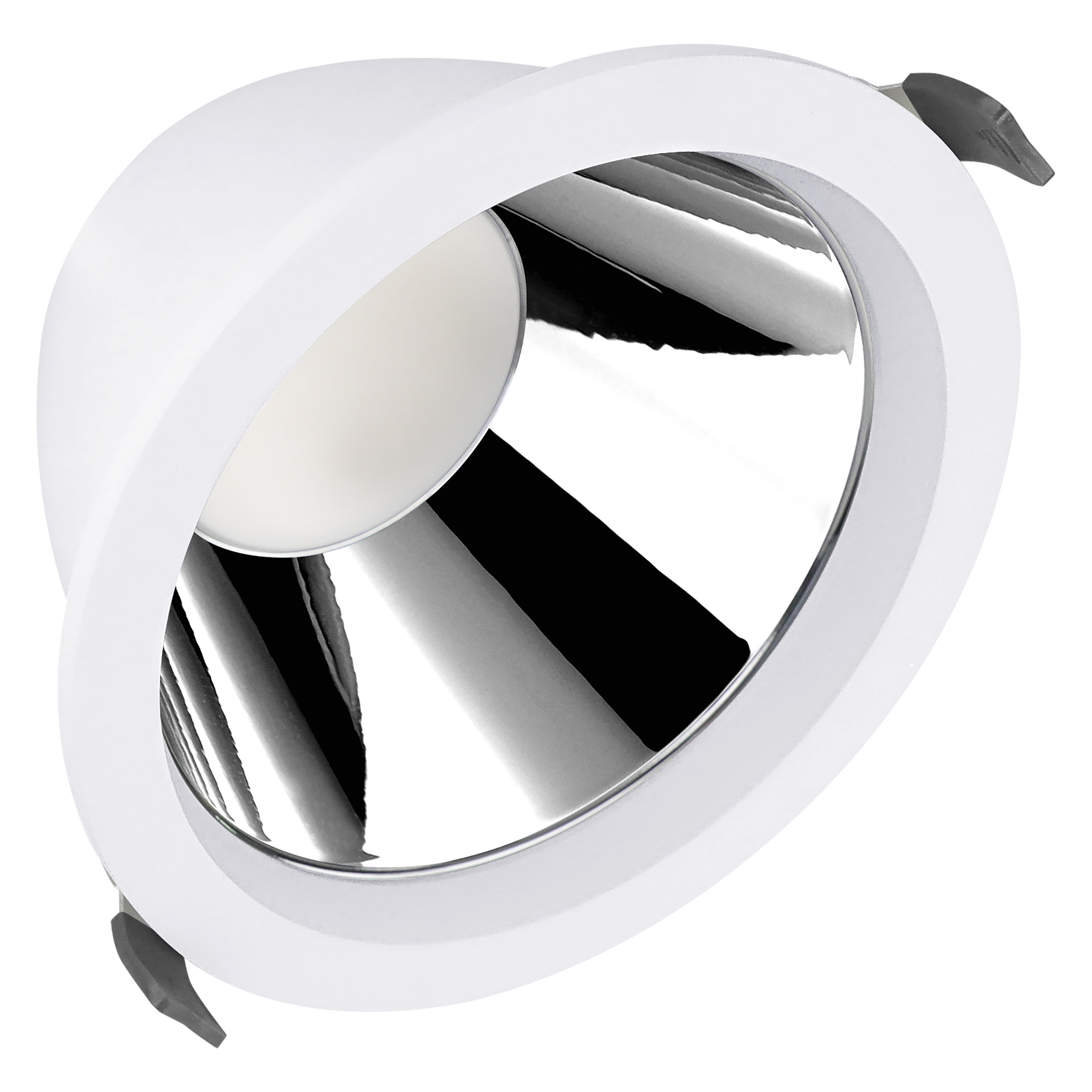

Product image: white background, diagonal
DL CMFT D150 UGR JPG (958.5 KB)

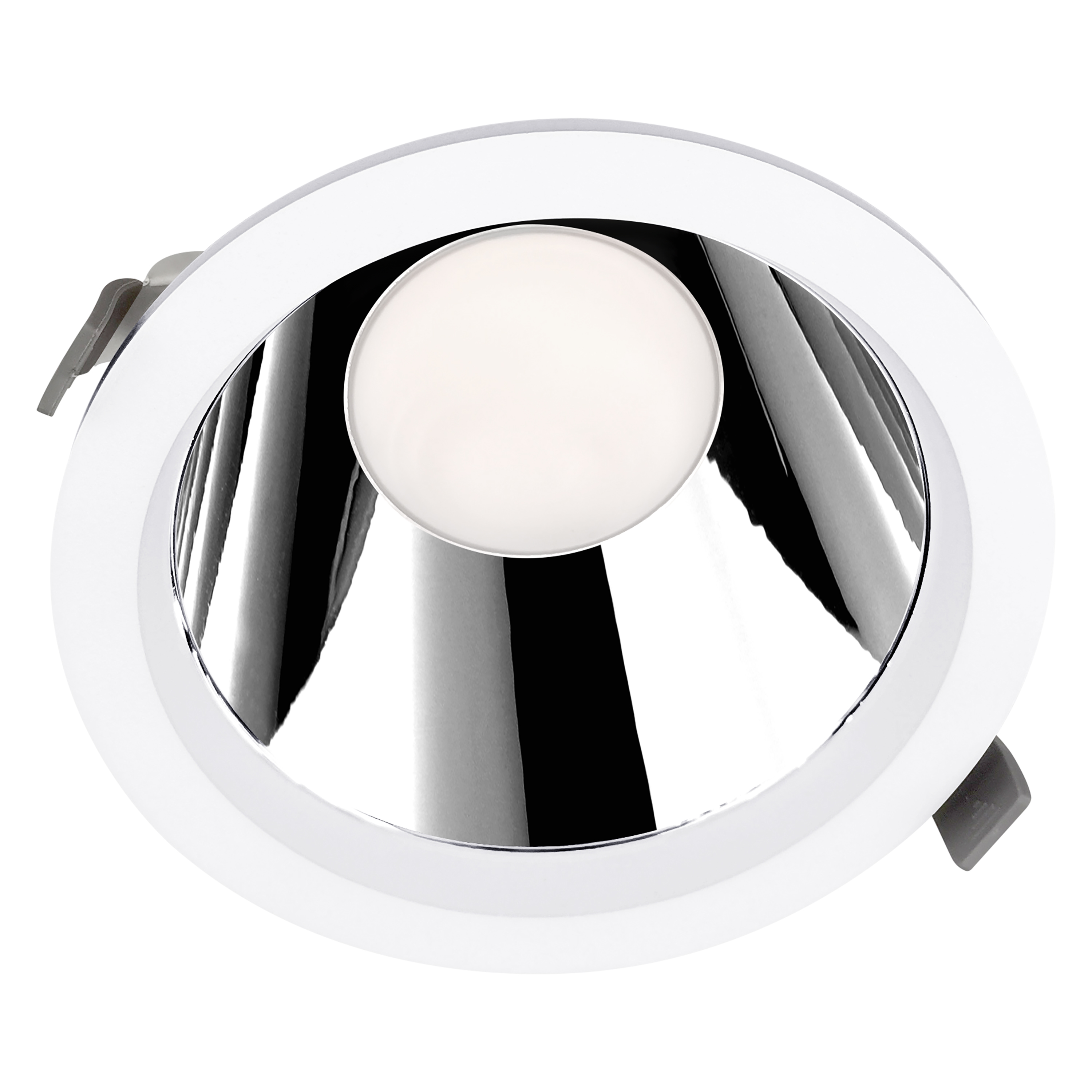

Product image: white background, upright
