DOWNLIGHT COMFORT HIGH EFFICIENCY DALI OPAL

Choose your product version

Coming soon

D150 P 15W 830 OP WT

Coming soon

D150 P 15W 840 OP WT

Coming soon

D200 P 25W 830 OP WT

Coming soon

D200 P 25W 840 OP WT

Coming soon

D250 P 36W 830 OP WT

Coming soon

D250 P 36W 840 OP WT

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
DL CMFT HE DA D150 P 15W 830 OP WT 15 W / 12 W / 10 W 100000 95 ° 2025 lm / 1680 lm / 1400 lm Yes
DL CMFT HE DA D150 P 15W 840 OP WT 15 W / 12 W / 10 W 100000 95 ° 2175 lm / 1800 lm / 1500 lm Yes
DL CMFT HE DA D200 P 25W 830 OP WT 25 W / 20 W / 15 W 100000 100 ° 3625 lm / 2900 lm / 2250 lm Yes
DL CMFT HE DA D200 P 25W 840 OP WT 25 W / 20 W / 15 W 100000 100 ° 3750 lm / 3100 lm / 2325 lm Yes
DL CMFT HE DA D250 P 36W 830 OP WT 36 W / 30 W / 25 W 100000 100 ° 5220 lm / 4350 lm / 3750 lm Yes
DL CMFT HE DA D250 P 36W 840 OP WT 36 W / 30 W / 25 W 100000 100 ° 5580 lm / 4650 lm / 4000 lm Yes
Coming soon


DL CMFT HE DA D150 P 15W 830 OP WT

Product benefits
  • Energy savings thanks to high system efficacy: up to 155 lm/W
  • Through wiring possible via included connector box
  • High grade polycarbonate front frame for reduced overall luminaire weight
  • Uniform light with minimized glare thanks to included reflector and diffuser
  • Well suited for retrofitting using an extension ring as separate accessory
  • DALI-2 certified incl. Parts 251, 252, 253
  • Push DIM application for easy control
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 15 W / 12 W / 10 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 68mA / 59mA / 50 mA
Inrush current 25.2 A
Inrush current time Th50 6.8 µs
Max. number of luminaires per miniature circuit breaker B16 29
Max. number of luminaires per miniature circuit breaker C10 23
Max. number of luminaires per miniature circuit breaker C16 38
Power factor λ ≥ 0.90
Total harmonic distortion ≤ 20 %
Protection class II
Surge capability (L-N) 1000 V

Photometrical data

Luminous flux 2025 lm / 1680 lm / 1400 lm
Total luminous flux of contained light sources 1800 lm
Luminous efficacy 135 lm/W / 140 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra > 80
Standard deviation of color matching 3 sdcm
Luminous intensity 840 lm / 730 lm / 600 lm
Low flicker Yes
Flickering metric (Pst LM) <1
Stroboscope effect metric (SVM) <0.4
Photobiological safety group acc. to EN62778 RG1
Photobiological safety group acc. to EN62471 RG1
Beam angle 95 °

Adjustable attributes

Nominal wattage Color temperature Luminous flux Luminous efficacy
15 W 3000 K 2025 lm 135 lm/W
12 W 3000 K 1680 lm 140 lm/W
10 W 3000 K 1400 lm 140 lm/W

Dimensions & Weight

Diameter 160.00 mm
Height 57.10 mm
Product weight 380.00 g

Materials & Colors

Product color White
Housing color White
RAL Color (most similar) RAL 9003
Body material Aluminum
Cover material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Screwless terminal, 5-Pole
Type of protection IP44/IP20
Protection class IK (shock resistance) IK03
Dimmable Yes
Type of dimming DALI2
IoT ready Support of DALI data type PART 251, 252, 253 1)
Mounting location Ceiling, Wall
Application environment Indoor
Mounting diameter 150 mm
Mounting depth 57,0 mm
With light source Yes
Replaceable light source No

1) Internet of Things. Supports data transfer via gateway to cloud-based monitoring platforms, such as LEDVANCE VIVARES Cloud

Lifespan

Lifespan L70/B50 at 25 °C 100000 h 1)
Lifespan L80/B10 at 25 °C 100000 h 1)
Lifespan L90/B10 at 25 °C 65000 h
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 350mA / 300mA / 250 mA
ECG - Output ripple current ≤ 10 %
Recommended control gear DR DALI-P-30/220-240/700

Emergency lighting

Type of emergency operation test None
Wattage in emergency operation mode 3 W
Luminous flux in emergency operation mode 375 lm

Certificates & Standards

Standards ENEC, CE, EAC, CB, UKCA
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Replaceable light source (EPREL) Not replaceable

Additional product data

Product remark Available from December 2025

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Energy savings thanks to high system efficacy: up to 155 lm/W
  • Through wiring possible via included connector box
  • High grade polycarbonate front frame for reduced overall luminaire weight
  • Uniform light with minimized glare thanks to included reflector and diffuser
  • Well suited for retrofitting using an extension ring as separate accessory
  • DALI-2 certified incl. Parts 251, 252, 253
  • Push DIM application for easy control
Areas of application
  • Direct replacement for recessed luminaires with fluorescent lamps
  • Offices, conference rooms
  • Reception areas, foyers, corridors, elevators
Product features
  • Lifetime (L80/B10): up to 100,000 h (at 25 °C)
  • Consistent lighting color ≤ 3 SDCM
  • External driver with Multi Lumen function of up to 5580 lm
  • Aluminum luminaires with 3 different cut-outs and opal diffuser
  • Very homogenous light distribution
Equipment / Accessories
  • Security rope for luminaire included
  • External control gear included
  • Connector box with 5-pole terminal included
  • Surface mounting frame options only available for DALI versions D200 and D250
  • Gray and black exchangeable rings available as separate accessory
  • Extension rings are available as separate accessory
  • Extension ring D190 for retrofitting D150 luminaire, extension ring D240 for retrofitting D200 luminaire
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • The luminaires are not suitable for covering with thermally insulated material.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854687372 Folding box
1		 185 mm x 185 mm x 100 mm 467.00 g 3.42 dm³
4099854687389 Shipping box
8		 390 mm x 390 mm x 230 mm 4736.00 g 34.98 dm³
Product image Product name EAN
DL CMFT EXCH RING D150 GY 4099854515439
DL CMFT EXCH RING D150 BK 4099854515316
DL CMFT EXT RING D190 WT 4099854687723
DL CMFT EXT RING D190 GY 4099854687600
DL CMFT EXT RING D190 BK 4099854687570
User instruction / safety instructions

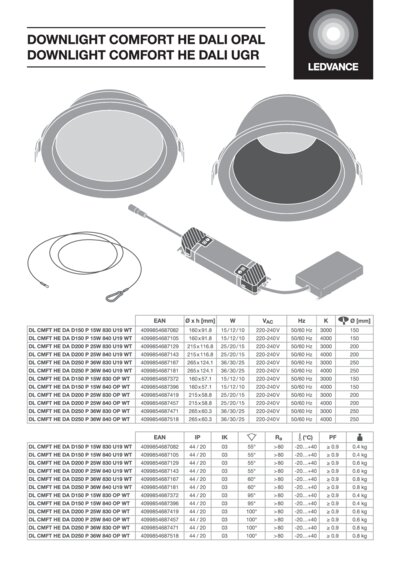

User Instruction G1125 2880 DONWLIGHT COMFORT HE DALI PDF (5.05 MB)
Legal information
Legal Insert G11120030 PDF (859.18 KB)
Legal information
Safety Insert G1120779 3 PDF (332.93 KB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Legal information

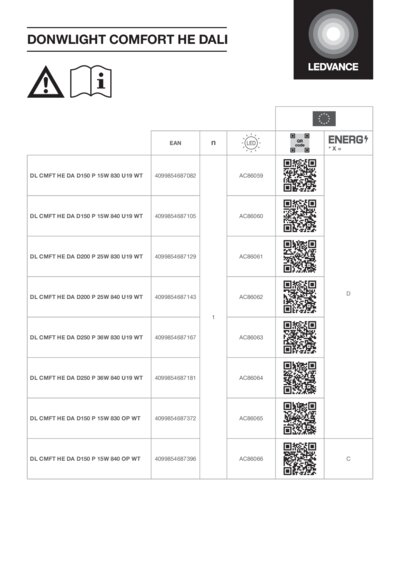

LSI G11253078 DL CMFT HE DA PDF (2.34 MB)
Declarations of conformity
DL CMFT LUM PDF (415.19 KB)
Certificates
ENEC Certificate DL CM FT HE PDF (347.67 KB)
EU Data Act
DALI LED Driver and Lu minaires PDF (469.42 KB)
Product image: white background, diagonal
DL CMFT HE D150 P 15W ML 8xx OP WT JPEG (172.13 KB)
Product image: white background, upright
DL CMFT D150 JPG (772.83 KB)
Product image: white background, spacial
DL CMFT D150 JPG (753.39 KB)
Product line drawing with letters
DL CMFT HE DA D150 P SVG (139.83 KB)
Product line drawing with numbers
DL CMFT HE DA D150 P SVG (142.96 KB)
Product line drawing - technical
DL CMFT HE DA D150 P SVG (125.42 KB)
IES file (IES)
DL CMFT HE DA D150 P 1 5W ML 830 OP WT IES (7.43 KB)
LDT file (Eulumdat)
DL CMFT HE DA D150 P 1 5W ML 830 OP WT LDT (6.84 KB)

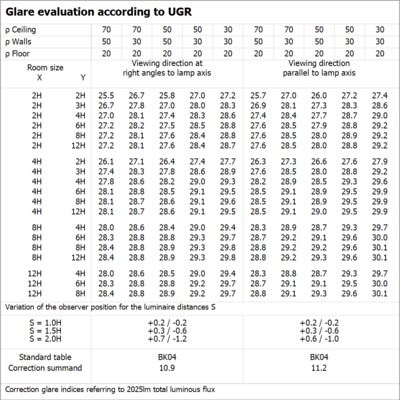

UGR file (UGR table)
DL CMFT HE DA D150 P 1 5W ML 830 OP WT PNG (59.94 KB)
Light distribution curve type cone
DL CMFT HE DA D150 P 1 5W ML 830 OP WT SVG (15.42 KB)
Light distribution curve type polar
DL CMFT HE DA D150 P 1 5W ML 830 OP WT SVG (17 KB)
CAD STEP 3D
DL CMFT D150 MS OP STEP (6.98 MB)
EAN STK number
4099854687372 4161248
