DOWNLIGHT UNIVERSAL DALI

Choose your product version

NEW

D200 V 18W ML 83040 WT

NEW

D300 V 22W ML 83040 WT

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
DL UNIV DA D200 V 18W ML 83040 WT 18 W / 9 W 25000 110 ° 2350 lm / 2250 lm / 1200 lm / 1150 lm Yes
DL UNIV DA D300 V 22W ML 83040 WT 22 W / 15 W 25000 110 ° 3000 lm / 2850 lm / 2100 lm / 2020 lm Yes
NEW


DL UNIV DA D200 V 18W ML 83040 WT

Product benefits
  • The solution for convenient refurbishment: universal fitting to existing ceiling cut-outs
  • Highly versatile due to selectable CCT and power steps (Multi Color / Multi Lumen)
  • External DALI-2 driver included for flexible lumen settings via dip switch on device
  • Energy savings thanks to high system efficacy: up to 130 lm/W
  • Very homogenous light distribution
  • Further variants with on/off and sensor available
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 18 W / 9 W
Nominal voltage 220…240 V
Mains frequency 0/50/60 Hz
Nominal current 84 mA
Inrush current 33 A
Inrush current time Th50 13.8 µs
Max. number of luminaires per miniature circuit breaker B16 22
Max. number of luminaires per miniature circuit breaker C10 18
Max. number of luminaires per miniature circuit breaker C16 29
Power factor λ 0.90
Total harmonic distortion < 30 %
Protection class II
Operating mode External LED driver

Photometrical data

Luminous flux 2350 lm / 2250 lm / 1200 lm / 1150 lm
Luminous efficacy 130 lm/W / 125 lm/W / 135 lm/W
Color temperature 3000 K / 4000 K
Reference control setting of contained light source (Kelvin) 4000 K
Light color (designation) Warm White, Cool White
Color rendering index Ra > 80
Standard deviation of color matching < 4 sdcm
Low flicker Yes
Flickering metric (Pst LM) <1
Stroboscope effect metric (SVM) <0.4
Photobiological safety group acc. to EN62778 RG0
Beam angle 110 °

Adjustable attributes

Nominal wattage Color temperature Luminous flux Luminous efficacy
18 W 3000 K 2250 lm 125 lm/W
18 W 4000 K 2350 lm 130 lm/W
9 W 3000 K 1150 lm 130 lm/W
9 W 4000 K 1200 lm 135 lm/W

Dimensions & Weight

Diameter 217.00 mm
Height 22.00 mm
Product weight 555.00 g

Materials & Colors

Product color White
Housing color White
Body material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Screwless terminal
Type of protection IP44/IP20
Protection class IK (shock resistance) IK03
Dimmable Yes
Type of dimming DALI
IoT ready Support of DALI data type PART 251, 252, 253 1)
Mounting type Recessed
Mounting location Ceiling
Application environment Indoor
Mounting diameter 65…185 mm
Mounting depth 22,0 mm
Adjustable No
With light source Yes
Replaceable light source No

1) Internet of Things. Supports data transfer via gateway to cloud-based monitoring platforms, such as LEDVANCE VIVARES Cloud

Lifespan

Lifespan L70/B50 at 25 °C 100000 h 1)
Lifespan L80/B10 at 25 °C 50000 h 1)
Lifespan L90/B10 at 25 °C 40000 h
Number of switching cycles 25000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 400mA / 200 mA
ECG - Output ripple current < 10 %
ECG - Length 105.00 mm
ECG - Width 45.00 mm
ECG - Height 25.00 mm
Recommended control gear DR DALI-P-30 220-240 700

Emergency lighting

Type of emergency operation test None

Certificates & Standards

Standards CE, ENEC, UKCA, EAC
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Replaceable light source (EPREL) Not replaceable

Additional product data

Product remark Available from July 2025
Added function MULTI SELECT, VIVARES

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1), Tripnehyl Phosphate (115-86-6)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • The solution for convenient refurbishment: universal fitting to existing ceiling cut-outs
  • Highly versatile due to selectable CCT and power steps (Multi Color / Multi Lumen)
  • External DALI-2 driver included for flexible lumen settings via dip switch on device
  • Energy savings thanks to high system efficacy: up to 130 lm/W
  • Very homogenous light distribution
  • Further variants with on/off and sensor available
Areas of application
  • Direct replacement for recessed luminaires with fluorescent lamps
  • Reception areas, foyers, corridors, common areas
Product features
  • White polycarbonate luminiares with flat design
  • Multi Color function: 3000 K and 4000 K
  • Multi Lumen function: 2 power steps selectable
  • Multi Cut-out: adjustable mounting springs for ceiling cut-outs from 65 mm up to 260 mm
  • Available in two sizes: 200 mm and 300 mm diameter
  • High color consistency: < 4 SDCM
  • Type of protection: IP44 (room side)
  • Suitable for through wiring
  • Lifetime (L80/B50): 50,000 h (at 25 °C)
Equipment / Accessories
  • Additional cover rings separately available in round shape and in different colors
  • Safety rope for luminaire included
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • The luminaires are not suitable for covering with thermally insulated material.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854541339 Folding box
1		 235 mm x 225 mm x 60 mm 672.00 g 3.17 dm³
4099854541346 Shipping box
14		 489 mm x 447 mm x 252 mm 10420.00 g 55.08 dm³
Product image Product name EAN
DL UNIV RING D200 BK 4099854541452
DL UNIV RING D200 BN 4099854541476
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Legal information
LUM PANELS_SI PDF (332.93 KB)
Declarations of conformity
DL UNIV Recessed lumin aire PDF (264.58 KB)

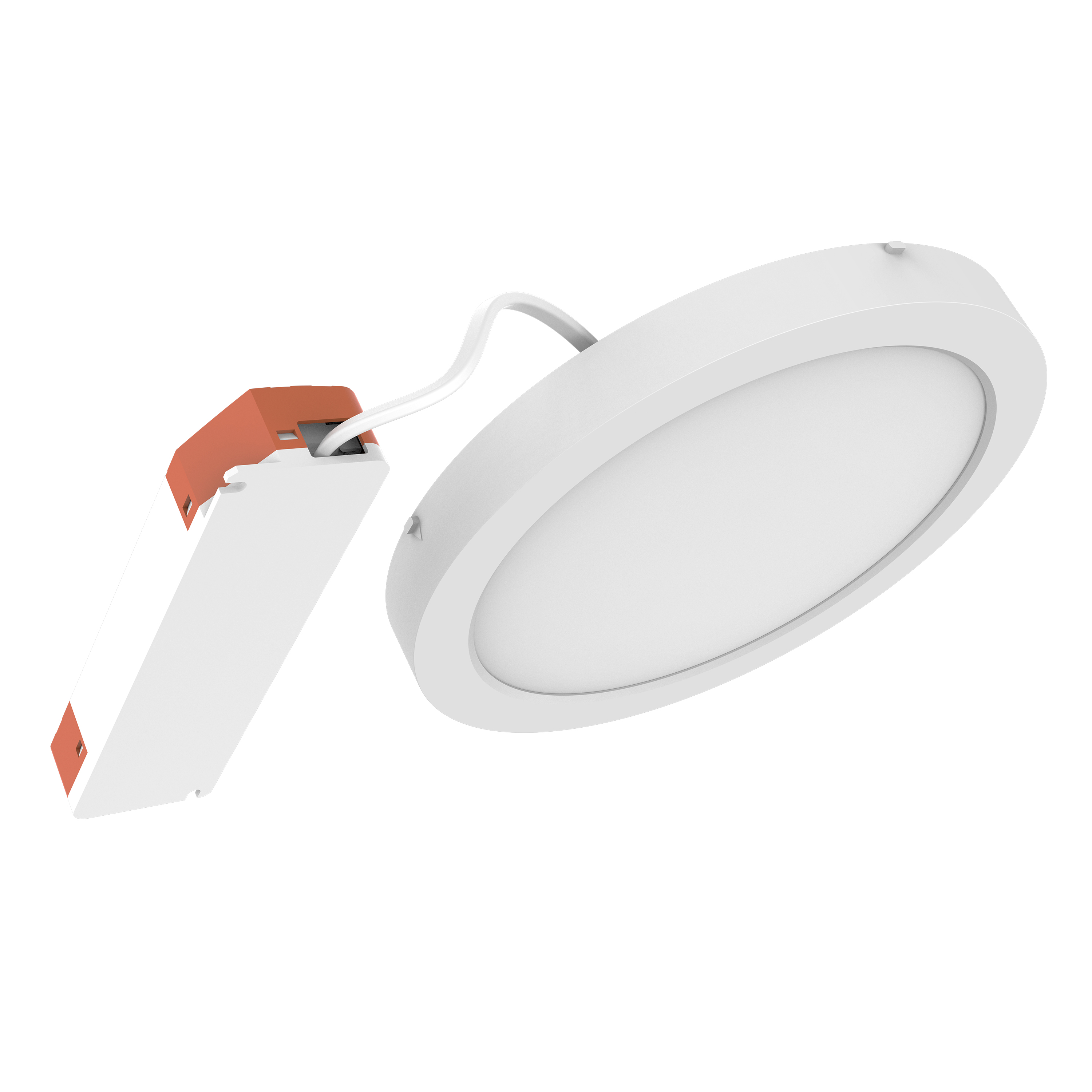

Product image: white background, diagonal
DL UNIV V ML 83040 WT JPG (1.24 MB)

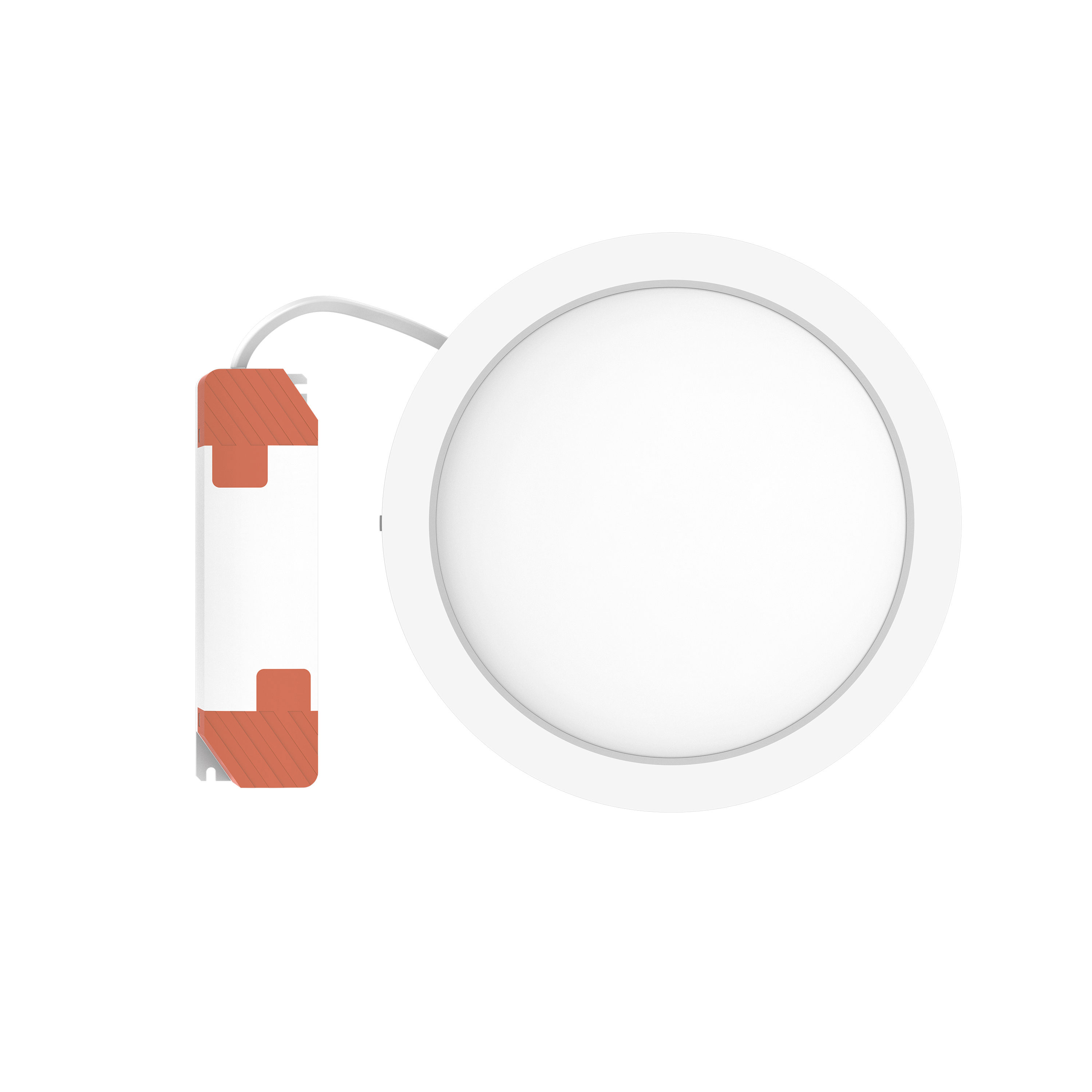

Product image: white background, diagonal, alternative image
DL UNIV DA V ML 83040 WT JPG (1.23 MB)

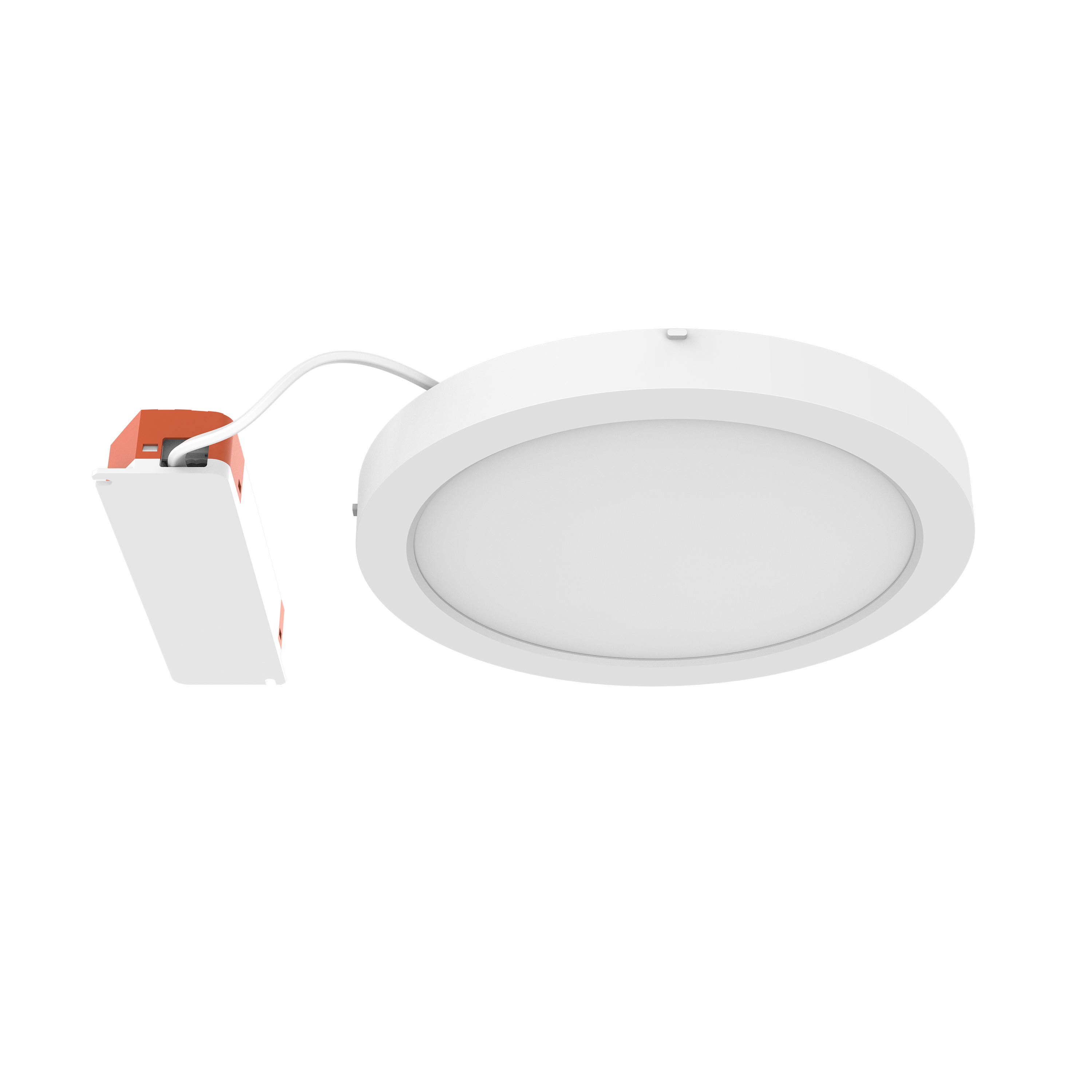

Product image: white background, horizontal
DL UNIV V ML 83040 WT JPG (1.45 MB)
Product image: white background, horizontal, alternative image
DL UNIV DA V ML 83040 WT JPG (1.26 MB)

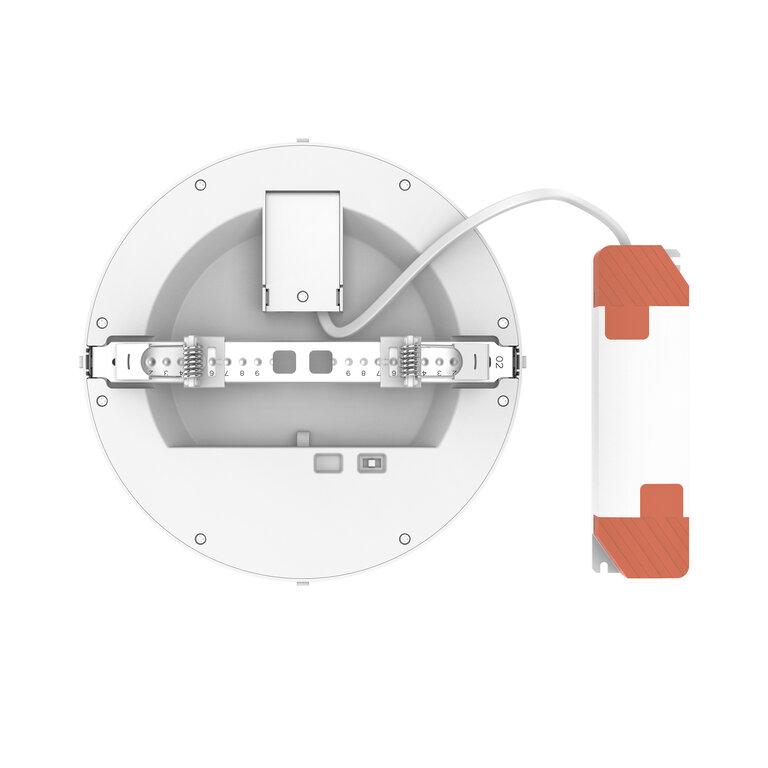

Product image: white background, upright
DL UNIV V ML 83040 WT JPG (1.24 MB)
Product image: white background, upright, alternative image
DL UNIV DA V ML 83040 WT JPG (995.06 KB)
Product image: white background, with accessory, alternative image
DL UNIV V ML 83040 WT JPG (1.09 MB)
Product image: white background, with accessory, alternative image
DL UNIV V ML 83040 WT JPG (853.33 KB)
Product image: white background, with accessory, alternative image
DL UNIV V ML 83040 WT JPG (1.1 MB)
Product line drawing with letters
DL UNIV DA D200 V 18W ML 83040 WT SVG (19.19 KB)
Product line drawing with numbers
DL UNIV DA D200 V 18W ML 83040 WT SVG (22.82 KB)
Product line drawing - technical
DL UNIV DA D200 V 18W ML 83040 WT SVG (16.38 KB)
IES file (IES)
DL UNIV DA D200 V 18W MS 830 WT LEDV IES (1.79 KB)
IES file (IES)
DL UNIV DA D200 V 18W MS 840 WT LEDV IES (1.79 KB)
LDT file (Eulumdat)
DL UNIV DA D200 V 18W MS 830 WT LEDV LDT (1.6 KB)
LDT file (Eulumdat)
DL UNIV DA D200 V 18W MS 840 WT LEDV LDT (1.61 KB)

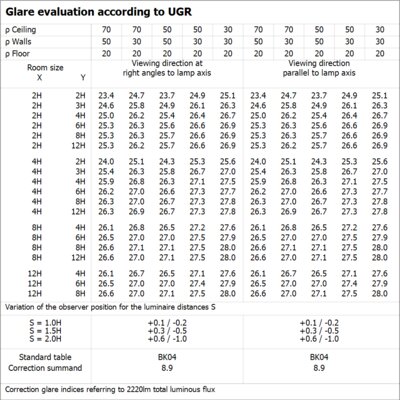

UGR file (UGR table)
