EMERGENCY CONVERSION BOX TEMPERATURE SENSOR

Choose your product version

CONVERSION BOX TEMPERATURE SENSOR

OVERVIEW

Product description Dimmable
EM CONVERSION BOX TEMPERATURE SENSOR No


EM CONVERSION BOX TEMPERATURE SENSOR

Product benefits
  • Converts selected panels and downlights to emergency luminaires
  • With integrated battery temperature sensor control
  • Emergency conversion unit reduces stock-keeping complexity of emergency lighting products
  • Plug-and-play system allows easy installation
  • Easy testing of luminaires with emergency lighting function thanks to integrated automatic test function
  • Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal voltage 220…240 V
Mains frequency 50/60 Hz
Protection class II

Dimensions & Weight

Length 292.00 mm
Height 41.00 mm
Width 81.00 mm
Product weight 352.00 g

Materials & Colors

Glow Wire Test according to IEC 60695-2-12 850 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range +5…+50 °C
Temperature range at storage +5…+35 °C
Type of connection Screwless
Type of protection IP20
Dimmable No
Mounting type Recessed
Mounting location Ceiling
Replaceable light source No

BATTERY

Type of Battery LiFePO4
Battery size [GMS] Others
Nominal voltage of battery 3.2 V
Nominal capacity of battery 4500 mAh
Battery charging time 24 h

Emergency lighting

Type of emergency light operation Maintained, Non-maintained
Type of emergency operation test Automatic
Wattage in maintained operation mode 3,0 W
Wattage in emergency operation mode 3,0 W
Battery life in emergency operation mode 3 h
Integrated test switch No

Certificates & Standards

Standards CE, UKCA, EAC, ENEC

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Converts selected panels and downlights to emergency luminaires
  • With integrated battery temperature sensor control
  • Emergency conversion unit reduces stock-keeping complexity of emergency lighting products
  • Plug-and-play system allows easy installation
  • Easy testing of luminaires with emergency lighting function thanks to integrated automatic test function
  • Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
Areas of application
  • Buildings requiring up to 3 h emergency light operation
Product features
  • Self-contained emergency conversion unit with single battery
  • Automatic function test of emergency lighting
  • Battery technology: LiFePO4
  • Recessed ceiling mounting
Equipment / Accessories
  • Control LED with a retainer for recessed installation included
Safety advice
  • The conformity of the converted luminaire with all relevant statutory and legal safety and other requirements and technical standards, such as EN 60598-1 and EN 60598-2-22, has to be ensured during and after installation of the Emergency Conversion Box. It is also recommended to comply with ICEL 1004:2018. The converted luminaire has to be marked with a new data plate.
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854455933 Folding box
1		 46 mm x 412 mm x 90 mm 402.00 g 1.71 dm³
4099854455940 Shipping box
8		 428 mm x 208 mm x 206 mm 3428.00 g 18.34 dm³

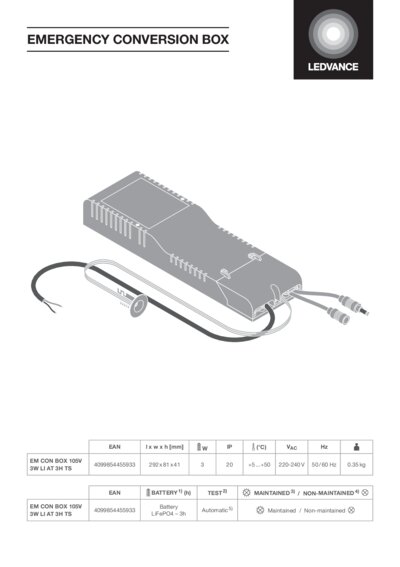

User instruction / safety instructions
Emergency Conversion B ox PDF (3.91 MB)
Legal information
Safety Insert G1121698 3 PDF (249.15 KB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)

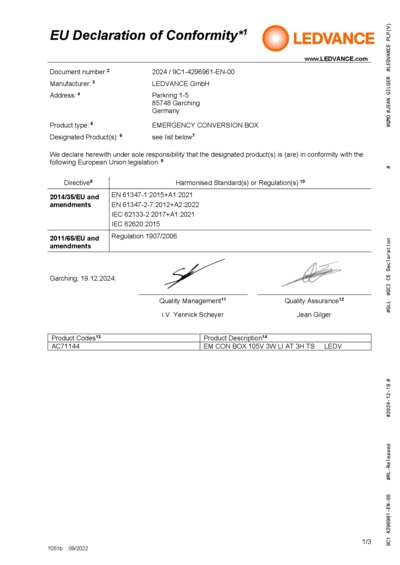

Declarations of conformity
EM CONVERSION BOX PDF (244.53 KB)

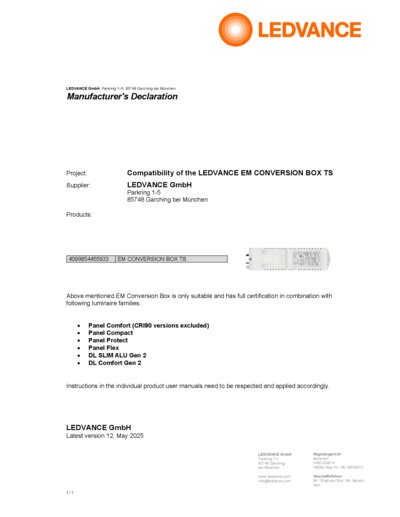

Certificates
Manufacturer Declarati on Compatibility of th e LEDV EM CONVERSION B OX PDF (282.76 KB)

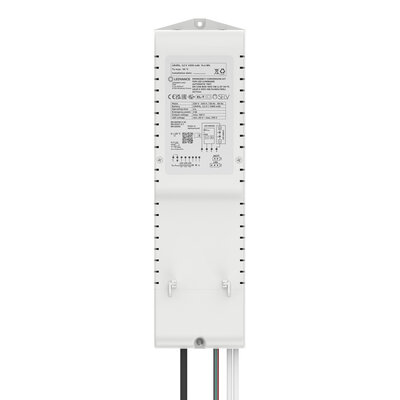

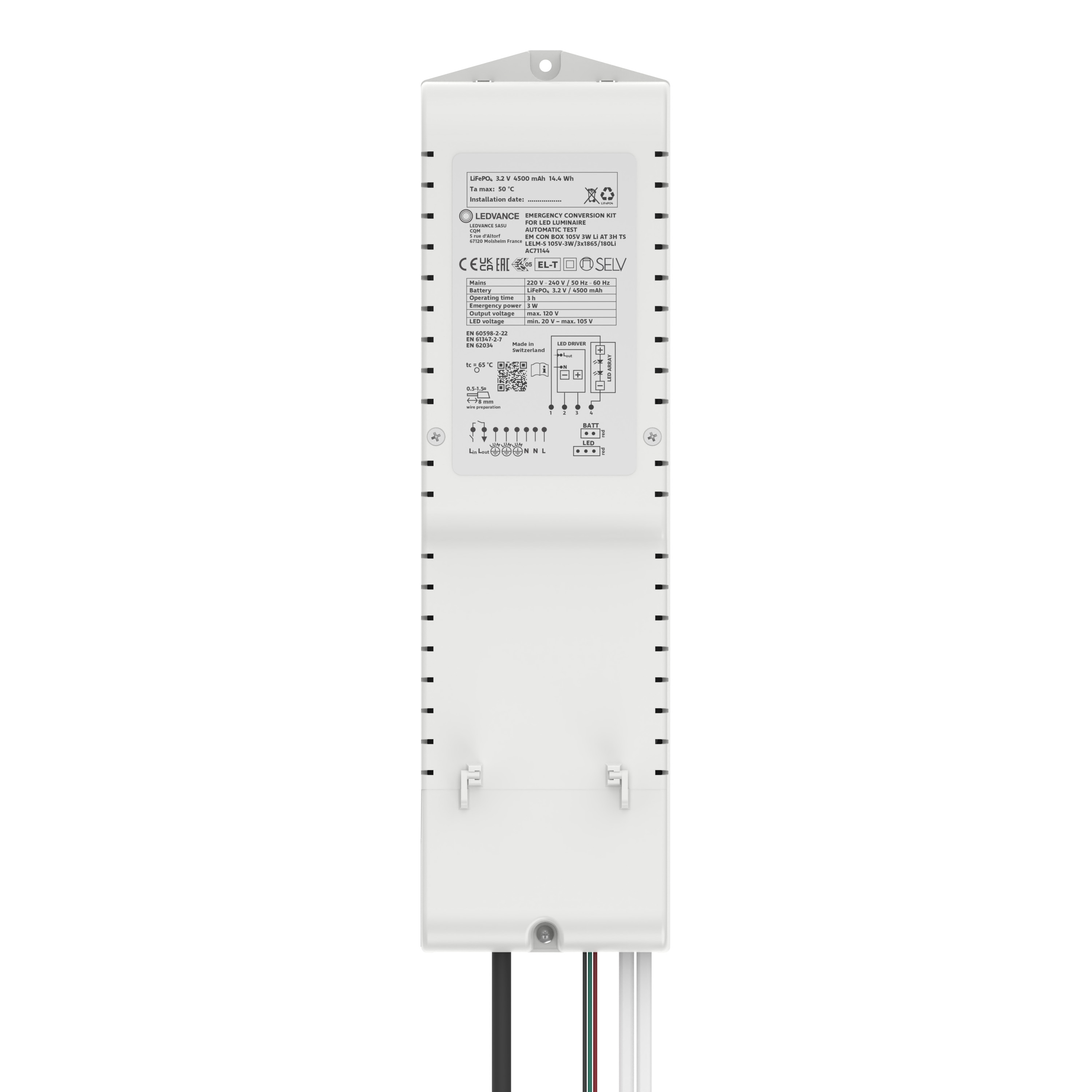

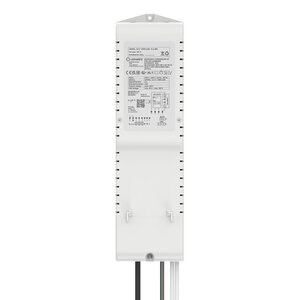

Product image: white background, diagonal
EM CON BOX 105V 3W LI AT 3H TS JPG (371.99 KB)

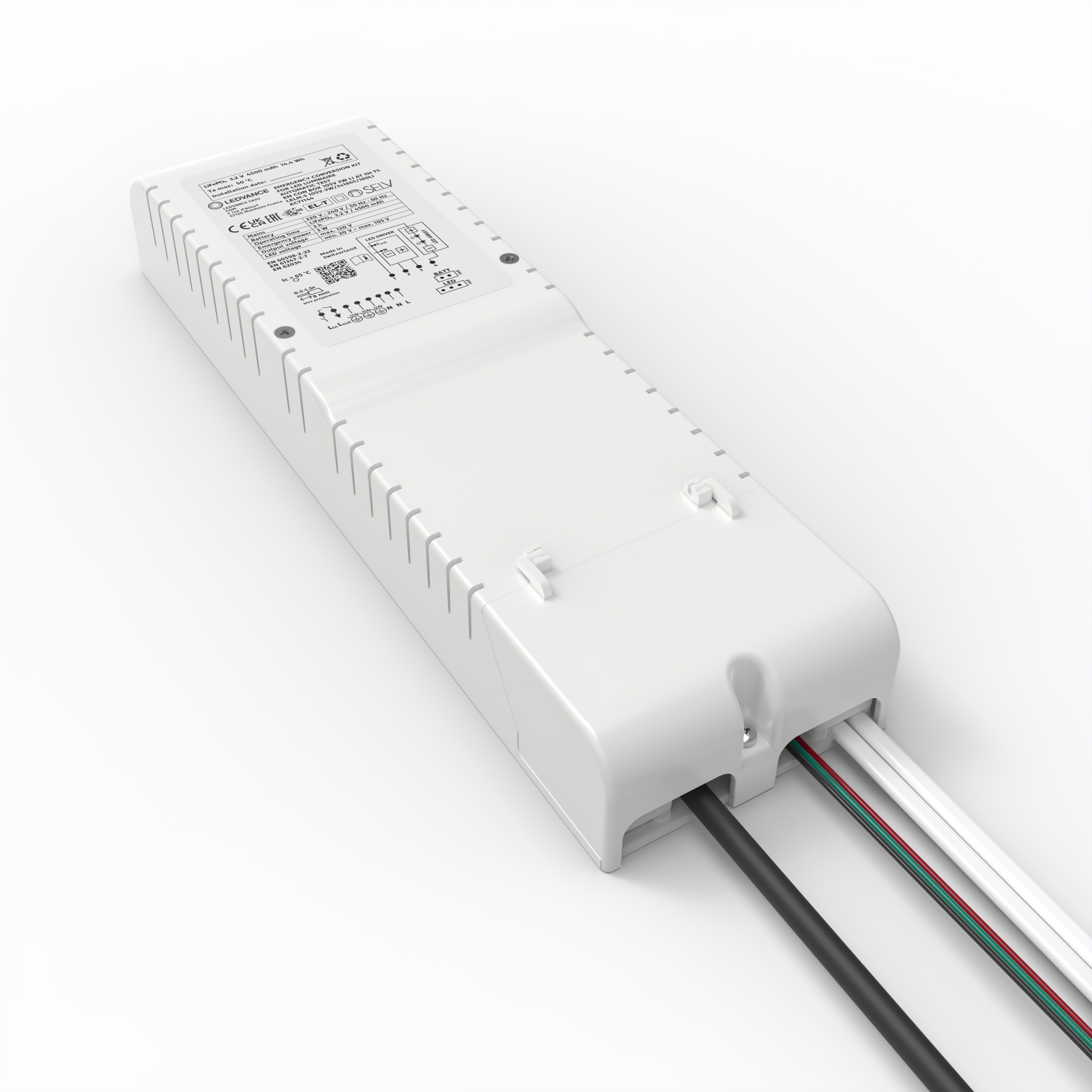

Product image: white background, spacial
EM CON BOX 105V 3W LI AT 3H TS JPG (214.11 KB)
Product line drawing with letters
EMERGENCY CONVERSION B OX SVG (63.08 KB)
Product line drawing with numbers
EMERGENCY CONVERSION B OX SVG (68.47 KB)
Product line drawing - technical
EMERGENCY CONVERSION B OX SVG (60.4 KB)
Tender documents
EMERGENCY CONVERSION B OX TEMPERATURE SENSOR- en TXT (1.08 KB)
EAN SEG number STK number EFO number ELDAS number UK Org
4099854455933 7349109 4161083 6619769 927001360 438154463
