Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|

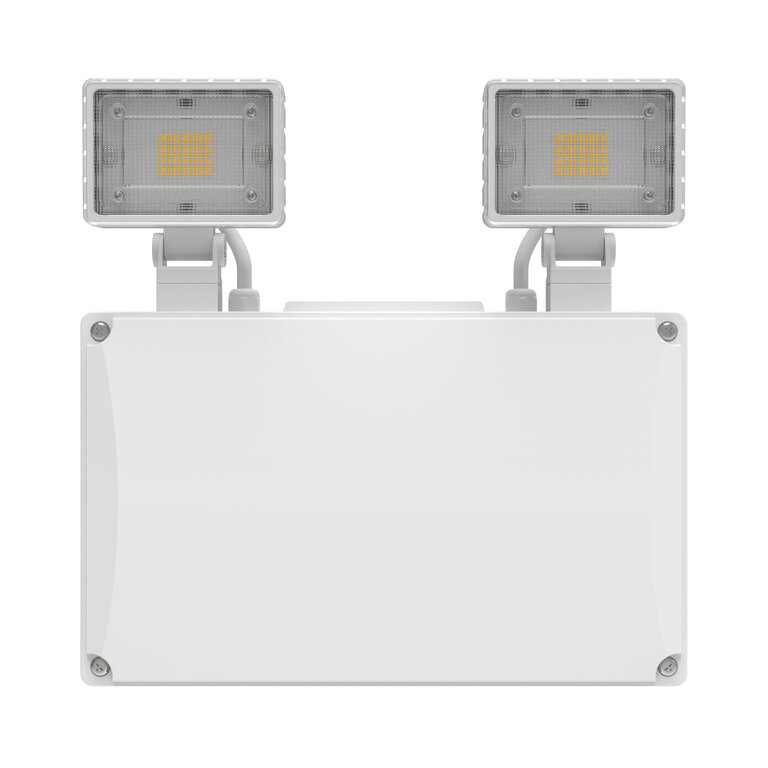

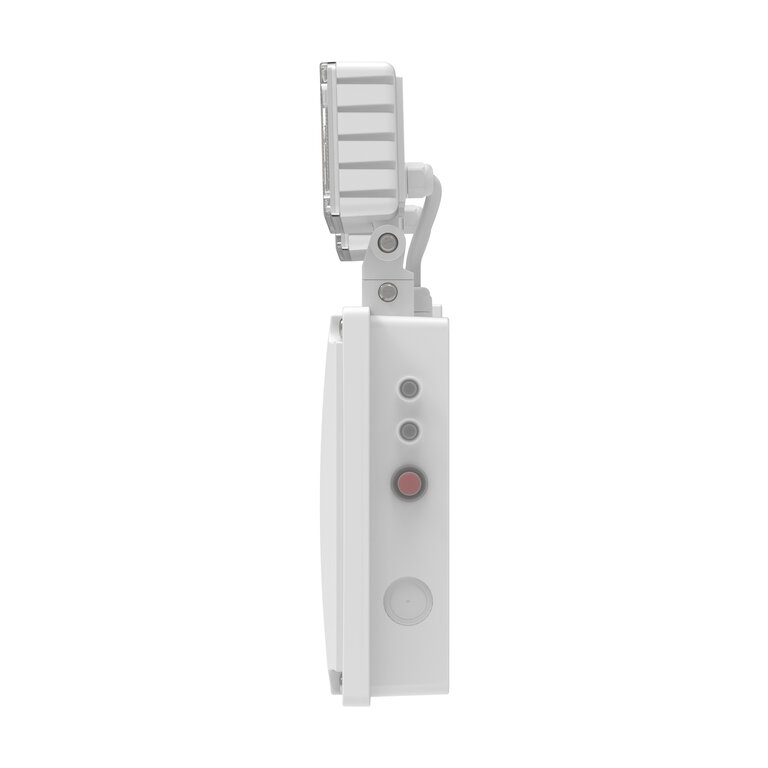

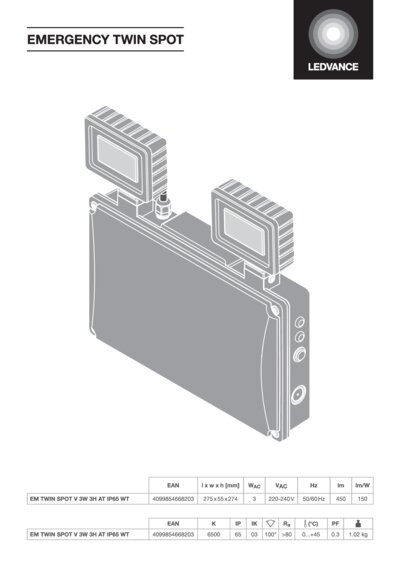

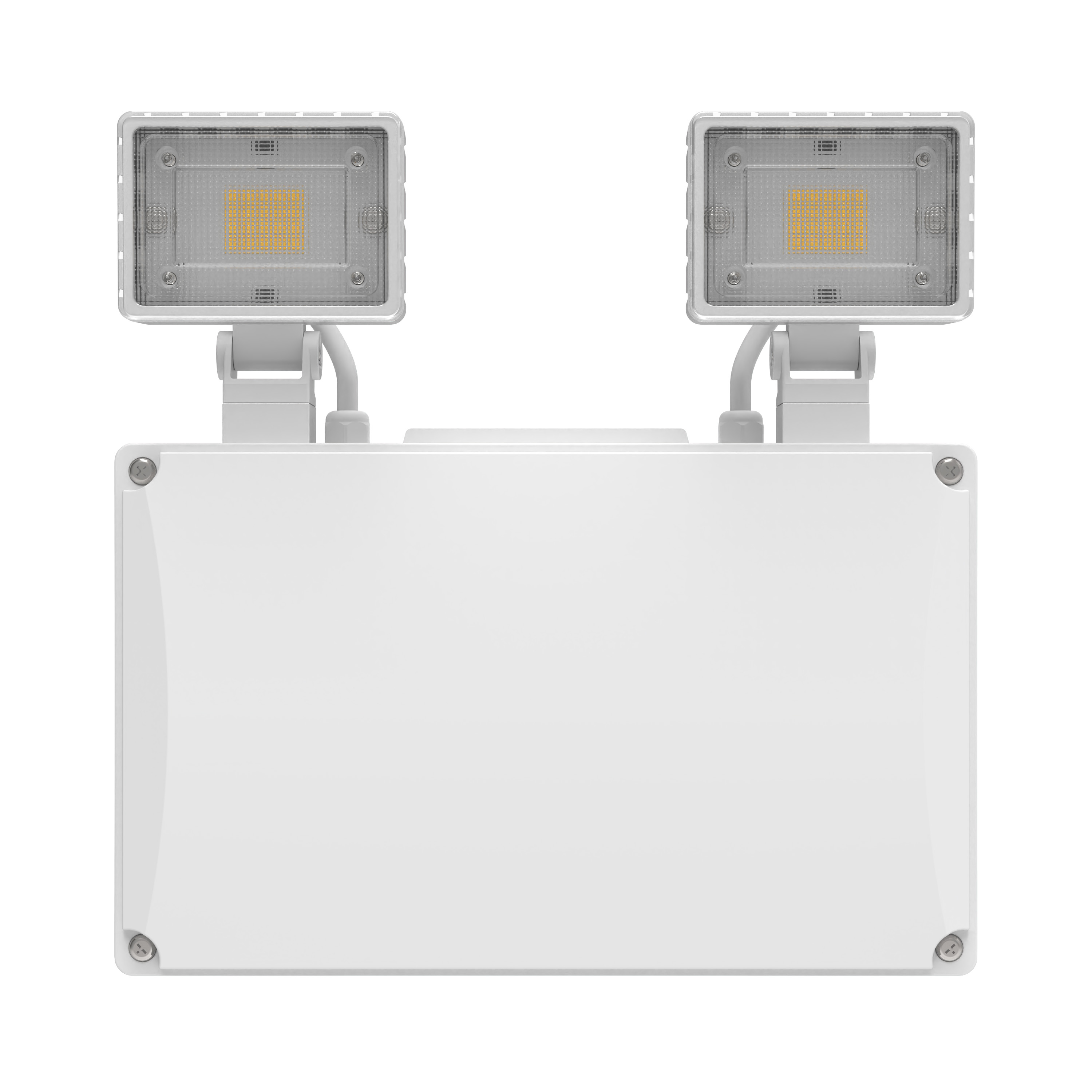

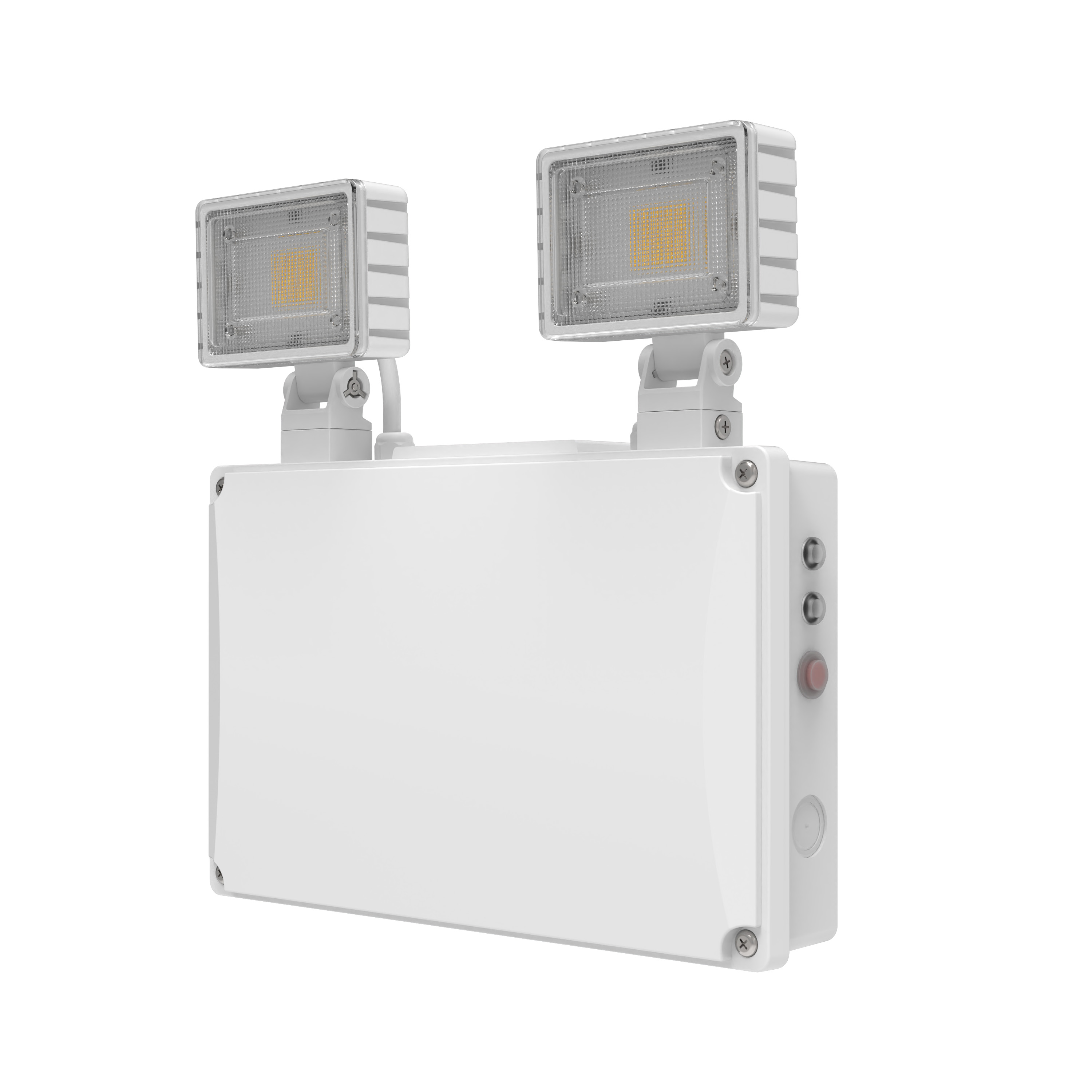

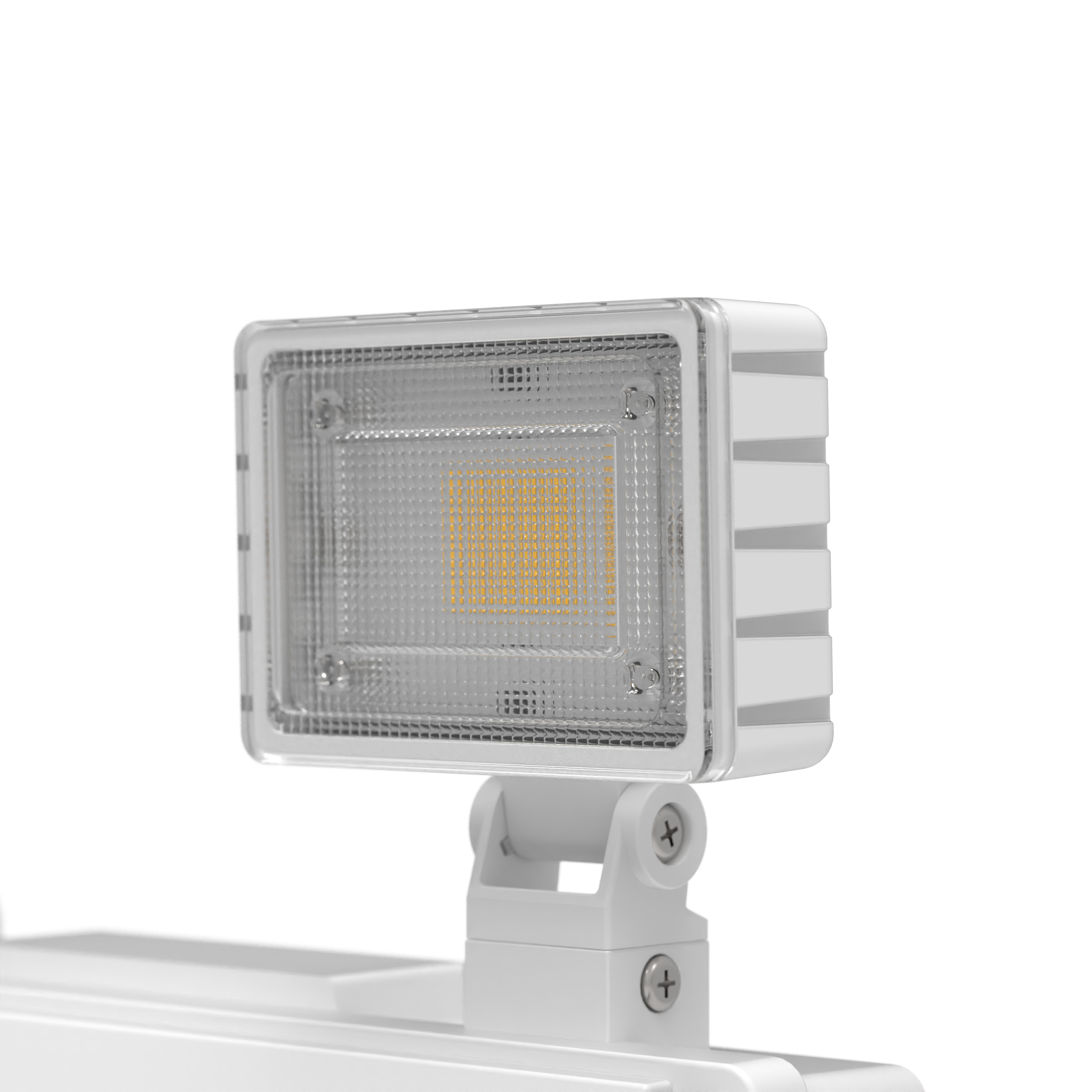

| EM TWIN SPOT V 3W 3H AT IP65 WT | 3.00 W | 50000 | 100 ° | 450 lm | No |
| Nominal wattage | 3.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50/60 Hz |
| Nominal current | 45 mA |
| Inrush current | 6.8 A |
| Inrush current time Th50 | 48 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 110 |
| Max. number of luminaires per miniature circuit breaker C10 | 90 |
| Max. number of luminaires per miniature circuit breaker C16 | 150 |
| Power factor λ | 0.3 |
| Protection class | II |
| Surge capability (L-N) | 1 kV |
| Operating mode | Integrated LED driver |
| Luminous flux | 450 lm |
| Luminous efficacy | 150 lm/W |
| Color temperature | 6500 K |
| Light color (designation) | Cool Daylight |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | < 6 sdcm |
| Luminous intensity | no relevant |
| Low flicker | Yes |
| Flickering metric (Pst LM) | ≤ 1 |
| Stroboscope effect metric (SVM) | ≤ 0,4 |
| Beam angle | 100 ° |

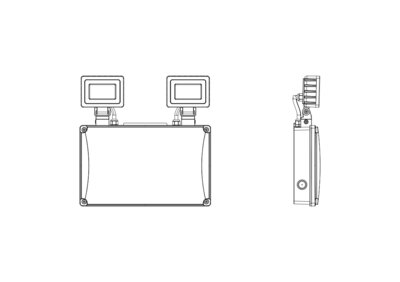

| Length | 275.00 mm |
| Height | 274.00 mm |
| Width | 55.00 mm |
| Product weight | 1015.00 g |
| Product color | White |
| Housing color | White |
| RAL Color (most similar) | RAL 9003 |
| Body material | Polycarbonate (PC) |
| Cover material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | 0…+45 °C |
| Temperature range at storage | 0…+45 °C |
| Type of connection | Terminal |
| Type of protection | IP65 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | No |

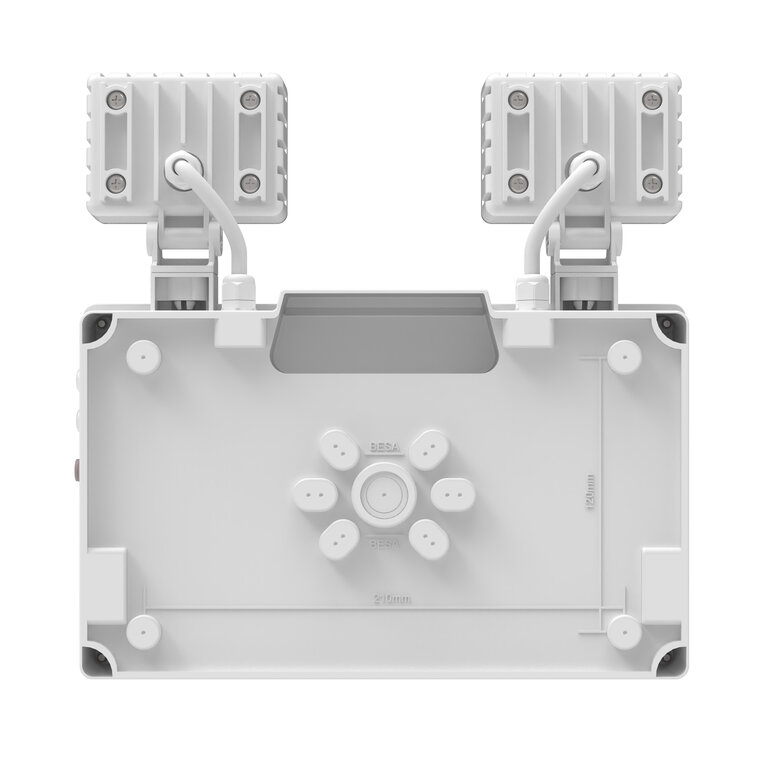

| Mounting type | Recessed |
| Mounting location | Wall |
| Application environment | Indoor |
| Mounting depth | 55.5 mm |
| Adjustable | No |
| With light source | Yes |
| Replaceable light source | No |
| Lifespan L70/B50 at 25 °C | 80000 h 1) |
| Lifespan L80/B10 at 25 °C | 80000 h 1) |
| Number of switching cycles | 50000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
| Output current | 247…331 mA |
| ECG - Output ripple current | 8 % |
| Type of Battery | LiFePO4 |
| Battery size [GMS] | Others |
| Nominal voltage of battery | 9.6 V |
| Nominal capacity of battery | 1500 mAh |
| Battery charging time | 24 h |
| Area of emergency application | Anti-panic lighting |
| Type of emergency light operation | Non-maintained |
| Type of emergency operation test | Automatic |
| Wattage in emergency operation mode | 3 W |
| Luminous flux in emergency operation mode | 450 lm |
| Battery life in emergency operation mode | 3 h |
| Integrated test switch | Yes |

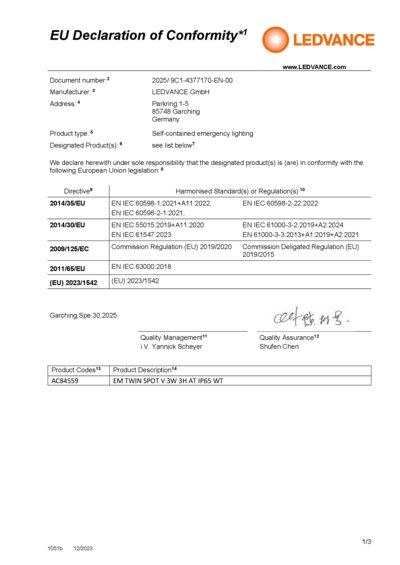

| Standards | CE, CB, EAC, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
| Product remark | Available from December 2025 |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854668203 | Folding box 1 |
290 mm x 66 mm x 295 mm | 1162.00 g | 5.65 dm³ |
| 4099854668210 | Shipping box 10 |
597 mm x 317 mm x 358 mm | 12170.00 g | 67.75 dm³ |
