EMERGENCY EXIT SIGN

Choose your product version

E 0.7W 30M 3H EM/AC AT

OVERVIEW

Product description Nominal wattage Number of switching cycles Luminous flux Dimmable
EM EXIT E 0.7W 30M 3H EM/AC AT 0.70 W 50000 20 lm No


EM EXIT E 0.7W 30M 3H EM/AC AT

Product benefits
  • Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
  • Easy maintenance with automatic test function or integrated test switch
  • Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 0.70 W
Nominal voltage 220…240 V
Mains frequency 50/60 Hz
Nominal current 34.000 mA
Inrush current 6.5 A
Inrush current time Th50 2.8 µs
Max. number of luminaires per miniature circuit breaker B16 115
Max. number of luminaires per miniature circuit breaker C10 92
Max. number of luminaires per miniature circuit breaker C16 147
Power factor λ 0.25
Protection class II
Operating mode Integrated LED driver

Photometrical data

Luminous flux 20 lm
Luminous efficacy 25 lm/W
Color temperature 5700 K
Light color (designation) Cool Daylight
Color rendering index Ra > 70
Low flicker Yes
Flickering metric (Pst LM) ≤ 1
Stroboscope effect metric (SVM) ≤ 0,4
Photobiological safety group acc. to EN62778 RG0

Dimensions & Weight

Length 313.00 mm
Height 42.00 mm
Width 212.00 mm
Product weight 510.00 g

Materials & Colors

Product color White
Housing color White
Body material Polycarbonate (PC)|Polymethylmethacrylate (PMMA)
Cover material Polycarbonate (PC)/Polymethylmethacrylate (PMMA)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range 0…+45 °C
Temperature range at storage 0…+35 °C
Type of connection Terminal
Type of protection IP20
Dimmable No
Mounting type Surface
Mounting location Ceiling, Wall
Application environment Indoor
Mounting depth 0 mm
Adjustable No
With light source Yes
Replaceable light source No

Lifespan

Number of switching cycles 50000

Control gear

Output current 260 mA
ECG - Output ripple current 8 %

BATTERY

Type of Battery LiFePO4
Battery size [GMS] Others
Nominal voltage of battery 3.2 V
Nominal capacity of battery 1100 mAh
Battery charging time 24 h

Emergency lighting

Type of Emergency Lighting (EL) EL unit (battery and controller) for decentral operation included
Area of emergency application Emergency exit signage
Type of emergency light operation Maintained, Non-maintained
Type of emergency operation test Automatic
Wattage in emergency operation mode 0.7 W
Luminous flux in emergency operation mode 20 lm
Battery life in emergency operation mode 3 h
Integrated test switch Yes

Certificates & Standards

Standards CE, CB, EAC, UKCA, ENEC
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (3147-75-9)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
  • Easy maintenance with automatic test function or integrated test switch
  • Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
Areas of application
  • Emergency illumination of escape routes
  • Antipanic lighting
  • Offices, education, public buildings
Product features
  • Viewing distance: 30 m
  • Battery discharge time: 3 h
  • Battery technology: LiFePO4
  • Function test: manual (MA) or automatic (AT)
  • With integrated test switch for manual testing
  • Operation mode: maintained (M) or non-maintained (NM)
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854230714 Folding box
1		 218 mm x 45 mm x 317 mm 630.00 g 3.11 dm³
4099854230721 Shipping box
10		 330 mm x 275 mm x 450 mm 6780.00 g 40.84 dm³
Product image Product name EAN
EM EXIT PICTO BLANK 4099854261374
EM EXIT PICTO LEFT RIGHT 4099854261336
EM EXIT PICTO UP 4099854261350
EM EXIT PICTO DOWN 4099854261312
Product image Product name EAN
EM EXIT FLAG KIT 4099854232145
EM EXIT RECESSED KIT 4099854232121
EM EXIT SUSPENSION KIT 4099854232169

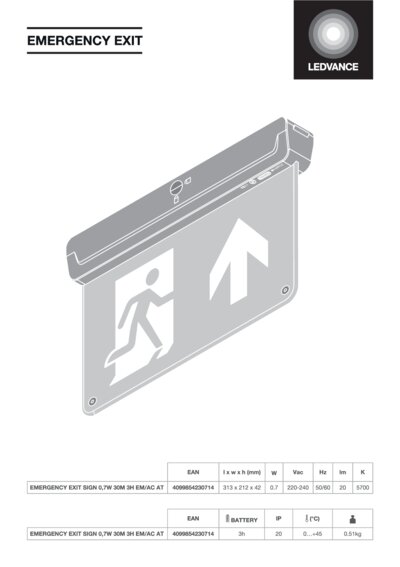

User instruction / safety instructions
EM EXIT PDF (8.05 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Legal information
Safety Insert G1121881 0 PDF (244.72 KB)
Legal information
 Legal Insert G1123152 4 PDF (768.75 KB)

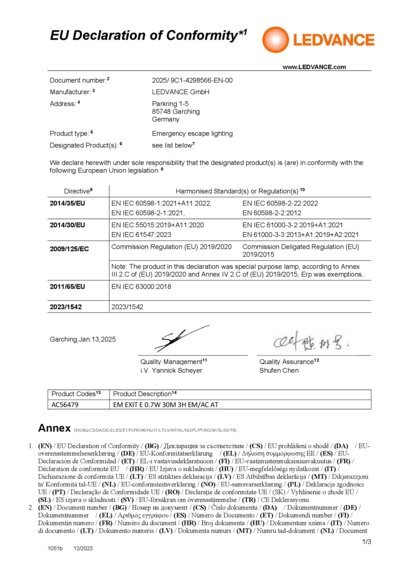

Declarations of conformity
EM EXIT SIGN E 0.7W 30 M 3H EM/AC AT PDF (290.54 KB)

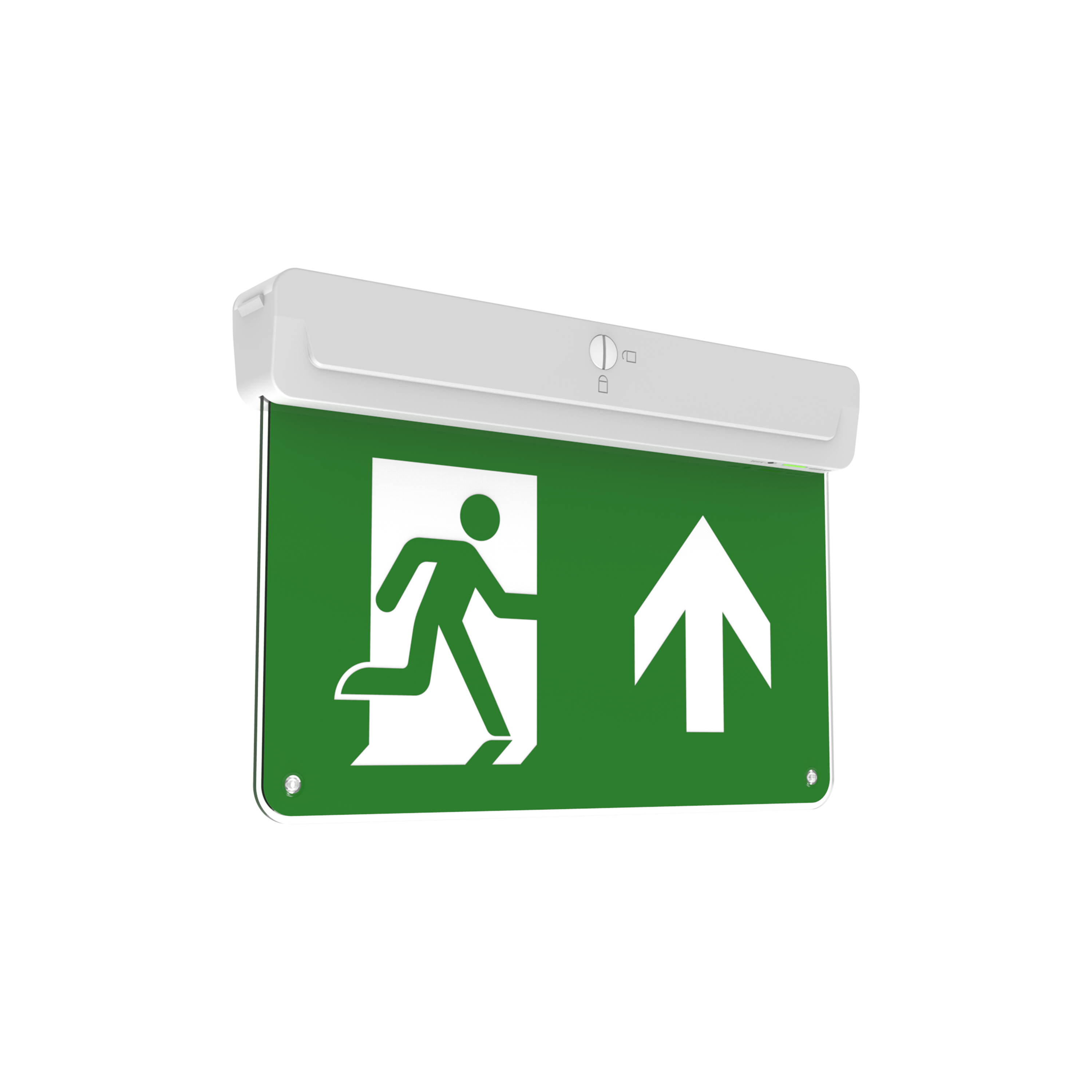

Product image: white background, diagonal
EM EXIT E 0,7W 30M 3H EM/AC AT JPG (988.01 KB)

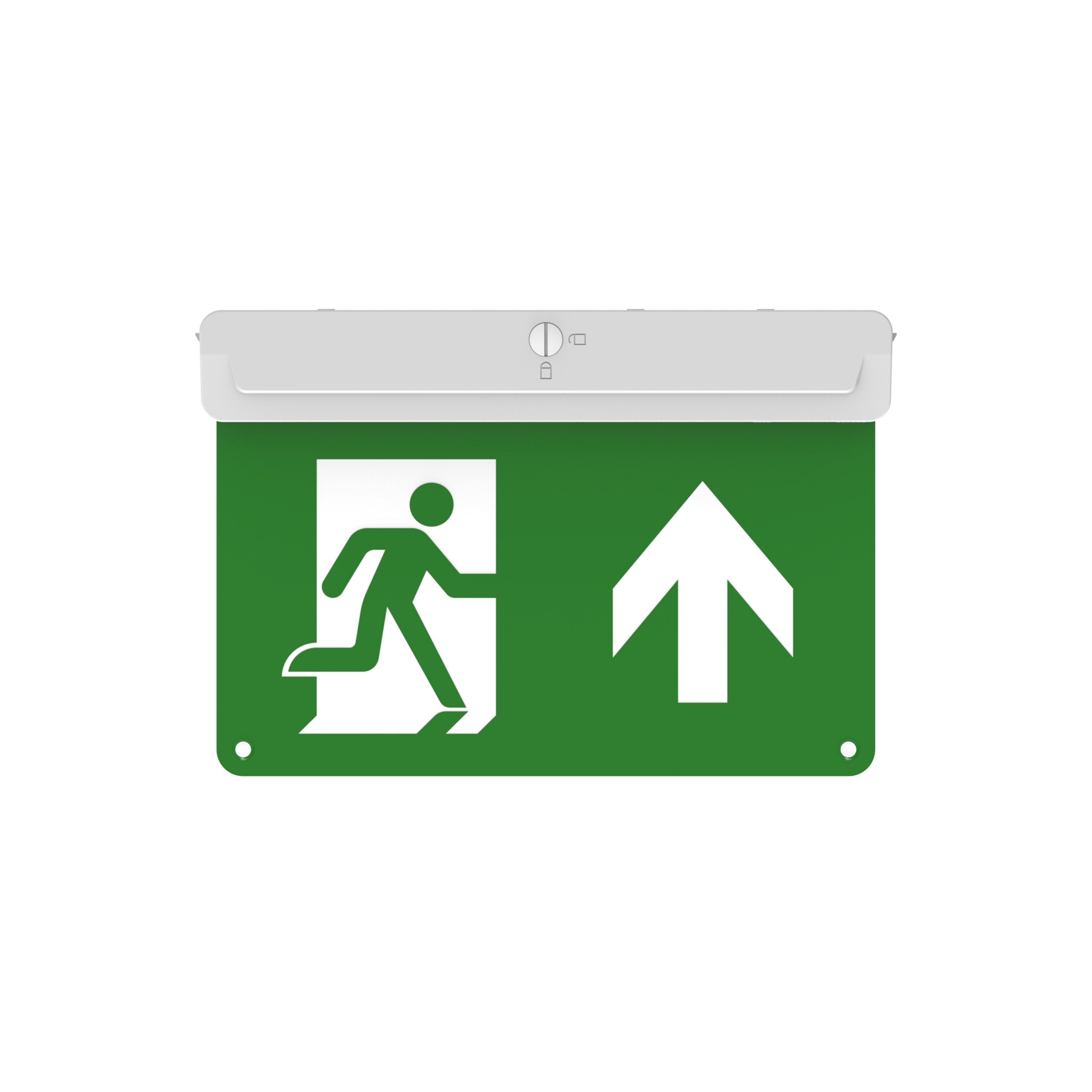

Product image: white background, horizontal
EM EXIT E 0,7W 30M 3H EM/AC AT JPG (966.66 KB)

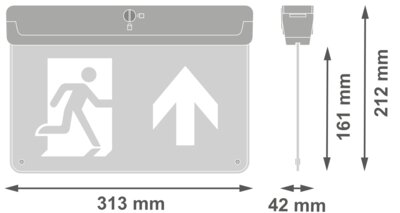

Product line drawing with letters
EM EXIT SIGN E 0.7W 30 M 3H EM/AC AT SVG (24.27 KB)

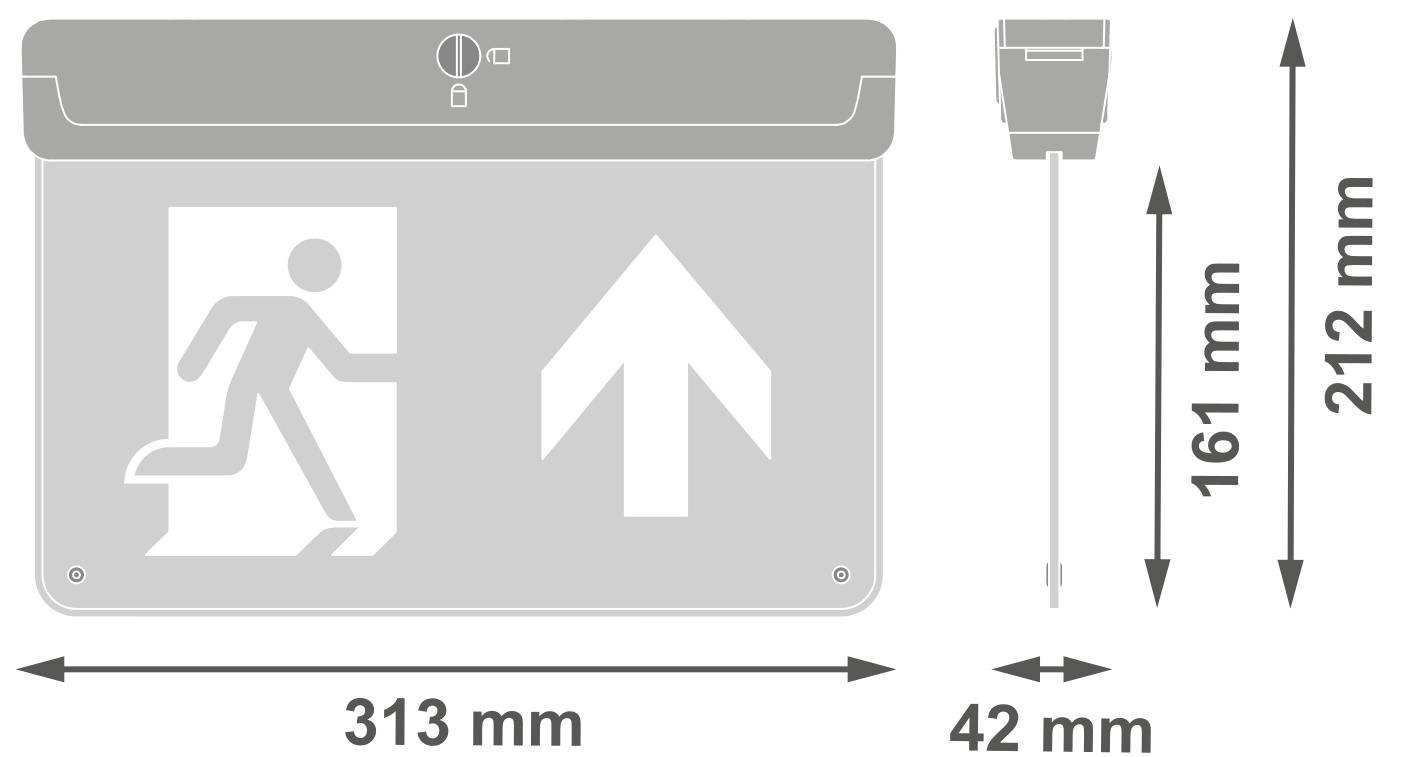

Product line drawing with numbers
EM EXIT SIGN E 0.7W 30 M 3H EM/AC AT PNG (71.04 KB)
Product line drawing - technical
EM EXIT SIGN E 0.7W 30 M 3H EM/AC AT SVG (29.05 KB)
IES file (IES)
EM EXIT E 0,7W 30M 3H EM AC AT IES (2.05 KB)
LDT file (Eulumdat)
EM EXIT E 0,7W 30M 3H EM AC AT LDT (1.86 KB)

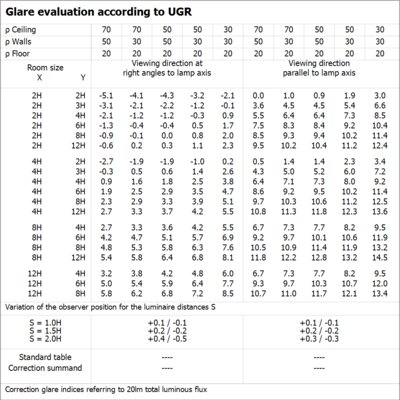

UGR file (UGR table)
EM EXIT E 0,7W 30M 3H EM AC AT PNG (58.52 KB)
Light distribution curve type polar
EM EXIT E 0,7W 30M 3H EM AC AT SVG (20.75 KB)
CAD STEP 3D
EM EXIT E STEP (2.05 MB)
EAN EFO number UK Org
4099854230714 6603438 438119275
