FLOODLIGHT MAX POWER SUPPLY

Choose your product version

600W WAL

900W WAL

1200W WAL

OVERVIEW

Product description Nominal wattage Number of switching cycles Dimmable
FL MAX POWER SUPPLY P 600W WAL 600.00 W 100000 No
FL MAX POWER SUPPLY P 900W WAL 900.00 W 100000 No
FL MAX POWER SUPPLY P 1200W WAL 1200.00 W 100000 No


FL MAX POWER SUPPLY P 600W WAL

Product benefits
  • Highly robust and durable
  • Quick and easy wiring, due to tool-free housing opening
  • Optimized product logistic, luminaire heads and power supplies to be ordered separately in stand-alone packaging
  • 5 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 600.00 W
Nominal voltage 200…277 V
Mains frequency 50…60 Hz
Nominal current 2600 mA
Inrush current 90 A
Inrush current time Th50 1200 µs
Max. number of luminaires per miniature circuit breaker C16 1
Power factor λ 0.95
Total harmonic distortion < 20 %
Protection class I

Photometrical data

Luminous intensity -
Flickering metric (Pst LM) -
Stroboscope effect metric (SVM) -

Dimensions & Weight

Length 188.00 mm
Height 146.00 mm
Width 447.00 mm
Product weight 6700.00 g

Materials & Colors

RAL Color (most similar) RAL 9006
Cover material Aluminium
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -30…+50 °C
Temperature range at storage -40…+70 °C
Type of protection IP67
Protection class IK (shock resistance) IK08
Dimmable No
Mounting location Wall, Pole, Floor
With light source No
Replaceable light source No

Lifespan

Number of switching cycles 100000

Control gear

Output current 3160 mA

Certificates & Standards

Standards CE, CB, ENEC, EAC, EPD
Luminaire with limited surface temperature, "D sign" No
Ball shot safe Yes
EPD LEDV-00007-V01.01-EN

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Highly robust and durable
  • Quick and easy wiring, due to tool-free housing opening
  • Optimized product logistic, luminaire heads and power supplies to be ordered separately in stand-alone packaging
  • 5 years guarantee
Areas of application
  • Outdoor use (IP66)
  • Lighting of large areas
  • Sports facilities
  • Construction areas
Product features

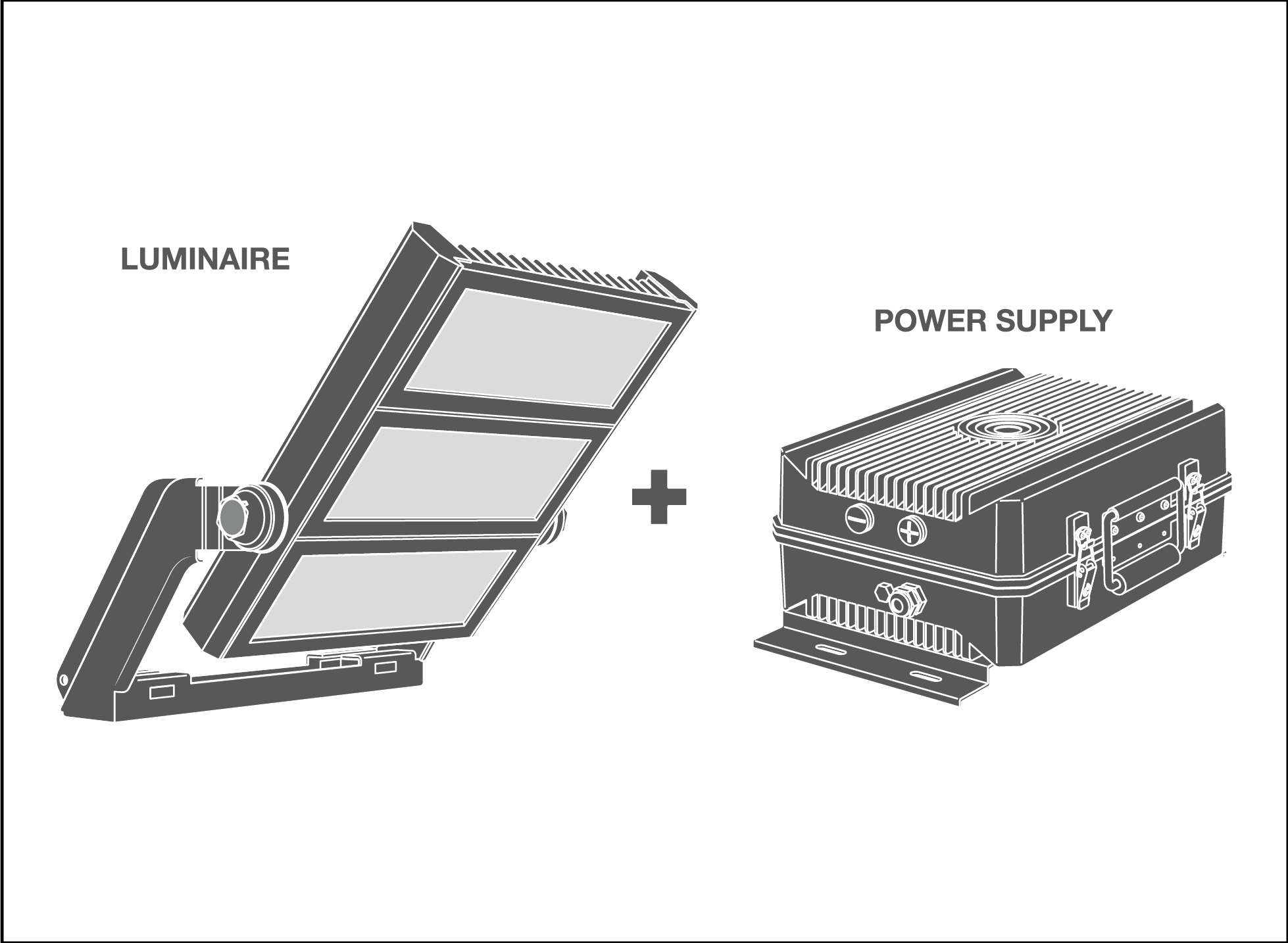

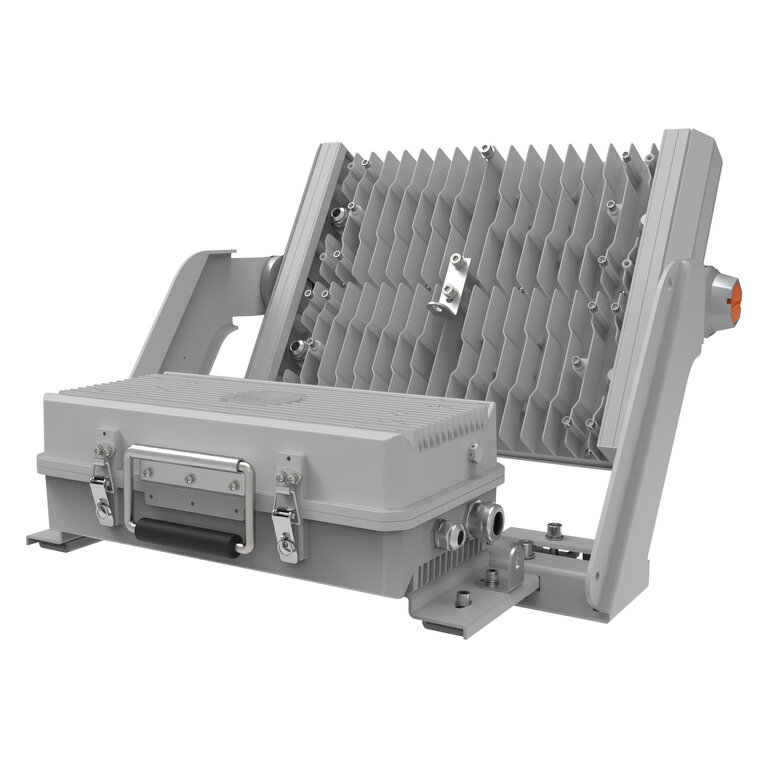

  • Power supply for Floodlight Max luminaire heads
  • Joint or separate installation with Floodlight Max luminaire head with up to 40 m distance
  • M20 and M25 PG glands for mains cable feed-in
  • LED-module wiring by means of pre-installed fast quick release connector
  • High surge protection: up to 10 kV (L/N-PE and L-N)
Equipment / Accessories
  • Extension cables and mounting kit for pole installation of power supply in preparation
Safety advice
  • Floodlight Max Luminaire Heads must be operated with official Floodlight Max Power Supplies only, as described in the user manual.
  • If only one fixation point is used for luminaires installed higher >3m, a secondary fixation of luminaire and bracket (e.g. a restraining wire) is needed for safety reasons.
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
  • Do not stare at the operating light source: The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer that 4 m is not expected.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075580718 Folding box
1		 502 mm x 254 mm x 197 mm 7347.00 g 25.12 dm³
4058075580725 Shipping box
2		 537 mm x 537 mm x 234 mm 12950.00 g 67.48 dm³
User instruction / safety instructions

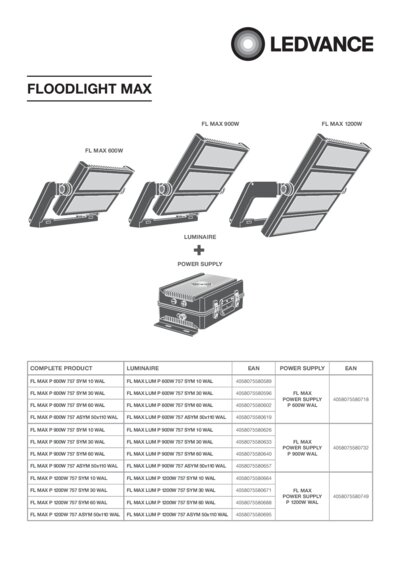

FLOODLIGHT MAX PDF (6.87 MB)
Legal information

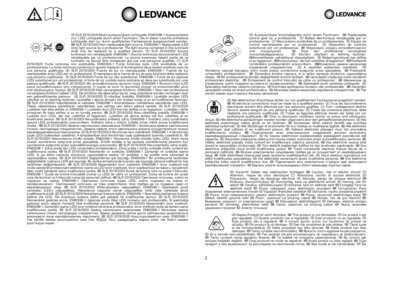

Legal Insert FL MAX LU M/POWER SUPPLY PDF (4.46 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)

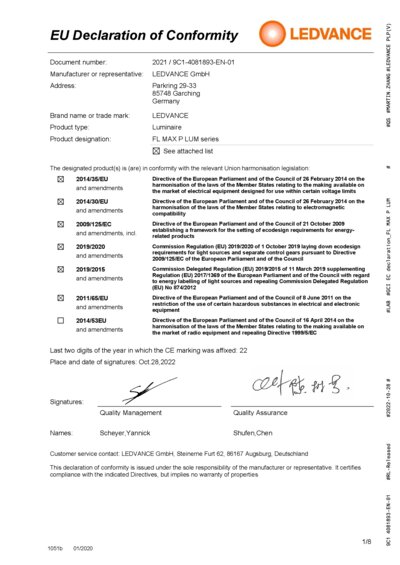

Declarations of conformity
FL MAX P LUM PDF (216.92 KB)
EPD

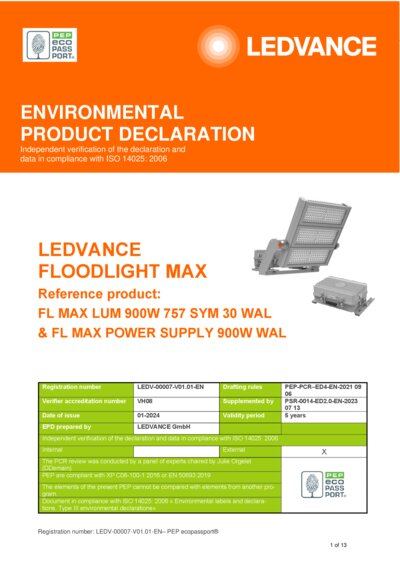

EPD EN FLOODLIGHT MAX PDF (673.8 KB)

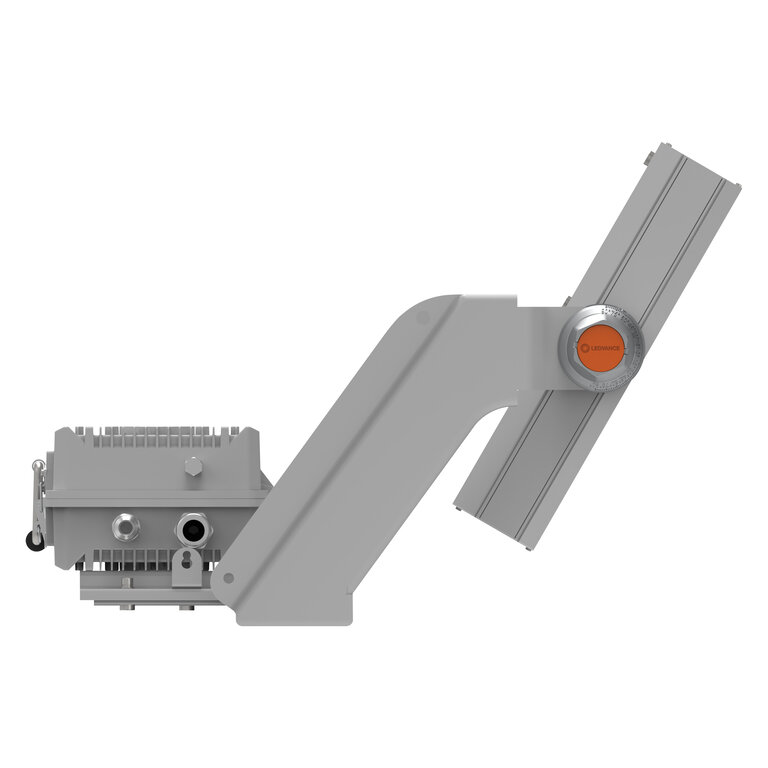

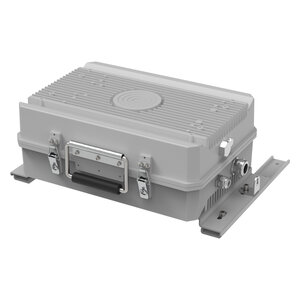

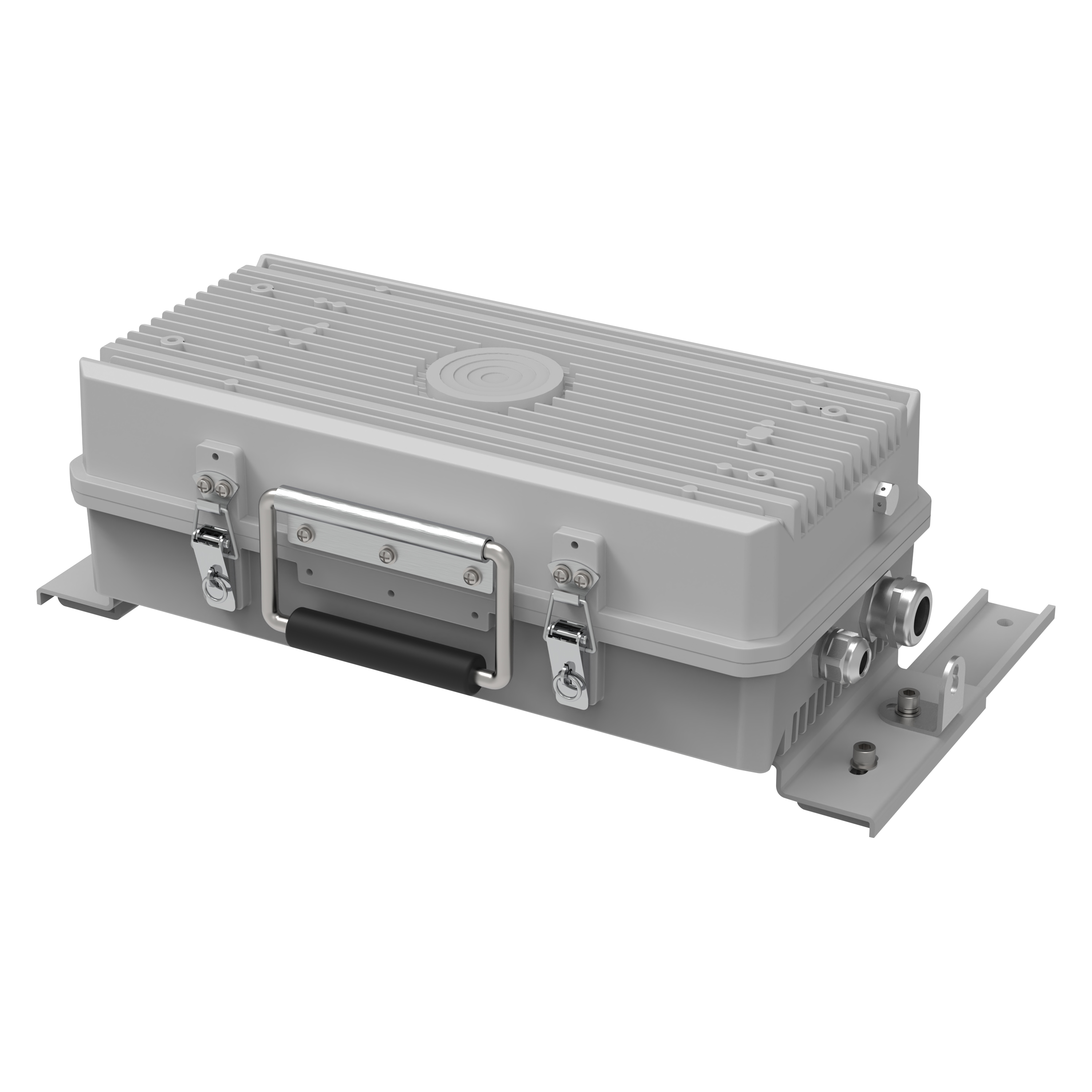

Product image: white background, spacial
FL MAX POWER SUPPLY P 600W WAL JPG (1.17 MB)
Product line drawing with letters
FL MAX POWER SUPPLY P 600W SVG (12.51 KB)
Product line drawing with numbers
FL MAX POWER SUPPLY P 600W SVG (16.88 KB)
Product line drawing - technical
FL MAX POWER SUPPLY P 600W SVG (10.49 KB)
Combo Shot = Product Beauty Shot + Packaging Image
FL MAX POWER SUPPLY P 600W WAL JPG (1.09 MB)
Packaging image, frontal
FL MAX POWER SUPPLY P 600W WAL JPG (1.12 MB)
Packaging image, spacial
Floodlight MAX Power S upply P 600W MiCh JPG (1.19 MB)

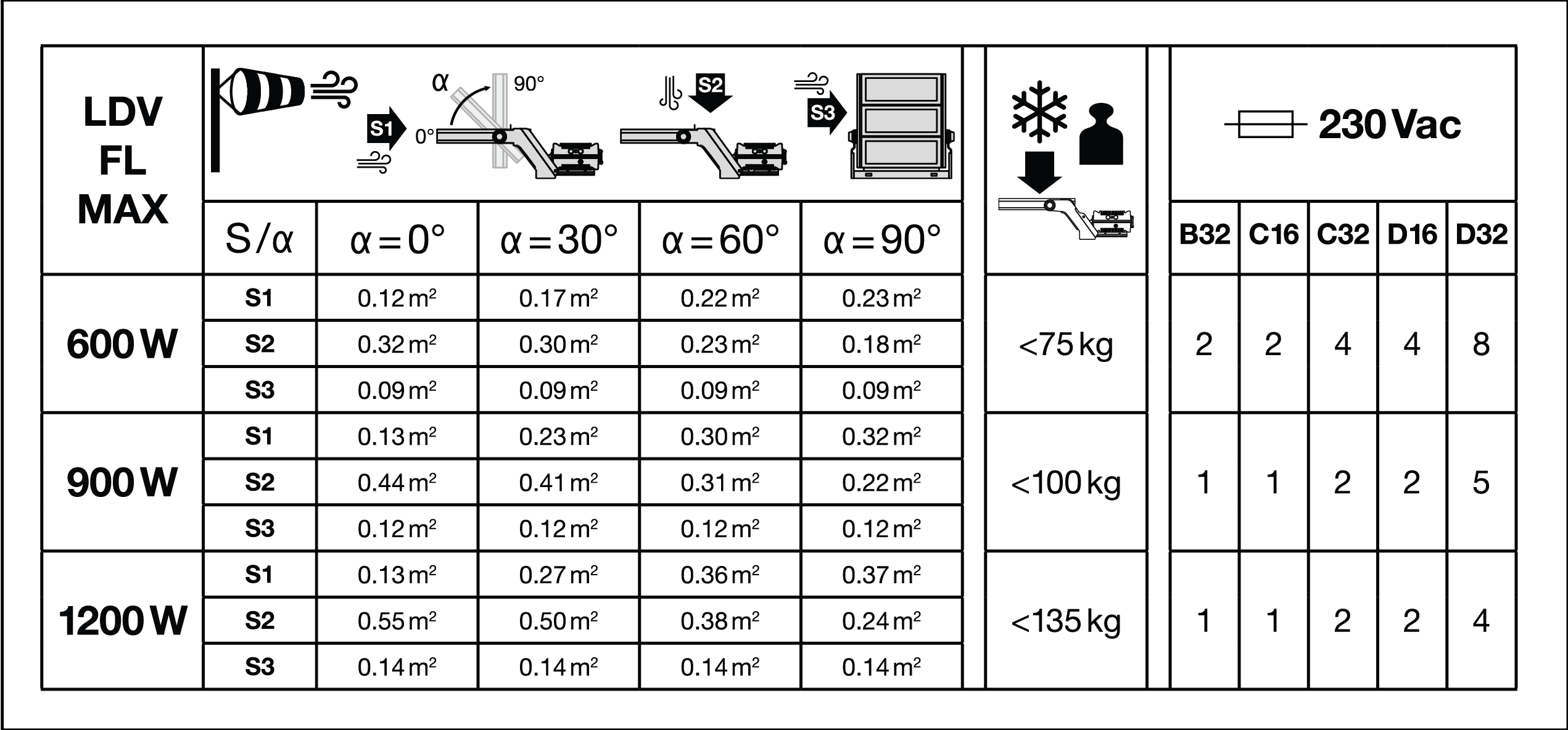

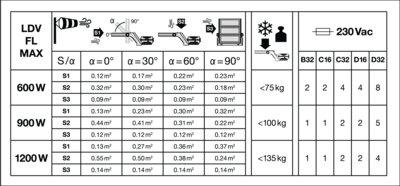

Catalog info 1
FL MAX P WALL PNG (220.89 KB)
Catalog info 2
FL MAX P WALL SVG (81.06 KB)
Catalog info 3
FL MAX P WALL SVG (77.7 KB)
Catalog info 4
FL MAX P WALL SVG (107.75 KB)
Catalog info 5
FL MAX P WALL SVG (122.49 KB)
Catalog info 6
FL MAX P WALL PNG (163.79 KB)
Tender documents
FLOODLIGHT MAX POWER S UPPLY 600W WAL-EN TXT (1.28 KB)

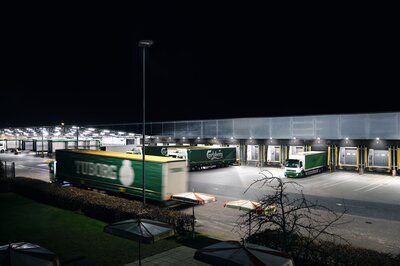

Application pictures
Ledvance Carlsberg 006 TIF (59.14 MB)

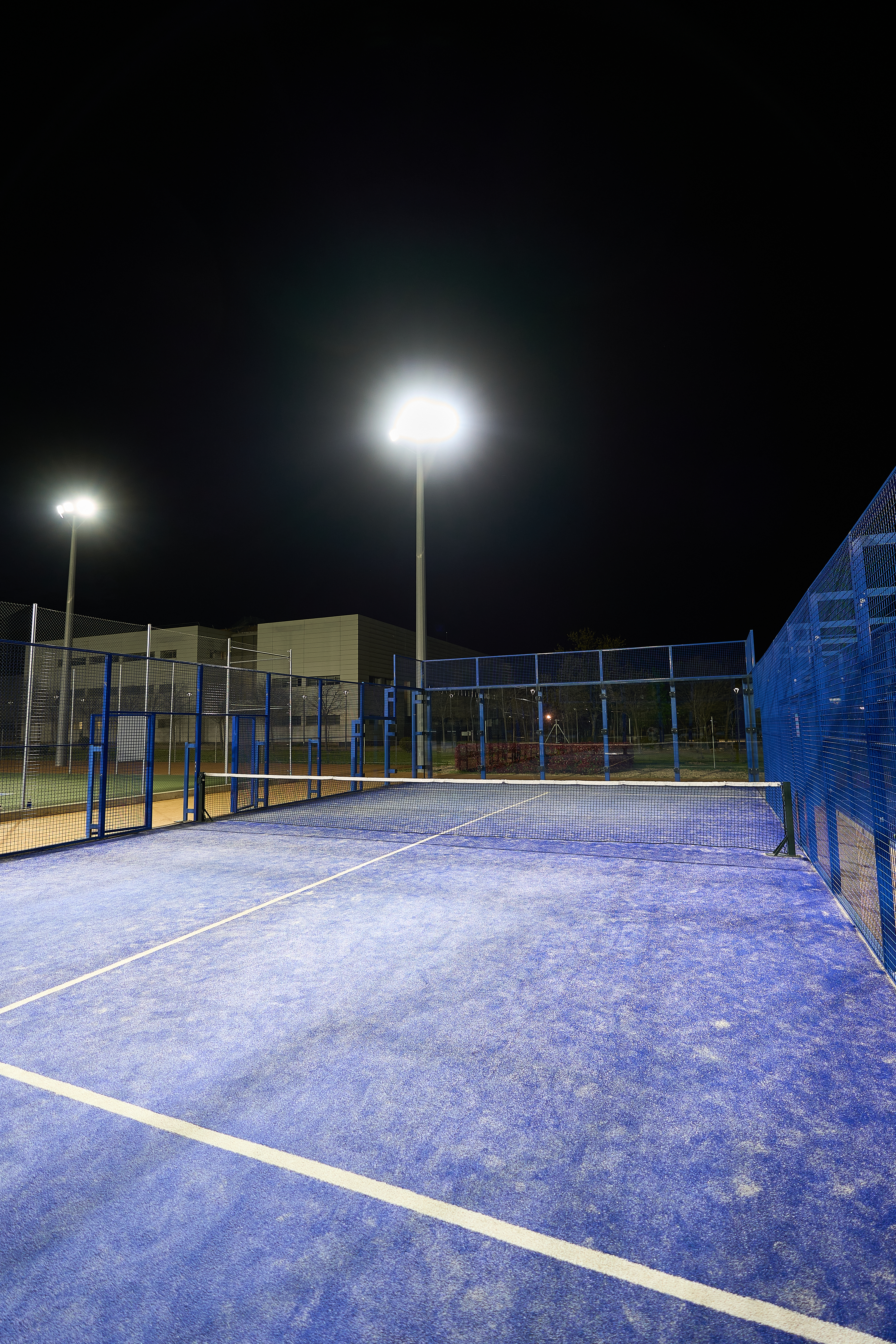

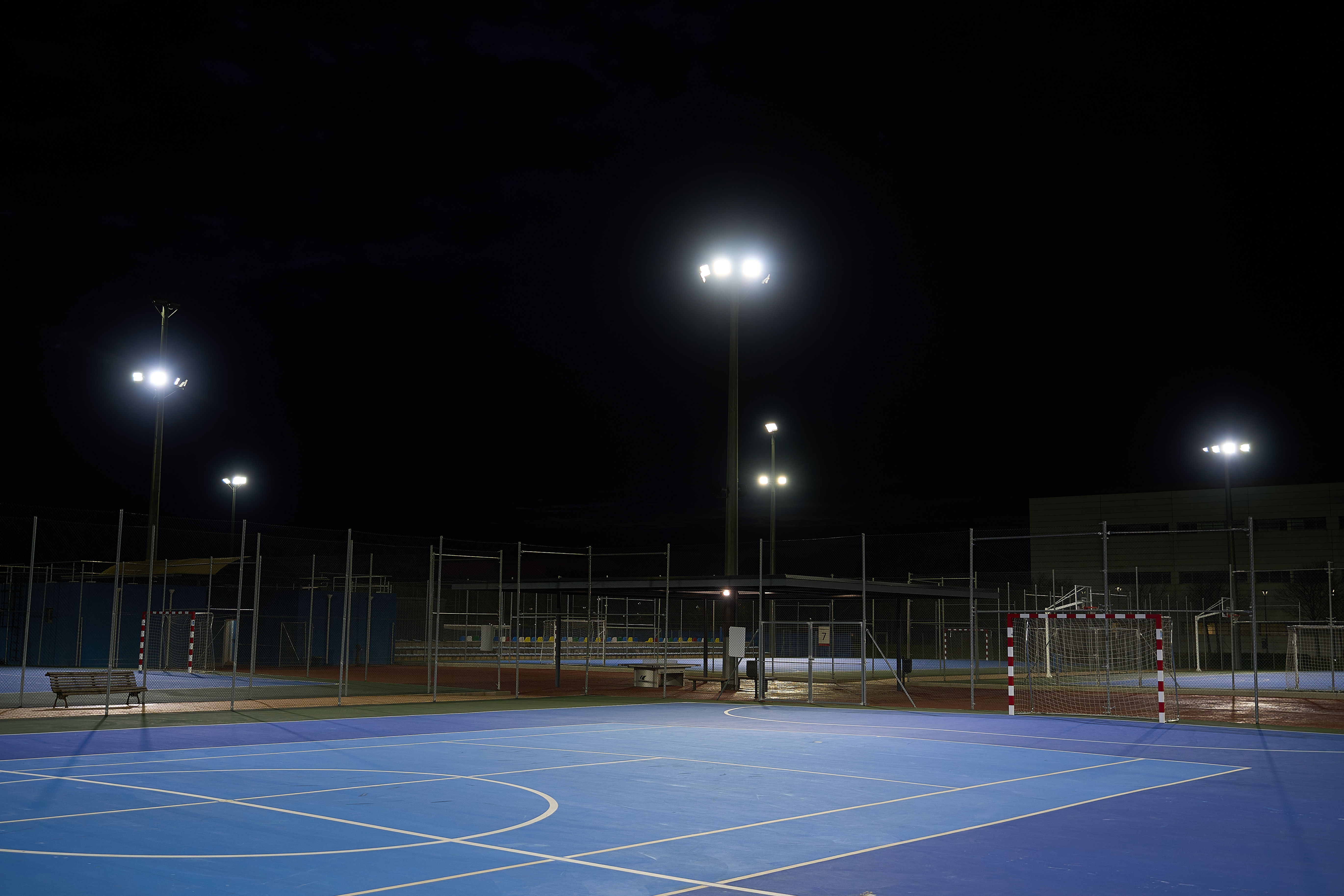

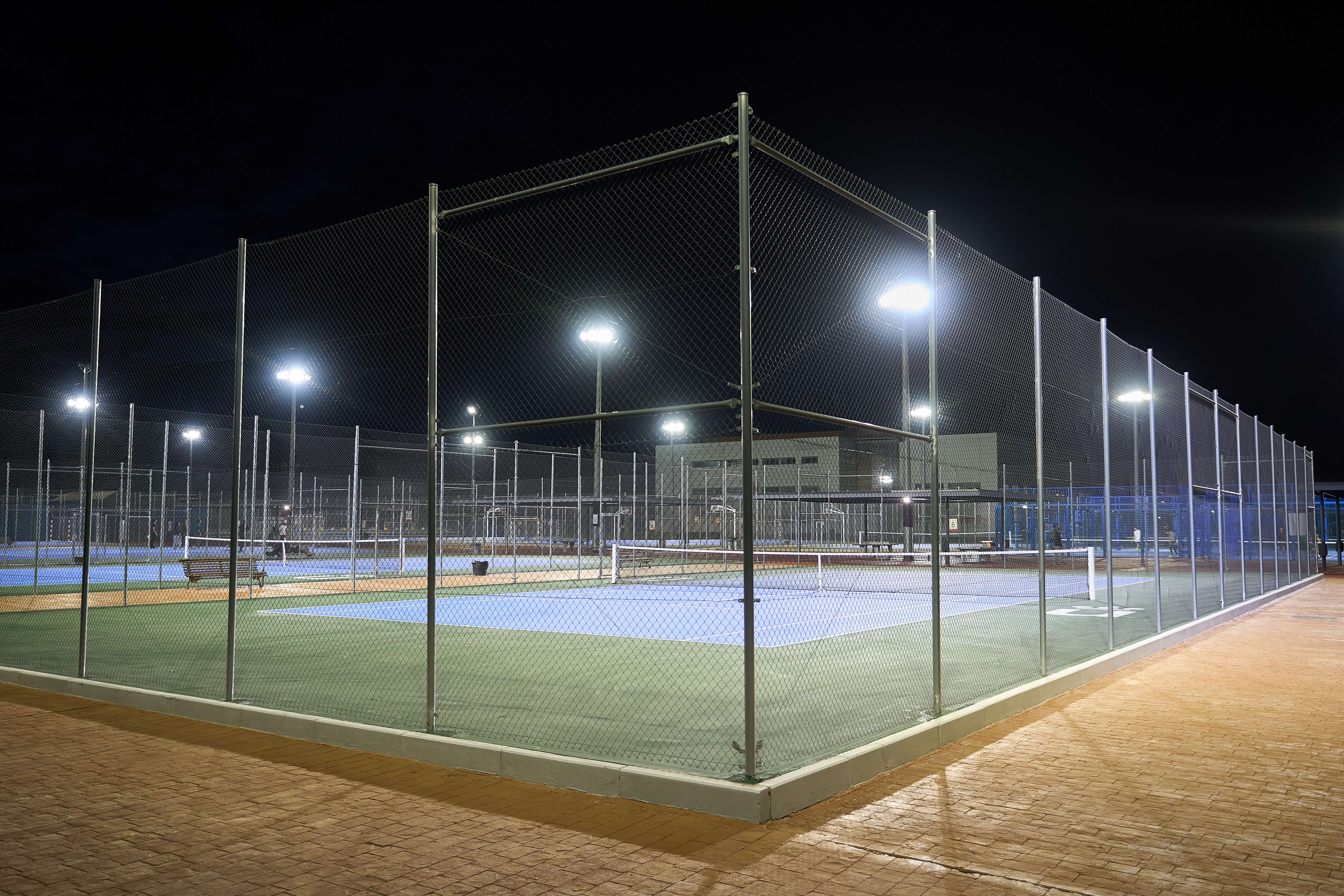

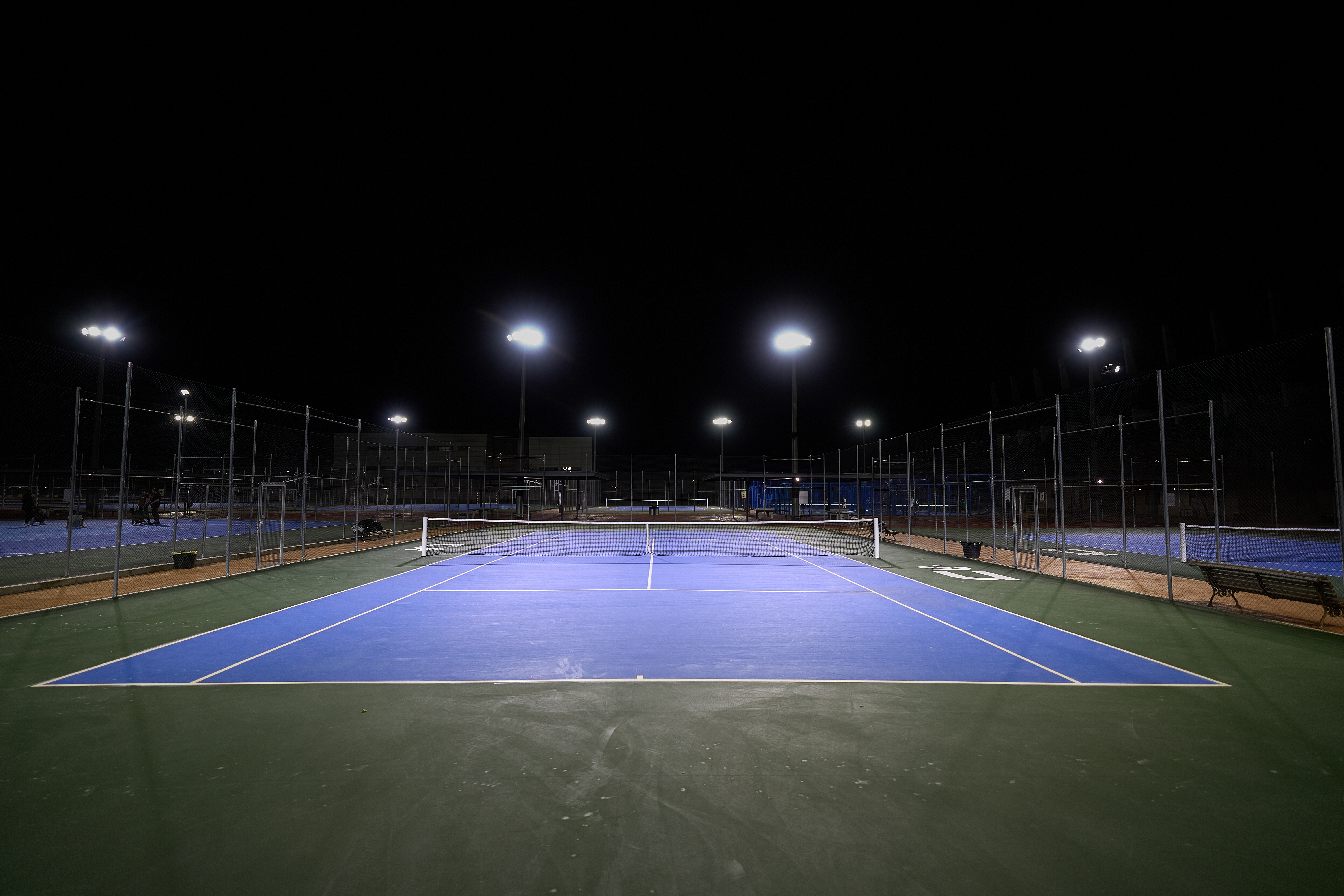

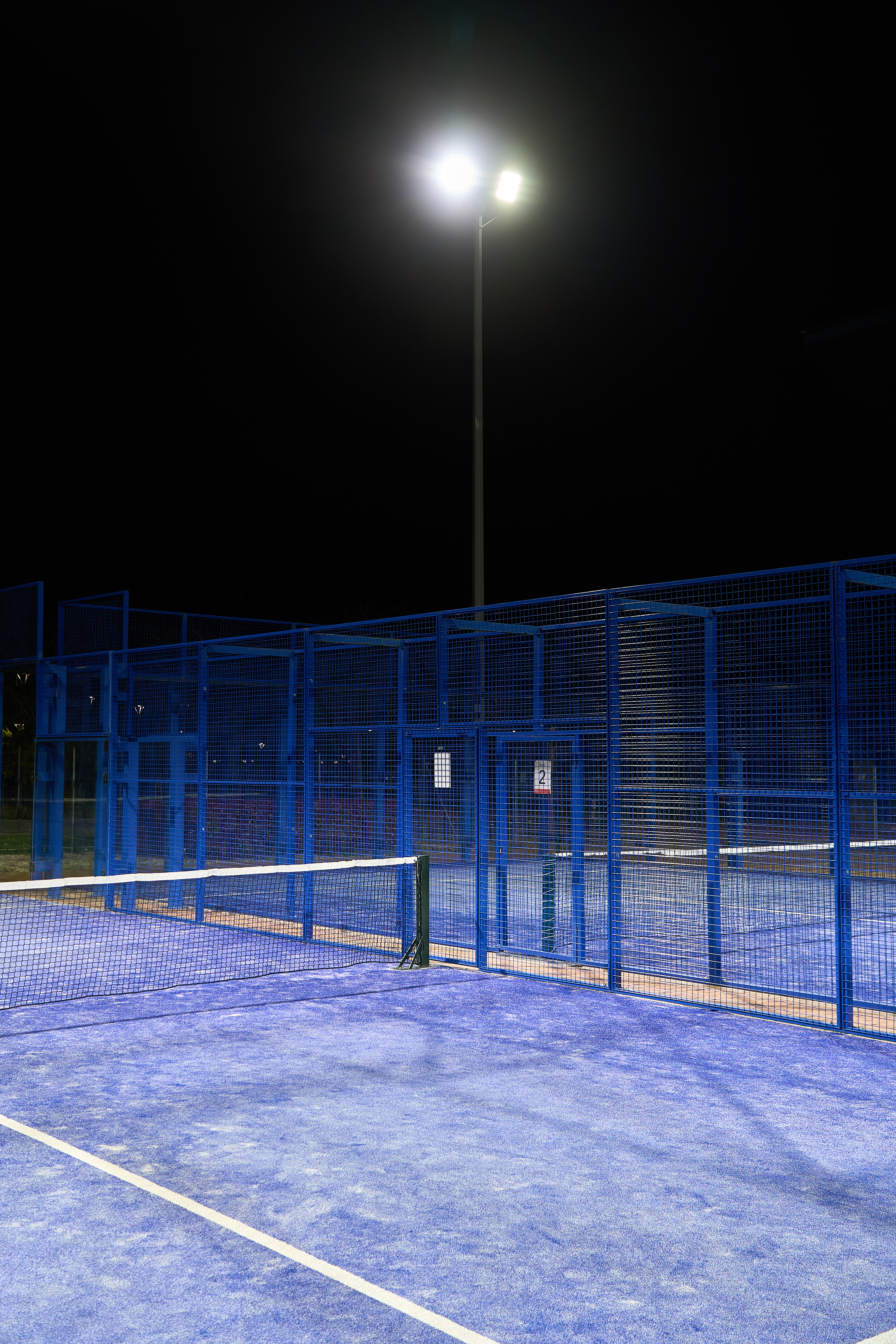

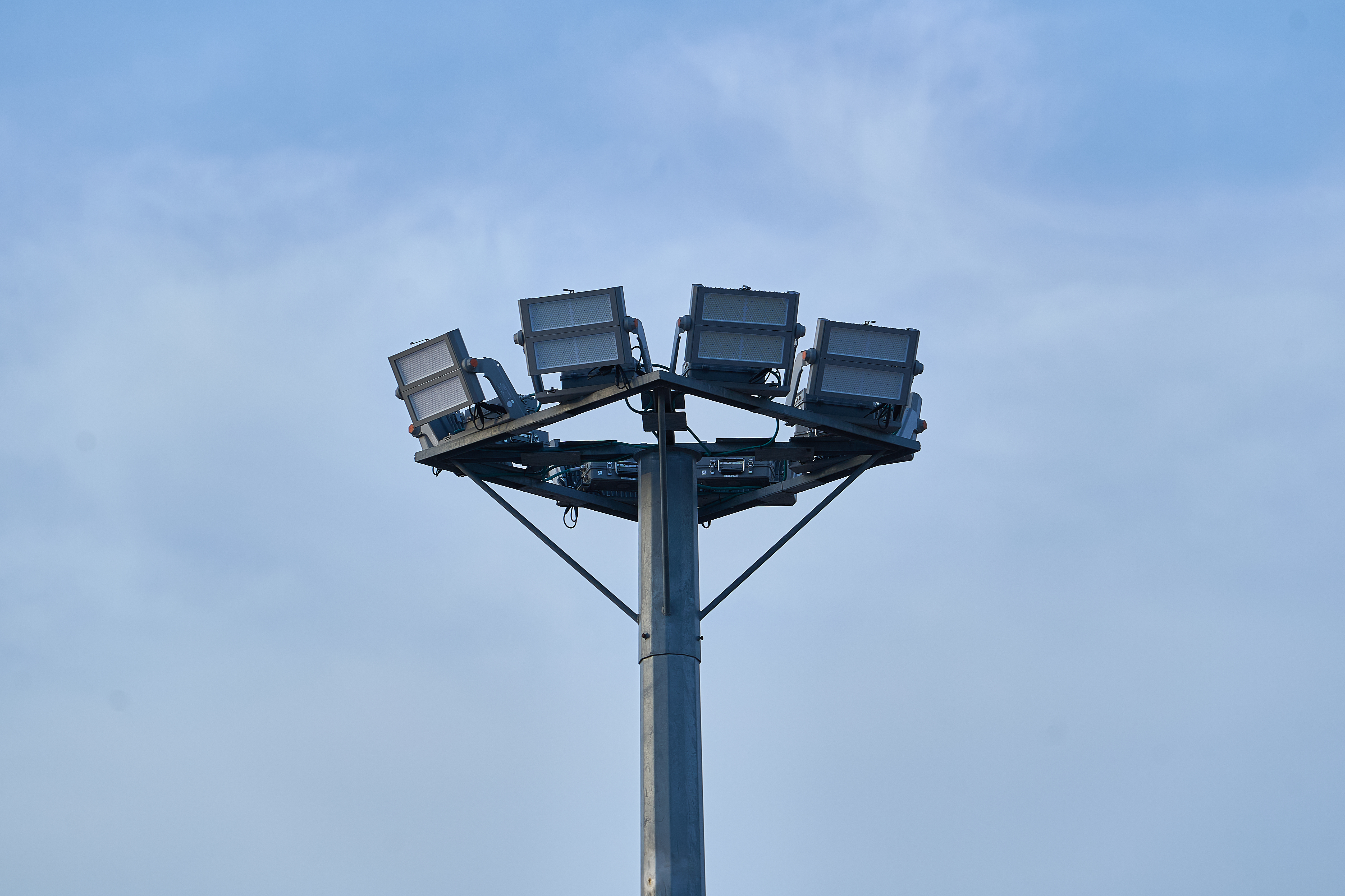

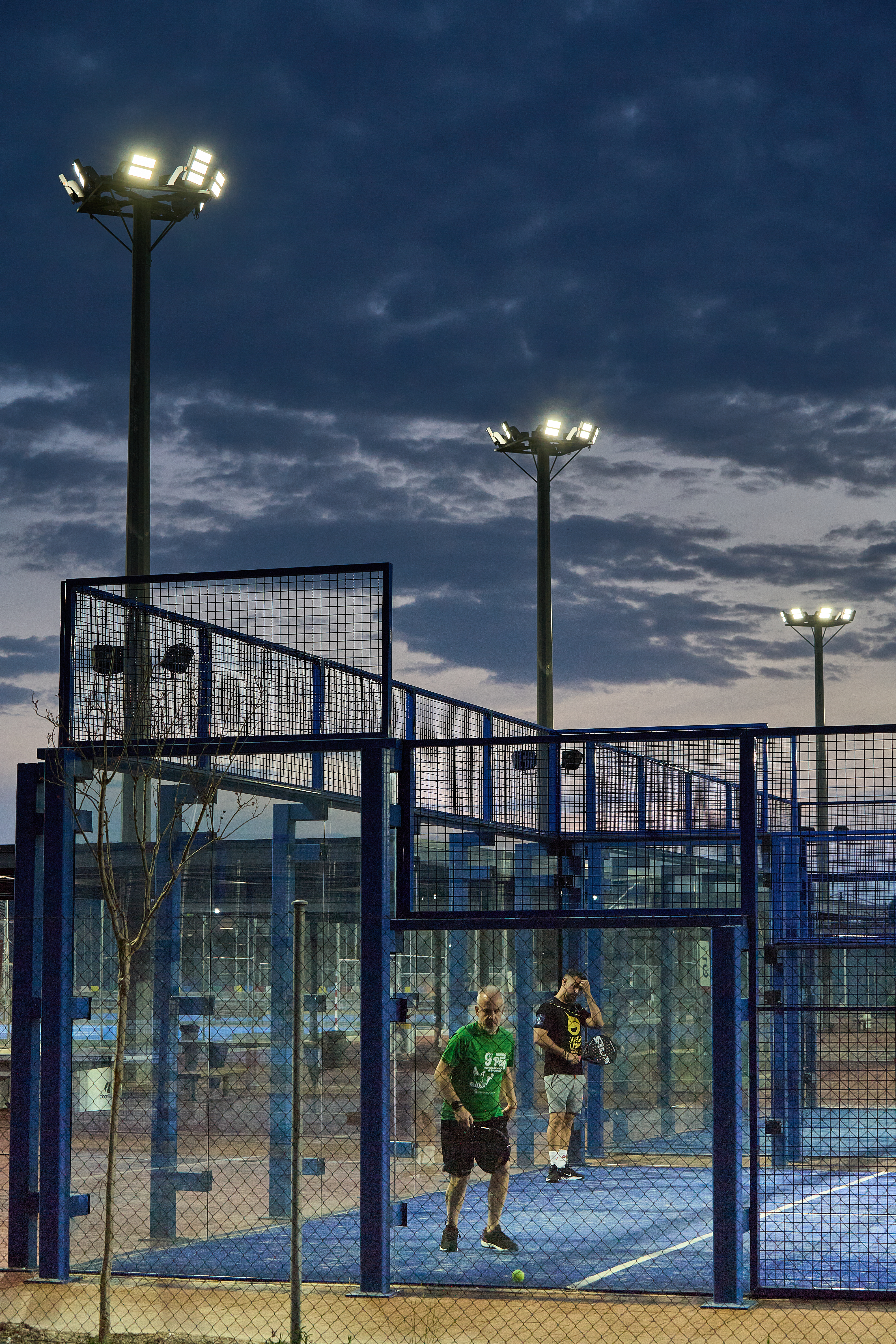

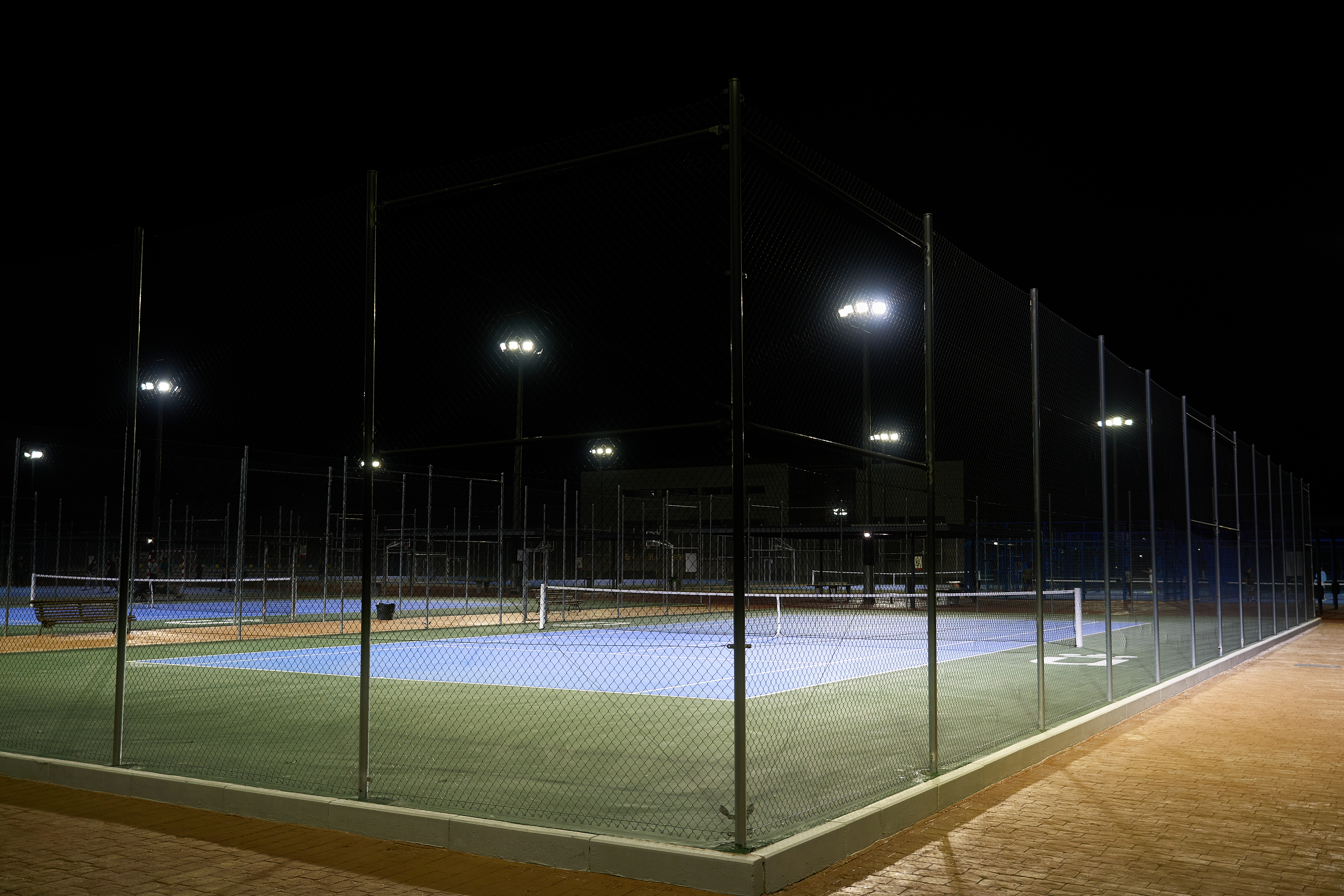

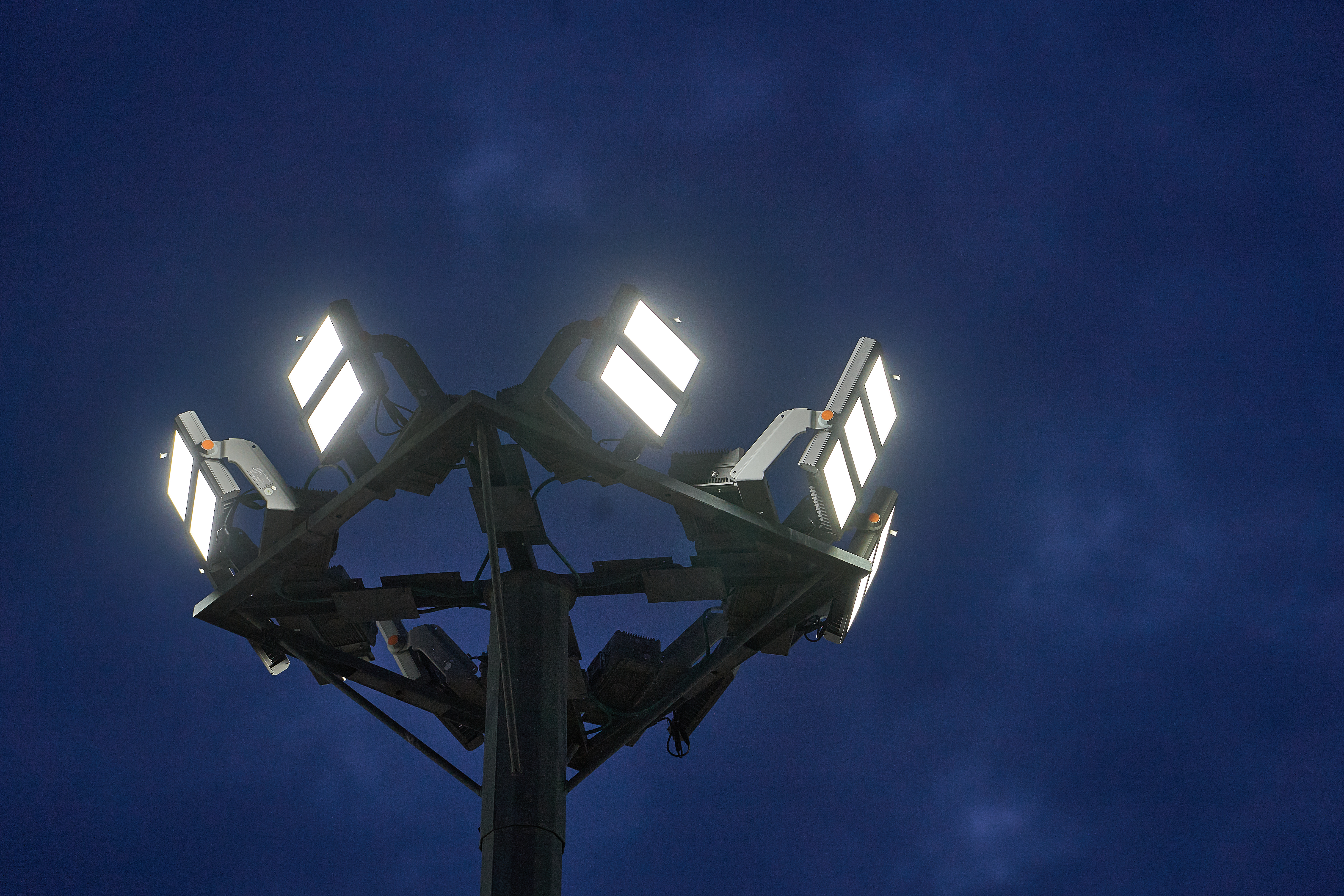

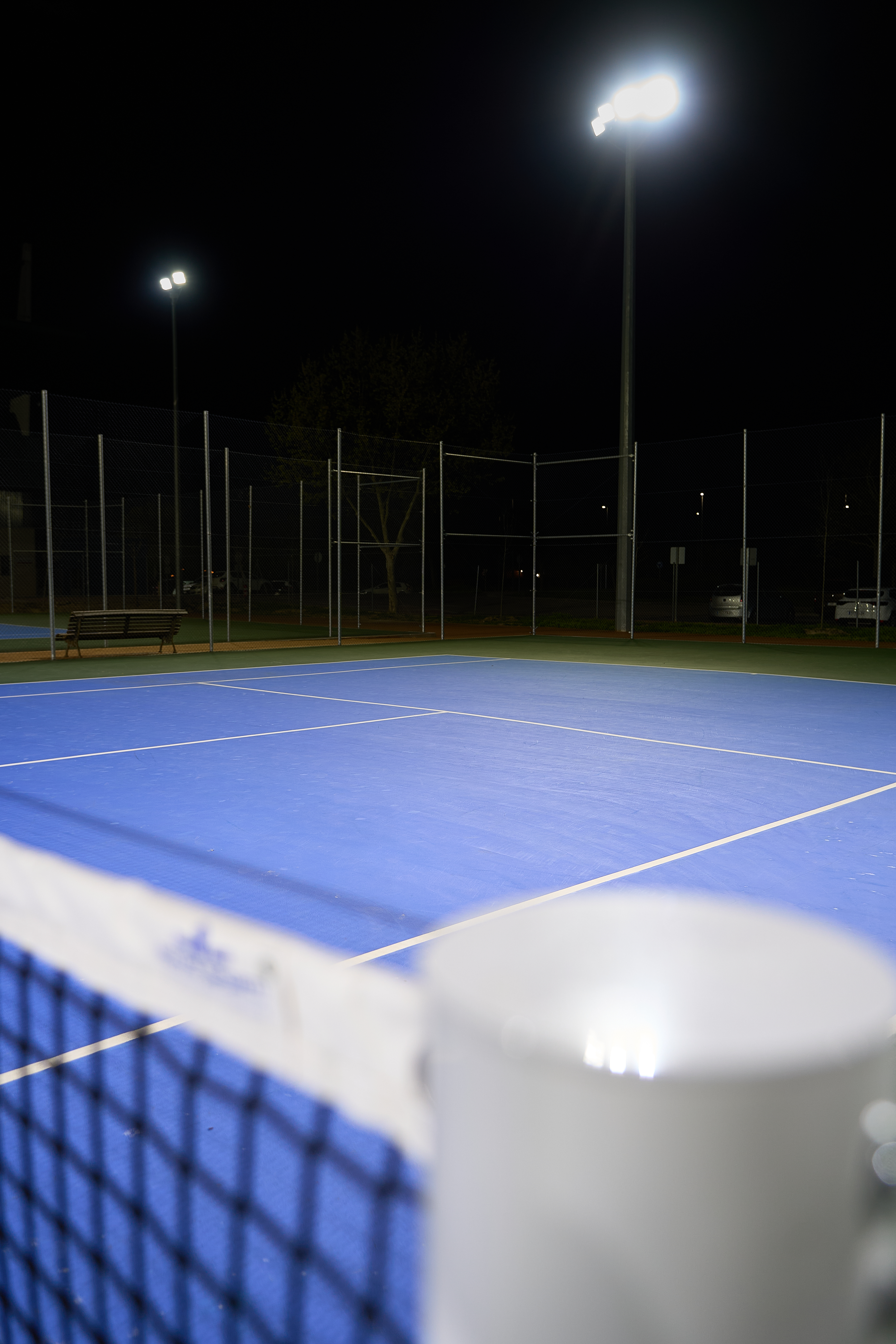

Application pictures
