FLOODLIGHT HIGH MAST POWER SUPPLY

Choose your product version

300W

300W DALI

500W

500W DALI

OVERVIEW

Product description Nominal wattage Number of switching cycles Dimmable
FL H M POWER SUPPLY V 300W 300.00 W 100000 No
FL H M POWER SUPPLY V 300W DALI 300.00 W 100000 Yes
FL H M POWER SUPPLY V 500W 500.00 W 100000 No
FL H M POWER SUPPLY V 500W DALI 500.00 W 100000 Yes


FL H M POWER SUPPLY V 300W

Product benefits
  • Highly robust and durable
  • Optimized product logistic, luminaire heads and power supplies to be ordered separately in stand-alone packaging
  • 5 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 300.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Power factor λ > 0.90
Total harmonic distortion < 15 %
Protection class I

Dimensions & Weight

Length 317.00 mm
Height 61.00 mm
Width 201.00 mm
Product weight 1700.00 g

Materials & Colors

Body material Aluminum
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -40…+50 °C
Temperature range at storage -40…+70 °C
Type of protection IP66/IP66
Protection class IK (shock resistance) IK08
Dimmable No
Mounting location Wall, Pole, Floor
With light source No
Replaceable light source No

Lifespan

Number of switching cycles 100000

Certificates & Standards

Standards CE, LVD, EMC, ROHS, REACH, SLR, ENEC
Luminaire with limited surface temperature, "D sign" No

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Highly robust and durable
  • Optimized product logistic, luminaire heads and power supplies to be ordered separately in stand-alone packaging
  • 5 years guarantee
Areas of application
  • Outdoor use (IP66)
  • Suitable for high mast applications
  • Lighting of large areas
  • Construction areas
  • Industry
Product features
  • Power supply for floodlight high mast luminaire heads
  • Joint or separate installation with floodlight high mast power supply
  • M16 cable gland for mains cable
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854196508 Folding box
1		 230 mm x 70 mm x 328 mm 1843.00 g 5.28 dm³
4099854196515 Shipping box
4		 348 mm x 306 mm x 260 mm 7873.00 g 27.69 dm³

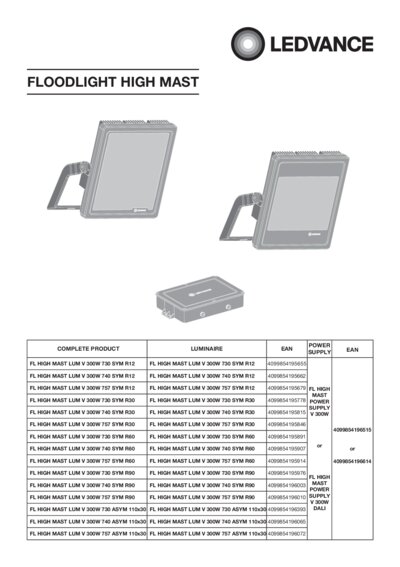

User instruction / safety instructions
Floodlight High Mast PDF (3.12 MB)

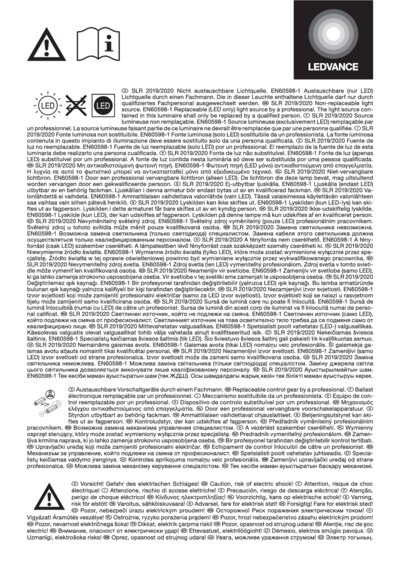

User instruction / safety instructions

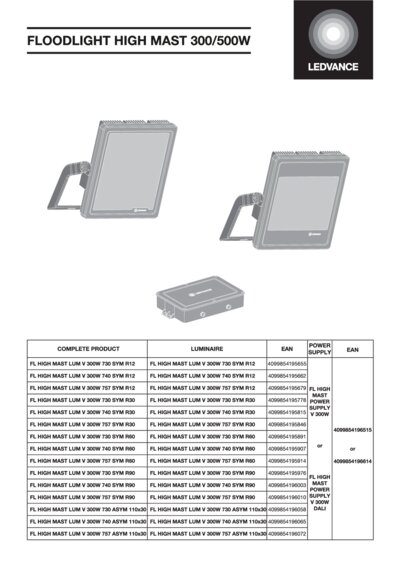

FL H M LUM V_POWER SUP PLY_PONTER HOLDER_ CUT OFF HOOD_ WIRE GUARD PDF (5.51 MB)
Legal information

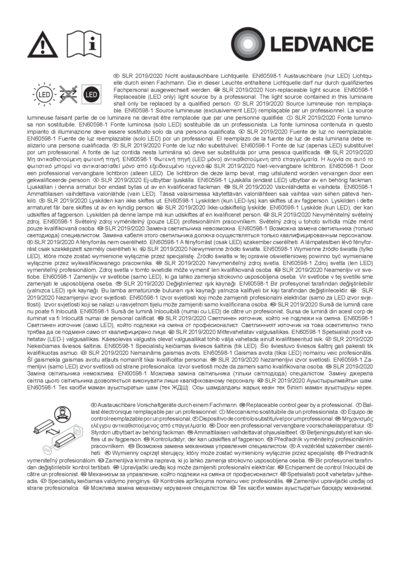

FL H M PDF (1 MB)
Legal information
FL H M LUM V_POWER SUP PLY_PONTER HOLDER_ CUT OFF HOOD_ WIRE GUARD PDF (3.77 MB)
Declarations of conformity

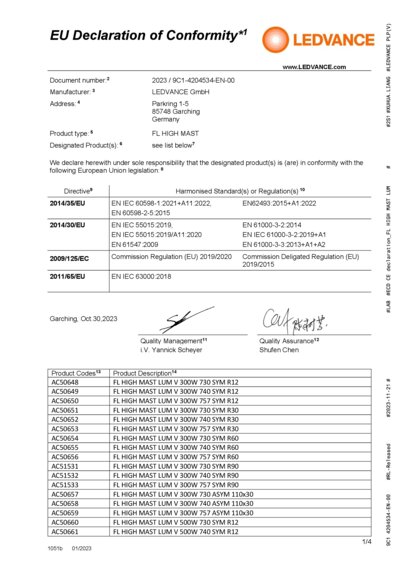

CE Declaration FL H M PDF (390.57 KB)
Certificates
FL H M PDF (2.55 MB)
Certificates

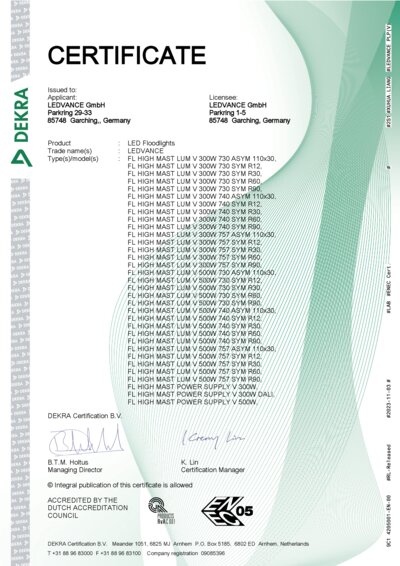

FL H M LUM V PDF (2.53 MB)

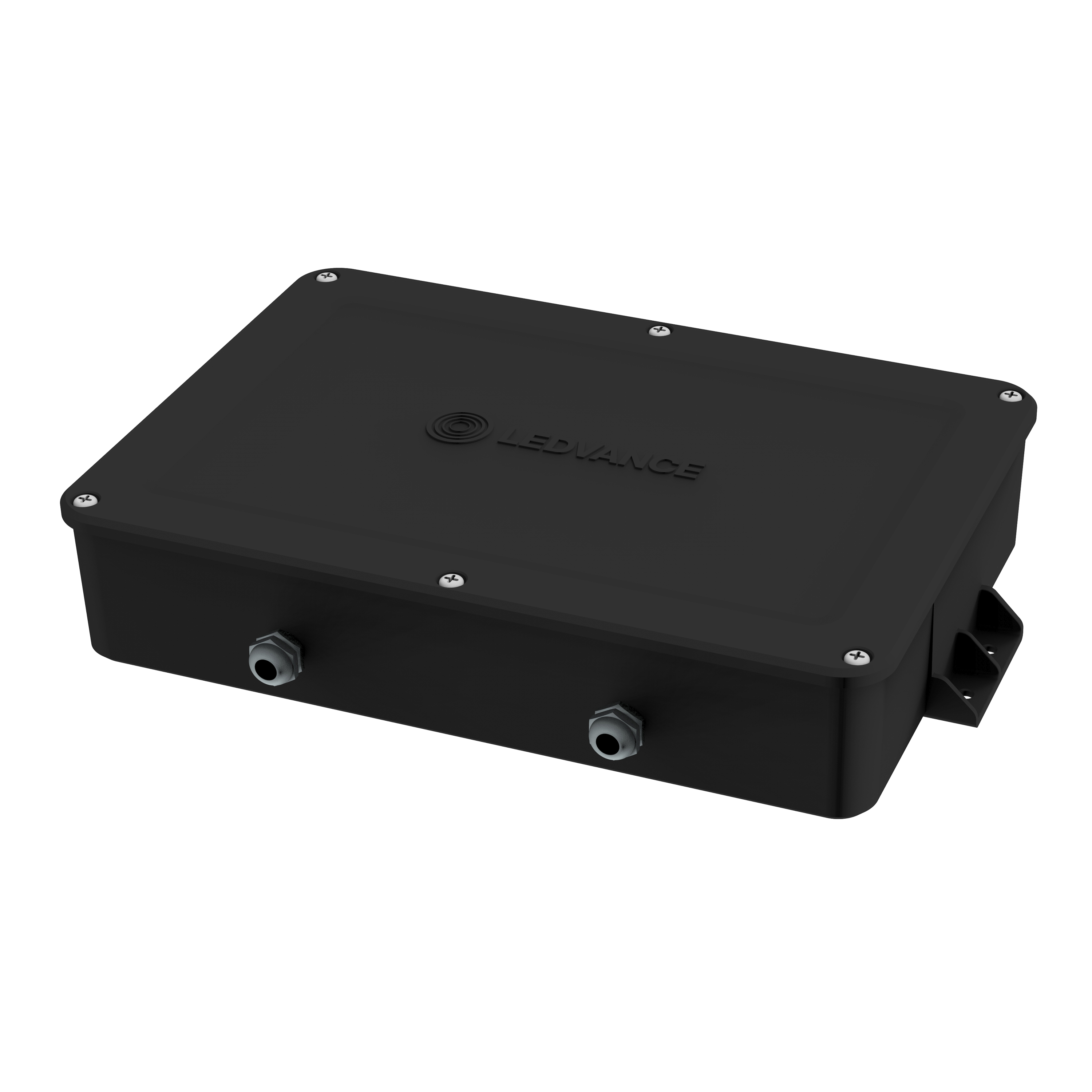

Product image: white background, spacial
FL H M POWER SUPPLY V JPG (1.05 MB)

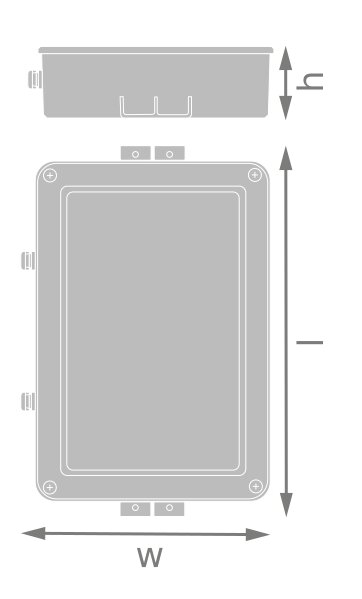

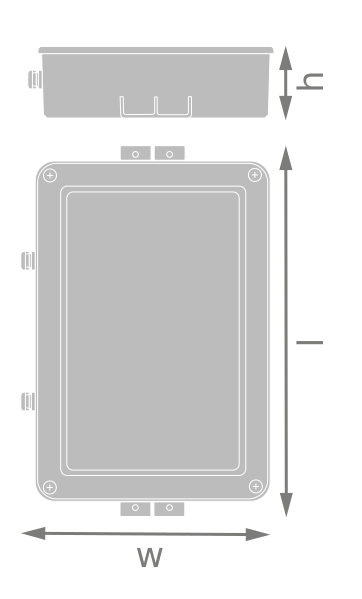

Product line drawing with letters
FL H M POWER SUPPLY V PNG (16.86 KB)

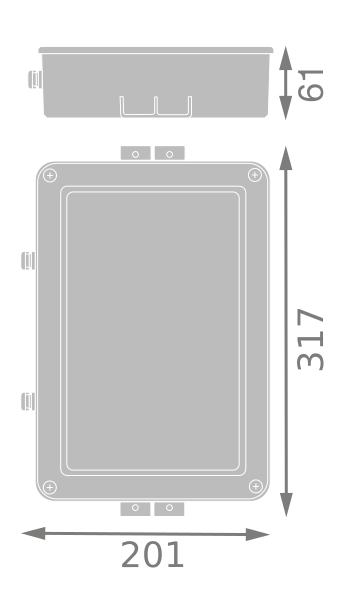

Product line drawing with numbers
FL H M POWER SUPPLY V PNG (19.71 KB)

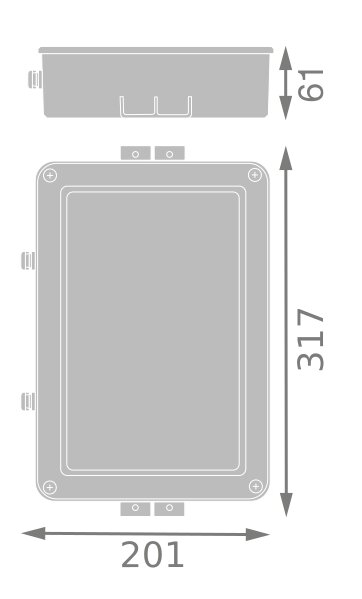

Product line drawing - technical
FL H M POWER SUPPLY V 300W/500W SVG (6.58 KB)
Tender documents
FLOODLIGHT HIGH MAST P OWER SUPPLY 300W-EN TXT (1.73 KB)
EAN STK number
4099854196508 4532001
