FLOODLIGHT HIGH MAST 300W LUMINAIRE HEAD

Choose your product version

300W 730 SYM R12

300W 730 ASYM 110X30

300W 740 SYM R12

300W 740 ASYM 110X30

300W 757 SYM R12

300W 757 ASYM 110X30

300W 730 SYM R30

300W 730 SYM R60

300W 730 SYM R90

300W 740 SYM R30

300W 740 SYM R60

300W 740 SYM R90

300W 757 SYM R30

300W 757 SYM R60

300W 757 SYM R90

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
FL H M LUM V 300W 730 SYM R12 300.00 W 100000 12 ° 33600 lm Yes
FL H M LUM V 300W 730 ASYM 110X30 300.00 W 100000 110 ° x 30 ° 33600 lm Yes
FL H M LUM V 300W 740 SYM R12 300.00 W 100000 12 ° 36000 lm Yes
FL H M LUM V 300W 740 ASYM 110X30 300.00 W 100000 110 ° x 30 ° 36000 lm Yes
FL H M LUM V 300W 757 SYM R12 300.00 W 100000 12 ° 36000 lm Yes
FL H M LUM V 300W 757 ASYM 110X30 300.00 W 100000 110 ° x 30 ° 36000 lm Yes
FL H M LUM V 300W 730 SYM R30 300.00 W 100000 30 ° 39600 lm Yes
FL H M LUM V 300W 730 SYM R60 300.00 W 100000 60 ° 39600 lm Yes
FL H M LUM V 300W 730 SYM R90 300.00 W 100000 90 ° 39600 lm Yes
FL H M LUM V 300W 740 SYM R30 300.00 W 100000 30 ° 42000 lm Yes
FL H M LUM V 300W 740 SYM R60 300.00 W 100000 60 ° 42000 lm Yes
FL H M LUM V 300W 740 SYM R90 300.00 W 100000 90 ° 42000 lm Yes
FL H M LUM V 300W 757 SYM R30 300.00 W 100000 30 ° 42000 lm Yes
FL H M LUM V 300W 757 SYM R60 300.00 W 100000 60 ° 42000 lm Yes
FL H M LUM V 300W 757 SYM R90 300.00 W 100000 90 ° 42000 lm Yes


FL H M LUM V 300W 730 SYM R12

Product benefits
  • Low flicker light thanks to special electronic control gear
  • Energy savings thanks to system efficacy of up to 140lm/W
  • Optimized product logistic, luminaire heads and power supplies to be ordered separately in stand-alone packaging
  • 5 years guarantee
  • Symmetric and asymmetric light distribution for various application areas
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 300.00 W
Nominal voltage 345 V
Mains frequency 50…60 Hz
Nominal current 810.000 mA
Inrush current time Th50 988 µs
Max. number of luminaires per miniature circuit breaker B16 4
Max. number of luminaires per miniature circuit breaker C10 4
Max. number of luminaires per miniature circuit breaker C16 7
Power factor λ > 0.90
Protection class I
Operating mode External LED driver

Photometrical data

Luminous flux 33600 lm
Luminous efficacy 112 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra 70
Standard deviation of color matching 5 sdcm
Luminous intensity 330000 cd
Flickering metric (Pst LM) <1
Stroboscope effect metric (SVM) <0,4
Photobiological safety group acc. to EN62778 RG1
Photobiological safety group acc. to EN62471 RG1
Beam angle 12 °

Dimensions & Weight

Length 479.00 mm
Height 243.00 mm
Width 389.00 mm
Product weight 8650.00 g

Materials & Colors

Product color Black
Housing color Black
Body material Aluminum
Cover material Tempered glass
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -40…+50 °C
Temperature range at storage -40…+80 °C
Type of connection Terminal, 3-Pole (L, N, PE)
Type of protection IP66
Protection class IK (shock resistance) IK10
Dimmable Yes
Mounting type Surface
Mounting location Wall, Pole, Floor
Application environment Outdoor
Adjustable Yes
With light source Yes
Replaceable light source No

Lifespan

Lifespan L70/B50 at 25 °C 100000 h 1)
Lifespan L80/B10 at 25 °C 100000 h 1)
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Certificates & Standards

Standards CE, UKCA, ENEC, EMC, EAC
Luminaire with limited surface temperature, "D sign" No
Replaceable light source (EPREL) Not replaceable

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Low flicker light thanks to special electronic control gear
  • Energy savings thanks to system efficacy of up to 140lm/W
  • Optimized product logistic, luminaire heads and power supplies to be ordered separately in stand-alone packaging
  • 5 years guarantee
  • Symmetric and asymmetric light distribution for various application areas
Areas of application
  • Replacement for luminaires with mercury vapor or metal halide lamps
  • Outdoor use (IP66)
  • Suitable for high mast applications
  • Lighting of large areas
  • Construction areas
  • Industry
Product features
  • Cover made of high quality glass
  • High-power floodlight with up to 140 lm/W
  • Lifetime (L80/B50): up to 100,000 h (at 25 °C)
  • Joint or separate installation with floodlight high mast power supply
  • Highly-transparent, tempered glass diffuser
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854195655 Shipping box
1		 553 mm x 416 mm x 165 mm 9297.00 g 37.96 dm³
User instruction / safety instructions
Floodlight High Mast PDF (3.12 MB)
User instruction / safety instructions
FL H M LUM V_POWER SUP PLY_PONTER HOLDER_ CUT OFF HOOD_ WIRE GUARD PDF (5.51 MB)
Legal information
FL H M LUM V PDF (891.83 KB)
Legal information
FL H M PDF (1 MB)
Legal information
FL H M LUM V_POWER SUP PLY_PONTER HOLDER_ CUT OFF HOOD_ WIRE GUARD PDF (3.77 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Declarations of conformity
CE Declaration FL H M PDF (390.57 KB)
Certificates
FL H M PDF (2.55 MB)
Certificates
FL H M LUM V PDF (2.53 MB)

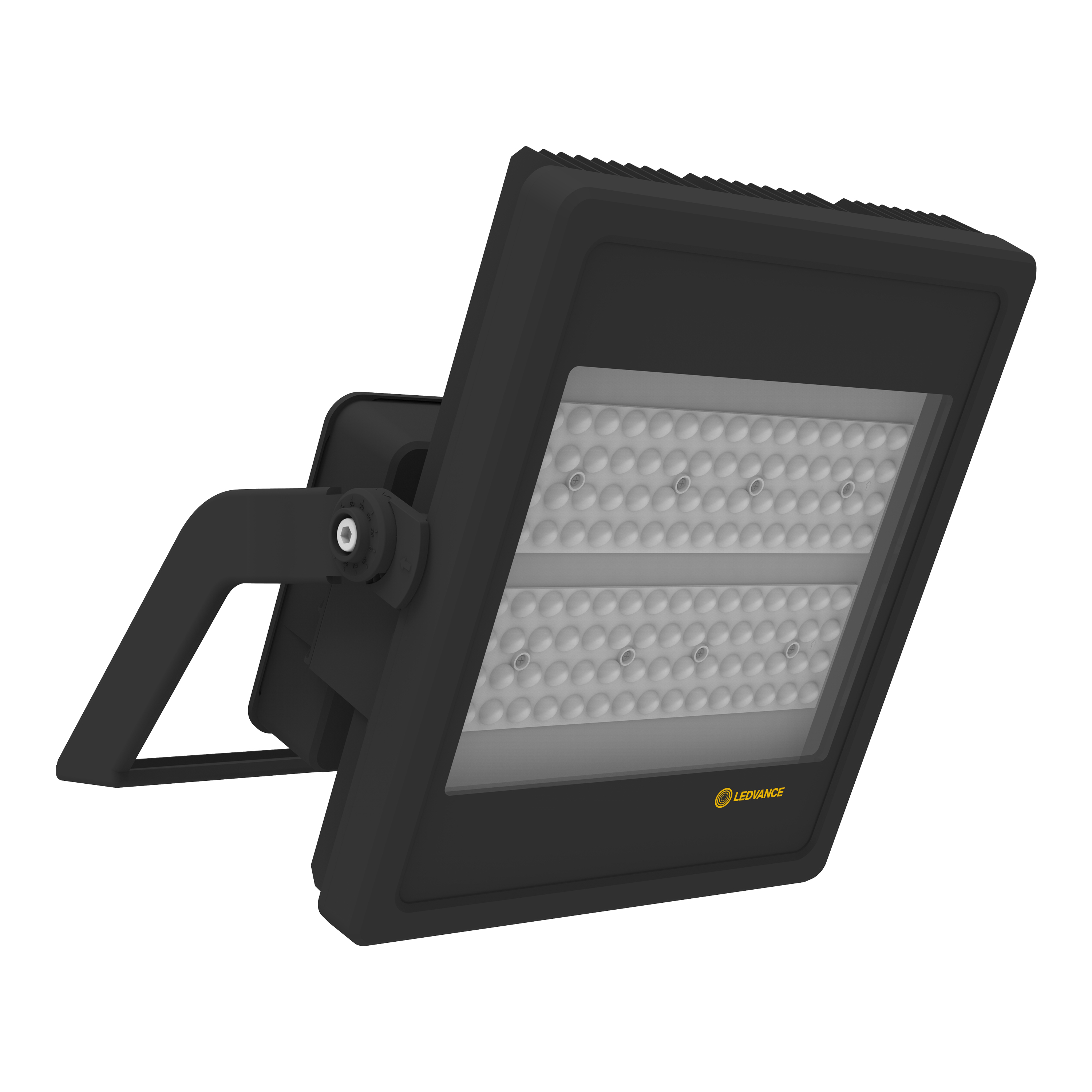

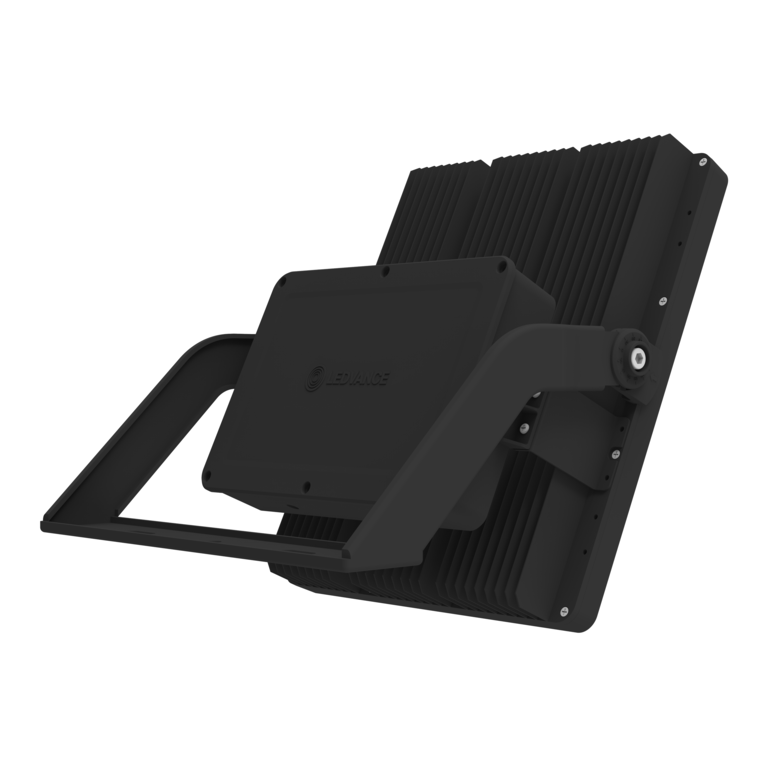

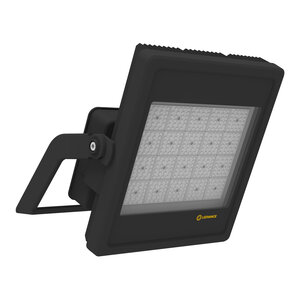

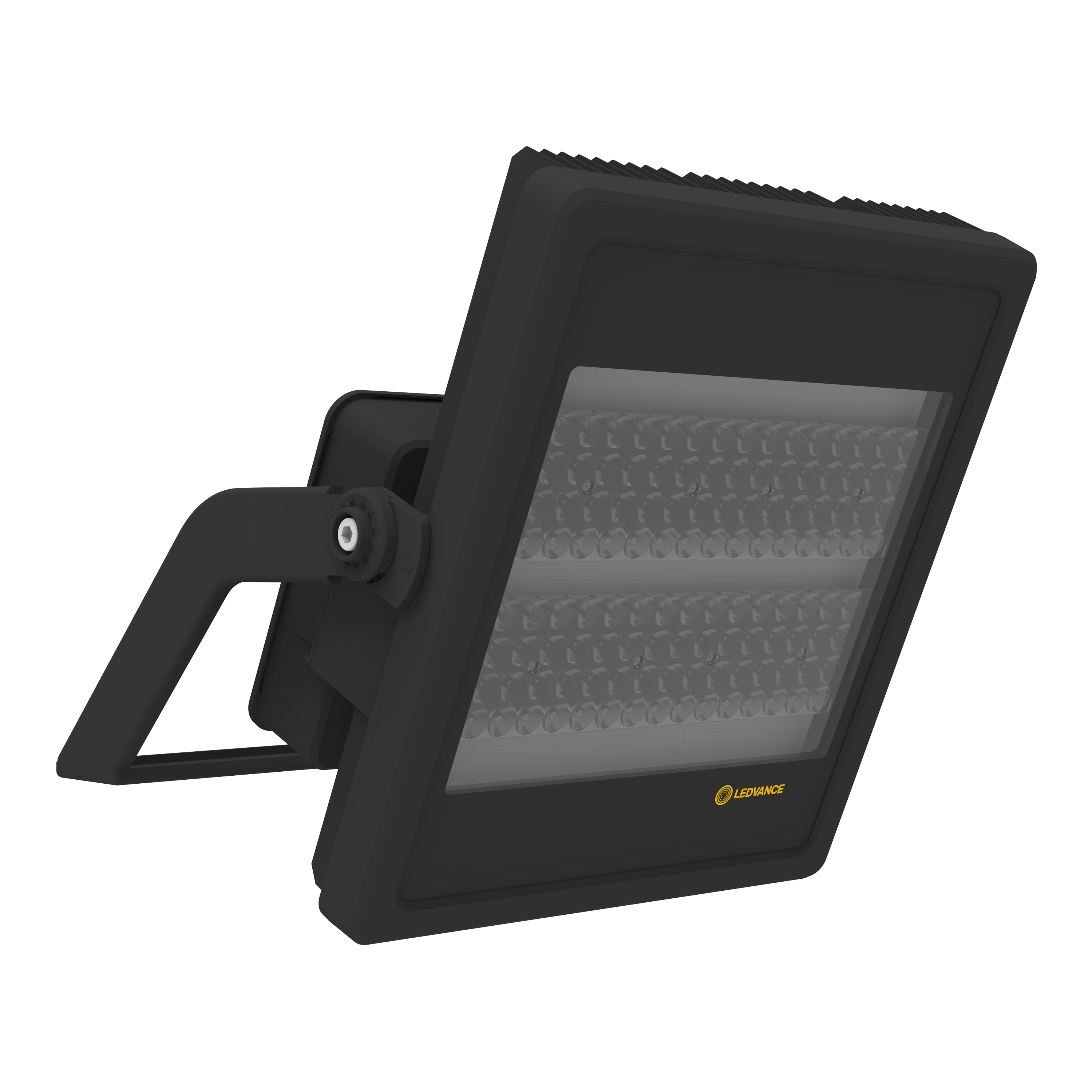

Product image: white background, spacial
FL H M LUM V 300W R12 JPG (1.29 MB)

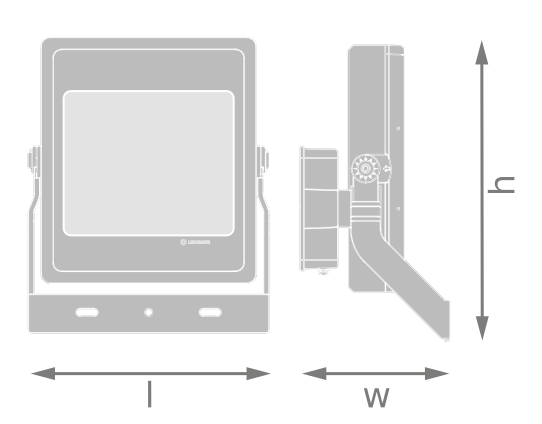

Product line drawing with letters
FL H M LUM V 300W PNG (22.2 KB)
Product line drawing with numbers
FL H M LUM V 300W PNG (27.09 KB)

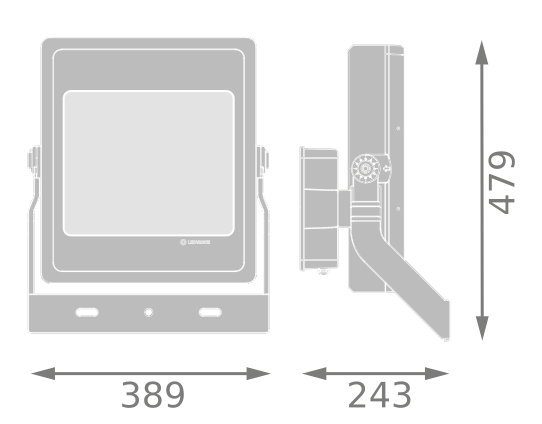

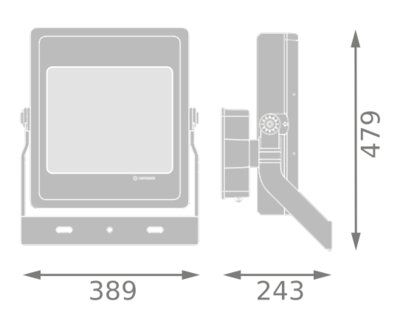

Product line drawing - technical
FL H M LUM V 300W SYM/ ASYM SVG (230.78 KB)
IES file (IES)
FL H M LUM V 300W 730 SYM R12 IES (15.15 KB)
LDT file (Eulumdat)
FL HIGH MAST V 300W 73 0 SYM R12 LDT (15.12 KB)
ULD file (DIALux)
FL H M LUM V 300W 730 SYM R12 ULD (266.75 KB)
ROLF file (RELUX)
FL H M LUM V 300W 730 SYM R12 ROLF (415.96 KB)

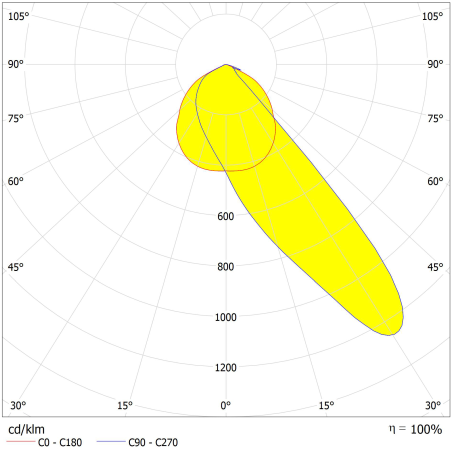

Light distribution curve type polar
FL H M LUM V 300W/500W SYM R12 PNG (60.36 KB)
BIM Revit 3D
Floodlight High Mast ZIP (1.84 MB)
CAD STEP 3D
FL H M 300 STEP (5.58 MB)
Tender documents
FLOODLIGHT HIGH MAST 3 00W LUMINAIRE HEAD 300 W 730 SYM R12 -EN TXT (3.15 KB)
EAN STK number
4099854195655 4529971
