Product description	Nominal wattage	Number of switching cycles	Beam angle	Luminous flux	Dimmable
FS COMP SN EU V 88W 840 WT	88.00 W	50000	110 ° x 80 °	12600 lm	Yes
FS COMP SN EU V 88W 840 GY	88.00 W	50000	110 ° x 80 °	12600 lm	Yes

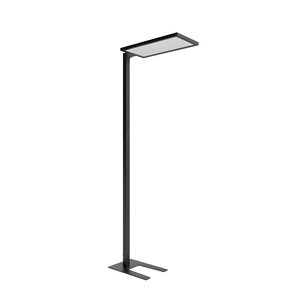

FS COMP SN EU V 88W 840 BK	88.00 W	50000	110 ° x 80 °	12600 lm	Yes
FS COMP SN CH V 88W 840 WT	88.00 W	50000	110 ° x 80 °	12600 lm	Yes
FS COMP SN CH V 88W 840 GY	88.00 W	50000	110 ° x 80 °	12600 lm	Yes
FS COMP SN CH V 88W 840 BK	88.00 W	50000	110 ° x 80 °	12600 lm	Yes

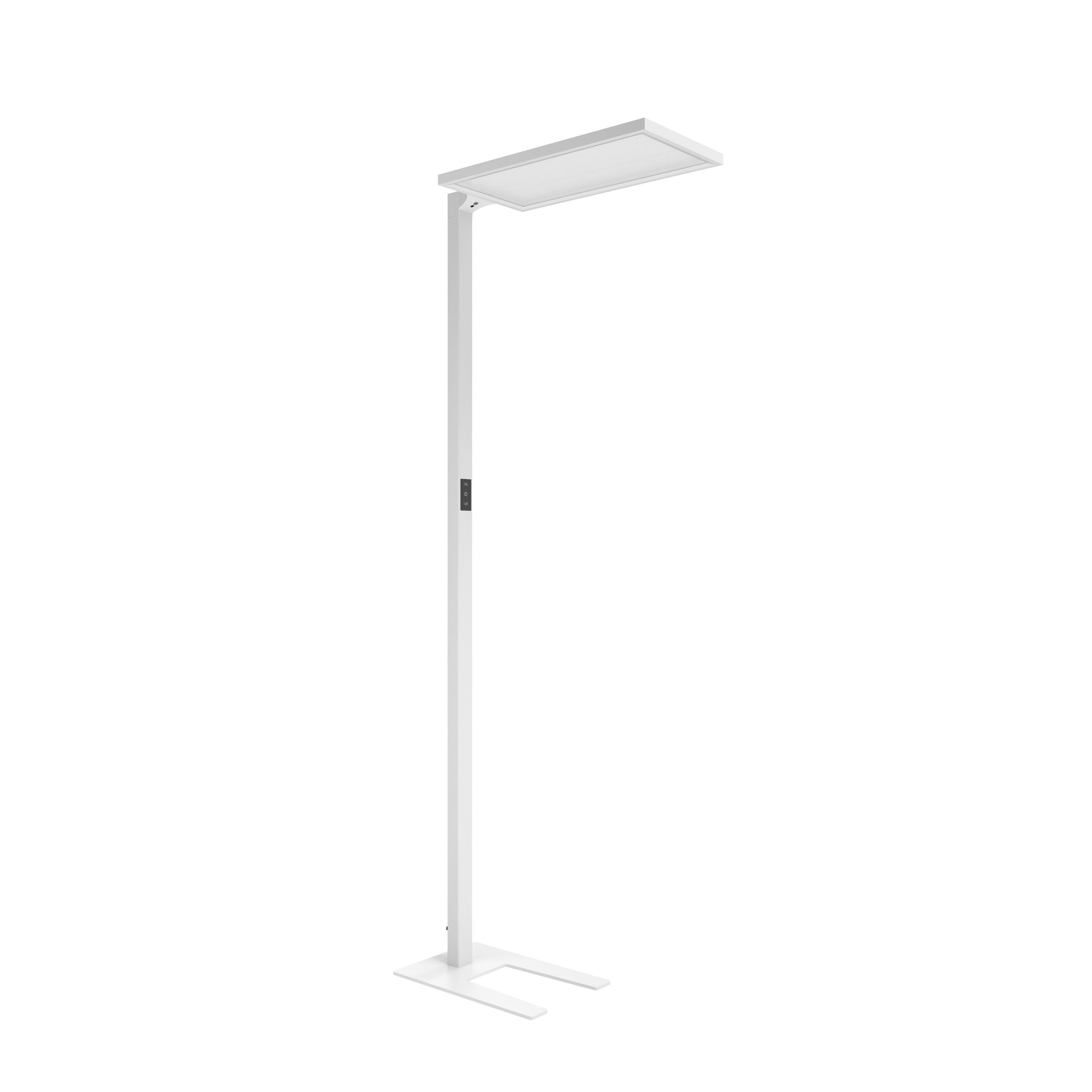

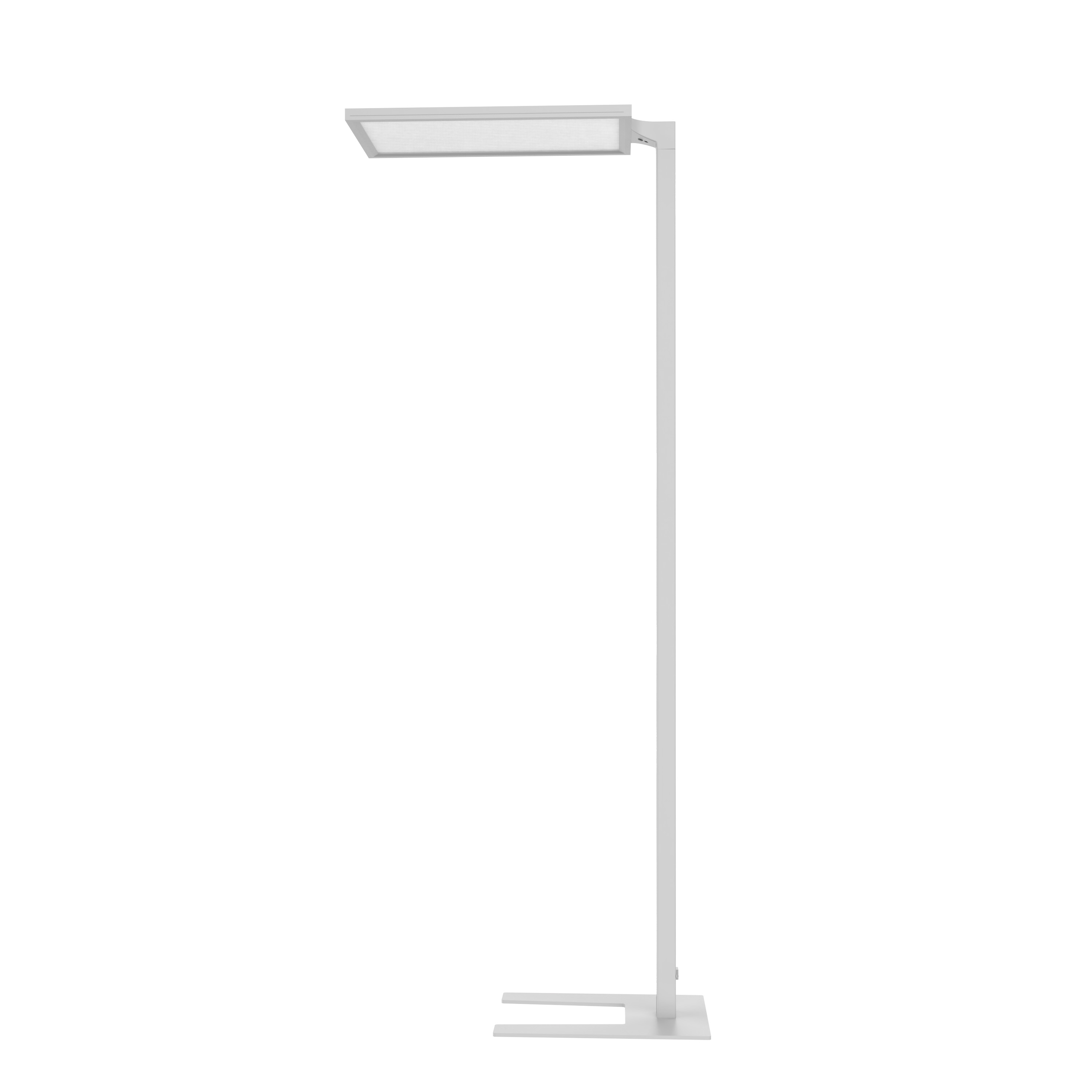

FS COMP SN EU V 88W 840 WT

Product benefits

Direct and indirect light can be controlled separately

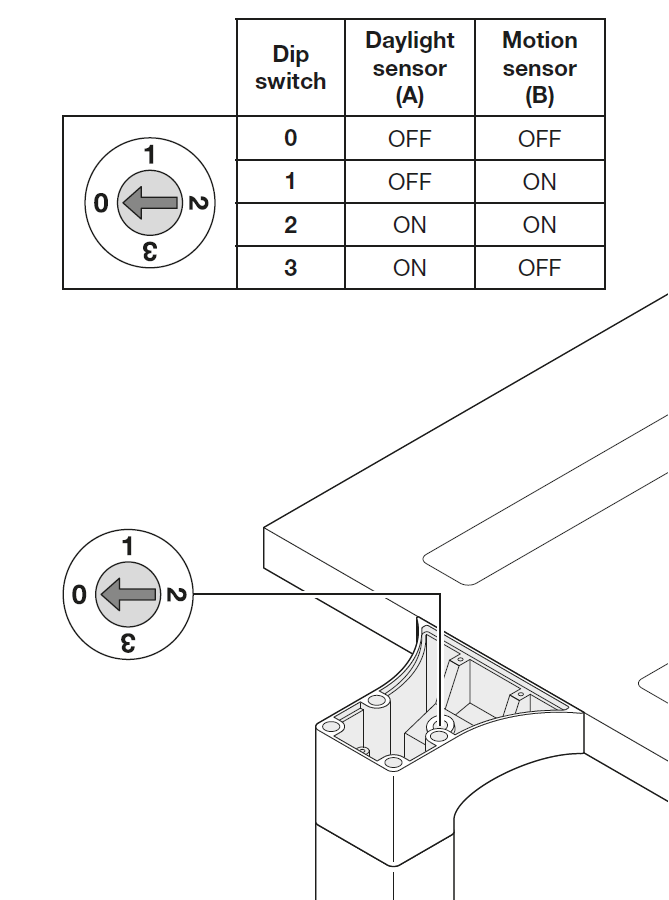

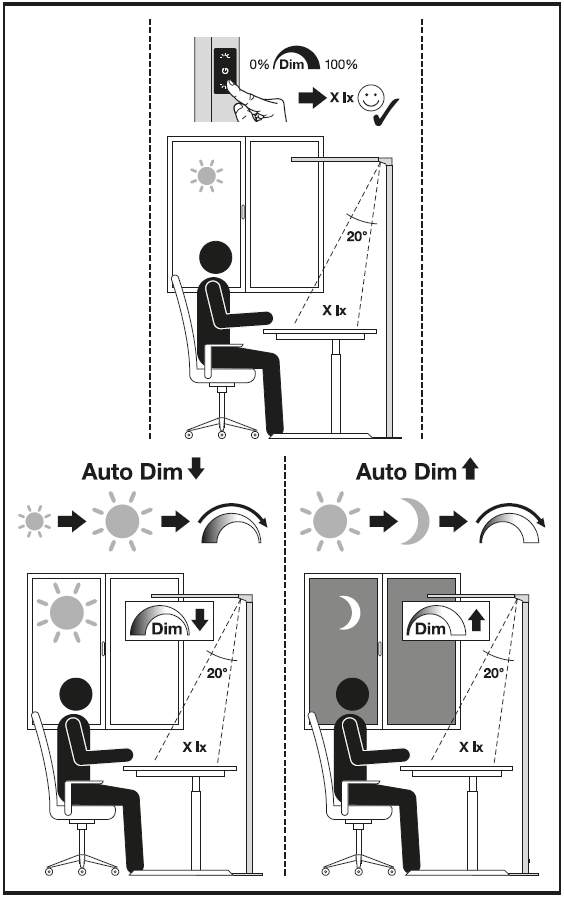

Daylight and motion-dependent control thanks to an integrated sensor

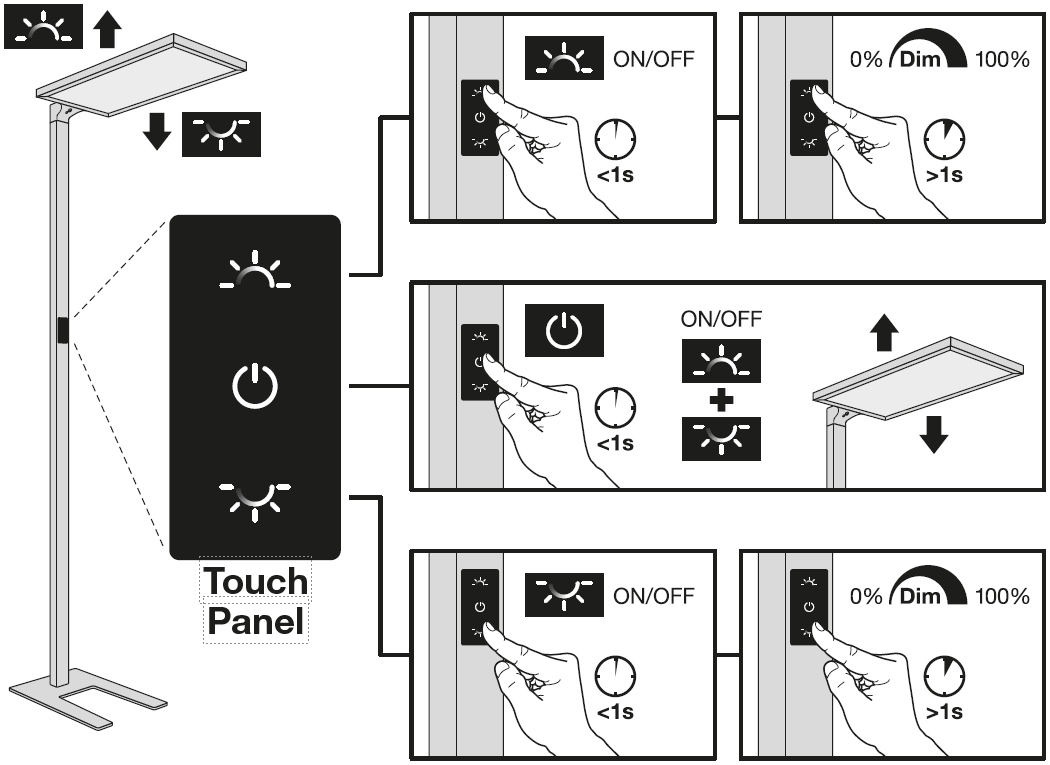

Manual dimming and wished lighting level can be set via integrated touch panel
Flexible positioning of the luminaire thanks to a 2,500 mm cable length

View all details

Product data sheet

PRODUCT DETAILS

Technical data

Electrical data

Nominal wattage	88.00 W
Nominal voltage	220…240 V
Mains frequency	50/60 Hz
Nominal current	400.000 mA
Inrush current	28.75 A
Inrush current time T_h50	308 µs
Max. number of luminaires per miniature circuit breaker B16	7
Max. number of luminaires per miniature circuit breaker C10	7
Max. number of luminaires per miniature circuit breaker C16	12
Power factor λ	> 0.90
Total harmonic distortion	< 6 %
Protection class	I
Operating mode	Integrated LED driver

Photometrical data

Luminous flux	12600 lm ¹⁾
Luminous efficacy	144 lm/W
Color temperature	4000 K
Light color (designation)	Cool White
Color rendering index Ra	> 80
Standard deviation of color matching	< 3 sdcm
Luminous intensity	3297 cd
Low flicker	Yes
Flickering metric (Pst LM)	< 1
Stroboscope effect metric (SVM)	< 0.4
Photobiological safety group acc. to EN62778	RG1
Photobiological safety group acc. to EN62471	RG1
Beam angle	110 ° x 80 °

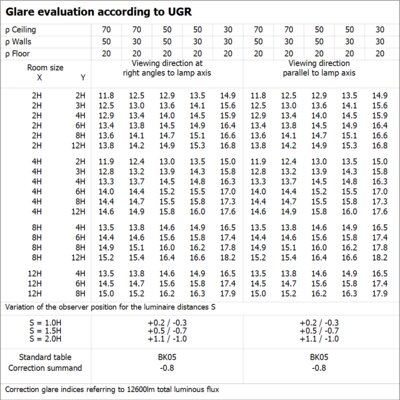

UGR	< 19

¹⁾ 9000 lm indirect and 3600 lm direct

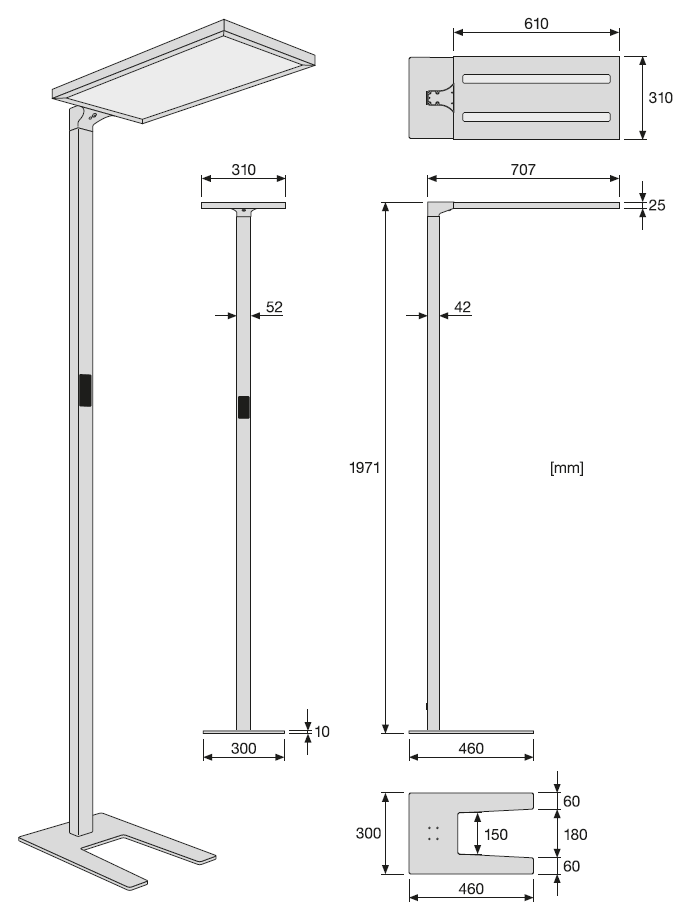

Dimensions & Weight

Length	707.00 mm
Height	1971.00 mm
Width	310.00 mm
Product weight	12500.00 g
Cable length	2500 mm

Materials & Colors

Product color	White
Housing color	White
RAL Color (most similar)	RAL 9003
Body material	Aluminum
Cover material	Polycarbonate (PC)
Light emitting surface material	Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12	650 °C
Mercury content	0.0 mg

Application & Mounting

Ambient temperature range	-20…+45 °C
Temperature range at storage	-40…+80 °C
Type of connection	Plug type C (EU)
Type of protection	IP20
Protection class IK (shock resistance)	IK03
Dimmable	Yes

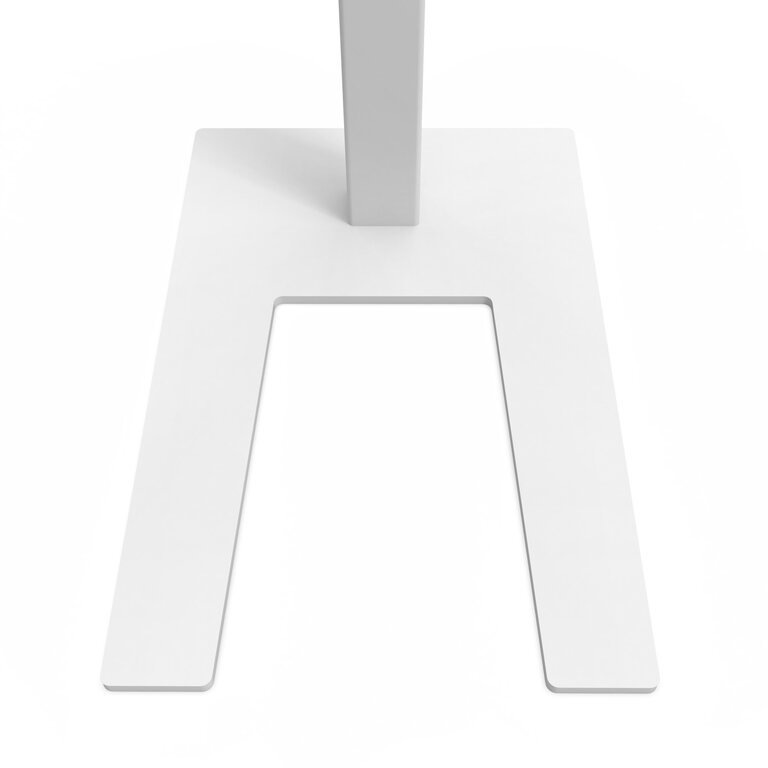

Mounting type	Standing
Mounting location	Floor
Application environment	Indoor
Adjustable	No
With light source	Yes
Replaceable light source	No

Lifespan

Lifespan L70/B50 at 25 °C	100000 h ¹⁾
Lifespan L80/B10 at 25 °C	75000 h ¹⁾
Lifespan L90/B10 at 25 °C	52000 h
Number of switching cycles	50000

¹⁾ t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current	1750 mA
ECG - Output ripple current	< 5 %

Sensor

Type of sensor	Motion, Light
Sensor technology	Passive infrared (PIR)
Sensor detection angle	120 °

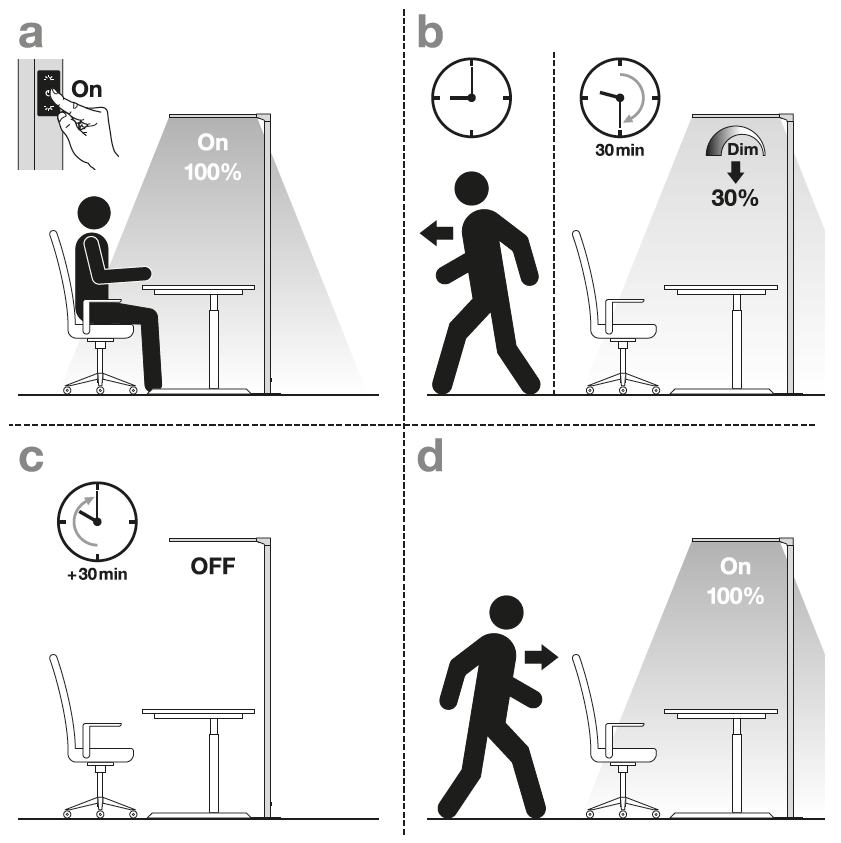

Sensor controlled switching time	1800+1800 s
Detection range of motion sensor	1.2…1.5 m
Sensor IK rating	IK03

Certificates & Standards

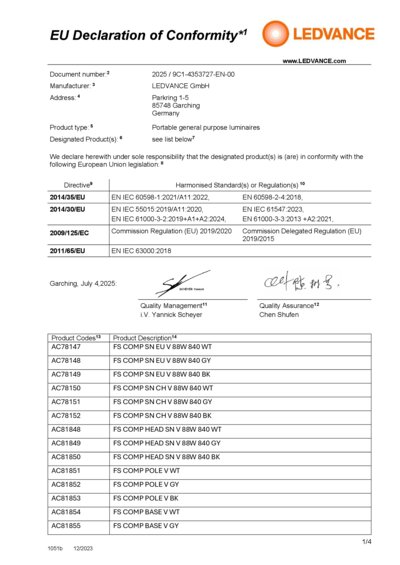

Standards	CE, CB, EMC, ROHS, REACH, ENEC, ERP, EAC, UKCA
Luminaire with limited surface temperature, "D sign"	No
Ball shot safe	No
Replaceable light source (EPREL)	Not replaceable

Additional product data

Product remark

Available from September 2025

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	Lead (7439-92-1), N,N-Dimethylformamide (68-12-2)

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product description

Product benefits

Direct and indirect light can be controlled separately

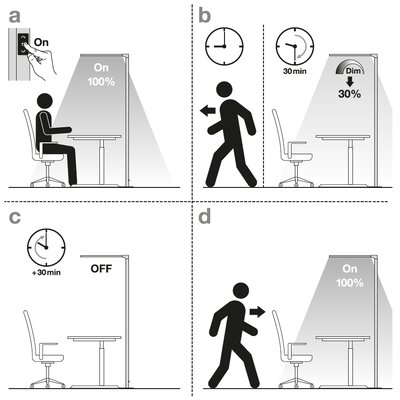

Daylight and motion-dependent control thanks to an integrated sensor

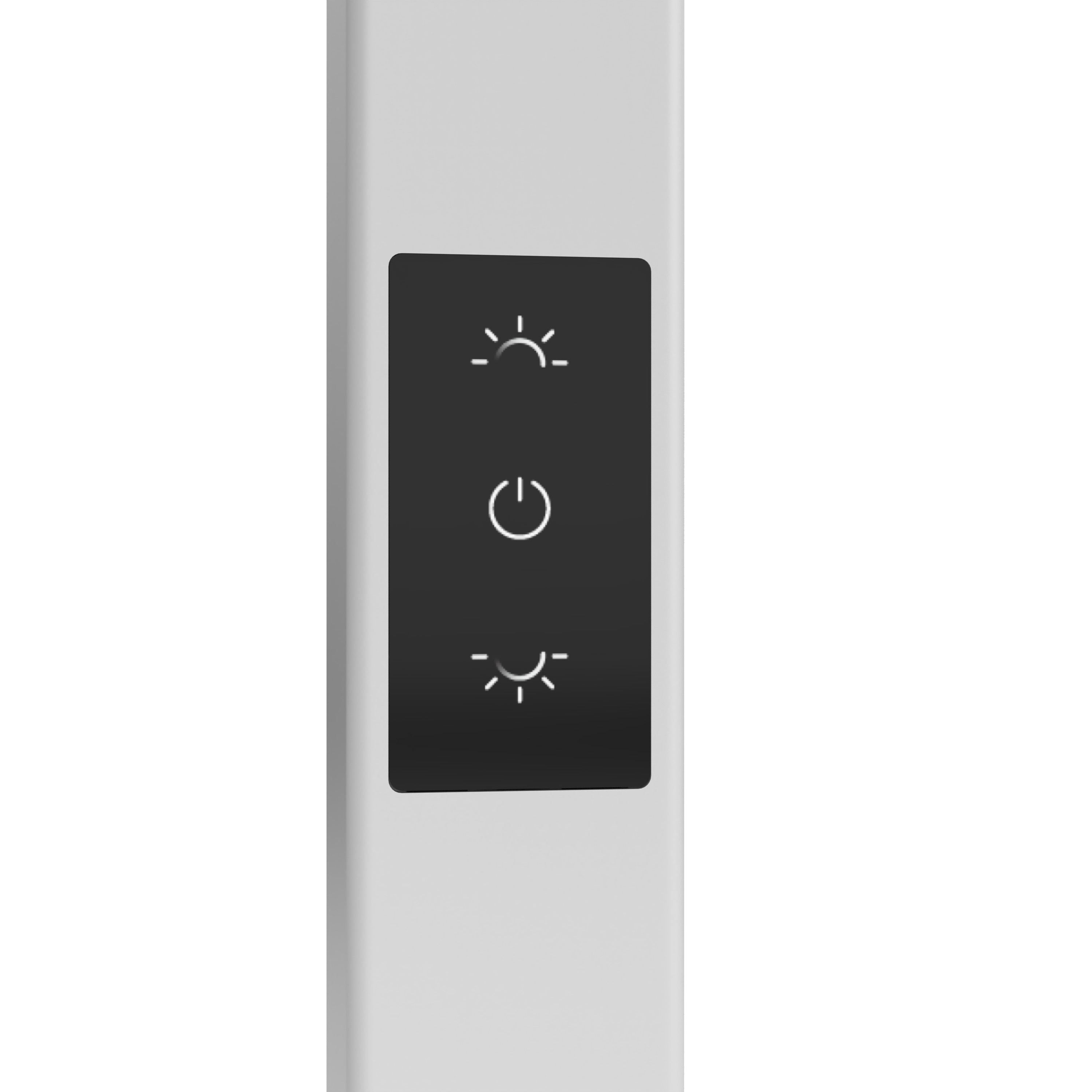

Manual dimming and wished lighting level can be set via integrated touch panel
Flexible positioning of the luminaire thanks to a 2,500 mm cable length

Areas of application

For use at single or double desks
Individual offices
Open-space office
Home offices

Product features

High lumen output with overall up to 12,600 lm (9,000 lm indirect and 3,600 lm direct)
High luminous efficacy: up to 144 lm/W
Diffuser prismatic (direct) and transparent (indirect) for an overall glare reduction of UGR <19
Available in white (like RAL9003), grey (like RAL9006) and black (like RAL9005)
Lifetime (L80/B10): up to 75,000 h (at 25 °C)
Powder coated luminaire made of aluminum
Color temperature 4,000 K with SDCM <3 and CRI 80

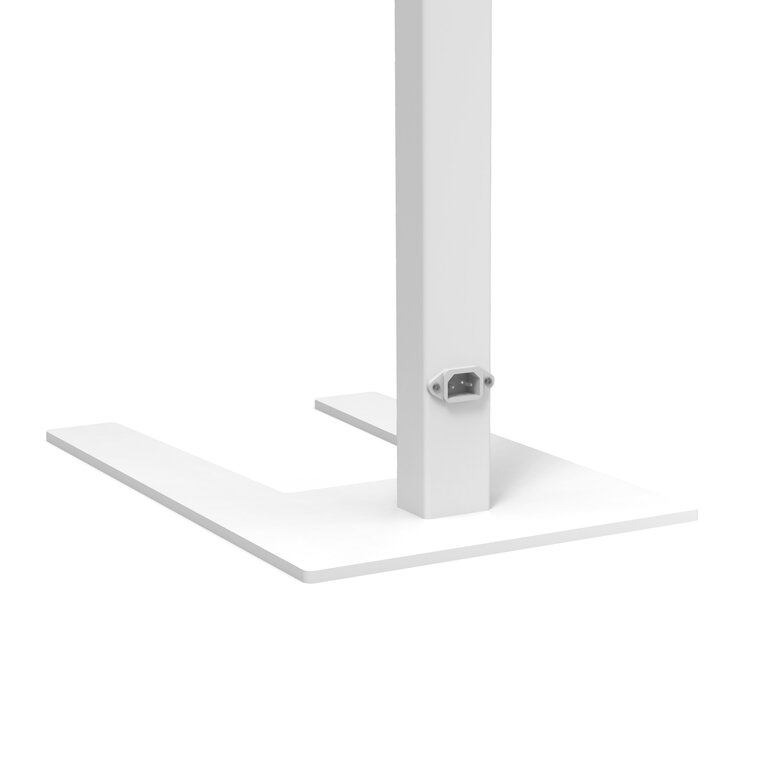

Integrated IEC socket for a flexible connection
Versions with EU plug or Swiss plug (CH) available

Equipment / Accessories

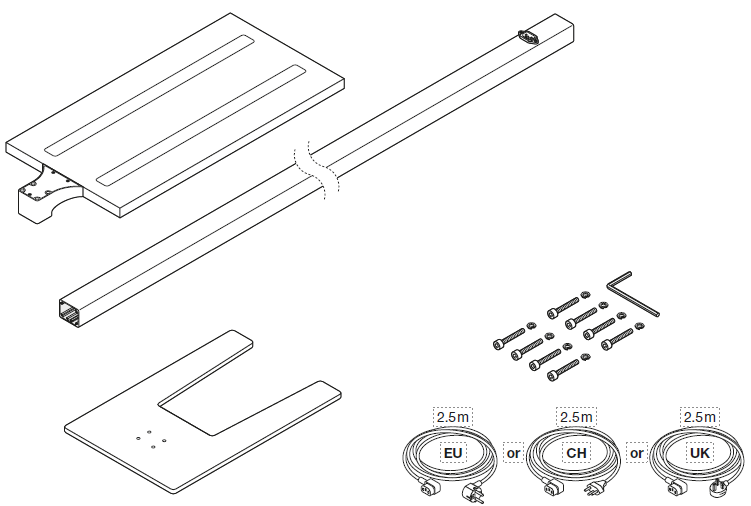

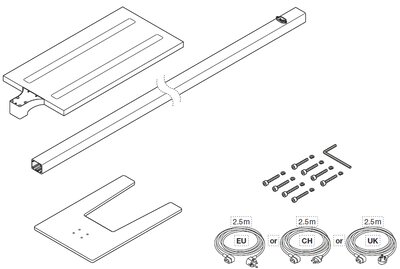

Accessories for mounting the luminaire included

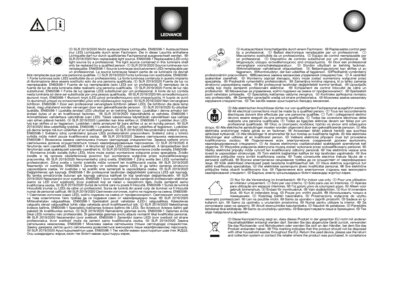

Safety advice

All electrical connections must be made by a qualified person.
Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.

References / Links

For Guarantee see www.ledvance.com/guarantee

GTIN and Packaging information

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4099854540851	Shipping box 1	1,966 mm x 471 mm x 161 mm	17233.00 g	149.08 dm³

SN EU V 88W 840 WT

SN EU V 88W 840 GY

SN EU V 88W 840 BK

SN CH V 88W 840 WT

SN CH V 88W 840 GY

SN CH V 88W 840 BK
