HIGH BAY FLEX

Choose your product version

Coming soon

240W 35 ML 840 WT

Coming soon

240W 70 ML 840 WT

Coming soon

240W 110 ML 840 WT

Coming soon

240W 35X80 ML 840 WT

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
HB FLEX P 240W 35 ML 840 WT 240 W / 180 W / 120 W 200000 35 ° 44160 lm / 34200 lm / 23400 lm No
HB FLEX P 240W 70 ML 840 WT 240 W / 180 W / 120 W 200000 70 ° 44160 lm / 34200 lm / 23400 lm No
HB FLEX P 240W 110 ML 840 WT 240 W / 180 W / 120 W 200000 110 ° 44160 lm / 34200 lm / 23400 lm No
HB FLEX P 240W 35X80 ML 840 WT 240 W / 180 W / 120 W 200000 35 ° x 80 ° 44160 lm / 34200 lm / 23400 lm No
Coming soon


HB FLEX P 240W 35 ML 840 WT

Product benefits
  • Flat housing design to minimize dust accumulation and easy cleaning
  • Optimized weight and size due to compact design
  • Ball-proof luminaire with increased physical robustness (according to DIN 18032-3 and DIN 57710-13)
  • Energy savings of up to 70 % compared to conventional high bay luminaires
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 240 W / 180 W / 120 W
Nominal voltage 220…240 V
Mains frequency 0/50/60 Hz
Nominal current 1100/820/540 mA
Inrush current 43.6 A
Inrush current time Th50 156 µs
Max. number of luminaires per miniature circuit breaker B16 10
Max. number of luminaires per miniature circuit breaker C10 8
Max. number of luminaires per miniature circuit breaker C16 12
Power factor λ > 0.95
Total harmonic distortion < 15 %
Protection class I
Operating mode Integrated LED driver

Photometrical data

Luminous flux 44160 lm / 34200 lm / 23400 lm
Luminous efficacy 195 lm/W / 190 lm/W / 184 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra ≥80
Standard deviation of color matching ≤3 sdcm
Low flicker Yes
Flickering metric (Pst LM) <1
Stroboscope effect metric (SVM) <0,4
Photobiological safety group acc. to EN62778 RG1
Beam angle 35 °

Adjustable attributes

Nominal wattage Color temperature Luminous flux Luminous efficacy
240 W 4000 K 44160 lm 184 lm/W
180 W 4000 K 34200 lm 190 lm/W
120 W 4000 K 23400 lm 195 lm/W

Dimensions & Weight

Length 585.00 mm
Height 95.00 mm
Width 320.00 mm
Product weight 5800.00 g
Cable length 1500 mm

Materials & Colors

Product color White
Housing color White
Body material Aluminum
Cover material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 850 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -30…+50 °C
Temperature range at storage -40…+80 °C
Type of connection Cable, 3-pole
Type of protection IP66
Protection class IK (shock resistance) IK10
Dimmable No
Mounting type Surface/Suspended
Mounting location Ceiling, Wall
Application environment Indoor
Adjustable Yes
With light source Yes
Replaceable light source No

Lifespan

Lifespan L70/B50 at 25 °C 102000 h 1)
Lifespan L80/B10 at 25 °C 100000 h 1)
Lifespan L90/B10 at 25 °C 49000 h
Number of switching cycles 200000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 1000 mA
ECG - Output ripple current < 5 %

Emergency lighting

Type of Emergency Lighting (EL) EL certified driver (0Hz / DC operation) for central battery operation included
Type of emergency operation test None

Certificates & Standards

Standards CE, UKCA, EAC, CB, ENEC, Dmark
Luminaire with limited surface temperature, "D sign" Yes
Ball shot safe Yes
Replaceable light source (EPREL) Not replaceable

Additional product data

Product remark Available from September 2025
Added function MULTI SELECT

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Flat housing design to minimize dust accumulation and easy cleaning
  • Optimized weight and size due to compact design
  • Ball-proof luminaire with increased physical robustness (according to DIN 18032-3 and DIN 57710-13)
  • Energy savings of up to 70 % compared to conventional high bay luminaires
Areas of application
  • Replacement for high bay luminaires with mercury vapor or metal halide lamps
  • Warehouses, logistic halls
  • Industry
  • Sports facilities
  • High ceiling (e.g. in shopping malls, airports, commercial buildings, lobbies)
Product features
  • Multi Power and Multi lumen, power selectable
  • Different luminous flux and beam angle for mounting heights
  • High luminous efficacy: up to 195 lm/W
  • Lifetime (L80/B10): up to 100,000 h (at 35 °C)
  • Type of protection: up to IP66
  • Impact resistance: IK10
Equipment / Accessories
  • Mounting hook included
  • Mounting brackets for surface and chain mounting available as separate accessory
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
  • To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854538780 Shipping box
1		 647 mm x 402 mm x 140 mm 6906.00 g 36.41 dm³
Product image Product name EAN
HB FLEX BRACKET CHAIN 4099854612787
HB FLEX BRACKET SURFACE 4099854612800
Legal information
Safety Insert G1120549 6 PDF (331.49 KB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Legal information

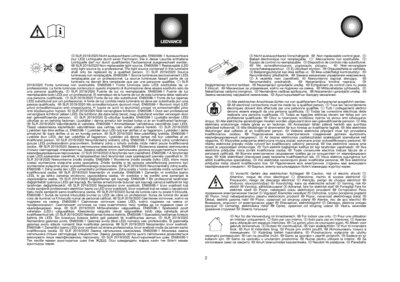

Legal Insert G11198263 PDF (763 KB)
Legal information

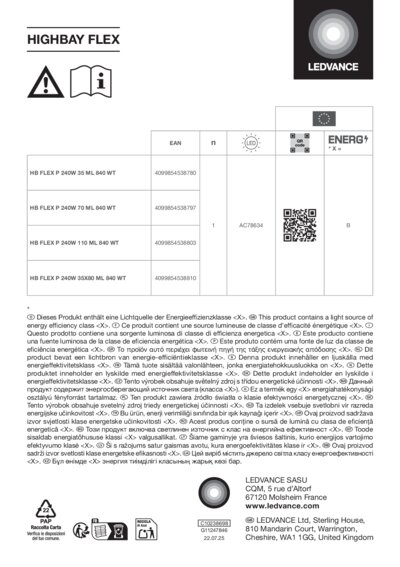

LISO insert G11228743 PDF (2.16 MB)
Declarations of conformity

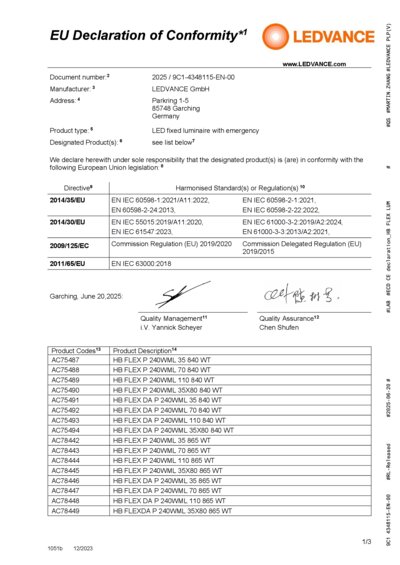

HB FLEX LUM PDF (409.56 KB)
Certificates

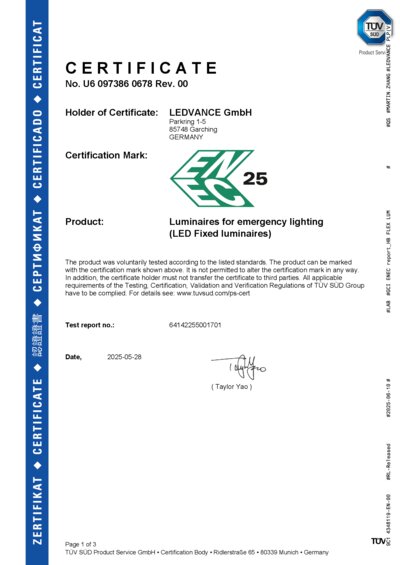

ENEC Certificate PDF (379.55 KB)

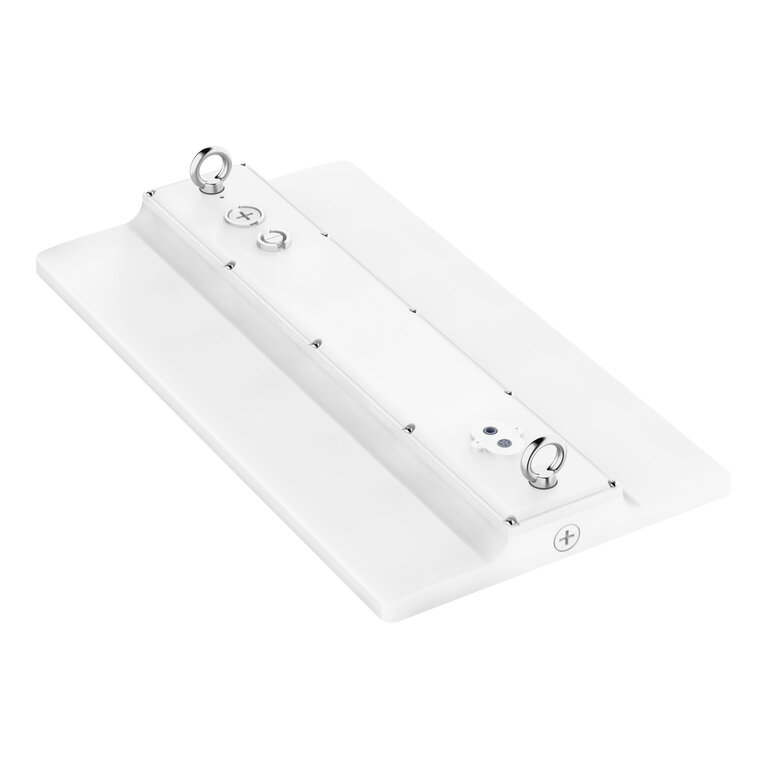

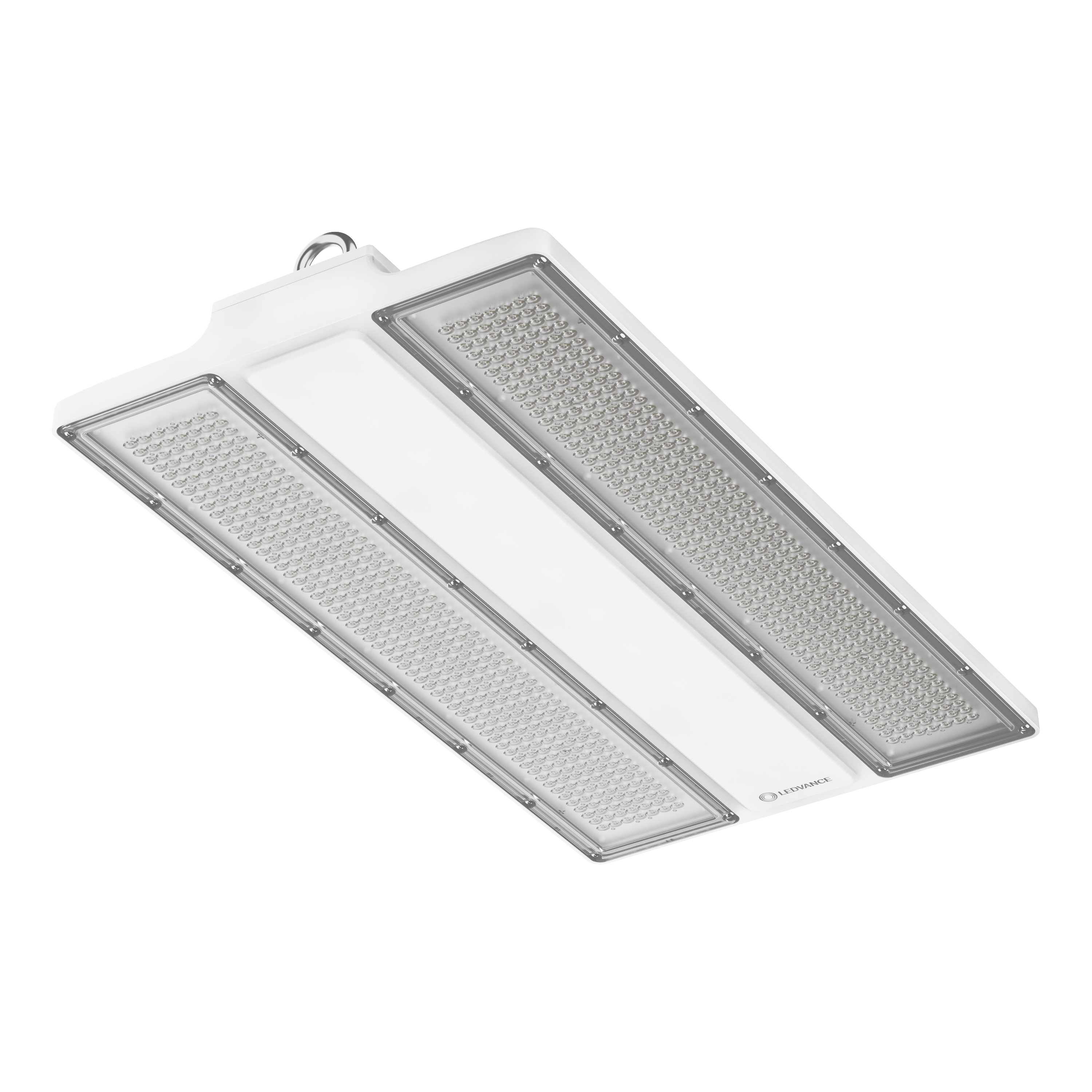

Product image: white background, diagonal
HB FLEX P 840 WT JPG (1.27 MB)

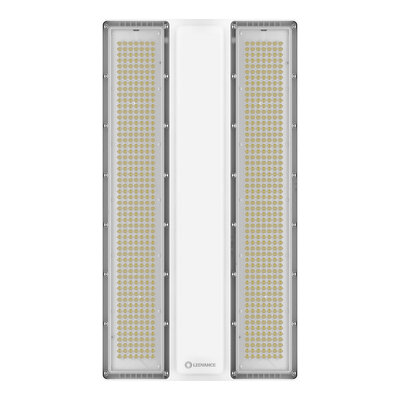

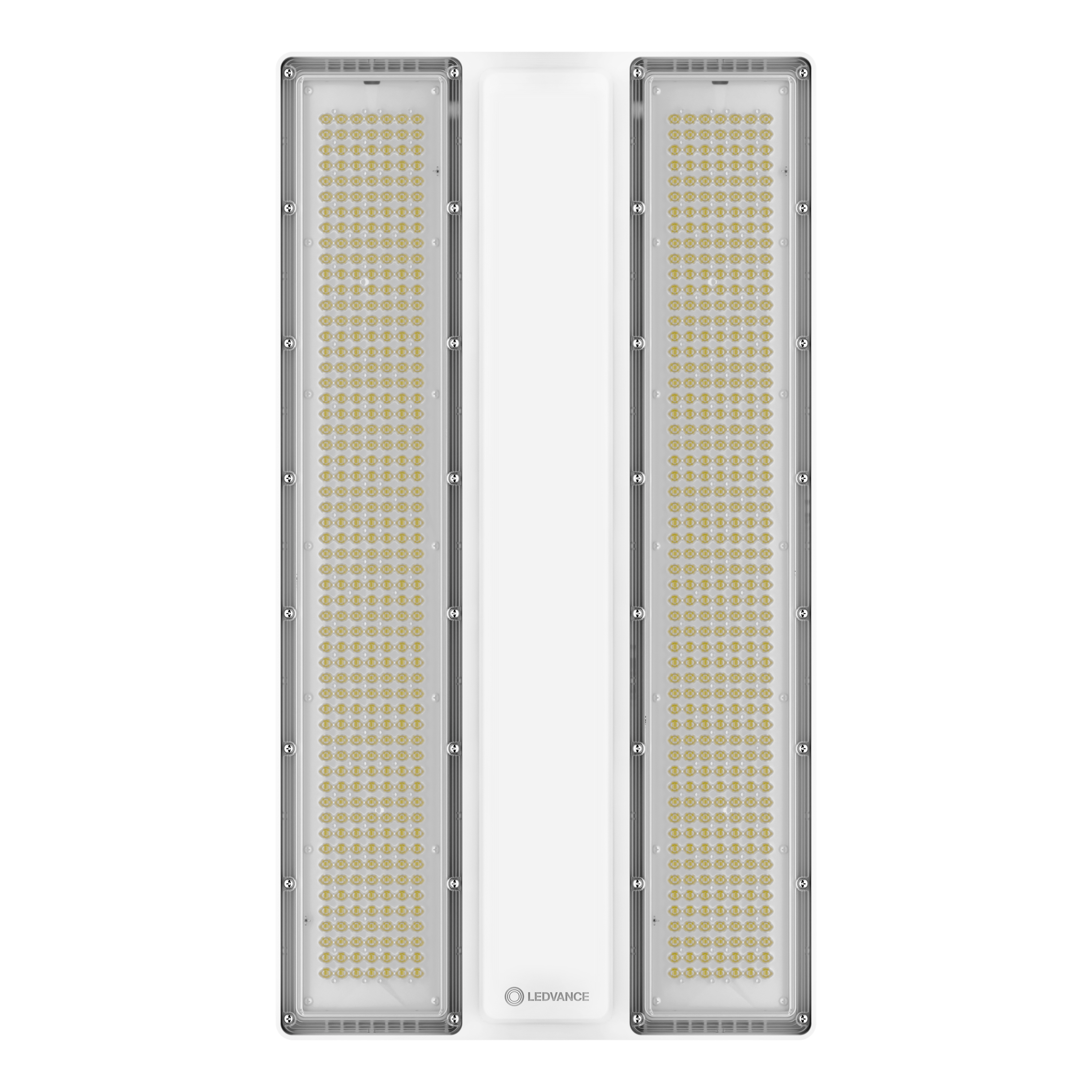

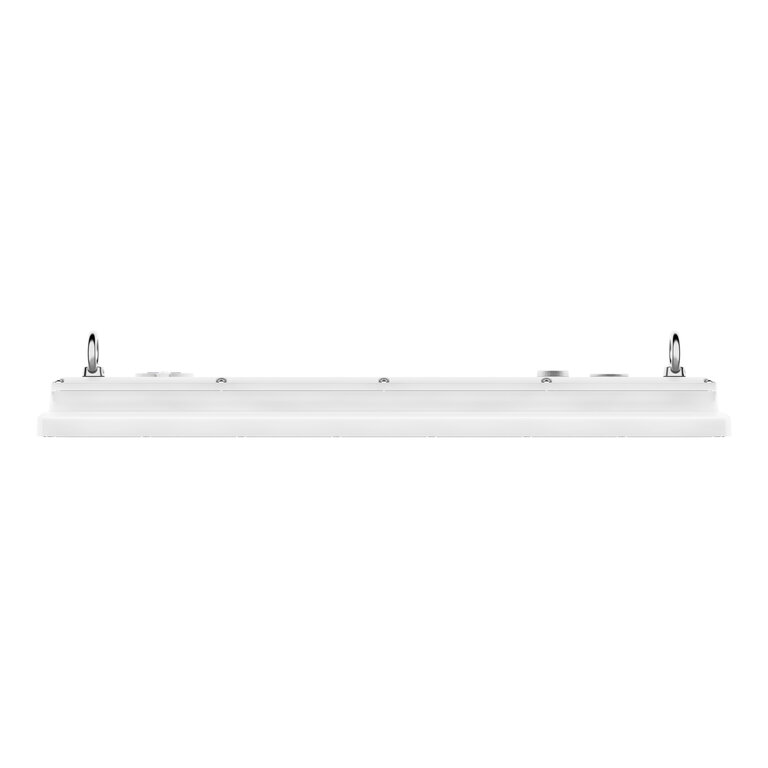

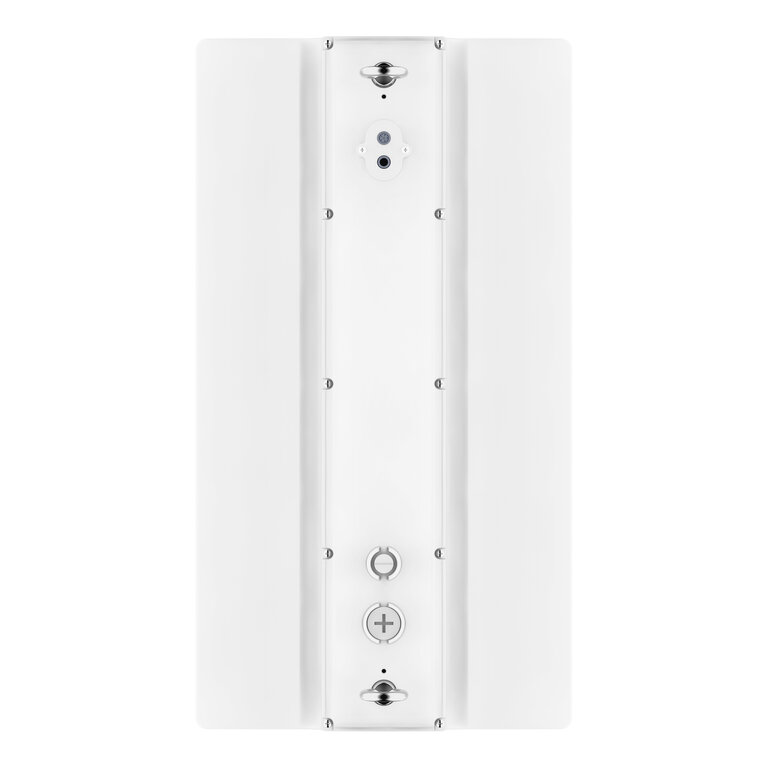

Product image: white background, horizontal
HB FLEX P 840 WT JPG (1.71 MB)
IES file (IES)
HB FLEX P 240W 35 ML 8 40 WT IES (5.54 KB)
LDT file (Eulumdat)
HB FLEX P 240W 35 ML 8 40 WT LDT (5 KB)
UGR file (UGR table)
HB FLEX P 240W 35 ML 8 40 WT PNG (60.63 KB)
Light distribution curve type cone
HB FLEX P 240W 35 ML 8 40 WT SVG (15.46 KB)
Light distribution curve type polar
HB FLEX P 240W 35 ML 8 40 WT SVG (14.84 KB)
BIM Revit 3D
Highbay Flex ZIP (911.87 KB)
