LINEAR MAGNETIC BATTEN T5

Choose your product version

568

868

1168

1468

OVERVIEW

Product description Dimmable
LN MAG BATTEN T5 568 No
LN MAG BATTEN T5 868 No
LN MAG BATTEN T5 1168 No
LN MAG BATTEN T5 1468 No


LN MAG BATTEN T5 568

Product benefits
  • Retrofitting without completely replacing existing luminaires
  • If necessary, the old luminaire may remain installed on the ceiling during the conversion process
  • Control gear and wiring may remain in the old luminaire if necessary
  • Easy replacement of the LED TUBE T5 AC allows to participate in progress of LED technology over time
  • Simple and quick upgrade solution
  • Integrated fuse for additional safety
  • 5 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal voltage 220…240 V
Mains frequency 50/60 Hz
Protection class I
Operating mode Mains voltage

Dimensions & Weight

Length 568.00 mm
Height 45.00 mm
Width 25.00 mm
Product weight 380.00 g
Cable length 360 mm

Materials & Colors

Product color White
Housing color White
RAL Color (most similar) RAL 9016
Body material Steel
Glow Wire Test according to IEC 60695-2-12 850 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+45 °C
Temperature range at storage -20…80 °C
Type of connection Screwless terminal, 3-Pole
Type of protection IP20
Protection class IK (shock resistance) IK02
Dimmable No
Mounting type Surface
Mounting location Ceiling
Application environment Indoor
With light source No
Replaceable light source No
Holder designation G5

Certificates & Standards

Standards CE, UKCA, ENEC, CB, DEKRA
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No

Additional product data

Number of illuminants 1

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Retrofitting without completely replacing existing luminaires
  • If necessary, the old luminaire may remain installed on the ceiling during the conversion process
  • Control gear and wiring may remain in the old luminaire if necessary
  • Easy replacement of the LED TUBE T5 AC allows to participate in progress of LED technology over time
  • Simple and quick upgrade solution
  • Integrated fuse for additional safety
  • 5 years guarantee
Areas of application

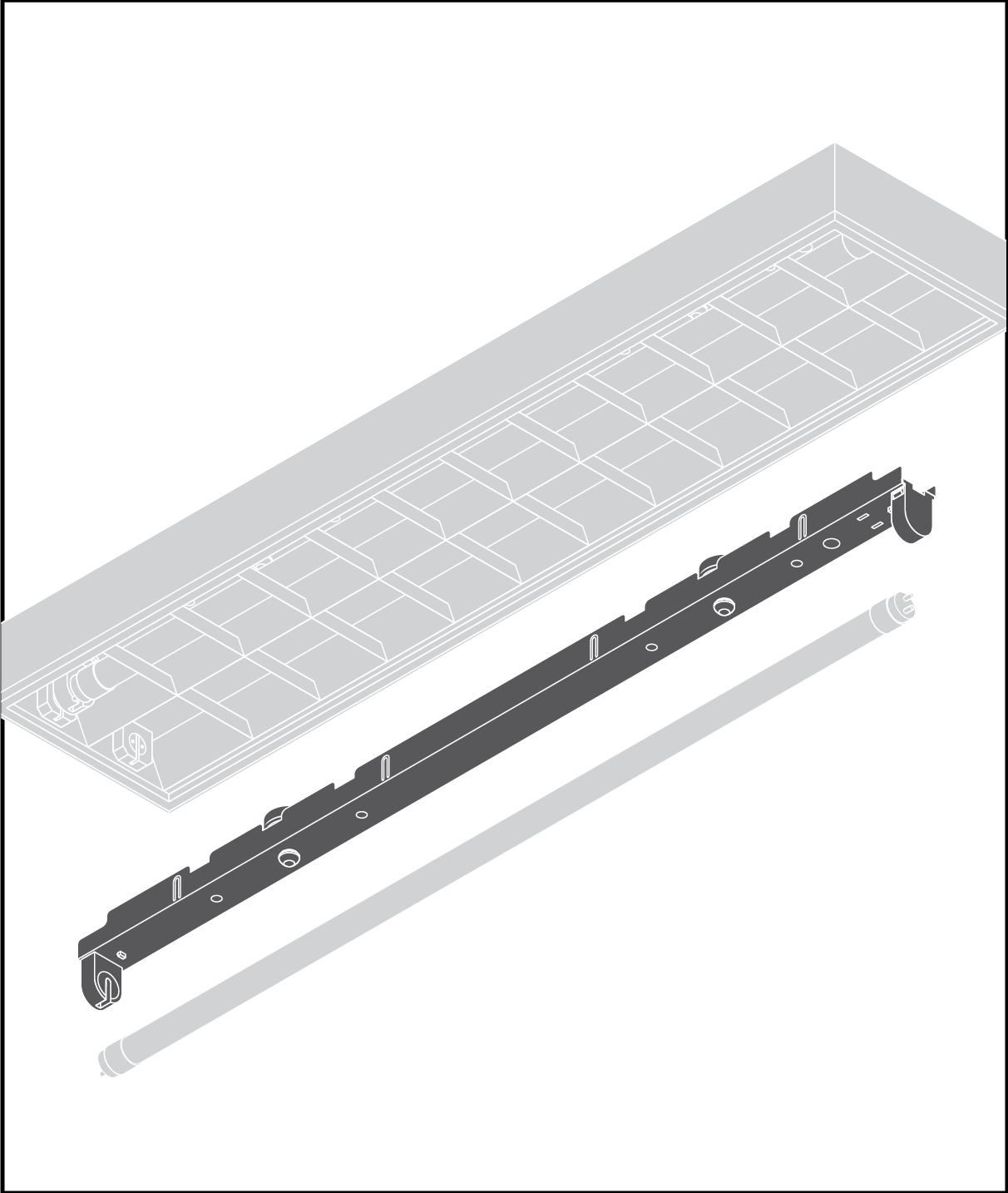

  • Replacement kit for modernizing existing metallic ceiling lights (T8 and T5 Fluorescent) to energy-saving LED technology
  • Offices, public buildings
  • Supermarkets and department stores
  • Industry
  • Corridors, foyers, waiting areas
Product features
  • Available in 4 different lengths: 568 mm, 868 mm, 1168 mm and 1468 mm

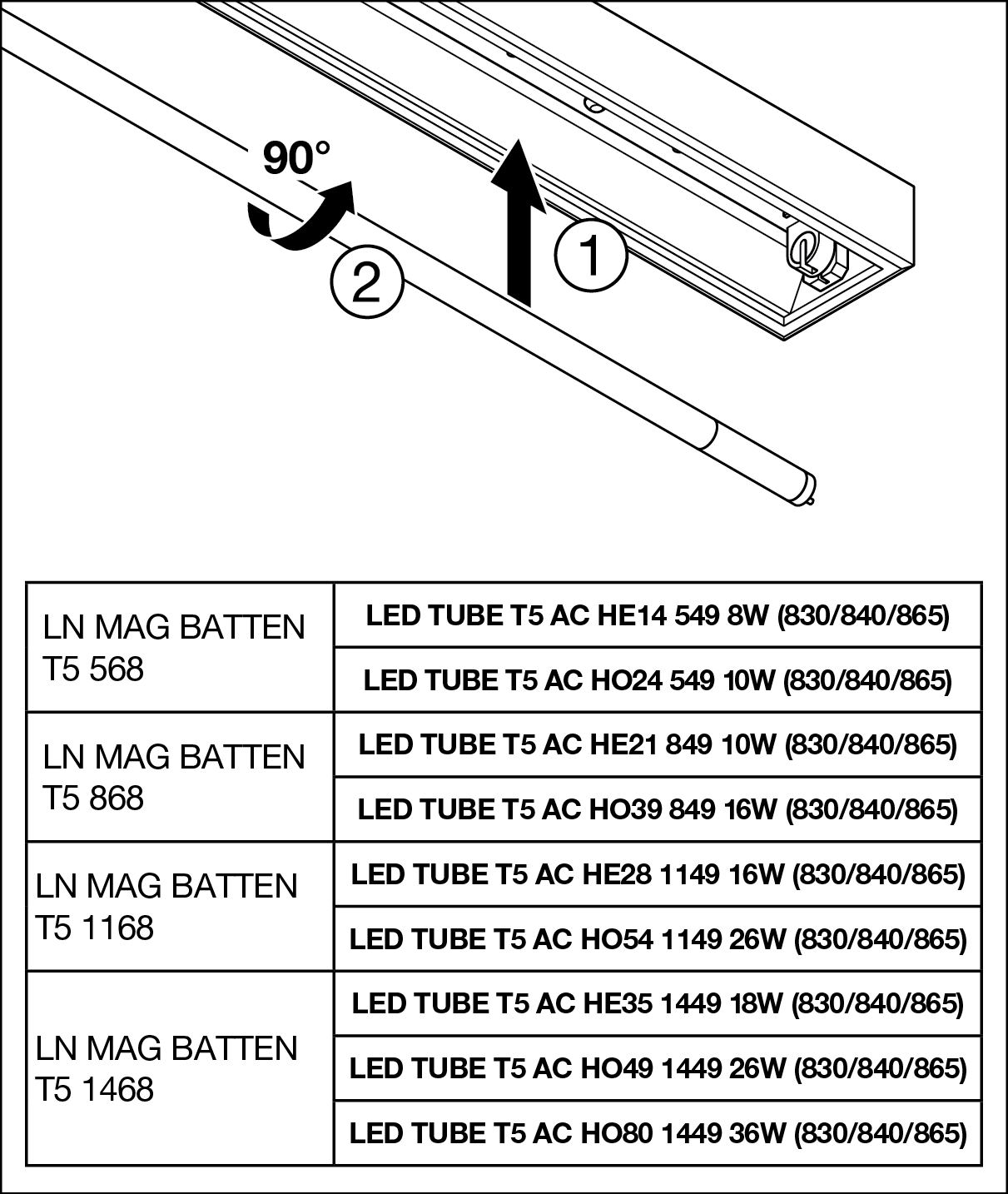

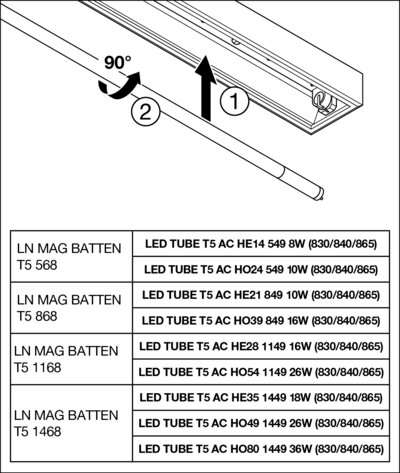

  • Luminaire insert for accommodating one LED TUBE T5 AC 230V
  • Suitable for LED TUBE T5 AC, HE or HO, 830/840/865
  • Strong neodym magnets
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854009723 Folding box
1		 70 mm x 582 mm x 37 mm 438.00 g 1.51 dm³
4099854009730 Shipping box
10		 604 mm x 372 mm x 90 mm 4756.00 g 20.22 dm³

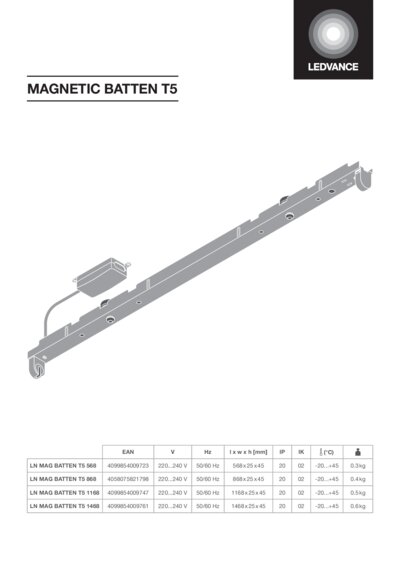

User instruction / safety instructions
LN MAG BATTEN T5 PDF (3.44 MB)

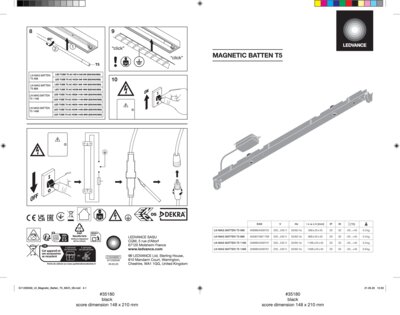

User instruction / safety instructions
LINEAR MAGNETIC BATTEN T5 PDF (3.2 MB)

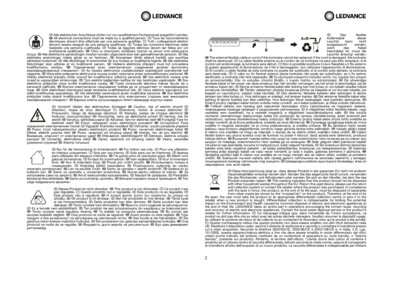

Legal information
Legal Insert LN MAG BA TTEN PDF (6.56 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Legal information
Safety Insert G1120549 7 PDF (178.17 KB)

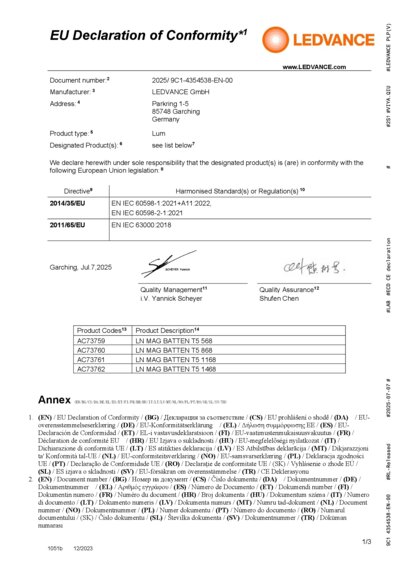

Declarations of conformity
LN MAG BATTEN T5 PDF (393.69 KB)

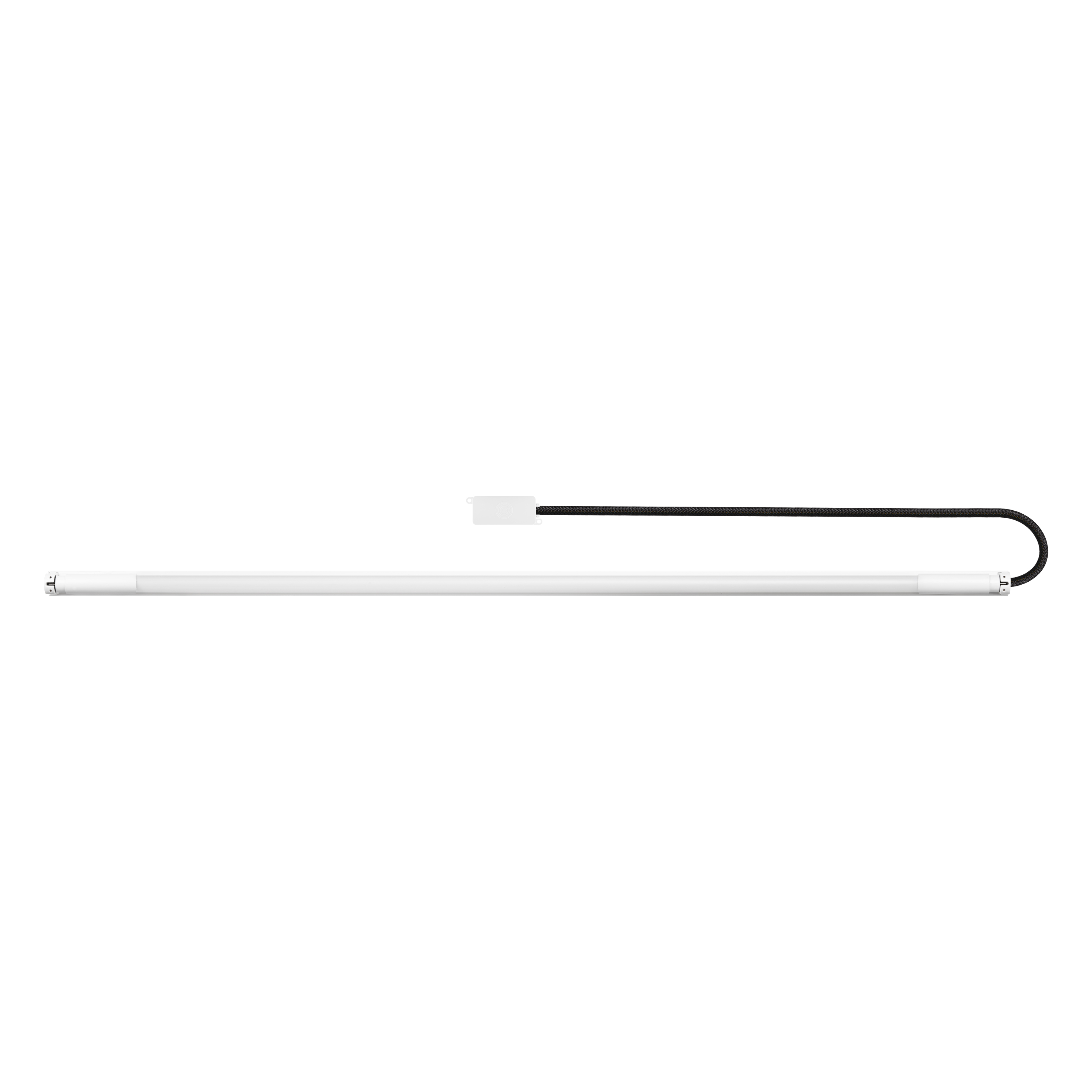

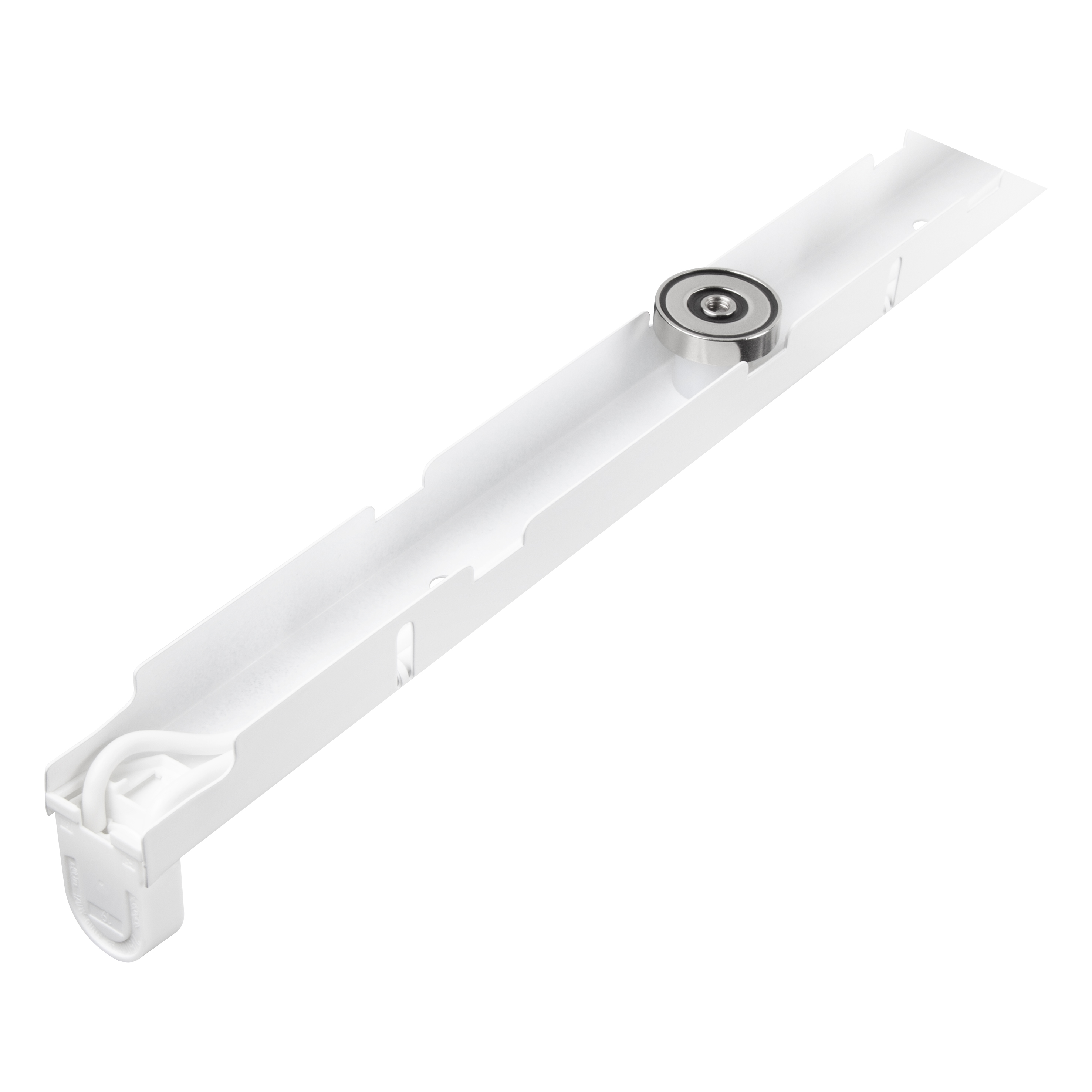

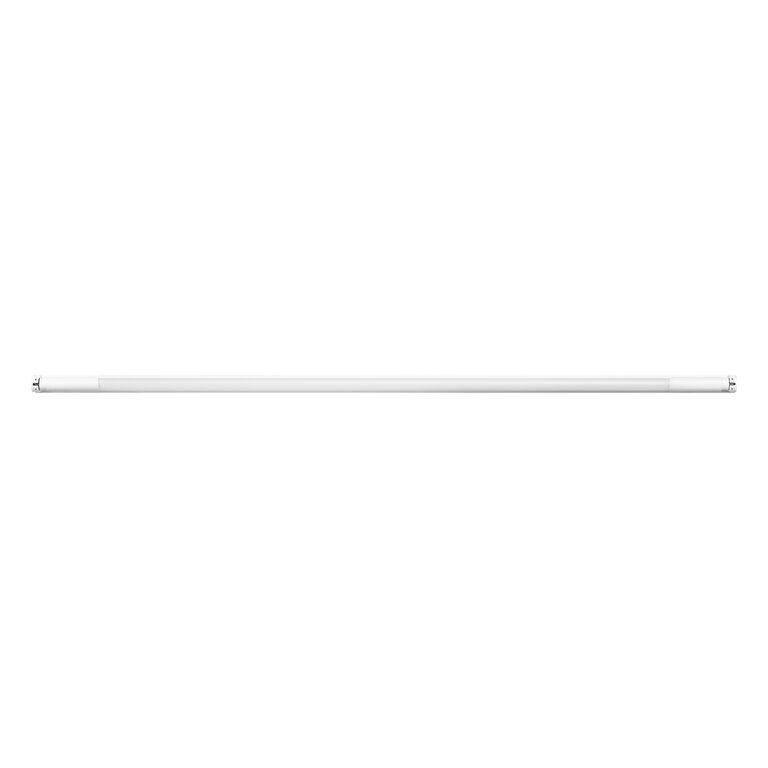

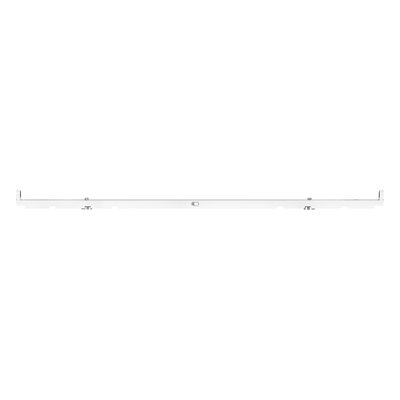

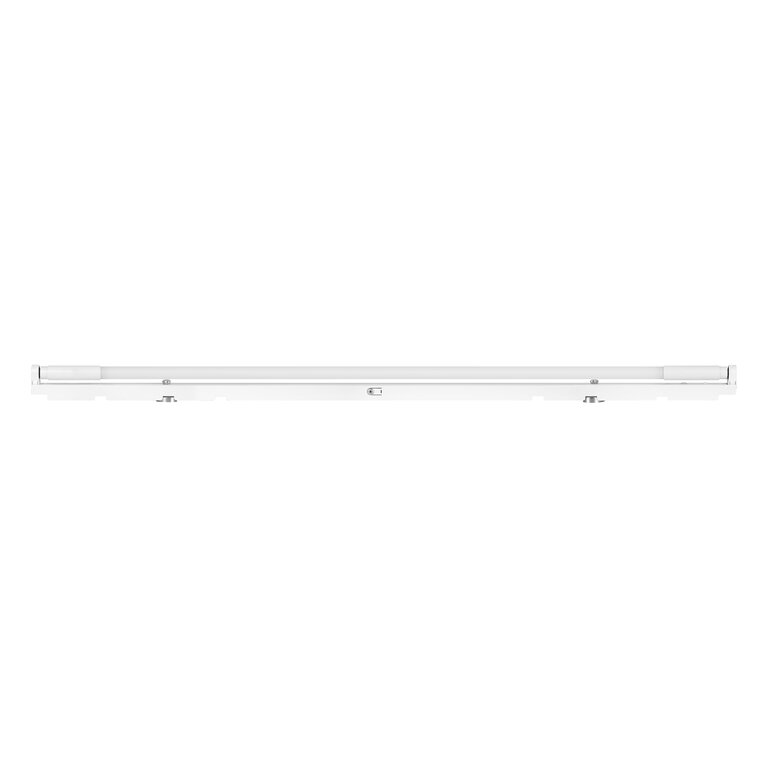

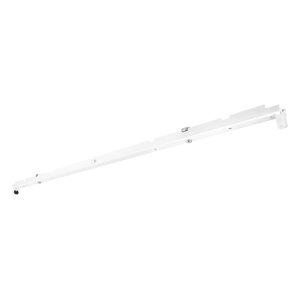

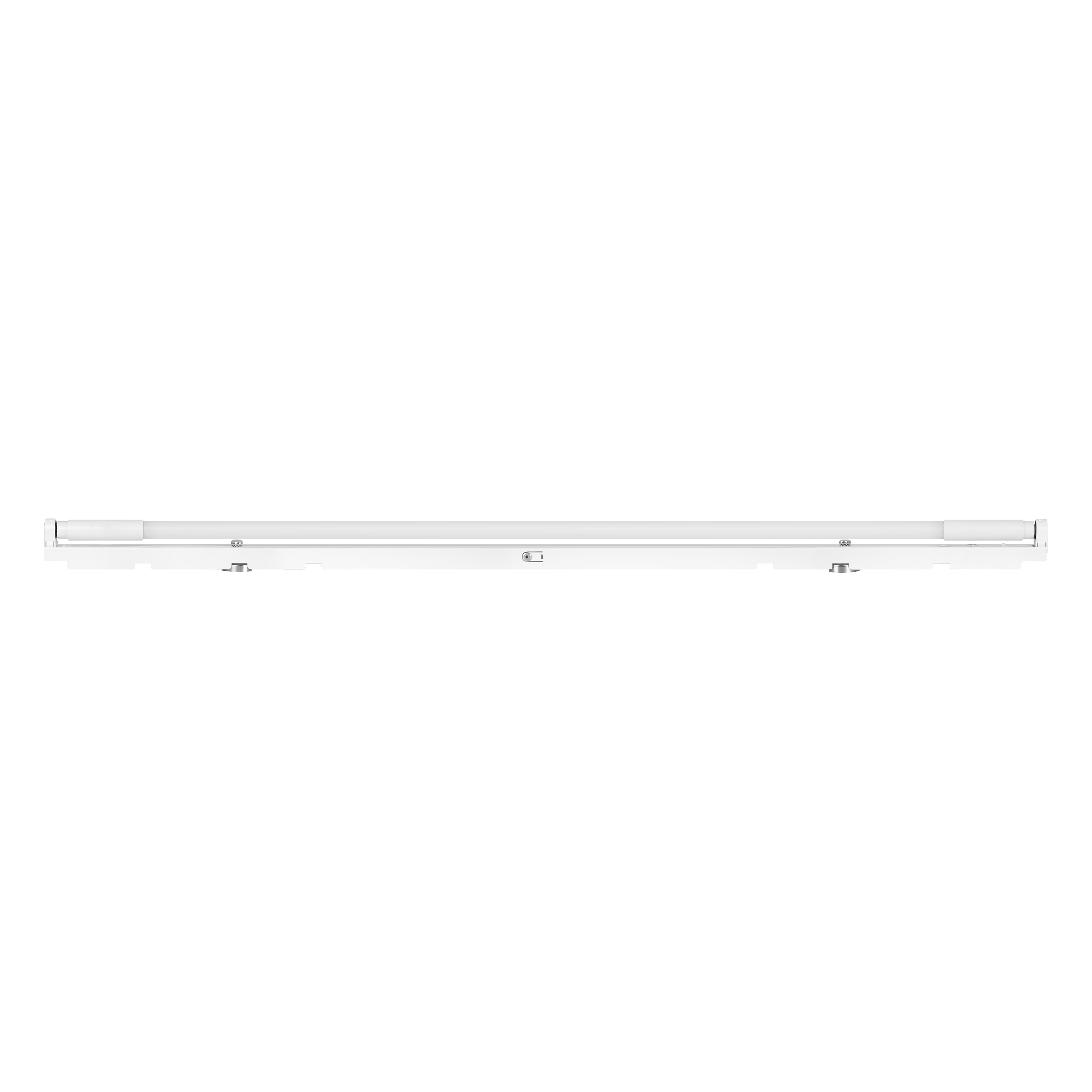

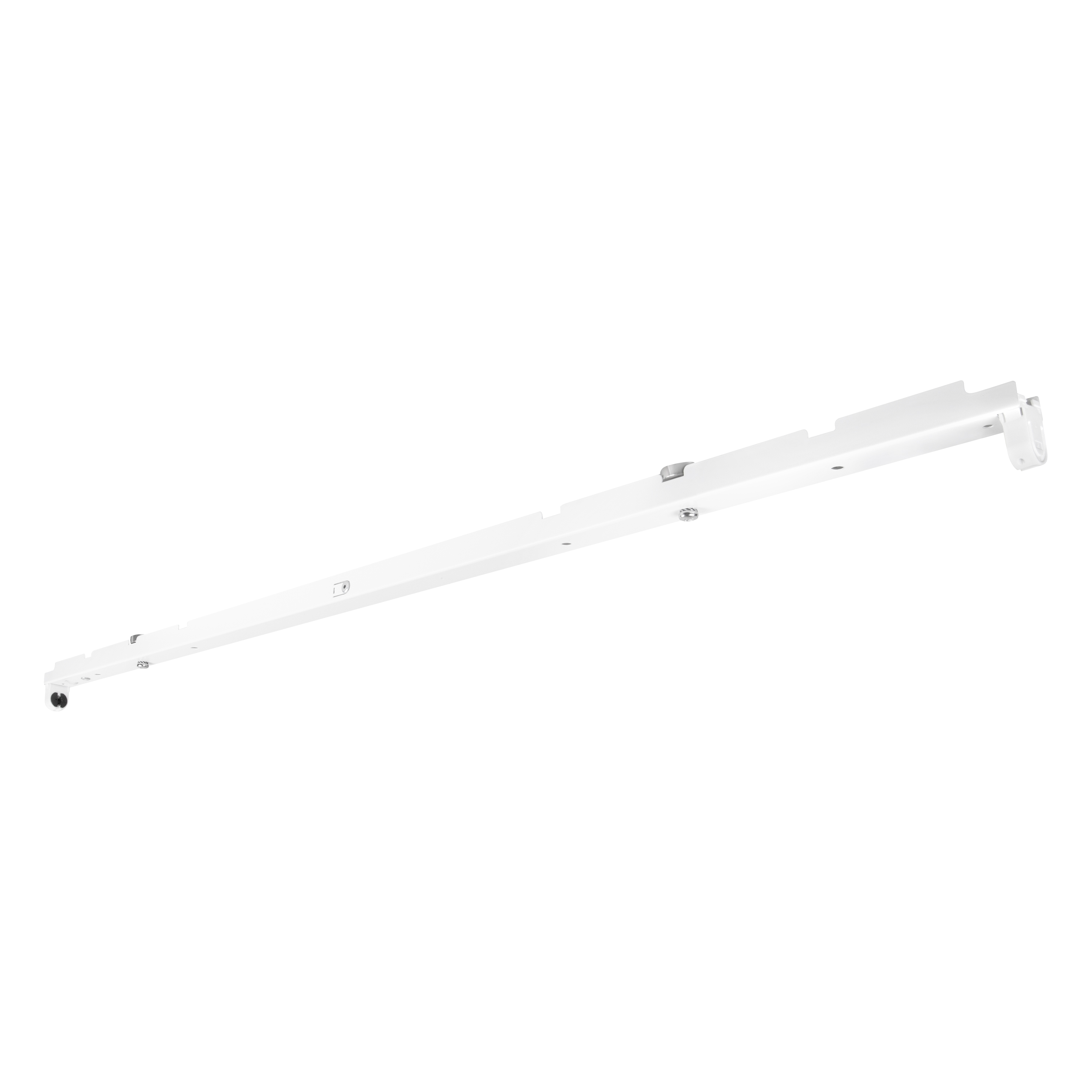

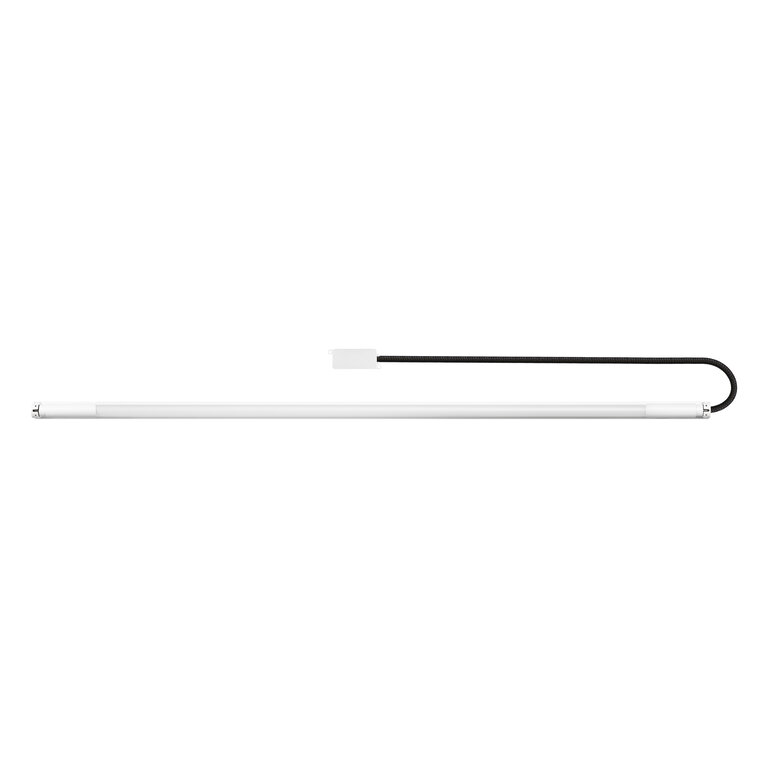

Product image: white background, diagonal
LN MAG BATTEN T5 JPG (637.5 KB)
Product image: white background, diagonal, alternative image
LN MAG BATTEN T5 JPG (1.01 MB)
Product image: white background, diagonal, alternative image
LN MAG BATTEN T5 JPG (959.49 KB)

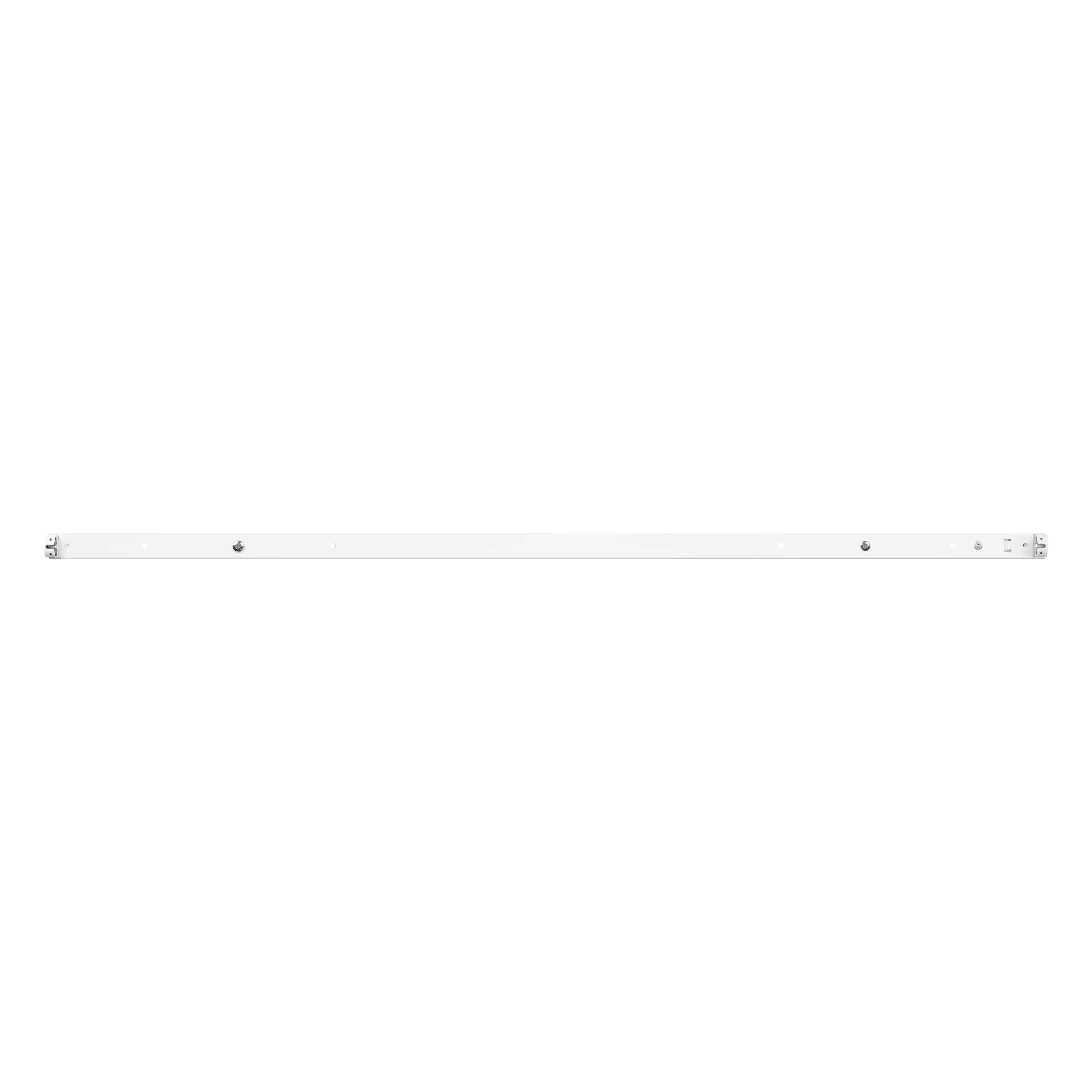

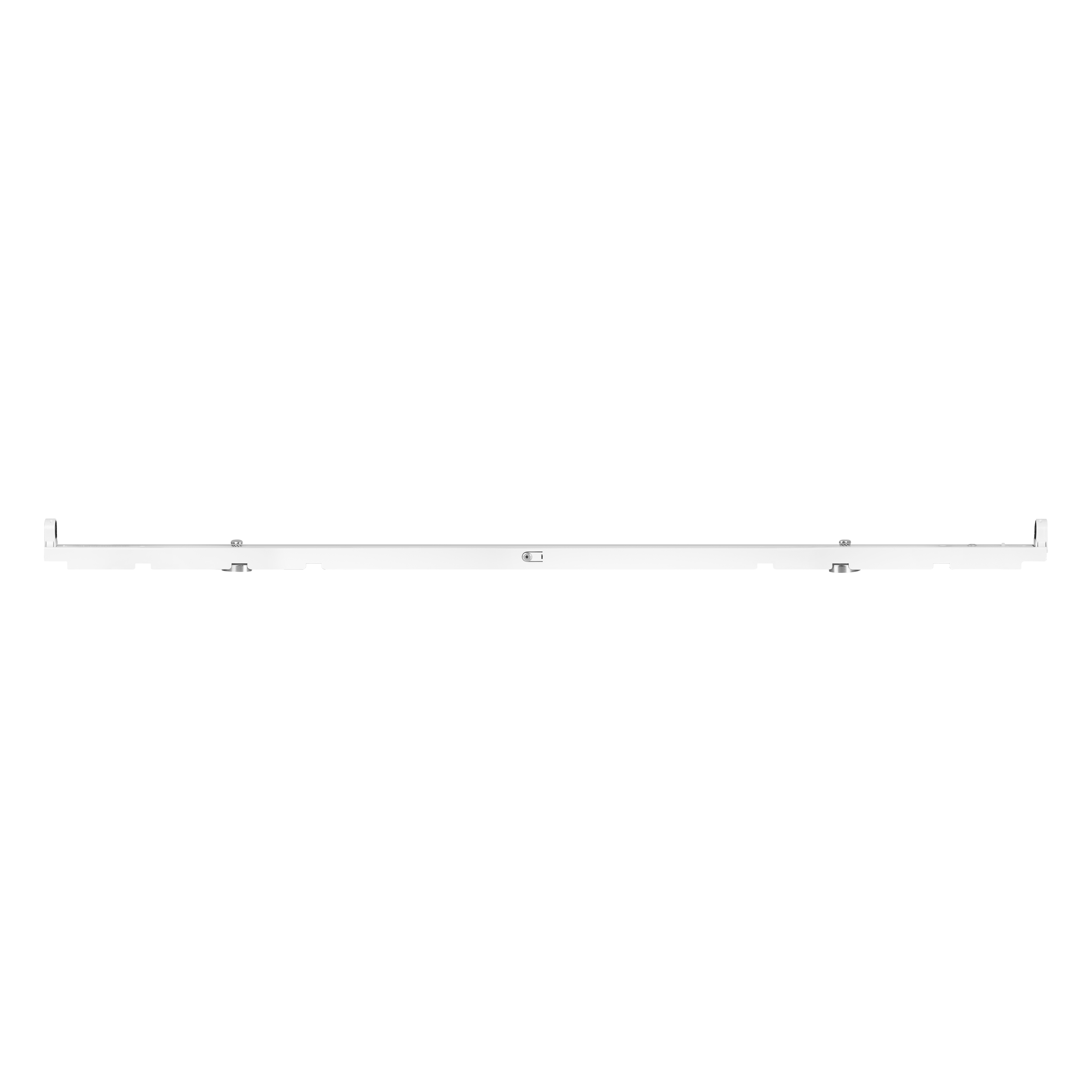

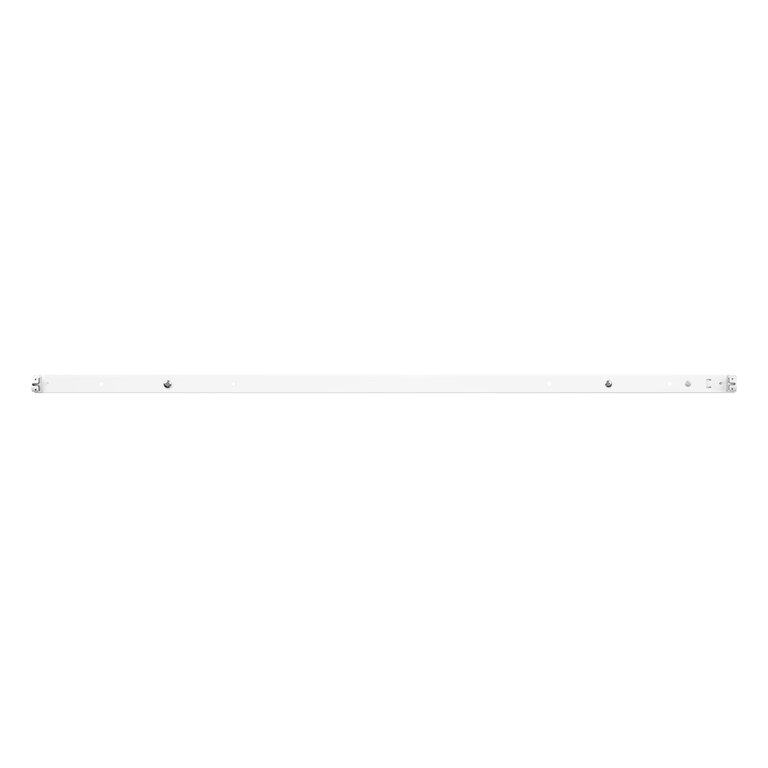

Product image: white background, upright
LN MAG BATTEN T5 JPG (626.37 KB)

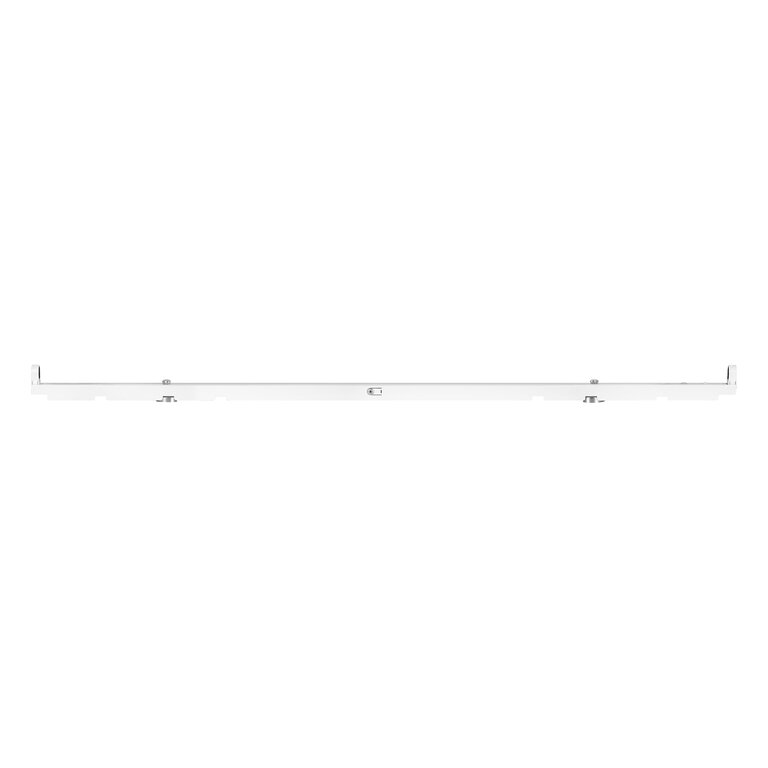

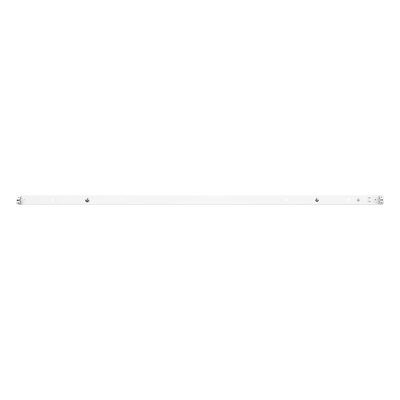

Product image: white background, upright, alternative image
LN MAG BATTEN T5 JPG (661.67 KB)

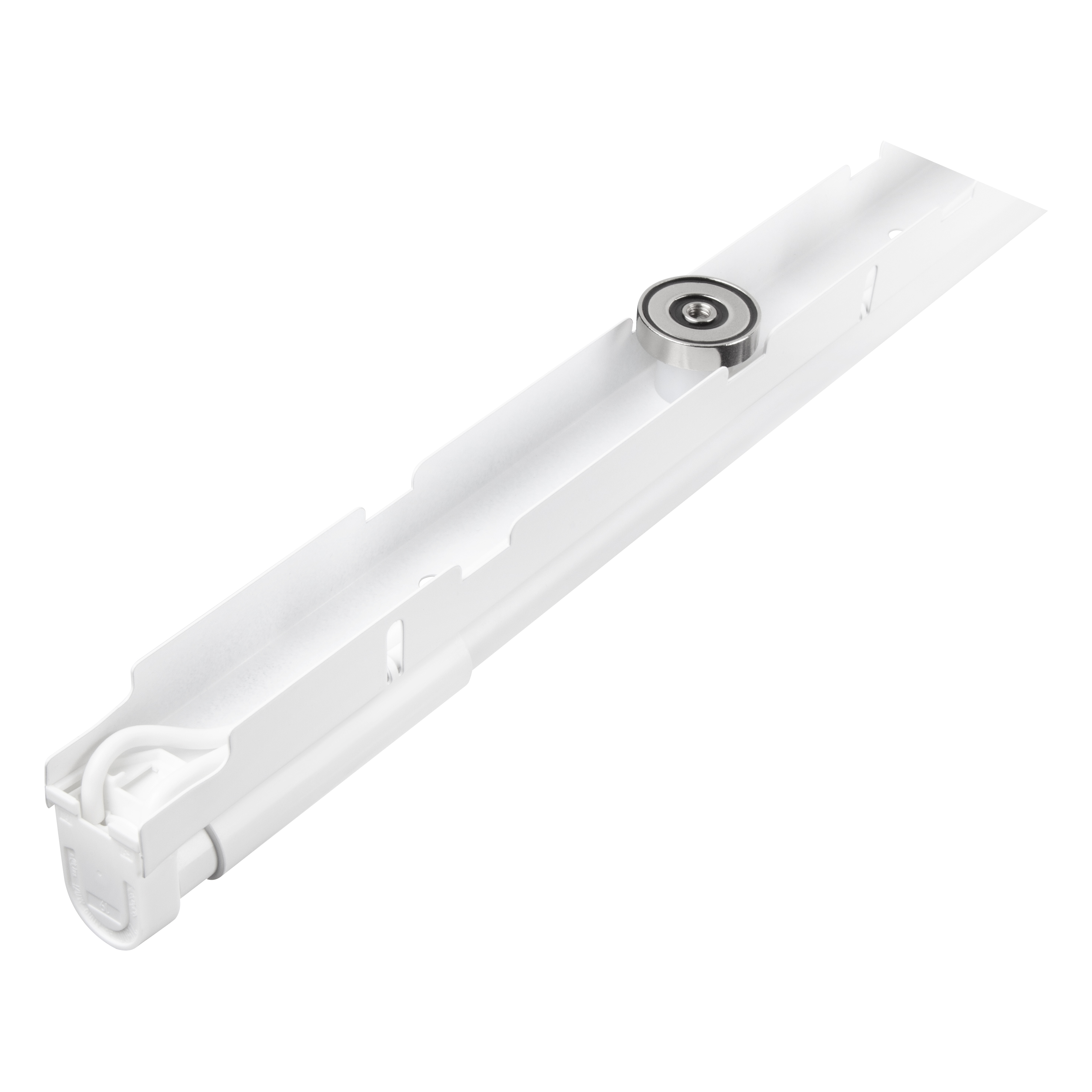

Product image: white background, spacial
LN MAG BATTEN T5 JPG (688.58 KB)
Product image: white background, with accessory, alternative image
LN MAG BATTEN T5 JPG (701.8 KB)
Product line drawing with letters
LN MAG BATTEN T5 568 SVG (28.62 KB)
Product line drawing with numbers
LN MAG BATTEN T5 568 SVG (31.55 KB)

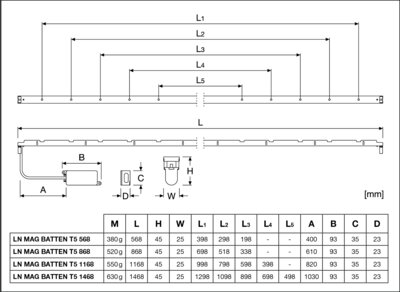

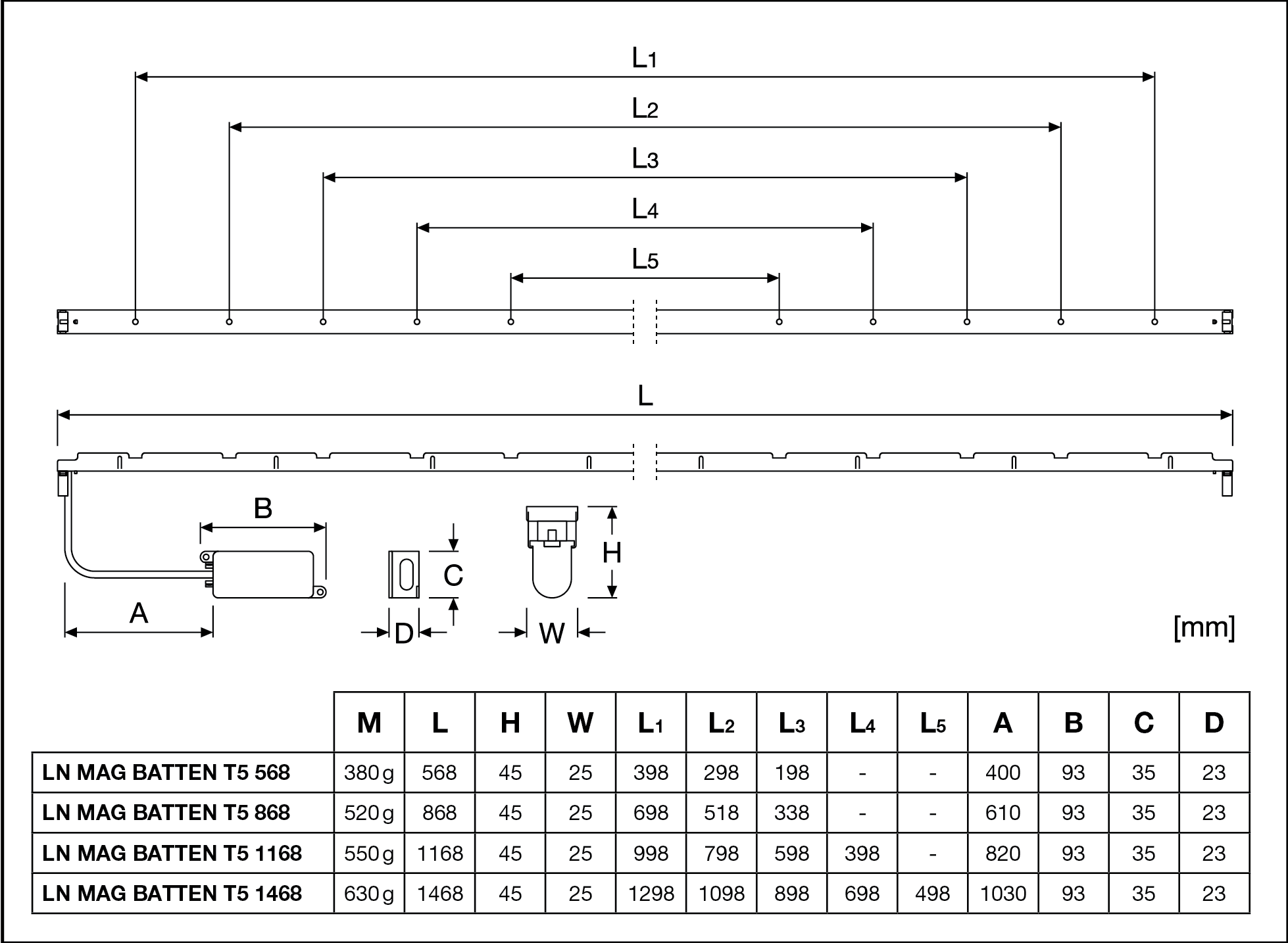

Product line drawing - technical
LN MAG BATTEN T5 568 SVG (22.02 KB)

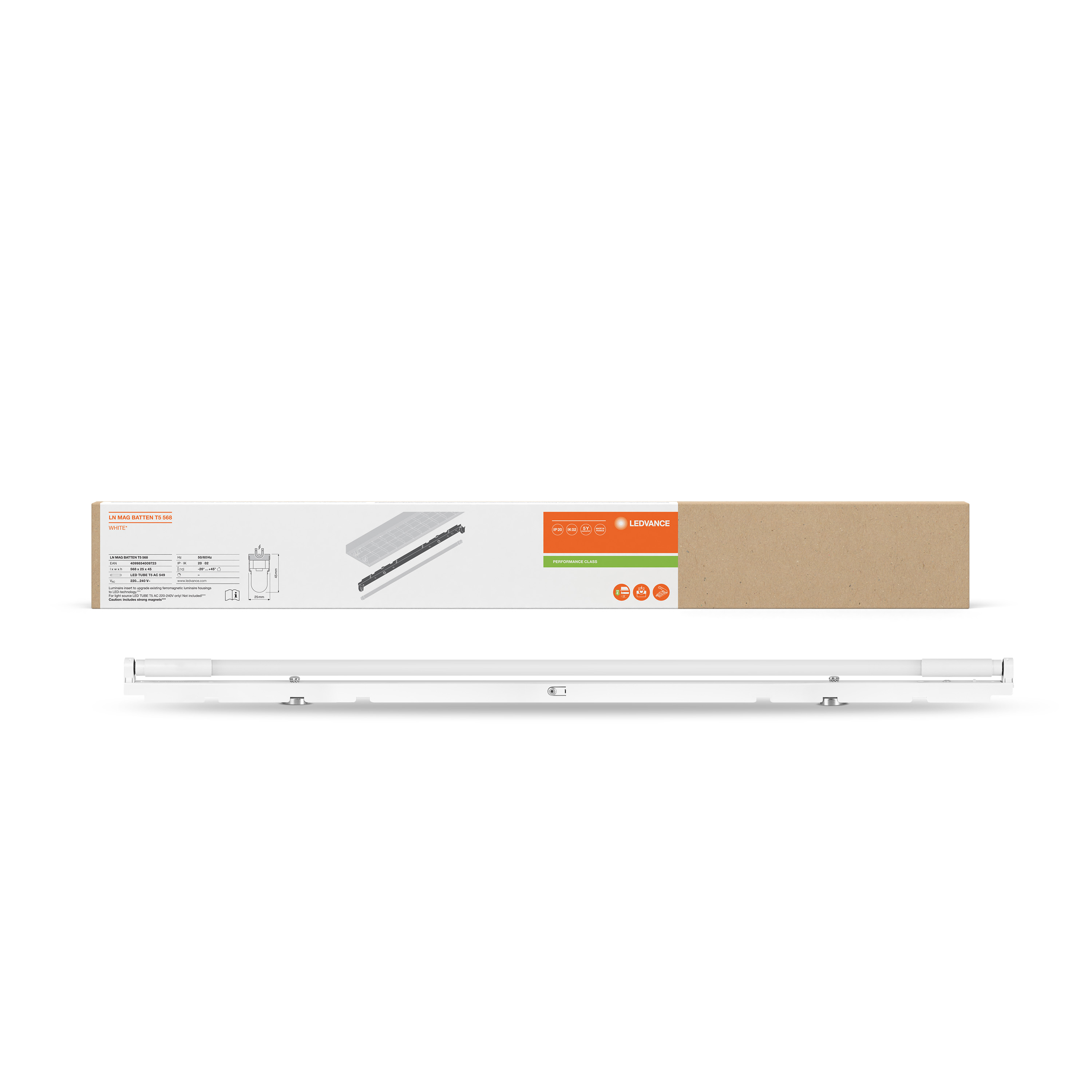

Combo Shot = Product Beauty Shot + Packaging Image
LN MAG BATTEN T5 568 JPG (463.49 KB)

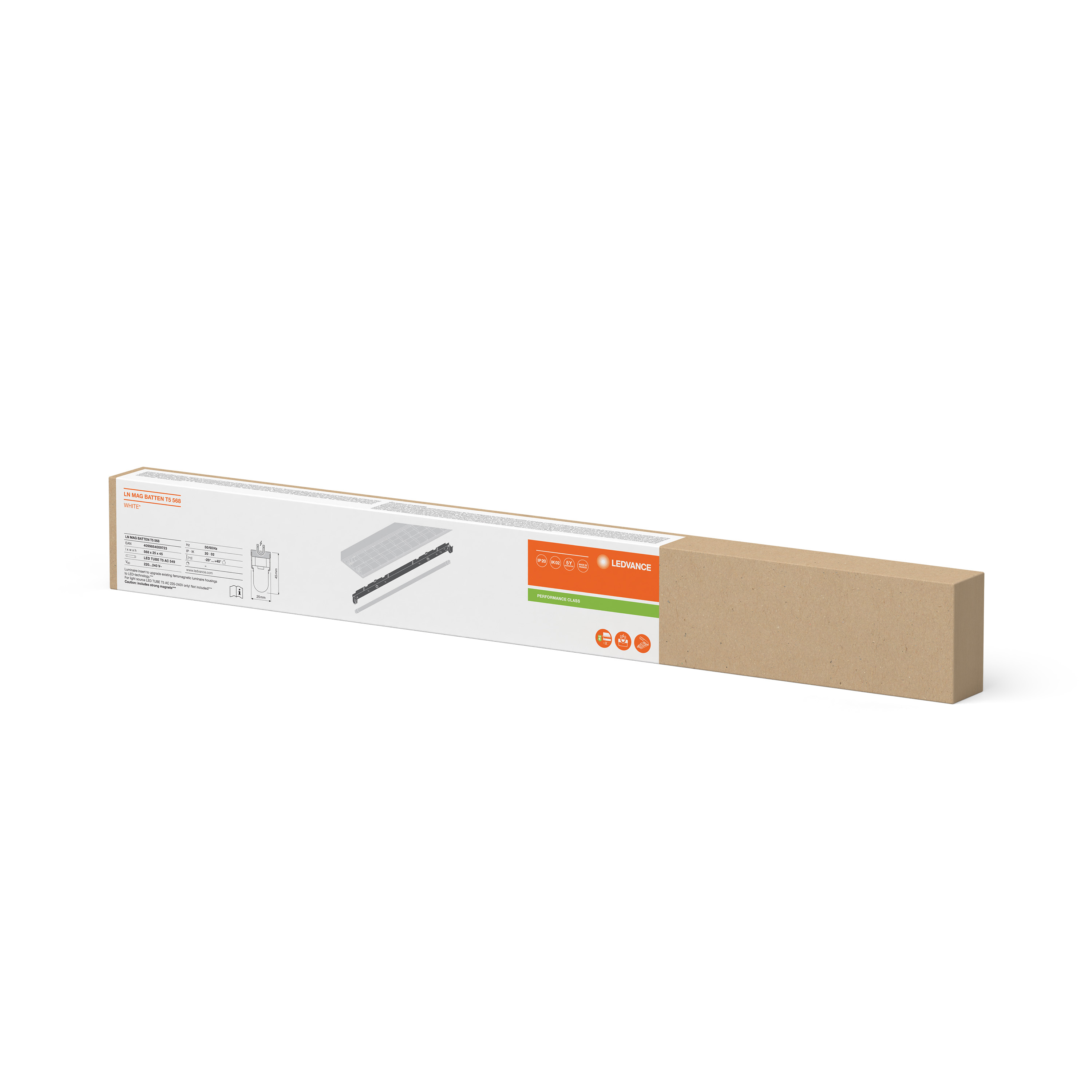

Packaging image, frontal
LN MAG BATTEN T5 568 JPG (435.84 KB)

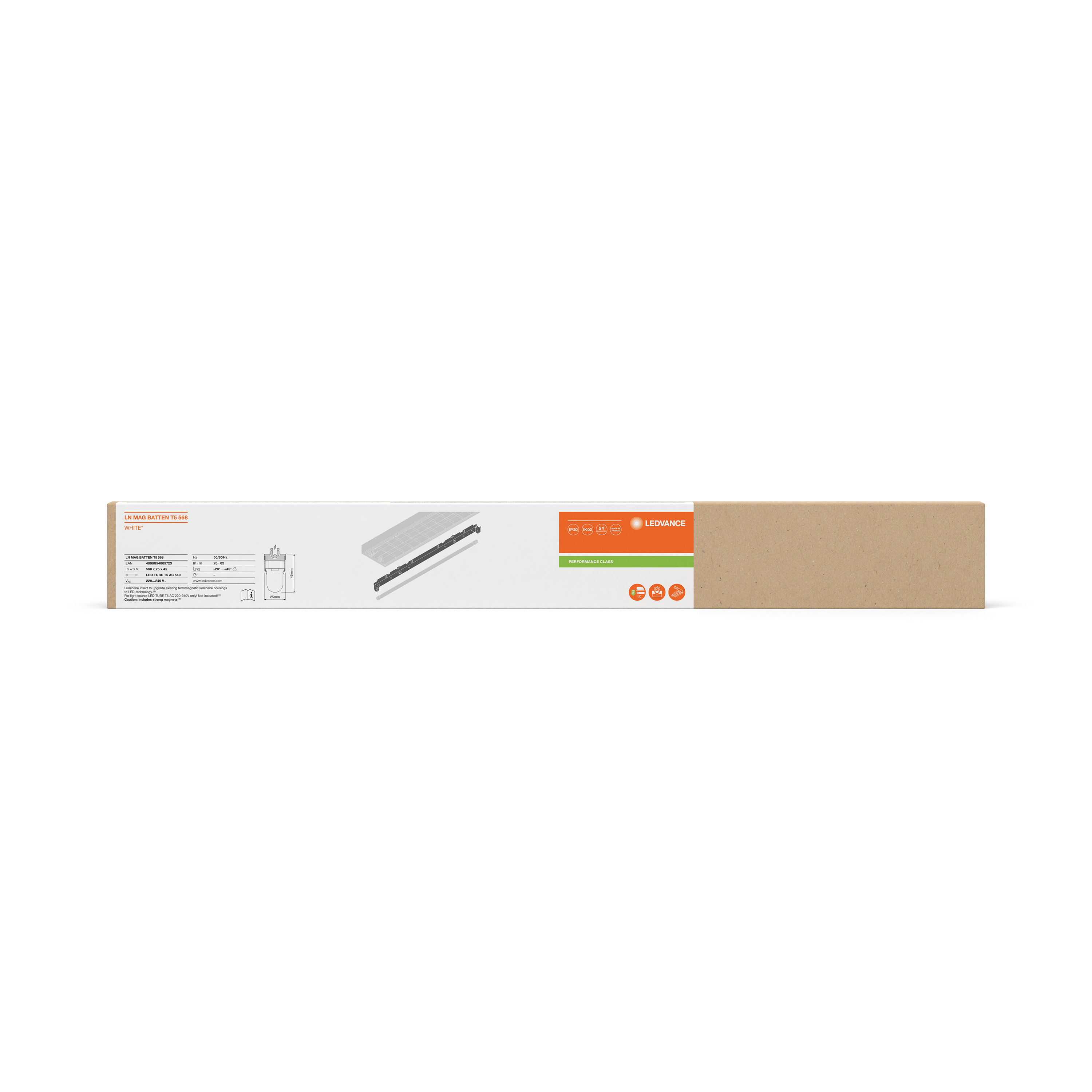

Packaging image, spacial
LN MAG BATTEN T5 568 JPG (476.01 KB)
Catalog info 1
LN MAG BATTEN T5 PNG (172.25 KB)
Catalog info 2
LN MAG BATTEN T5 PNG (85.96 KB)
Catalog info 3
LN MAG BATTEN T5 PNG (133.62 KB)
Tender documents
LINEAR MAGNETIC BATTEN T5 568-EN TXT (875 B)
EAN SEG number STK number EFO number ELDAS number UK Org
4099854009723 7218158 4136168 3310288 941606190 435265818
