LINEAR MR SWITCH

Choose your product version

SWITCH 600 P 11W MS 840

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
LN MR SWITCH 600 P 11W MS 840 11 W / 8 W / 6 W 50000 120 ° 1430 lm / 1040 lm / 780 lm No


LN MR SWITCH 600 P 11W MS 840

Product benefits
  • Highly versatile due to selectable CCT and power steps (Multi Color / Multi Lumen) on the driver
  • High color consistency with SDCM 3
  • Tool-free electrical connection due to push button connector
  • Toolless assembly of the luminaire
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 11 W / 8 W / 6 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 290…210…150 mA
Inrush current 12 A
Inrush current time Th50 120 µs
Max. number of luminaires per miniature circuit breaker B16 52
Max. number of luminaires per miniature circuit breaker C10 39
Max. number of luminaires per miniature circuit breaker C16 62
Power factor λ > 0.90
Total harmonic distortion < 30 %
Protection class I
Operating mode Integrated LED driver

Photometrical data

Luminous flux 1430 lm / 1040 lm / 780 lm 1)
Luminous efficacy 130 lm/W 2)
Color temperature 3000 K / 4000 K
Light color (designation) Warm White, Cool White
Color rendering index Ra > 80
Standard deviation of color matching < 3 sdcm
Low flicker Yes
Flickering metric (Pst LM) < 1
Stroboscope effect metric (SVM) < 0.4
Photobiological safety group acc. to EN62778 RG0
Photobiological safety group acc. to EN62471 RG0
Beam angle 120 °

1) 1320 lm / 960 lm / 720 lm @3000K
2) 120 lm/W @ 3000K

Adjustable attributes

Nominal wattage Color temperature Luminous flux Luminous efficacy
11 W 4000 K 1430 lm 130 lm/W
11 W 3000 K 1320 lm 120 lm/W
8 W 4000 K 1040 lm 130 lm/W
8 W 3000 K 960 lm 120 lm/W
6 W 4000 K 780 lm 130 lm/W
6 W 3000 K 720 lm 120 lm/W

Dimensions & Weight

Length 561.00 mm
Height 82.00 mm
Width 82.00 mm
Product weight 800.00 g

Materials & Colors

Product color White
Housing color White
RAL Color (most similar) RAL 9016
Body material Aluminum
Cover material Polycarbonate (PC)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 750 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+45 °C
Temperature range at storage -20…+80 °C
Type of connection Screwless terminal, 3-POLE (L, N, PE)
Type of protection IP44
Protection class IK (shock resistance) IK03
Dimmable No
Mounting type Surface
Mounting location Wall
Application environment Indoor
Adjustable No
With light source Yes
Replaceable light source No

Lifespan

Lifespan L70/B50 at 25 °C 100000 h 1)
Lifespan L80/B10 at 25 °C 75000 h 1)
Lifespan L90/B10 at 25 °C 50000 h
Number of switching cycles 50000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 290…210…150 mA
ECG - Output ripple current < 30 %

Certificates & Standards

Standards CE, CB, ENEC, UKCA, EAC, EPD
Luminaire with limited surface temperature, "D sign" Yes
Ball shot safe No
EPD LEDV-00044-V01.01-EN

Additional product data

Added function MULTI SELECT

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Highly versatile due to selectable CCT and power steps (Multi Color / Multi Lumen) on the driver
  • High color consistency with SDCM 3
  • Tool-free electrical connection due to push button connector
  • Toolless assembly of the luminaire
Areas of application
  • Sanitary areas
  • Bathrooms (IP44)
  • Direct replacement for luminaires with indcandescent or fluorescent lamps
Product features
  • Wall-mounted luminaire with direct light emission
  • Manual on-/off switch on the metal housing
  • Type of protection: IP44
  • Impact resistance: IK03
  • White painted metal housing (like RAL: 9003)
  • Through-wiring possible
  • Lifetime (L80/B10): up to 75,000 h (at 25 °C)
  • Diffuser and end cap material: Polycarbonate (PC)
  • Luminaire length: 560 mm
  • High luminous efficacy: up to 130 lm/W
Equipment / Accessories
  • Mounting screws and dowels included
  • Chrome-plated end caps available separately for visual enhancement
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854401831 Folding box
1		 92 mm x 577 mm x 92 mm 880.00 g 4.88 dm³
4099854401848 Shipping box
6		 602 mm x 202 mm x 309 mm 5870.00 g 37.58 dm³
Product image Product name EAN
LN MR END CAPS CR 4058075849440
User instruction / safety instructions
LINEAR MIRROR PDF (3.39 MB)
Addon technical information
LN MR 600 PDF (2.66 MB)
Legal information
Safety Insert G1120549 7 PDF (178.17 KB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Legal information
LN MR SENSOR_SWITCH PDF (812.89 KB)
Declarations of conformity
LN MR PDF (289.58 KB)
Certificates
ENEC LN MR PDF (369.69 KB)
EPD
EPD EN LINEAR MR PDF (602.06 KB)

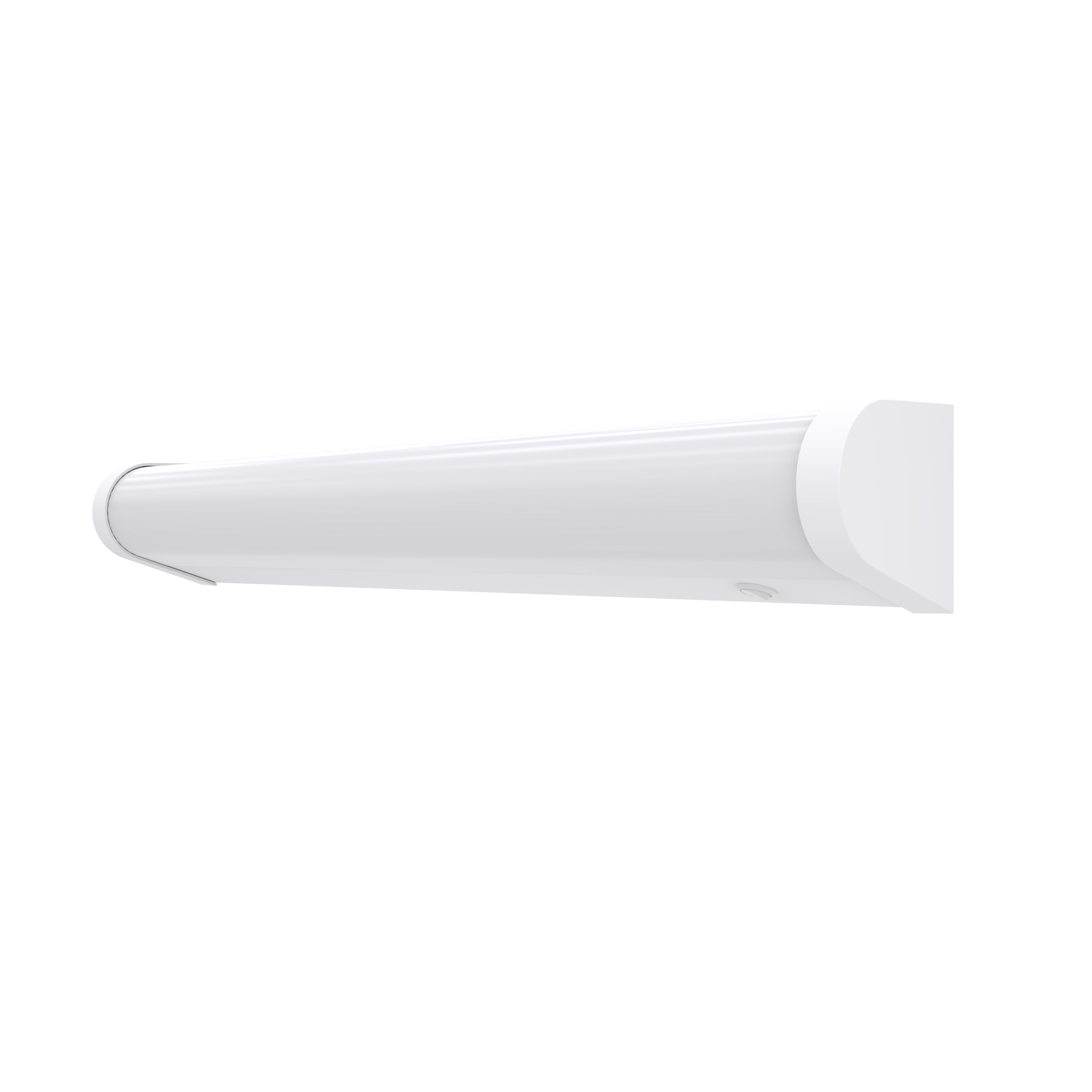

Product image: white background, diagonal
LN MR SWITCH JPG (95.27 KB)

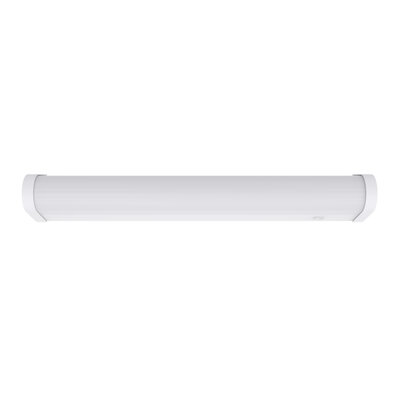

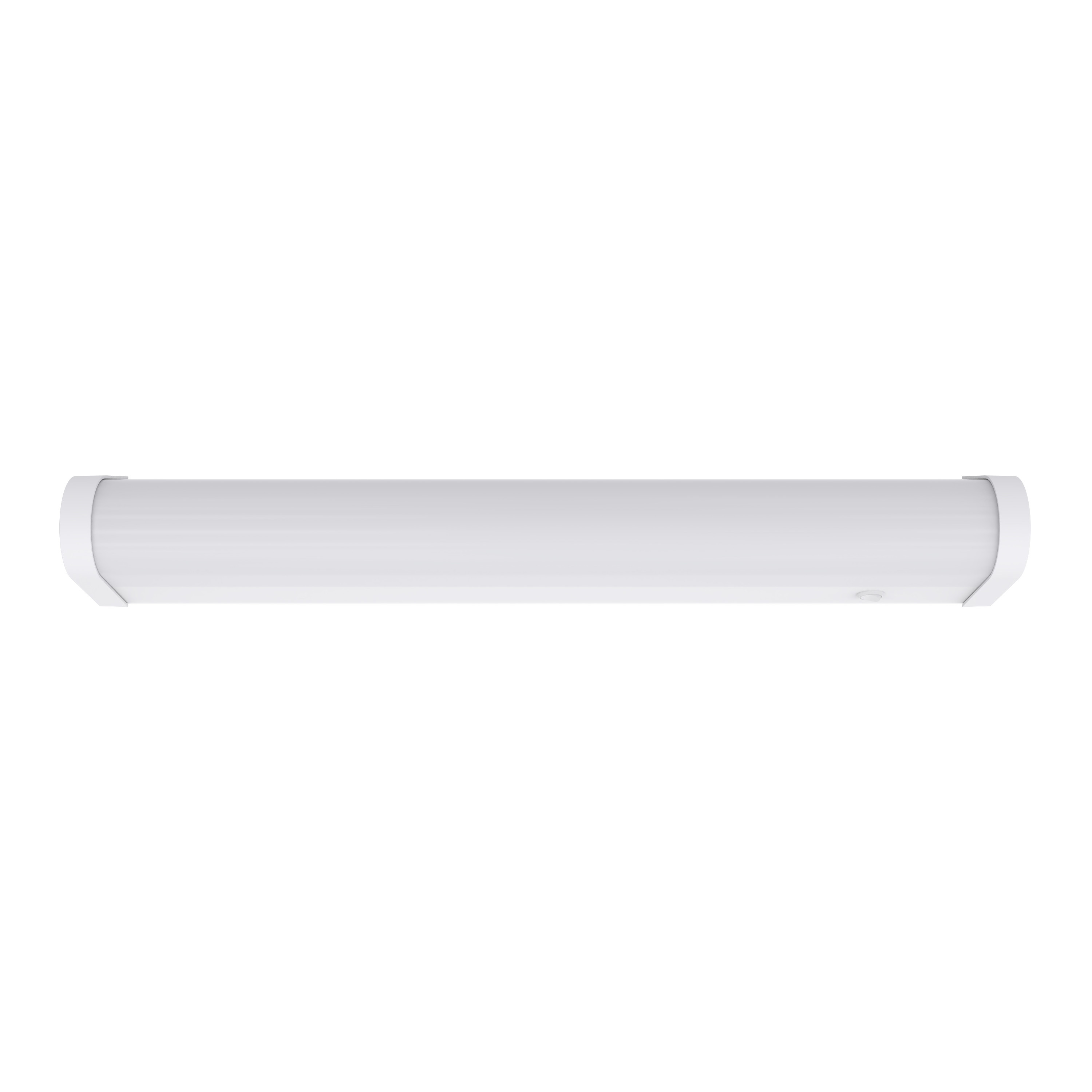

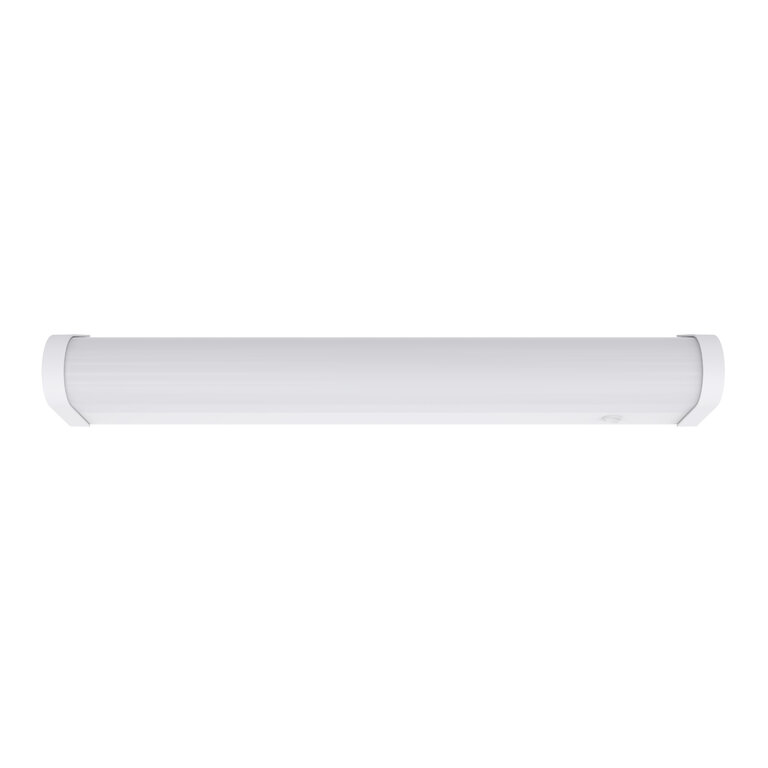

Product image: white background, horizontal
LN MR SWITCH JPG (102.44 KB)

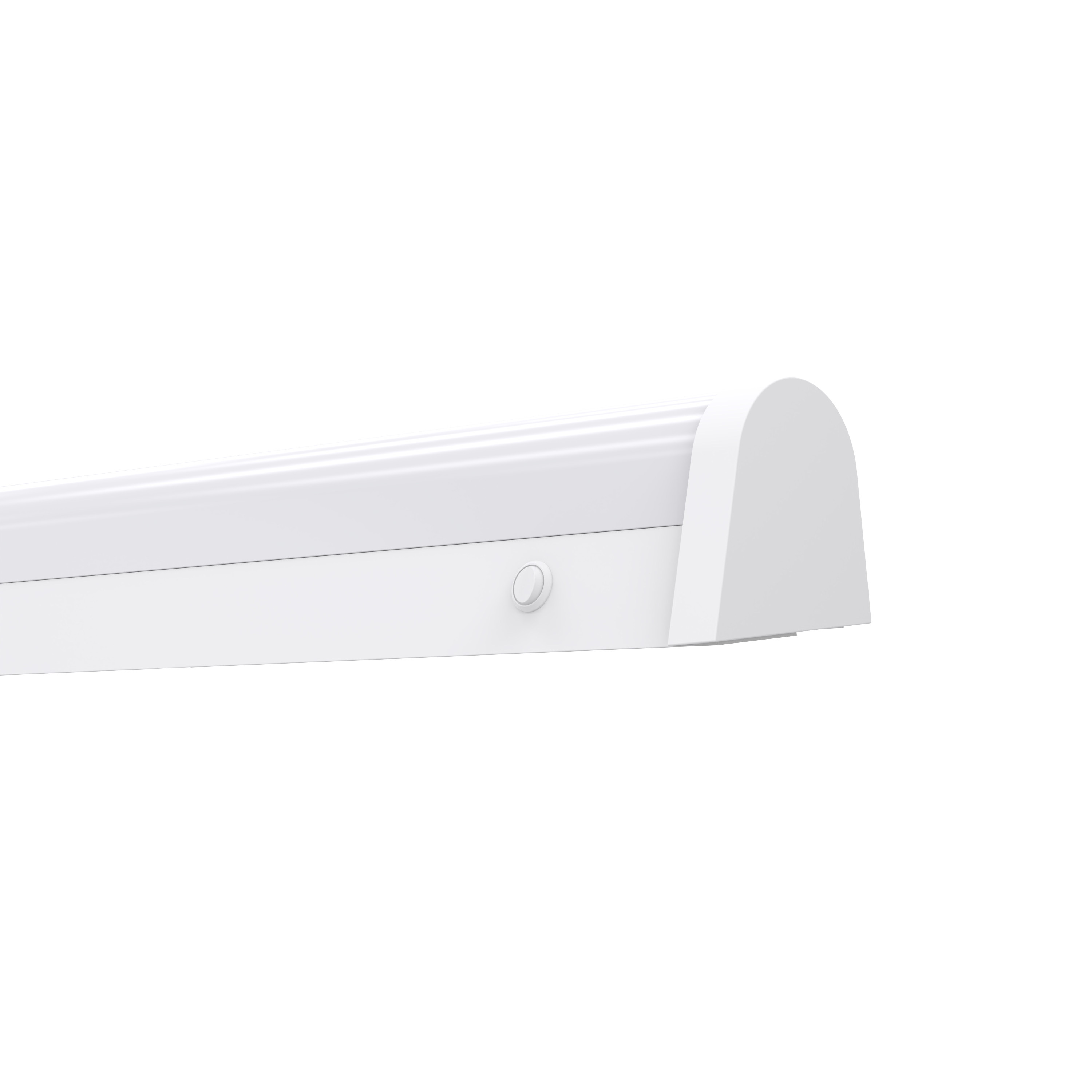

Product image: white background, upright
LN MR SWITCH JPG (126.85 KB)
Product image: white background, internal view
LN MR JPG (164.9 KB)
Product line drawing with letters
LINEAR MIRROR SVG (12.83 KB)
Product line drawing with numbers
LINEAR MIRROR SVG (15.86 KB)
Product line drawing - technical
LINEAR MIRROR SVG (6.26 KB)

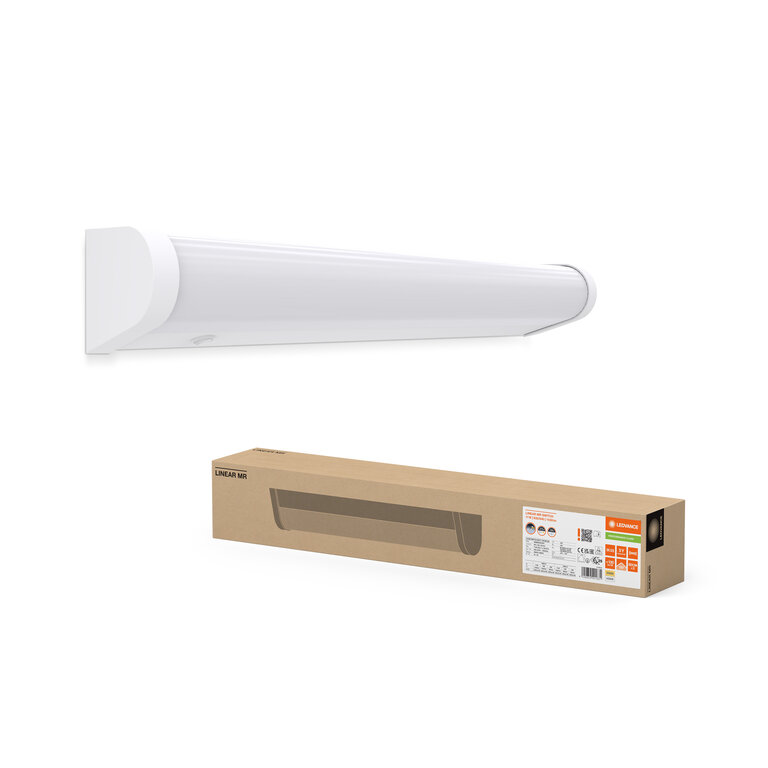

Combo Shot = Product Beauty Shot + Packaging Image
LN MR SWITCH 600 P 11W MS 840 JPG (498.41 KB)
Packaging image, frontal
LN MR SWITCH 600 P 11W MS 840 JPG (507.79 KB)
Packaging image, spacial
LN MR SWITCH 600 P 11W MS 840 JPG (536.33 KB)
Catalog info 1
LN MR 600 PNG (68.99 KB)
Catalog info 2
LN MR 600 PNG (84.65 KB)
Catalog info 3
LN MR 600 PNG (46.67 KB)
IES file (IES)
LN MR 600 Switch 4000K 1430lm IES (5.1 KB)
LDT file (Eulumdat)
LN MR 600 Switch 4000K 1430lm LDT (4.25 KB)
ULD file (DIALux)
LN MR SWITCH 600 P 11 W MS 840 ULD (226.3 KB)
ROLF file (RELUX)
LN MR SWITCH 600 P 11 W MS 840 ROLF (143.97 KB)
UGR file (UGR table)
LN MR 600 Switch 4000K 1430lm PNG (62.89 KB)
Light distribution curve type cone
LN MR 600 Switch 4000K 1430lm SVG (16.76 KB)
Light distribution curve type polar
LN MR 600 Switch 4000K 1430lm SVG (19.99 KB)
BIM Revit 3D
Linear Mirror ZIP (928.48 KB)
CAD STEP 3D
LN MR SWITCH STEP (1.56 MB)
Tender documents
LINEAR MR SWITCH SWITC H 600 P 11W MS 840-en TXT (2.04 KB)
EAN STK number EFO number ELDAS number UK Org
4099854401831 4161003 3341720 941606150 438157541
