BATTEN COMBO

Choose your product version

NEW

600 V 18W MS 840 IP20 WT

NEW

1200 V 36W MS 840 IP20 WT

NEW

1500 V 48W MS 840 IP20 WT

NEW

1800 V 65W MS 840 IP20 WT

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
BAT CBO 600 V 18W MS 840 IP20 WT 18 W / 9 W 25000 110 ° 2700 lm / 1380 lm No
BAT CBO 1200 V 36W MS 840 IP20 WT 36 W / 18 W 25000 110 ° 5400 lm / 2750 lm No
BAT CBO 1500 V 48W MS 840 IP20 WT 48 W / 24 W 25000 110 ° 7200 lm / 3670 lm No
BAT CBO 1800 V 65W MS 840 IP20 WT 65 W / 33 W 25000 110 ° 9750 lm / 5050 lm No
NEW


BAT CBO 1200 V 36W MS 840 IP20 WT

Product benefits
  • Highly versatile due to selectable CCT and power steps (Multi Color / Multi Lumen) on the driver
  • Plug & Upgrade concept for easy conversion to sensor or emergency luminaire
  • Replacement of conventional T8 luminaires with up to 9,750 lm
  • Robust structure with IK08
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 36 W / 18 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 170mA / 90 mA
Inrush current 13.75 A
Inrush current time Th50 118 µs
Max. number of luminaires per miniature circuit breaker B16 48
Max. number of luminaires per miniature circuit breaker C10 36
Max. number of luminaires per miniature circuit breaker C16 58
Power factor λ > 0.90
Total harmonic distortion < 20 %
Protection class I
Operating mode Integrated LED driver

Photometrical data

Luminous flux 5400 lm / 2750 lm
Luminous efficacy 150 lm/W / 153 lm/W
Color temperature 4000 K / 6500 K
Light color (designation) Cool White, Cool Daylight
Color rendering index Ra ≥80
Standard deviation of color matching < 5 sdcm
Low flicker Yes
Flickering metric (Pst LM) < 1
Stroboscope effect metric (SVM) < 0.4
Photobiological safety group acc. to EN62778 RG1
Beam angle 110 °

Adjustable attributes

Nominal wattage Color temperature Luminous flux Luminous efficacy
18 W 4000 K 2750 lm 153 lm/W
18 W 6500 K 2750 lm 153 lm/W
36 W 4000 K 5400 lm 150 lm/W
36 W 6500 K 5400 lm 150 lm/W

Dimensions & Weight

Length 1248.80 mm
Height 70.00 mm
Width 64.00 mm
Product weight 1270.00 g

Materials & Colors

Product color White
Housing color White
Body material Polycarbonate (PC)
Cover material Polycarbonate (PC)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Push-in
Protection class IK (shock resistance) IK08
Dimmable No
Mounting type Surface
Mounting location Wall, Ceiling
Application environment Indoor
Adjustable No
With light source Yes
Replaceable light source No

Lifespan

Lifespan L70/B50 at 25 °C 54000 h 1)
Lifespan L80/B10 at 25 °C 42000 h 1)
Lifespan L90/B10 at 25 °C 32000 h
Number of switching cycles 25000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

ECG - Output ripple current < 5 %

Emergency lighting

Type of Emergency Lighting (EL) Optional EL unit (battery and controller) for decentral operation available separately

Certificates & Standards

Standards CE, CB, ERP, UKCA, EAC
Ball shot safe No
Replaceable light source (EPREL) Not replaceable

Additional product data

Product remark Available from June 2025
Added function MULTI SELECT

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Highly versatile due to selectable CCT and power steps (Multi Color / Multi Lumen) on the driver
  • Plug & Upgrade concept for easy conversion to sensor or emergency luminaire
  • Replacement of conventional T8 luminaires with up to 9,750 lm
  • Robust structure with IK08
Areas of application
  • Direct replacement for luminaires with fluorescent lamps
  • Corridors, stairwells, basements
  • Industrial and storage facilities
  • Public areas
  • Indoor applications
Product features
  • High luminous efficacy: up to 153 lm/W
  • Luminous flux: up to 9,750 lm
  • Impact resistance: IK08
  • Push wire terminal for tool-free connection
  • Lifetime (L70/B50): up to 54,000 h (at 25 °C)
  • Ambient temperature in operation: -20…+40 °C
  • Through wiring possible
Equipment / Accessories
  • Plug & Upgrade high frequency sensor and emergency kit separately available
  • DP BAT CBO EL KIT only compatible with 1200, 1500 and 1800 versions (not with 600 version)
  • Mounting screws and dowels included
Safety advice
  • Values of type of protection, impact resistance and ambient temperature range may differ depending on the installation of the components.
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854528972 Folding box
1		 72 mm x 1,262 mm x 77 mm 1455.00 g 7.00 dm³
4099854528989 Shipping box
8		 1,282 mm x 157 mm x 324 mm 12300.00 g 65.21 dm³
Product image Product name EAN
DP BATTEN CBO SENSOR LS PD 8 MW INT 4099854521461
DP BATTEN CBO EL CG 200V 3H MT AT 4099854521430
DP BATTEN CBO EL BAT 6.4V 1.8AH 2WH 4099854521515
User instruction / safety instructions
BATTEN CBO PDF (3.71 MB)
Legal information
BATTEN COMBO PDF (2.48 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Legal information
Safety Insert G1120549 7 PDF (178.17 KB)
Legal information
Legal Insert DP CBO AN D BATTEN CBO PDF (841.65 KB)
Declarations of conformity
BATTEN CBO PDF (365.76 KB)

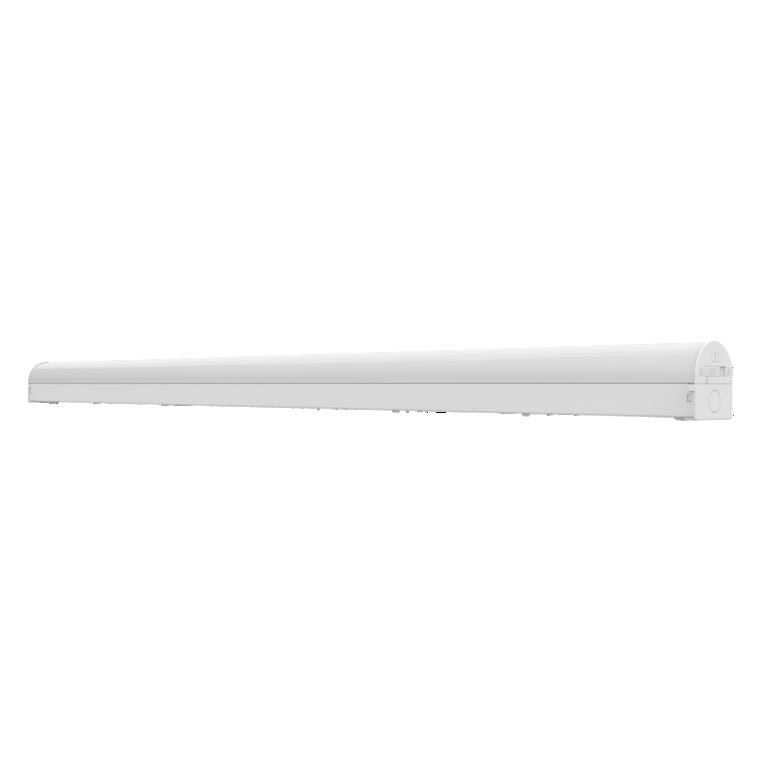

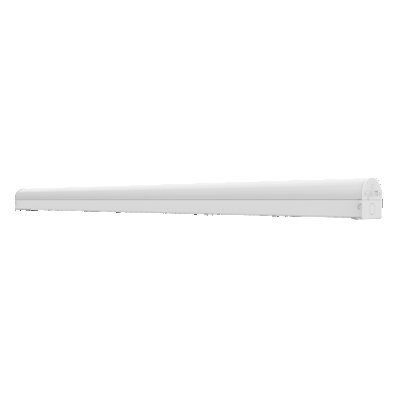

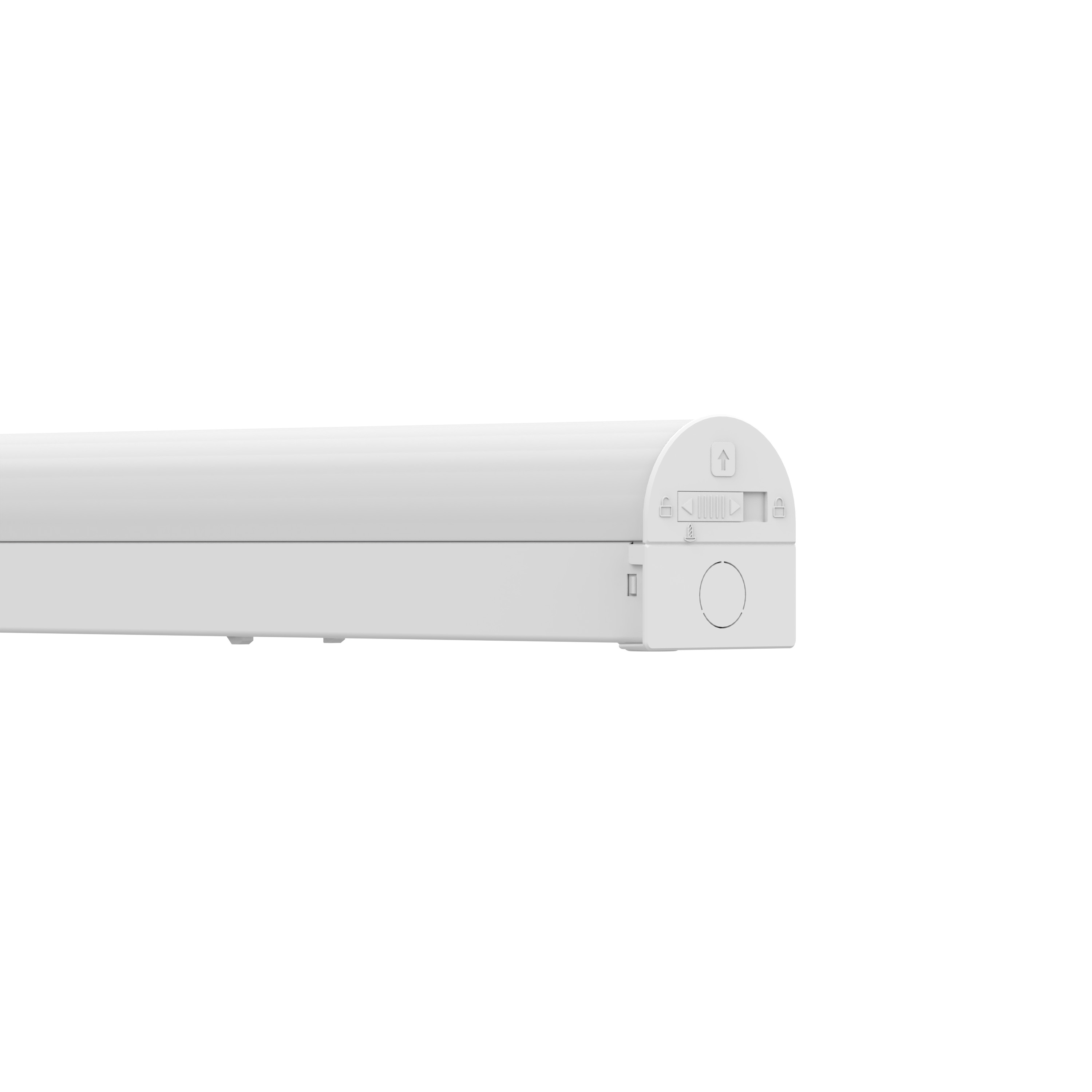

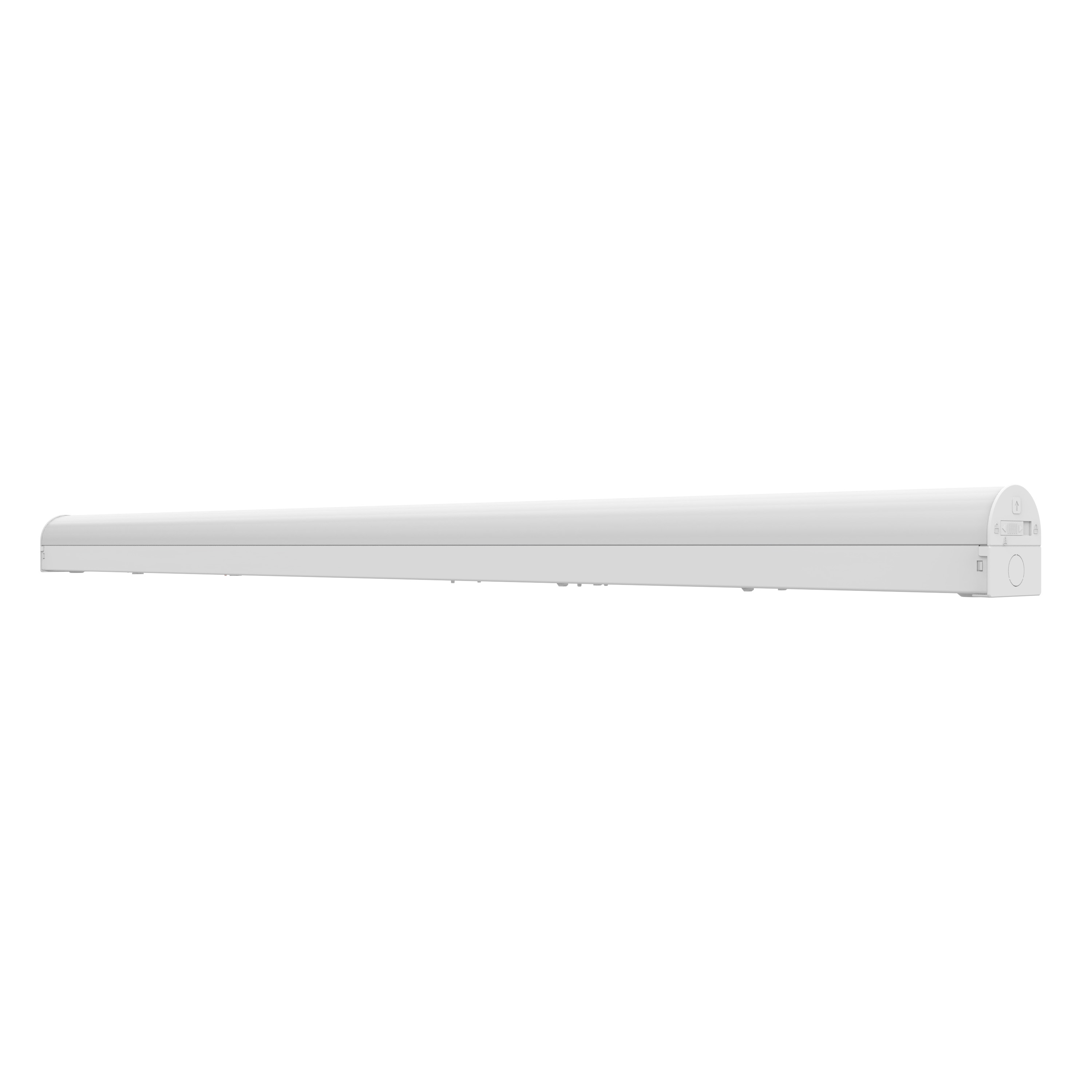

Product image: white background, diagonal
Batten CBO diagonal 12 00 JPG (303.53 KB)
Product image: white background, diagonal, alternative image
Batten CBO diagonal al ternative 1200 JPG (309.97 KB)

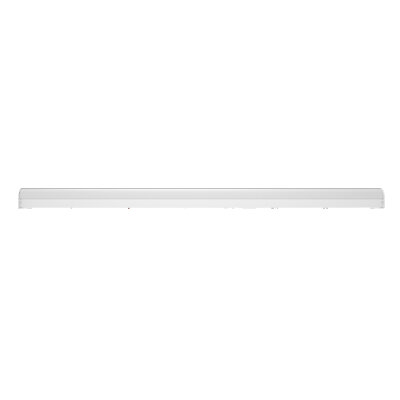

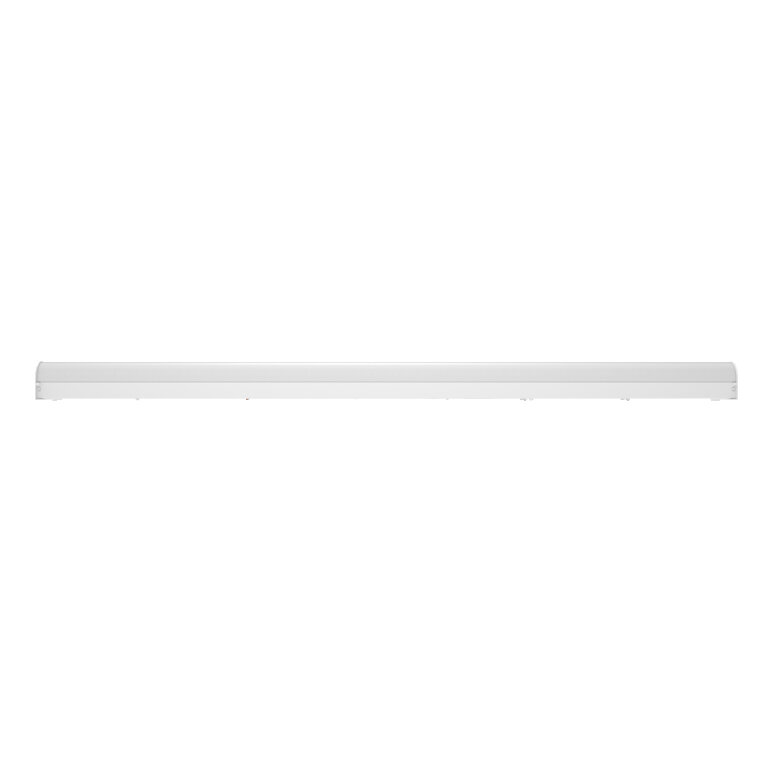

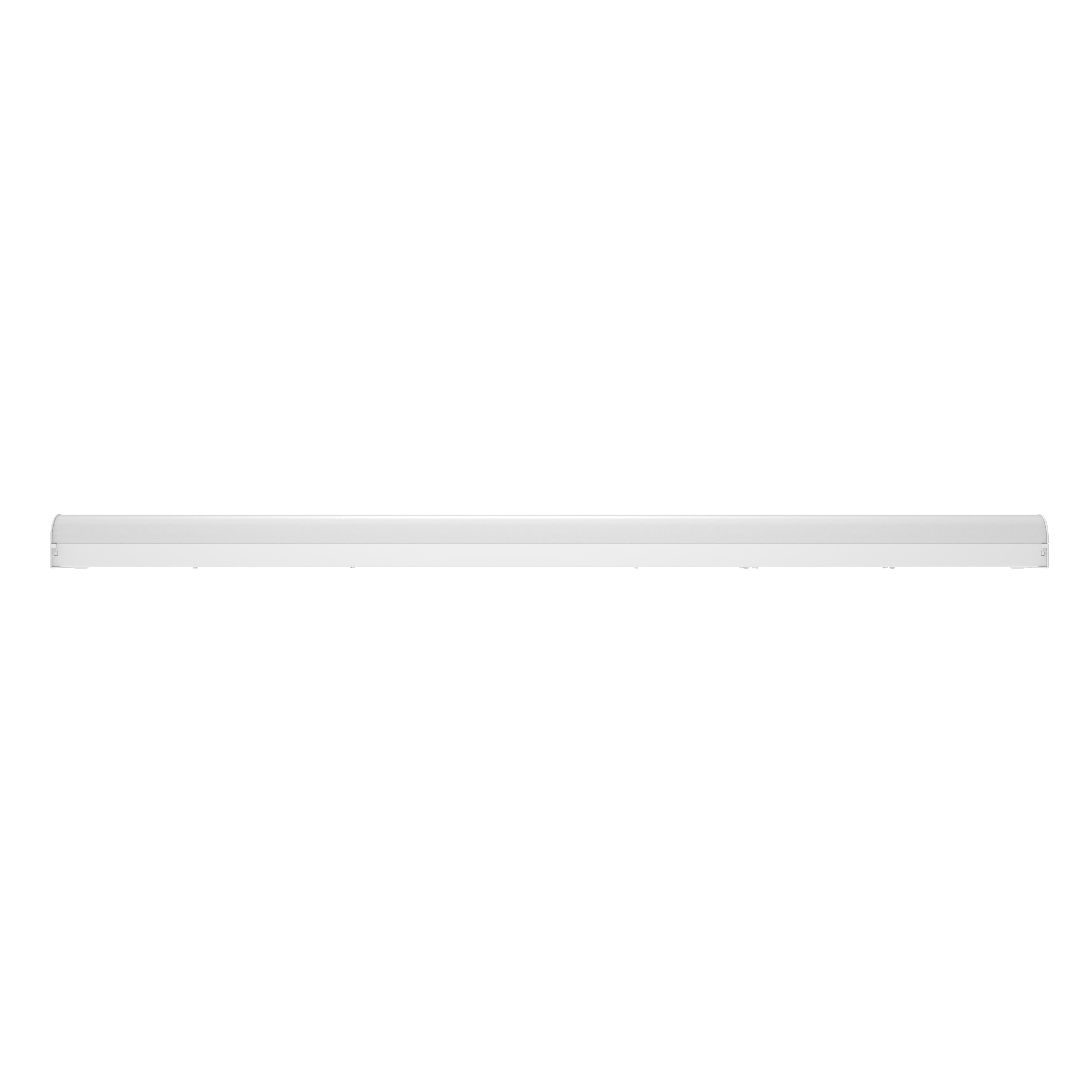

Product image: white background, horizontal
Batten CBO horizontal 1200 JPG (298.23 KB)

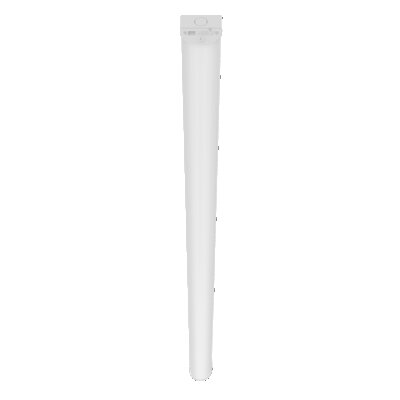

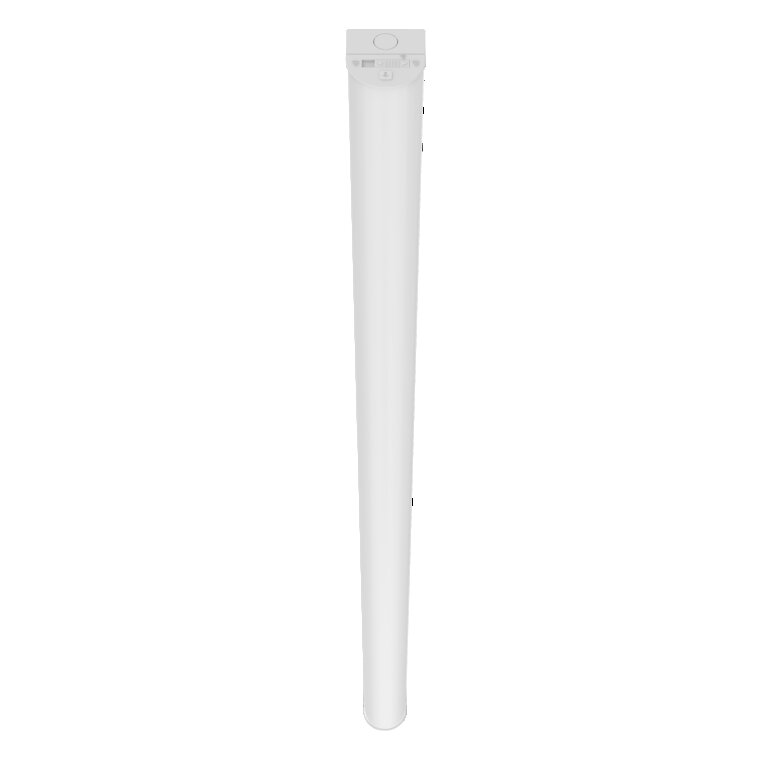

Product image: white background, upright

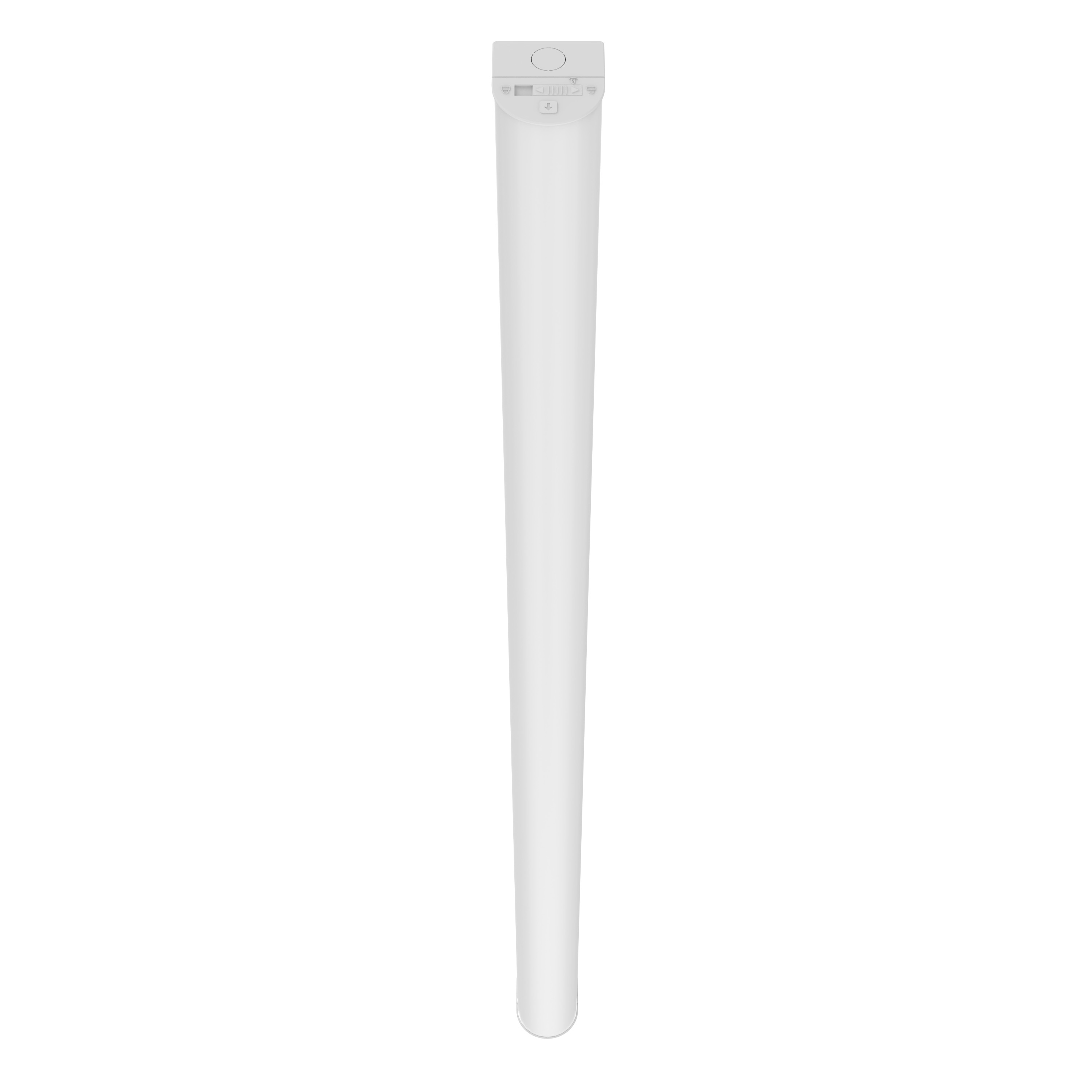

Batten CBO spacial 120 0 JPG (296.96 KB)
Product image: white background, explosion
Batten Combo PNG (14.38 MB)
Product image: white background, explosion
Batten Combo PNG (1.47 MB)
Product line drawing with letters
SVG (57.75 KB)
Product line drawing with numbers
BATTEN CBO 1200 V 36W MS 840 WT SVG (74.85 KB)
Product line drawing - technical
BATTEN CBO 1200 V 36W MS 840 WT SVG (53.84 KB)
IES file (IES)
BATTEN CBO 600 V 18W M S 840 WT IES (3.26 KB)
IES file (IES)
BATTEN CBO 600 V 18W M S 865 WT IES (3.26 KB)
LDT file (Eulumdat)
BATTEN CBO 600 V 18W M S 840 WT LDT (2.69 KB)
LDT file (Eulumdat)
BATTEN CBO 600 V 18W M S 865 WT LDT (2.69 KB)

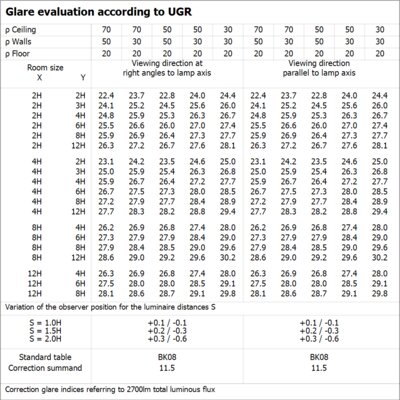

UGR file (UGR table)
