LINEAR SURFACE IP44 EMERGENCY

Choose your product version

1200 36 W 4000 K WT

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
LN SF IP44 EM 1200 36 W 4000 K WT 36.00 W 25000 120 ° 4000 lm No


LN SF IP44 EM 1200 36 W 4000 K WT

Product benefits
  • Seamless integration of luminaires with emergency lighting function into general lighting
  • Easy wiring thanks to included prewired driver and battery for Emergency lighting function
  • Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
  • Convenient visualization of results of automatic test with an included control LED
  • Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
  • High luminous efficacy in normal operation
  • 3 years guarantee
  • Low maintenance and low operational costs
  • Cable entry on the back of the luminaire and on each end-caps for easy electrical connection
  • Easy and quick installation
  • Low flicker light thanks to special electronic control gear
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 36.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 180 mA
Inrush current 15.6 A
Inrush current time Th50 265 µs
Max. number of luminaires per miniature circuit breaker B16 16
Max. number of luminaires per miniature circuit breaker C10 16
Max. number of luminaires per miniature circuit breaker C16 25
Power factor λ ≥0.90
Total harmonic distortion ≤ 20 %
Protection class I
Operating mode Integrated LED driver

Photometrical data

Luminous flux 4000 lm
Luminous efficacy 100 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra ≥80
Standard deviation of color matching ≤4 sdcm
Luminous intensity -
Low flicker Yes
Flickering metric (Pst LM) -
Stroboscope effect metric (SVM) -
Photobiological safety group acc. to EN62778 RG1
Photobiological safety group acc. to EN62471 RG0
Beam angle 120 °

Dimensions & Weight

Length 1199.00 mm
Height 64.50 mm
Width 145.00 mm
Product weight 2400.00 g

Materials & Colors

Product color White
Housing color White
Body material Stainless steel
Cover material Polycarbonate (PC)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range +5…+40 °C
Temperature range at storage 5…+35 °C
Type of connection Screwless terminal, 5-Pole (L, N, PE, DA+, DA-)
Type of protection IP44
Protection class IK (shock resistance) IK08
Dimmable No
Mounting type Surface/Suspended
Mounting location Ceiling
Application environment Indoor
With light source Yes
Replaceable light source No

Lifespan

Lifespan L70/B50 at 25 °C 60000 h 1)
Lifespan L80/B10 at 25 °C 40000 h 1)
Lifespan L90/B10 at 25 °C 25000 h
Number of switching cycles 25000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 1050 mA

BATTERY

Type of Battery LiFePO4
Battery size [GMS] Others
Nominal voltage of battery 3.2 V
Nominal capacity of battery 4500 mAh
Battery charging time < 24 h

Emergency lighting

Area of emergency application Anti-panic lighting, Escape route lighting
Type of emergency light operation Maintained, Non-maintained
Type of emergency operation test Automatic
Wattage in maintained operation mode 36 W
Wattage in emergency operation mode 3,0 W
Luminous flux in maintained operation mode 4000 lm
Luminous flux in emergency operation mode 350 lm
Battery life in emergency operation mode 3 h
Integrated test switch No

Certificates & Standards

Standards CE, CB, ENEC, TÜV SÜD, EAC
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Replaceable light source (EPREL) Not replaceable

Additional product data

Number of illuminants -

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Seamless integration of luminaires with emergency lighting function into general lighting
  • Easy wiring thanks to included prewired driver and battery for Emergency lighting function
  • Simple testing of luminaires with emergency lighting function thanks to integrated automatic test function
  • Convenient visualization of results of automatic test with an included control LED
  • Operation of integrated emergency lighting function with long life LiFePO4 battery with 3h battery discharge time
  • High luminous efficacy in normal operation
  • 3 years guarantee
  • Low maintenance and low operational costs
  • Cable entry on the back of the luminaire and on each end-caps for easy electrical connection
  • Easy and quick installation
  • Low flicker light thanks to special electronic control gear
Areas of application
  • Emergency illumination of escape routes
  • Antipanic lighting
  • Buildings requiring up to 3 h emergency light operation
  • Efficient replacement for traditional T8 and T5 luminaires
  • Public buildings
  • Corridors, stairways
Product features
  • Certified according to European norms (EN 60598-1:2015; EN 60598-2-22:2014)
  • Luminaire suitable for normal lighting and emergency lighting
  • Self-contained luminaires
  • Emergency lighting function: battery discharge time of 3 h
  • Function test of emergency lighting: automatic (AT)
  • Battery technology: LiFePO4
  • Ambient temperature in operation: 5°…+40 C
  • Surface mounted luminaires with direct light emission
  • Type of protection: IP44
  • Impact resistance: IK08
  • Available in 2 different lengths: 1200 mm and 1500 mm
  • High luminous efficacy: up to 115 lm/W
Equipment / Accessories
  • Accessories for suspension available
  • Mounting screws and dowels included
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075402973 Folding box
1		 1,207 mm x 150 mm x 77 mm 2621.00 g 13.94 dm³
4058075402980 Shipping box
4		 1,228 mm x 319 mm x 183 mm 11774.00 g 71.69 dm³

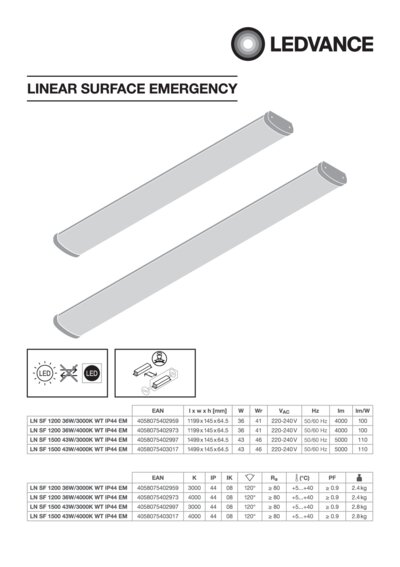

User instruction / safety instructions
UI_Linear Surface Emer gency PDF (6.79 MB)

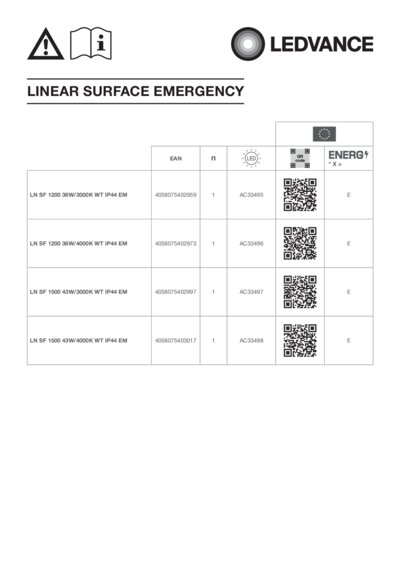

Legal information
LINEAR SURFACE EMERGEN CY PDF (1.12 MB)

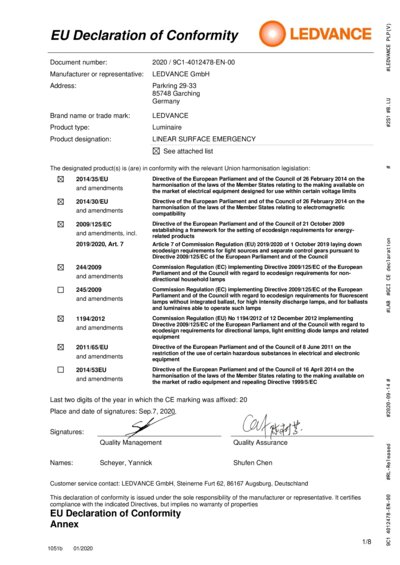

Declarations of conformity
LN SF WT IP44 EM PDF (314.72 KB)

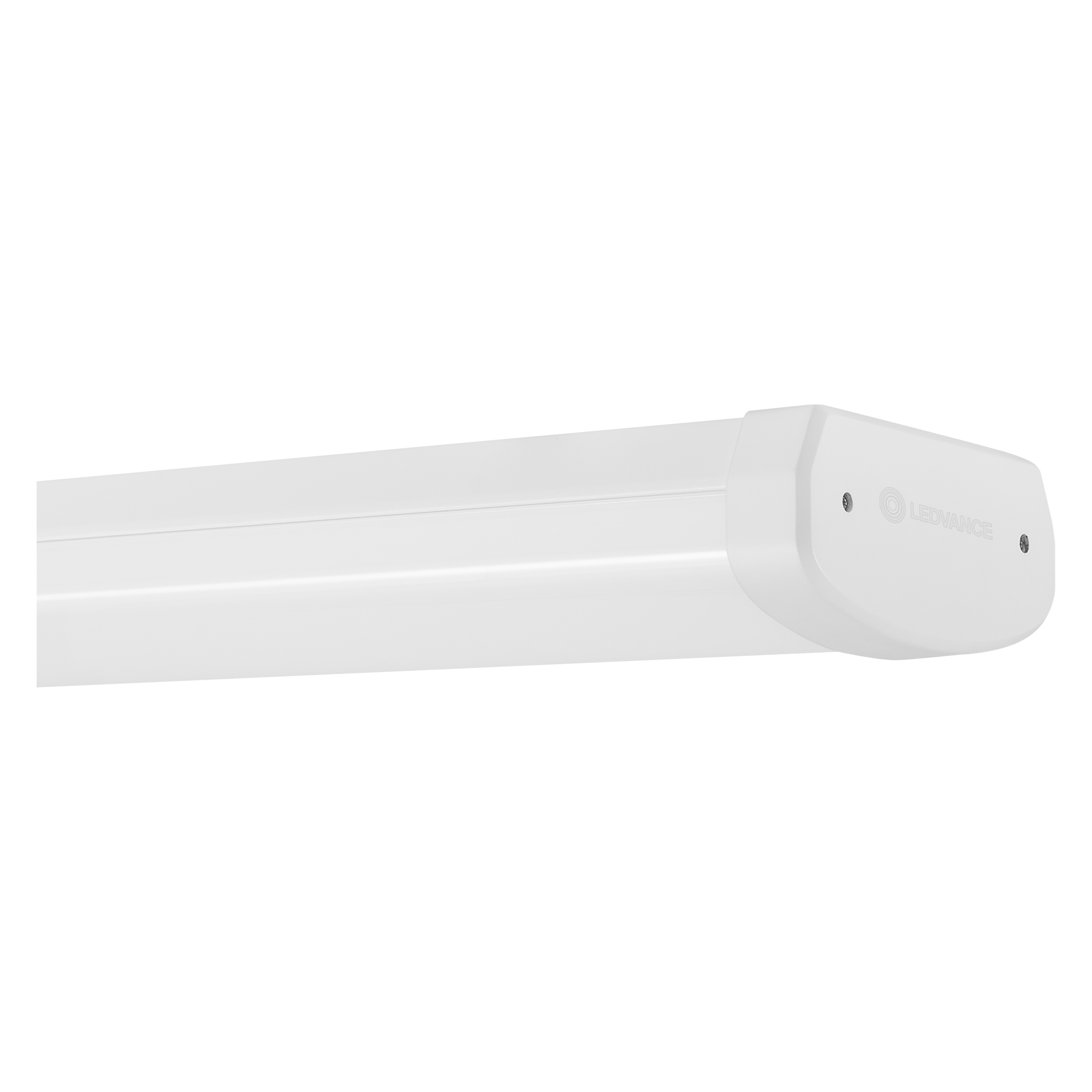

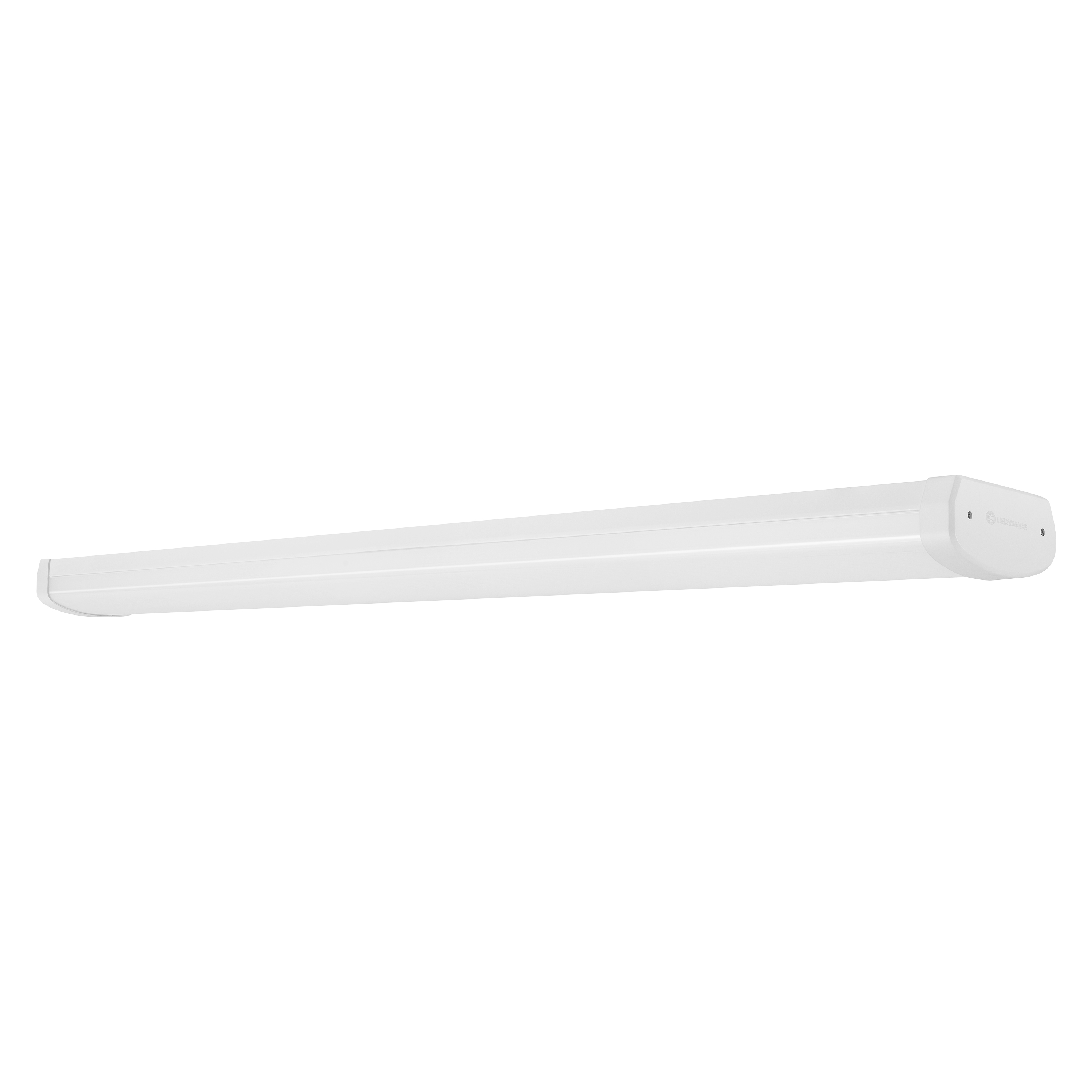

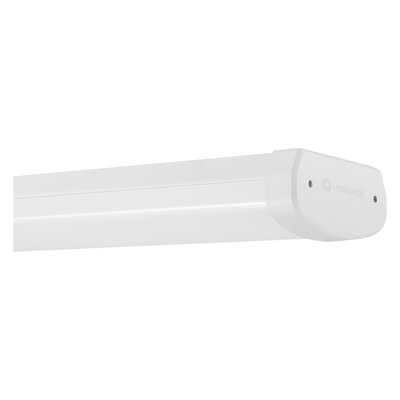

Product image: white background, diagonal
LINEAR SURFACE JPG (867.67 KB)

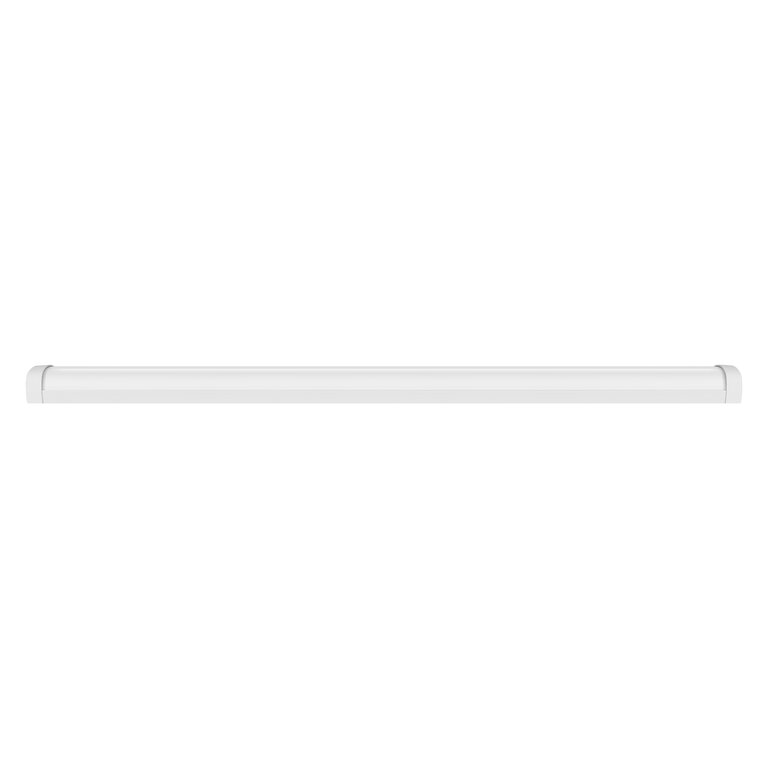

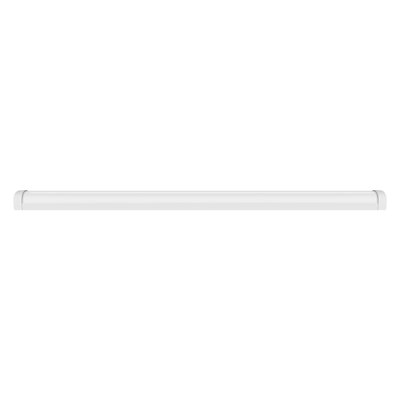

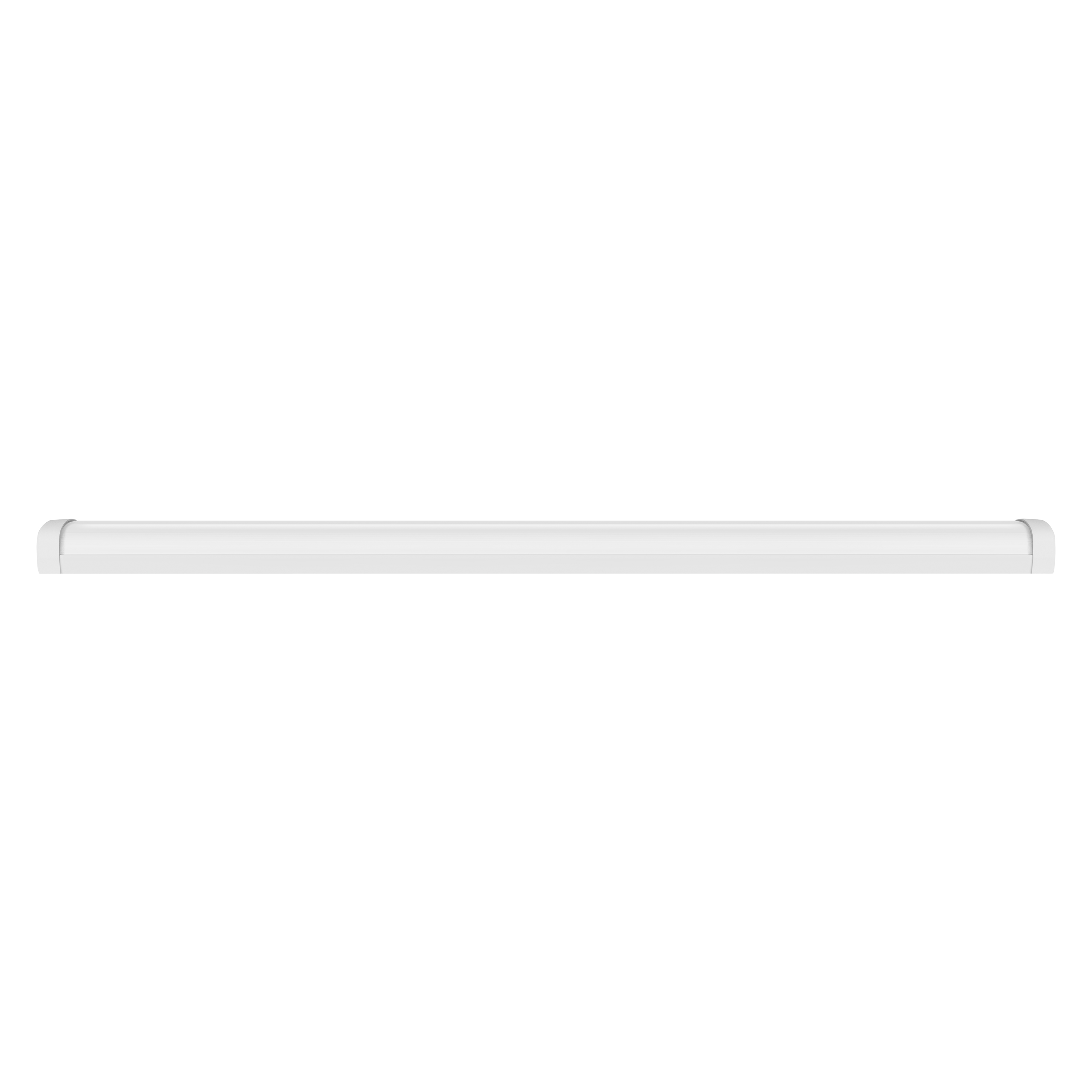

Product image: white background, horizontal
LN SF 1200 36W JPG (688.32 KB)
Product image: white background, upright
LN SF 1200 36W JPG (771.22 KB)
Product line drawing with letters
LN SF 1200 36W SVG (7.9 KB)
Product line drawing with numbers
LN SF 1200 36W SVG (14.43 KB)
Product line drawing, front, no dimensions
LN SF 1200 36W SVG (5.14 KB)
IES file (IES)
LN SF 1200 36W 4000K W T IP44 EM IES (3.65 KB)
LDT file (Eulumdat)
LN SF 1200 36W 4000K W T IP44 EM LDT (2.38 KB)
ULD file (DIALux)
LN SF 1200 36W-4000K W T IP44 ULD (335.36 KB)
ROLF file (RELUX)
LN SF 1200 36W-4000K ROLF (186.79 KB)

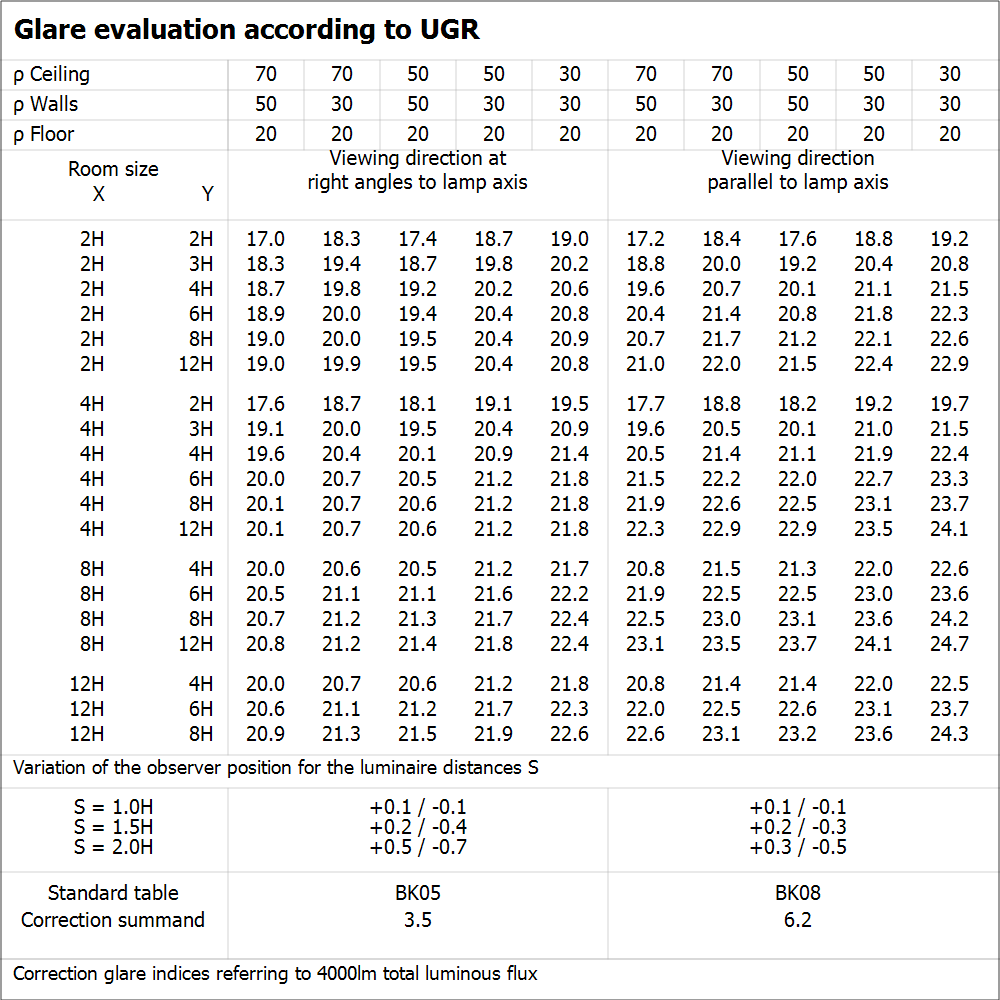

UGR file (UGR table)
LN SF 1200 36W 4000K W T IP44 EM PNG (61.1 KB)

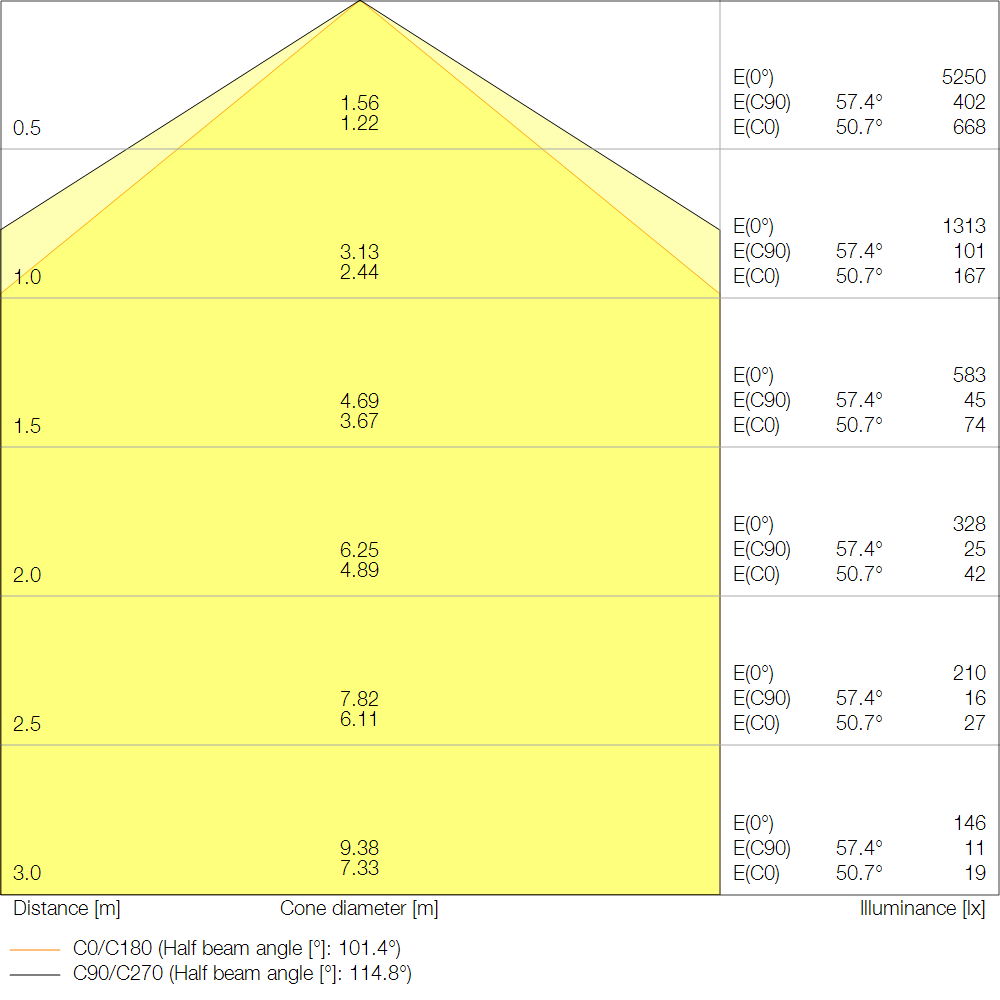

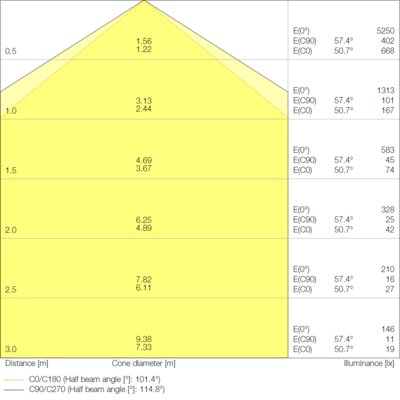

Light distribution curve type cone
LN SF 1200 36W 4000K SVG (89.29 KB)
Light distribution curve type cone
LN SF 1200 36W 4000K W T IP44 EM PNG (47.47 KB)
Light distribution curve type cone
LN SF 1200 36W 4000K W T IP44 EM SVG (16.77 KB)
Light distribution curve type polar
LN SF 1200 36W 4000K SVG (543.88 KB)

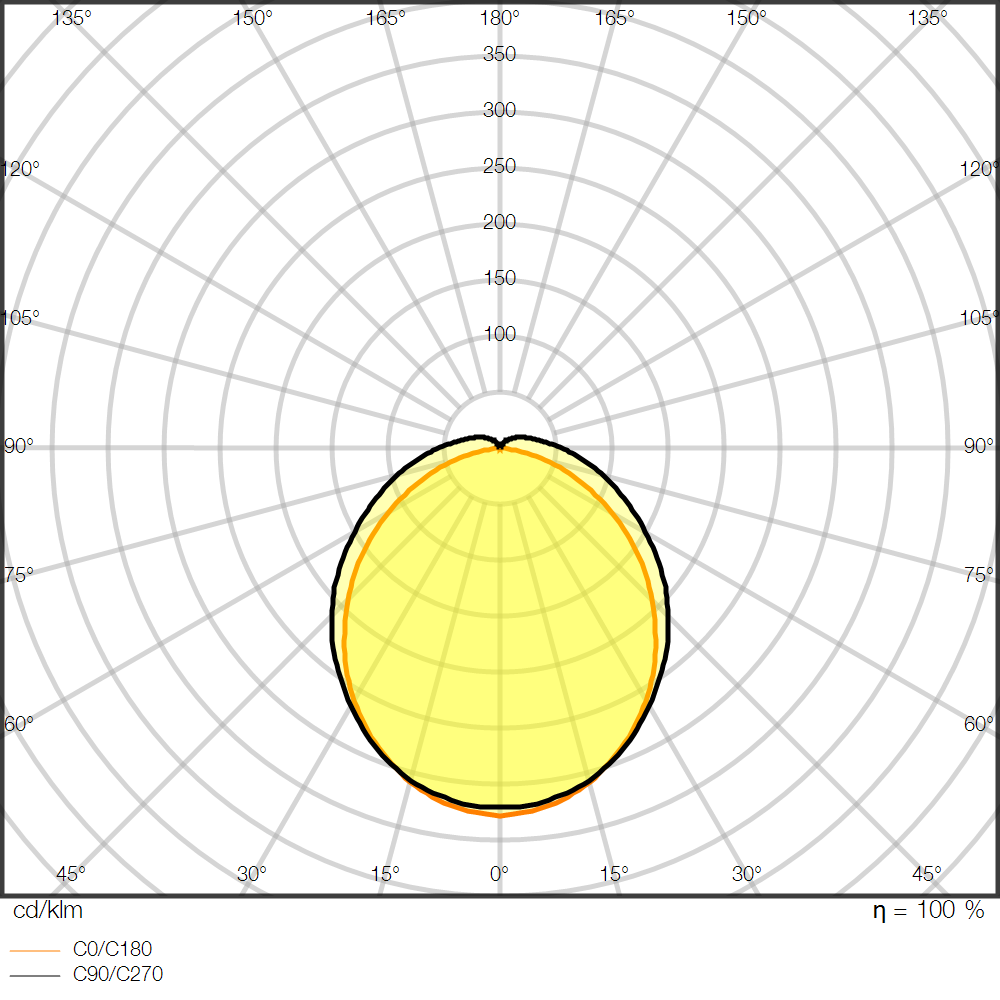

Light distribution curve type polar
LN SF 1200 36W 4000K W T IP44 EM PNG (164.46 KB)
Light distribution curve type polar
LN SF 1200 36W 4000K W T IP44 EM SVG (20.41 KB)
CAD STEP 3D
LN SF IP44 G1 1200 STEP (1.9 MB)
Tender documents
LINEAR SURFACE IP44 EM ERGENCY 1200 36 W 4000 K WT-EN TXT (1.7 KB)
EAN SEG number ELDAS number
4058075402973 7215494 941304020
