LINEAR SURFACE IP44

Choose your product version

1500 43 W 4000 K WT

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
LN SF IP44 1500 43 W 4000 K WT 43.00 W 25000 120 ° 5000 lm No


LN SF IP44 1500 43 W 4000 K WT

Product benefits
  • Low maintenance and low operational costs
  • Cable entry on the back of the luminaire and on each end-caps for easy electrical connection
  • Easy and quick installation
  • Low flicker light thanks to special electronic control gear
  • 5 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 43.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 210 mA
Inrush current 16 A
Inrush current time Th50 236 µs
Max. number of luminaires per miniature circuit breaker B16 21
Max. number of luminaires per miniature circuit breaker C10 18
Max. number of luminaires per miniature circuit breaker C16 30
Power factor λ ≥0.90
Total harmonic distortion ≤ 20 %
Protection class I
Operating mode Integrated LED driver

Photometrical data

Luminous flux 5000 lm
Luminous efficacy 115 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra ≥80
Standard deviation of color matching ≤4 sdcm
Low flicker Yes
Photobiological safety group acc. to EN62778 RG1
Photobiological safety group acc. to EN62471 RG0
Beam angle 120 °

Dimensions & Weight

Length 1499.00 mm
Height 64.50 mm
Width 145.00 mm
Product weight 2700.00 g

Materials & Colors

Product color White
Housing color White
Body material Stainless steel
Cover material Polycarbonate (PC)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+40 °C
Type of connection Push fit terminal
Type of protection IP44
Protection class IK (shock resistance) IK08
Dimmable No
Mounting type Surface/Suspended
Mounting location Ceiling
Application environment Indoor
With light source Yes
Replaceable light source No

Lifespan

Lifespan L70/B50 at 25 °C 60000 h 1)
Lifespan L80/B10 at 25 °C 40000 h 1)
Lifespan L90/B10 at 25 °C 25000 h
Number of switching cycles 25000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 1050 mA

Certificates & Standards

Standards CE, CB, ENEC, TÜV SÜD, EAC
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Replaceable light source (EPREL) Not replaceable

Additional product data

Number of illuminants -

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Low maintenance and low operational costs
  • Cable entry on the back of the luminaire and on each end-caps for easy electrical connection
  • Easy and quick installation
  • Low flicker light thanks to special electronic control gear
  • 5 years guarantee
Areas of application
  • Efficient replacement for traditional T8 and T5 luminaires
  • Public buildings
  • General illumination
  • Libraries, schools
Product features
  • Surface mounted luminaires with direct light emission
  • Type of protection: IP44
  • Impact resistance: IK08
  • Available in 2 different lengths: 1200 mm and 1500 mm
  • High luminous efficacy: up to 115 lm/W
  • Through-wiring possible
  • Suspended installation possible
  • Lifetime (L70/B50): 50,000 h (at 25 °C)
  • White painted steel housing (like RAL: 9010)
  • Diffuser material: UV-stable polycarbonate
  • End caps (made of polycarbonate) screwed to the housing
Equipment / Accessories
  • Accessories for suspension available
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075352933 Folding box
1		 1,507 mm x 150 mm x 77 mm 2890.00 g 17.41 dm³
4058075352940 Shipping box
4		 1,529 mm x 319 mm x 183 mm 12680.00 g 89.26 dm³

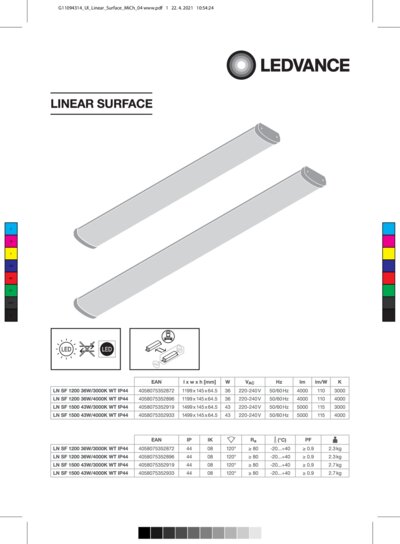

User instruction / safety instructions
UI_Linear Surface PDF (2.46 MB)

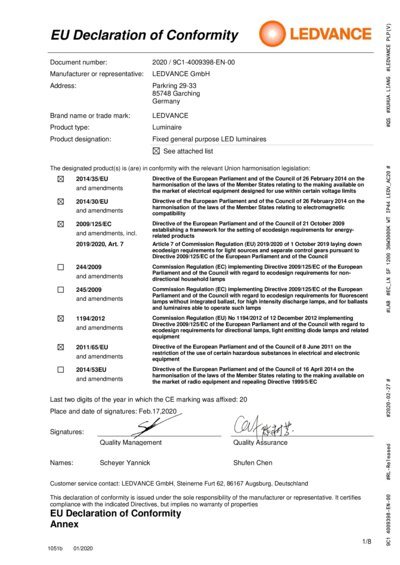

Declarations of conformity
LN SF PDF (329.86 KB)

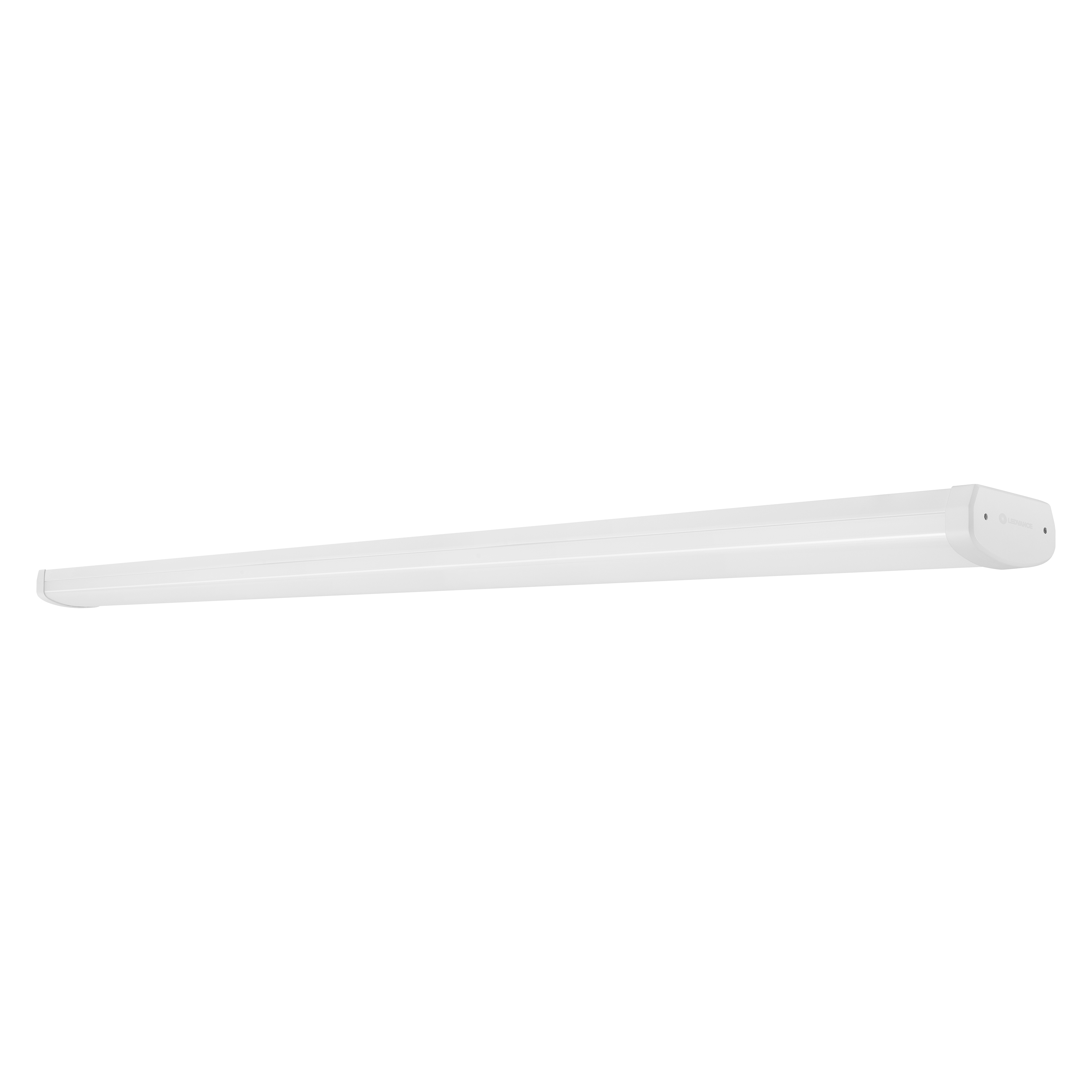

Product image: white background, diagonal
LINEAR SURFACE JPG (867.67 KB)

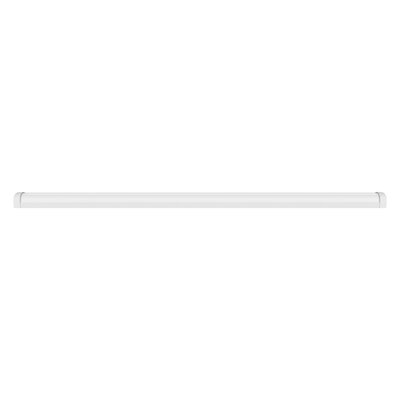

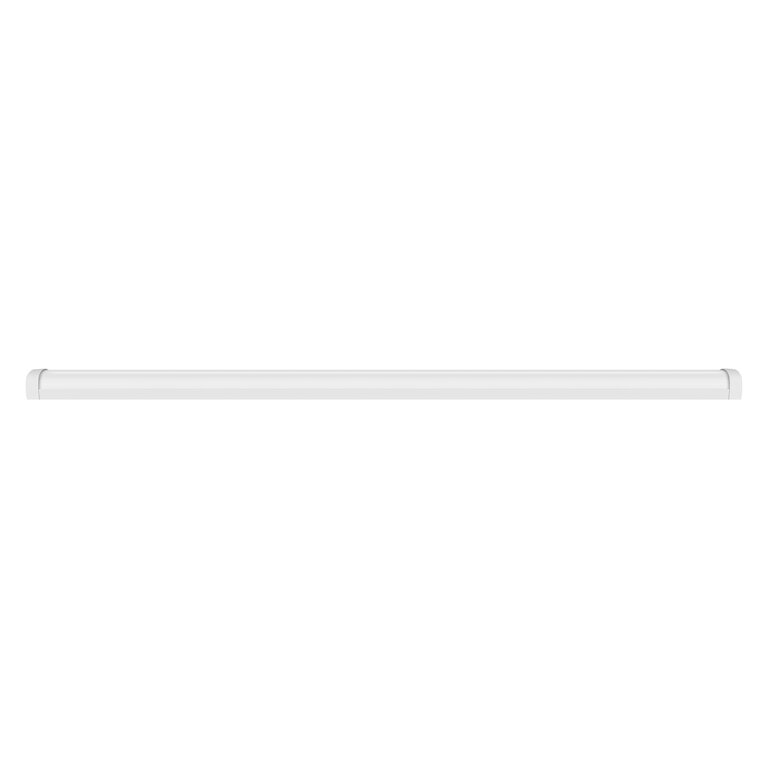

Product image: white background, horizontal
LN SF 1500 43W JPG (677.62 KB)

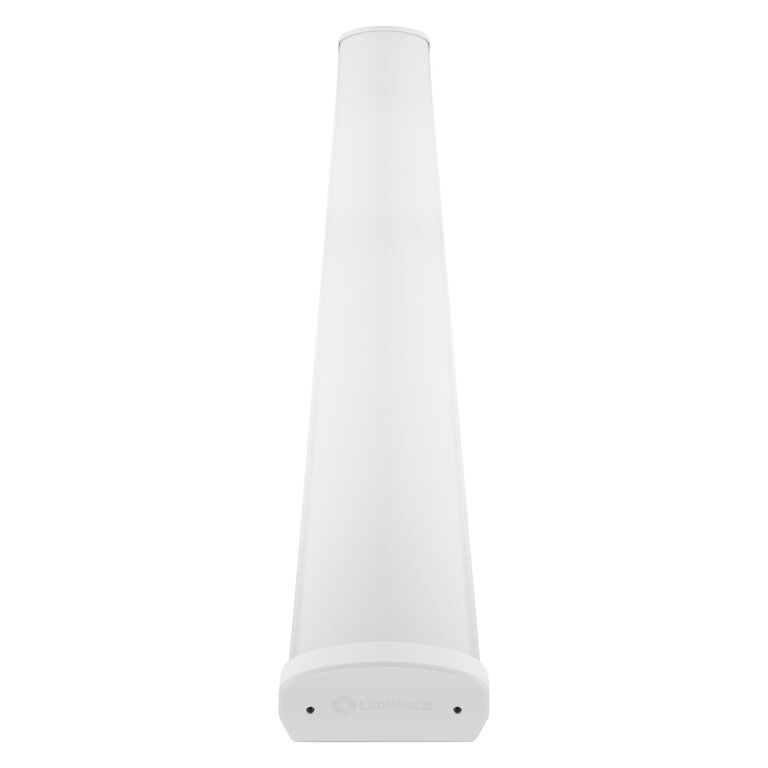

Product image: white background, upright
LN SF 1500 43W JPG (725.02 KB)
Product line drawing with letters
LN SF 1500 43W SVG (7.86 KB)
Product line drawing with numbers
LN SF 1500 43W SVG (14.47 KB)
Product line drawing, front, no dimensions
LN SF 1500 43W SVG (5.1 KB)
Packaging image, spacial
Linear Surface 1500 43 W 840 MiCh TIF (70.94 MB)
IES file (IES)
LN SF 1500 43W 4000K IES (3.76 KB)
LDT file (Eulumdat)
LN SF 1500 43W 4000K LDT (2.38 KB)

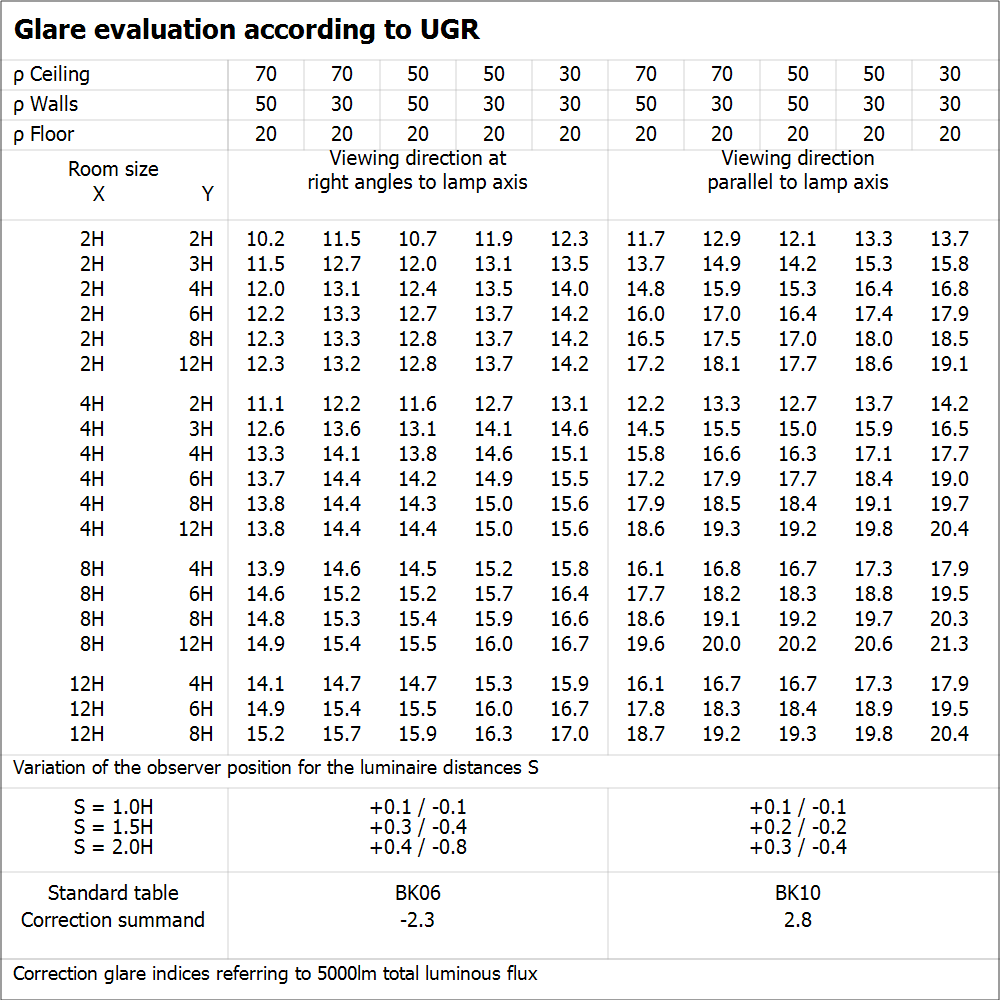

UGR file (UGR table)
LN SF 1500 43W 4000K PNG (61.63 KB)
Light distribution curve type cone
LN SF 1500 43W 4000K SVG (89.34 KB)
Light distribution curve type polar
LN SF 1500 43W 4000K SVG (539.94 KB)
CAD STEP 3D
LN SF IP44 G1 1500 STEP (1.88 MB)
EAN SEG number STK number EFO number ELDAS number
4058075352933 7215403 4266670 3304030 941303840
