LINEAR SURFACE IP44 DALI

Choose your product version

600 P 18W 830 WT

600 P 18W 840 WT

1200 P 32W 830 WT

1200 P 32W 840 WT

1500 P 45W 830 WT

1500 P 45W 840 WT

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
LN SF IP44 DALI 600 P 18W 830 WT 18.00 W 100000 110 ° 2340 lm Yes
LN SF IP44 DALI 600 P 18W 840 WT 18.00 W 100000 110 ° 2466 lm Yes
LN SF IP44 DALI 1200 P 32W 830 WT 32.00 W 100000 110 ° 4160 lm Yes
LN SF IP44 DALI 1200 P 32W 840 WT 32.00 W 100000 110 ° 4384 lm Yes
LN SF IP44 DALI 1500 P 45W 830 WT 45.00 W 100000 110 ° 5850 lm Yes
LN SF IP44 DALI 1500 P 45W 840 WT 45.00 W 100000 110 ° 6165 lm Yes


LN SF IP44 DALI 600 P 18W 830 WT

Product benefits
  • Low maintenance and low operational costs
  • Protection against cover falling, theft and vandalism thanks to safety screws
  • Cable entry on the back of the luminaire and on each end-caps for easy electrical connection
  • Easy and quick installation
  • Low flicker light thanks to special electronic control gear
  • 5 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 18.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 80 mA
Inrush current < 18 A
Inrush current time Th50 190 µs
Max. number of luminaires per miniature circuit breaker B16 31
Max. number of luminaires per miniature circuit breaker C10 33
Max. number of luminaires per miniature circuit breaker C16 53
Power factor λ > 0.90
Total harmonic distortion < 20 %
Protection class I
Operating mode Integrated LED driver

Photometrical data

Luminous flux 2340 lm
Luminous efficacy 130 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra > 80
Standard deviation of color matching < 3 sdcm
Low flicker Yes
Flickering metric (Pst LM) < 1
Stroboscope effect metric (SVM) < 0.4
Photobiological safety group acc. to EN62778 RG0
Beam angle 110 °

Dimensions & Weight

Length 608.00 mm
Height 63.00 mm
Width 166.00 mm
Product weight 1500.00 g

Materials & Colors

Product color White
Housing color White
RAL Color (most similar) RAL 9003
Body material Steel
Cover material Polycarbonate (PC)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+40 °C
Temperature range at storage -40…+80 °C
Type of connection Screwless terminal, 5-Pole (L, N, PE, DA+, DA-)
Type of protection IP44
Protection class IK (shock resistance) IK08
Dimmable Yes
Type of dimming DALI2
IoT ready Support of DALI data type PART 251, 252, 253 1)
Mounting type Surface
Mounting location Wall, Ceiling
Application environment Indoor
Adjustable No
With light source Yes
Replaceable light source No

1) Internet of Things. Supports data transfer via gateway to cloud-based monitoring platforms, such as LEDVANCE VIVARES Cloud

Lifespan

Lifespan L70/B50 at 25 °C 70000 h 1)
Lifespan L80/B10 at 25 °C 70000 h 1)
Lifespan L90/B10 at 25 °C 50000 h
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 420 mA
ECG - Output ripple current < 10 %
Recommended control gear OTi DALI 25/220-240/700 NFC L

Certificates & Standards

Standards CE, CB, ENEC, TÜV SÜD, UKCA, EAC
Luminaire with limited surface temperature, "D sign" No
Ball shot safe No
Replaceable light source (EPREL) Not replaceable

Additional product data

Added function VIVARES

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1), 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV329) - (3147-75-9)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Low maintenance and low operational costs
  • Protection against cover falling, theft and vandalism thanks to safety screws
  • Cable entry on the back of the luminaire and on each end-caps for easy electrical connection
  • Easy and quick installation
  • Low flicker light thanks to special electronic control gear
  • 5 years guarantee
Areas of application
  • Efficient replacement for traditional T8 and T5 luminaires
  • Public buildings
  • General illumination
  • Libraries, schools
Product features
  • Surface mounted luminaires with direct light emission
  • Type of protection: IP44
  • Impact resistance: IK08
  • Available in 3 different lengths: 600 mm, 1200 mm and 1500 mm
  • High luminous efficacy: up to 137 lm/W
  • Through-wiring cable already installed
  • Lifetime (L80/B10): 70,000 h (at 25 °C)
  • White painted steel housing (like RAL: 9003)
  • Diffuser material: UV-stable polycarbonate
  • End caps (made of polycarbonate) screwed to the housing
Equipment / Accessories
  • Equipped with through-wiring cables and connectors
  • Tool-free cable strain reliefs included
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075733398 Folding box
1		 621 mm x 172 mm x 70 mm 1750.00 g 7.48 dm³
4058075733404 Shipping box
4		 635 mm x 302 mm x 200 mm 7620.00 g 38.35 dm³
Product image Product name Product brand Product component type GTIN
MANUAL CONTROL UNIT SELECT DALI-2 LEDVANCE Light control 4058075837485
MANUAL CONTROL UNIT SELECT DALI-2 TW LEDVANCE Light control 4058075837508
MANUAL CONTROL UNIT SELECT DALI-2 EXCHANGEABLE COVER TW LEDVANCE Light control 4058075837522
MANUAL CONTROL UNIT TOUCH DALI-2 TW LEDVANCE Light control 4058075837560
MANUAL CONTROL UNIT TOUCH DALI-2 LEDVANCE Light control 4058075837546
PUSH CONTROL UNIT FLUSH MOUNT DALI-2 TW LEDVANCE Light control 4058075837584
SURFACE MOUNT FRAME LEDVANCE Light control 4058075843561
PUSHBUTTON COUPLER DALI-2 LEDVANCE Light control 4058075837607
FLEX CONTROL UNIT IOT DALI-2 HCL TW LEDVANCE Light control 4058075841888
FLEX CONTROL UNIT FLUSH MOUNT DALI-2 TW LEDVANCE Light control 4058075841901
FLEX CONTROL UNIT DALI-2 TW LEDVANCE Light control 4058075843844
FLEX CONTROL UNIT REAL-TIME-CLOCK DALI-2 HCL TW LEDVANCE Light control 4058075841925
SENSOR DALI-2 LIGHT/PRESENCE-6 INFRARED CEILING INTEGRATION LEDVANCE Light control 4058075837621
SENSOR DALI-2 LIGHT/PRESENCE-8 INFRARED CEILING INTEGRATION LEDVANCE Light control 4058075841949
SENSOR DALI-2 LIGHT/PRESENCE-40X5 INFRARED CEILING INTEGRATION LEDVANCE Light control 4058075843868
SENSOR DALI-2 LIGHT/PRESENCE-24 INFRARED CEILING MOUNTING LEDVANCE Light control 4058075843882
SENSOR CEILING MOUNTING KIT LEDVANCE Light control 4058075843905
User instruction / safety instructions
UI LN SF IP44 DALI PDF (4.11 MB)
Legal information
Light Source Insert LN SF P WT IP44 DALI PDF (2.69 MB)
Legal information

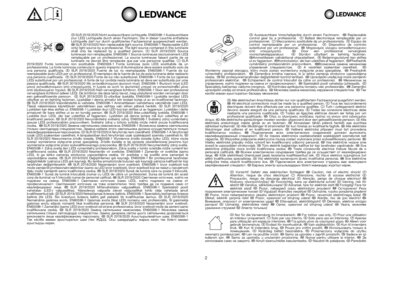

Legal insert LN SF P I P44 DALI PDF (2.58 MB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)
Declarations of conformity
LN SF P WT IP44 DALI PDF (218.26 KB)
Certificates
ENEC LN SF IP44 DALI PDF (435.26 KB)
EU Data Act
DALI LED Driver and Lu minaires PDF (469.42 KB)
Product image: white background, diagonal
LN SF P IP44 PNG (451.3 KB)
Product image: white background, horizontal
LN SF 600 P IP44 PNG (121.97 KB)
Product image: white background, upright
LN SF 600 P IP44 PNG (222.77 KB)
Product line drawing with letters
LN SF 600 P 18W WT IP4 4 SVG (9.74 KB)
Product line drawing with numbers
LN SF 600 P 18W WT IP4 4 SVG (17.05 KB)
Product line drawing - technical
LN SF 600 P 18W WT IP4 4 SVG (6.12 KB)

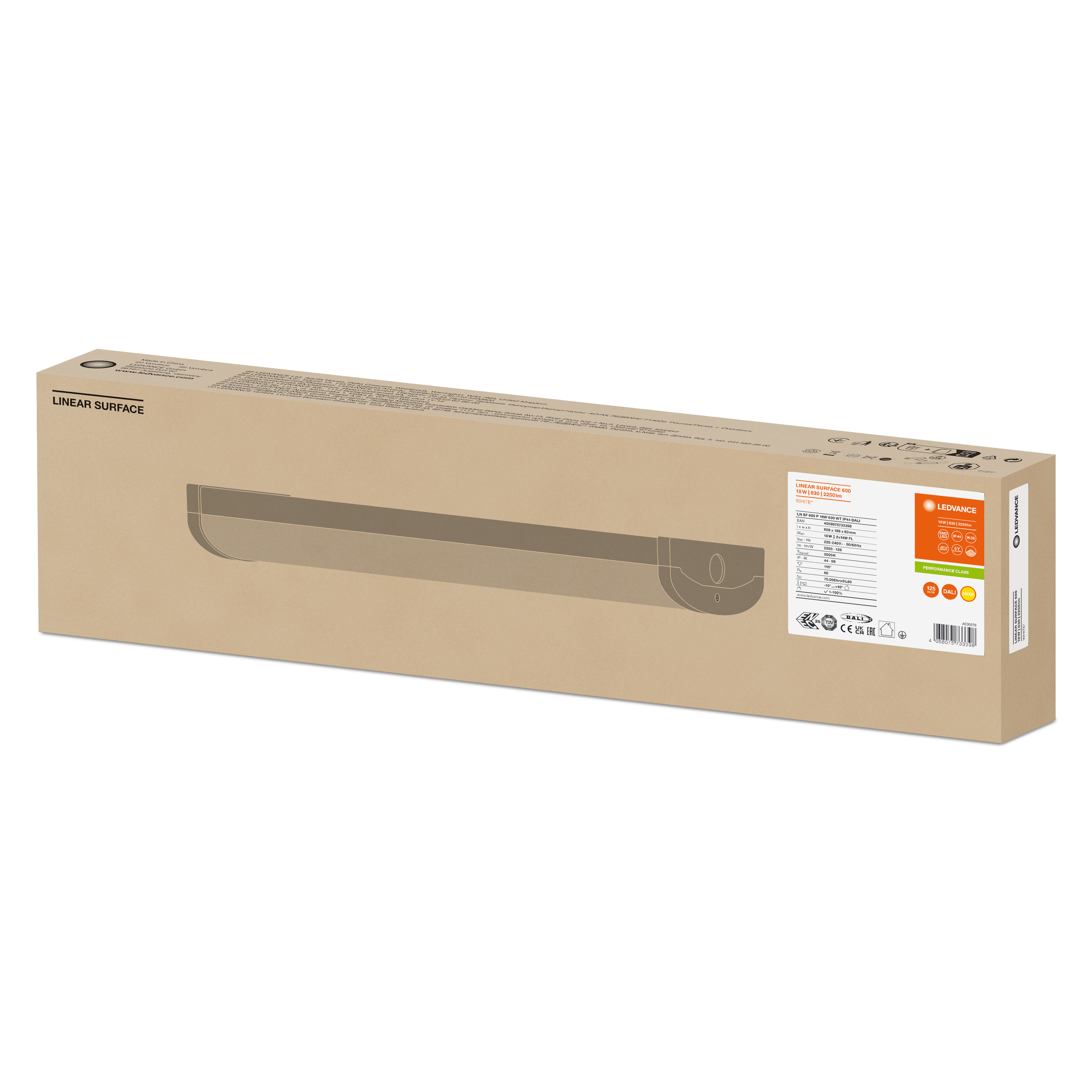

Packaging image, spacial
