LINEAR SURFACE IP44

Choose your product version

600 P 18W 830 WT

600 P 18W 840 WT

1200 P 32W 830 WT

1200 P 32W 840 WT

1500 P 45W 830 WT

1500 P 45W 840 WT

OVERVIEW

Product description Nominal wattage Number of switching cycles Beam angle Luminous flux Dimmable
LN SF IP44 600 P 18W 830 WT 18.00 W 100000 110 ° 2250 lm No
LN SF IP44 600 P 18W 840 WT 18.00 W 100000 110 ° 2430 lm No
LN SF IP44 1200 P 32W 830 WT 32.00 W 100000 110 ° 4160 lm No
LN SF IP44 1200 P 32W 840 WT 32.00 W 100000 110 ° 4384 lm No
LN SF IP44 1500 P 45W 830 WT 45.00 W 100000 110 ° 5850 lm No
LN SF IP44 1500 P 45W 840 WT 45.00 W 100000 110 ° 6165 lm No


LN SF IP44 600 P 18W 830 WT

Product benefits
  • Low maintenance and low operational costs

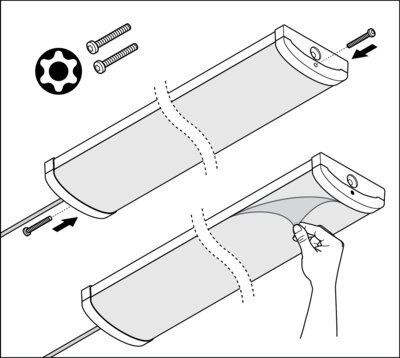

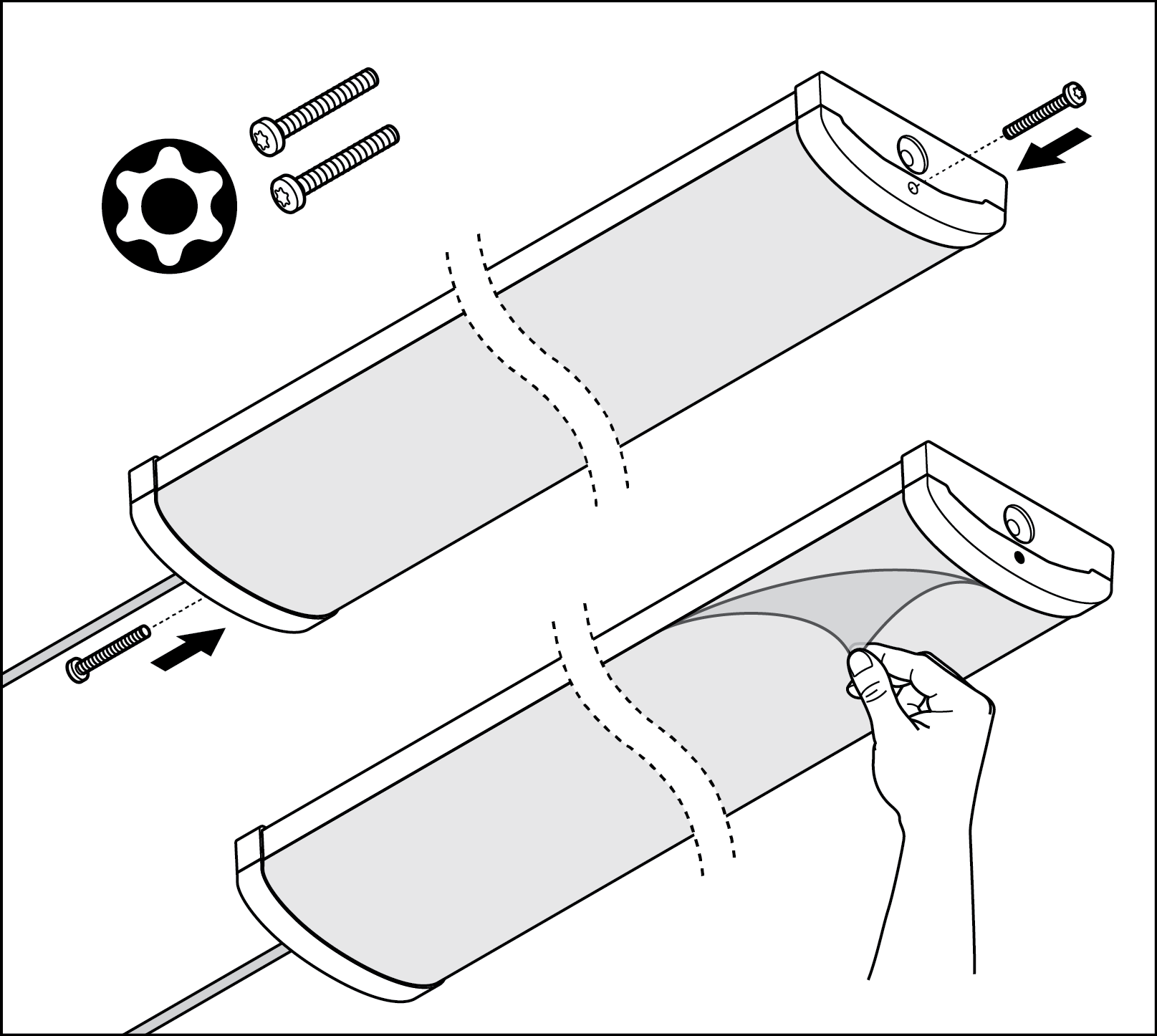

  • Protection against cover falling, theft and vandalism thanks to safety screws

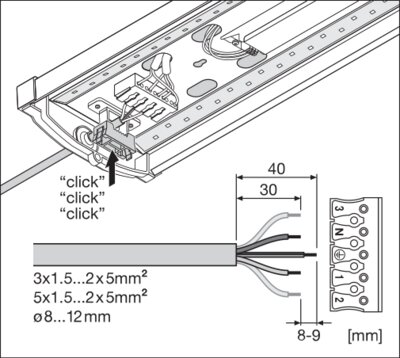

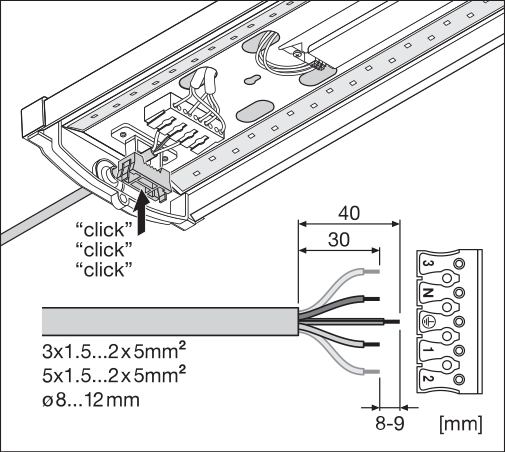

  • Cable entry on the back of the luminaire and on each end-caps for easy electrical connection
  • Easy and quick installation
  • Low flicker light thanks to special electronic control gear
  • 5 years guarantee
View all details
Product data sheet

PRODUCT DETAILS

Electrical data

Nominal wattage 18.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 90.000 mA
Inrush current 11 A
Inrush current time Th50 100 µs
Max. number of luminaires per miniature circuit breaker B16 49
Max. number of luminaires per miniature circuit breaker C10 30
Max. number of luminaires per miniature circuit breaker C16 49
Power factor λ > 0.90
Total harmonic distortion < 20 %
Protection class I
Operating mode Integrated LED driver

Photometrical data

Luminous flux 2250 lm
Luminous efficacy 125 lm/W
Color temperature 3000 K
Light color (designation) Warm White
Color rendering index Ra > 80
Standard deviation of color matching < 3 sdcm
Low flicker Yes
Flickering metric (Pst LM) < 1
Stroboscope effect metric (SVM) < 0.4
Photobiological safety group acc. to EN62778 RG0
Beam angle 110 °

Dimensions & Weight

Length 608.00 mm
Height 63.00 mm
Width 166.00 mm
Product weight 1400.00 g

Materials & Colors

Product color White
Housing color White
RAL Color (most similar) RAL 9003
Body material Steel
Cover material Polycarbonate (PC)
Light emitting surface material Polycarbonate (PC)
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting

Ambient temperature range -20…+40 °C
Temperature range at storage -40…+80 °C
Type of connection Screwless terminal, 3-Pole
Type of protection IP44
Protection class IK (shock resistance) IK08
Dimmable No
Mounting type Surface

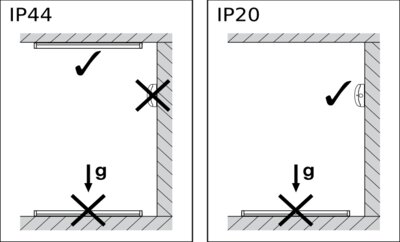

Mounting location Wall, Ceiling
Application environment Indoor
Adjustable No
With light source Yes
Replaceable light source No

Lifespan

Lifespan L70/B50 at 25 °C 70000 h 1)
Lifespan L80/B10 at 25 °C 70000 h 1)
Lifespan L90/B10 at 25 °C 51000 h
Number of switching cycles 100000

1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Control gear

Output current 440 mA
ECG - Output ripple current < 10 %

Certificates & Standards

Standards CE, CB, ENEC, TÜV SÜD, UKCA, EAC, EPD
Luminaire with limited surface temperature, "D sign" Yes
Ball shot safe No
EPD LEDV-00047-V01.01-EN
Replaceable light source (EPREL) Not replaceable

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1), 2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (UV329) - (3147-75-9)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Low maintenance and low operational costs
  • Protection against cover falling, theft and vandalism thanks to safety screws
  • Cable entry on the back of the luminaire and on each end-caps for easy electrical connection
  • Easy and quick installation
  • Low flicker light thanks to special electronic control gear
  • 5 years guarantee
Areas of application
  • Efficient replacement for traditional T8 and T5 luminaires
  • Public buildings
  • General illumination
  • Libraries, schools
Product features
  • Surface mounted luminaires with direct light emission
  • Type of protection: IP44
  • Impact resistance: IK08
  • Available in 3 different lengths: 600 mm, 1200 mm and 1500 mm
  • High luminous efficacy: up to 137 lm/W
  • Through-wiring cable already installed
  • Lifetime (L80/B10): 70,000 h (at 25 °C)
  • White painted steel housing (like RAL: 9003)
  • Diffuser material: UV-stable polycarbonate
  • End caps (made of polycarbonate) screwed to the housing

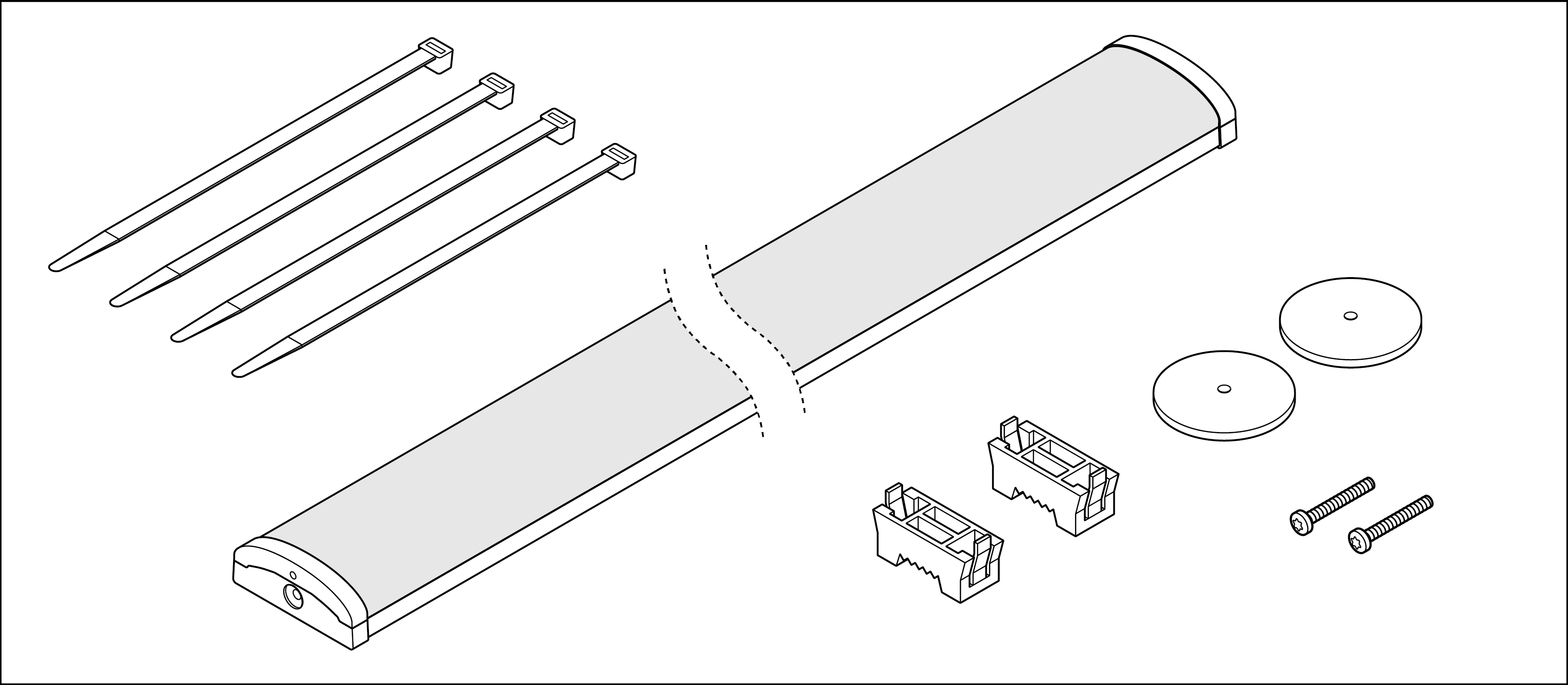

Equipment / Accessories
  • Equipped with through-wiring cables and connectors
  • Tool-free cable strain reliefs included
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075733152 Folding box
1		 621 mm x 172 mm x 70 mm 1850.00 g 7.48 dm³
4058075733169 Shipping box
4		 635 mm x 302 mm x 200 mm 8020.00 g 38.35 dm³
User instruction / safety instructions

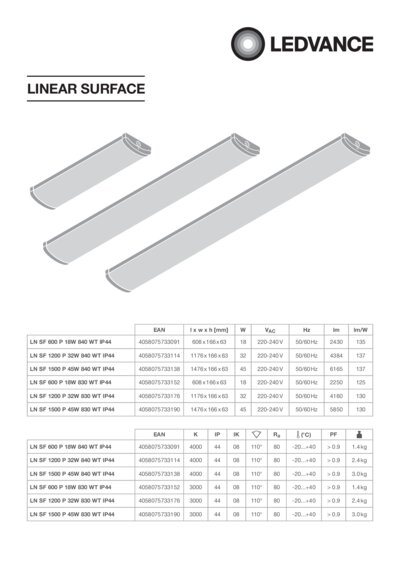

UI LN SF P PDF (4.05 MB)
Legal information

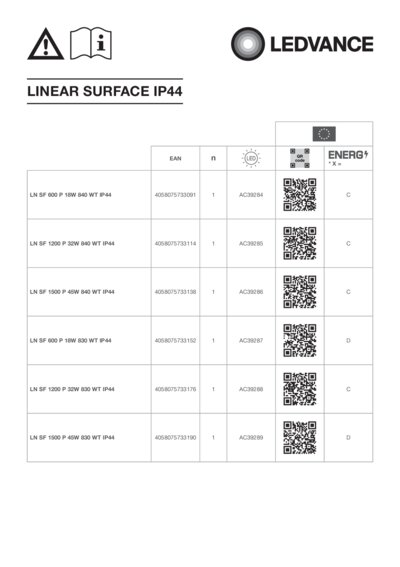

Light Source Insert LN SF P WT IP44 PDF (2.69 MB)
Legal information

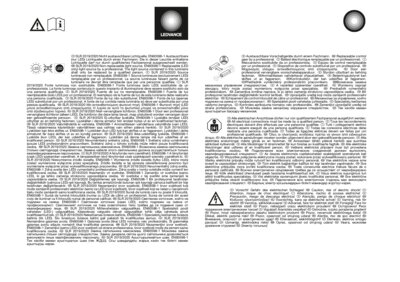

Legal insert PDF (843.77 KB)
Legal information
Informationstext 18 Ab s 4 ElektroG PDF (435.15 KB)

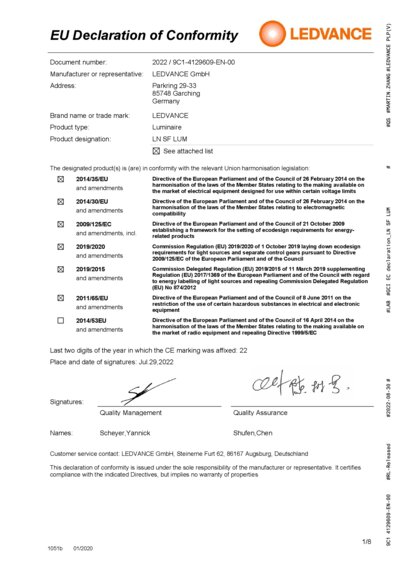

Declarations of conformity
LN SF IP44 PDF (305.76 KB)
Certificates

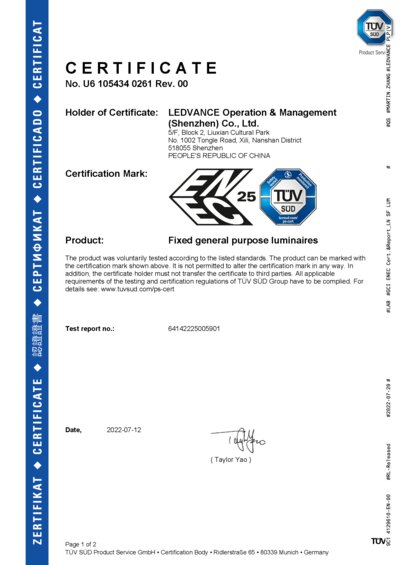

ENEC LN SF IP44 ONOFF PDF (422.27 KB)

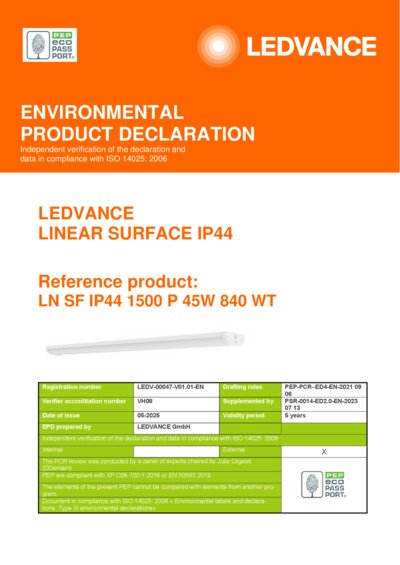

EPD
EPD EN LINEAR SURFACE IP44 PDF (659.94 KB)

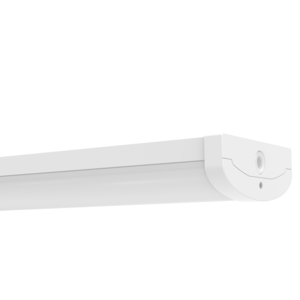

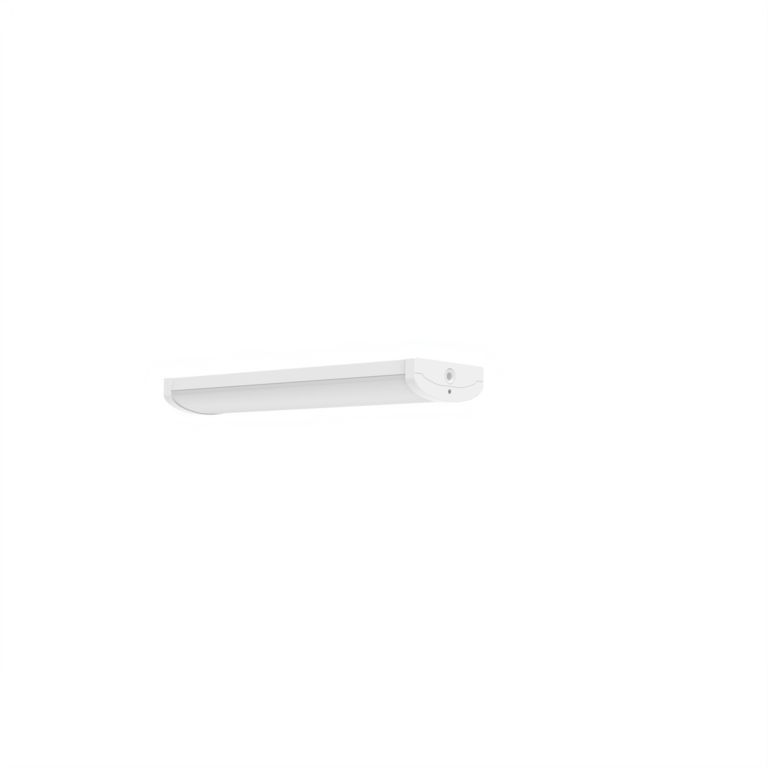

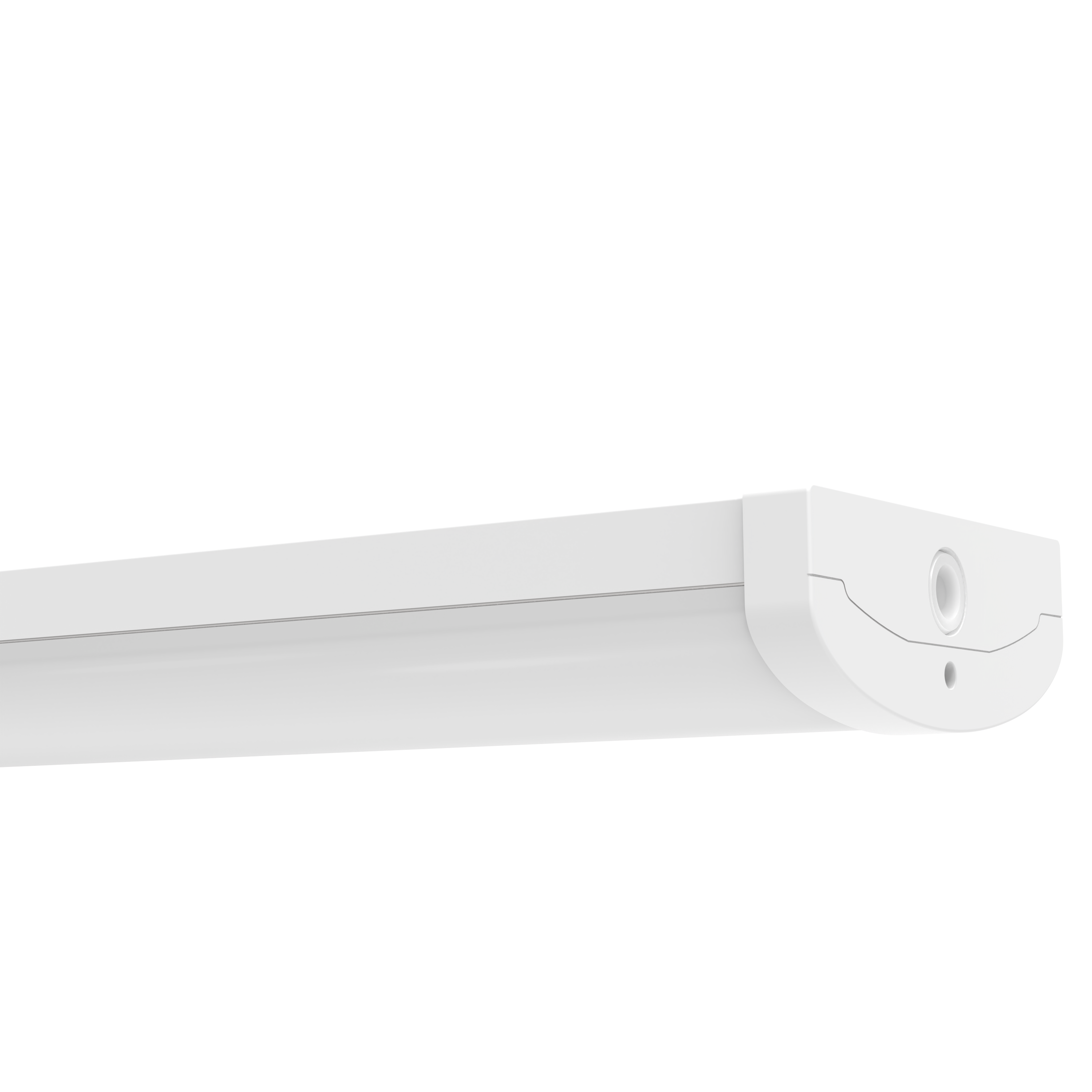

Product image: white background, diagonal
LN SF P IP44 PNG (451.3 KB)

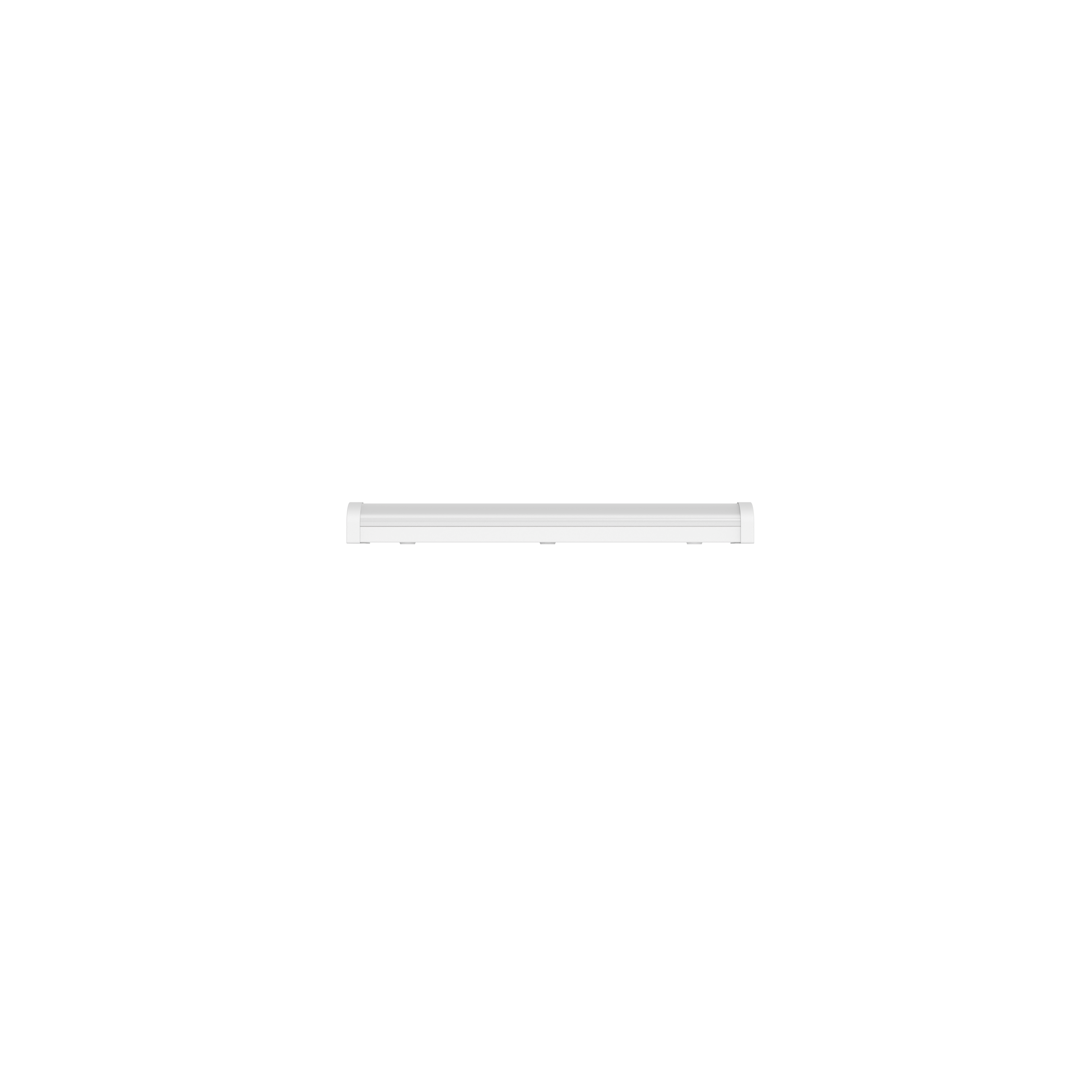

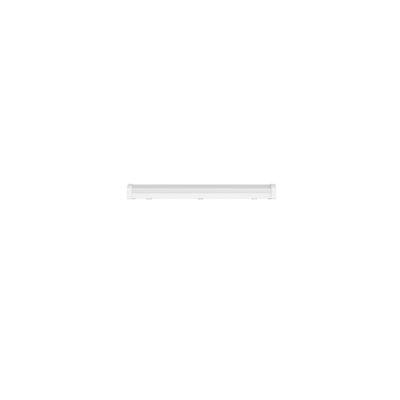

Product image: white background, horizontal
LN SF 600 P IP44 PNG (121.97 KB)

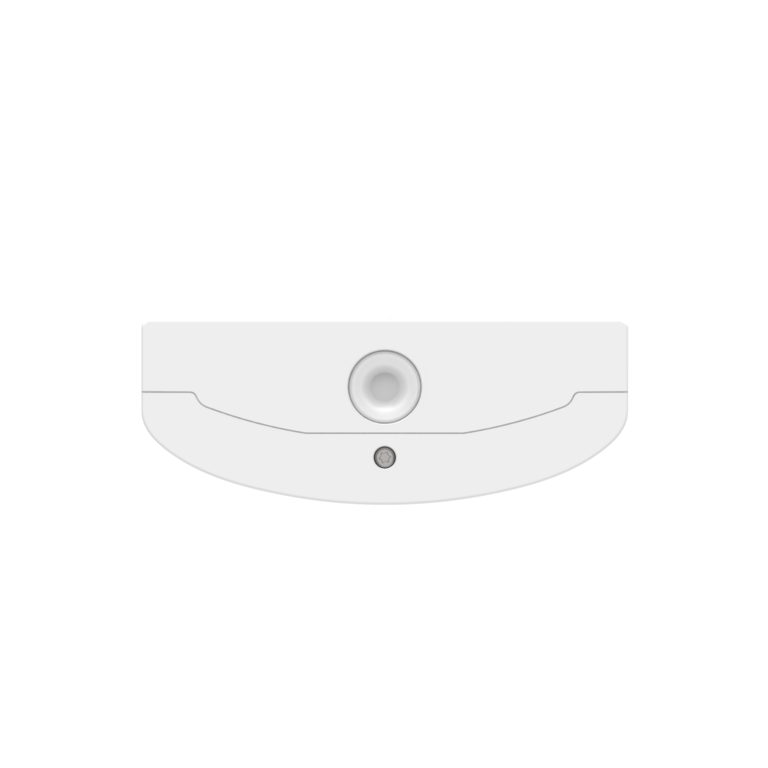

Product image: white background, upright
LN SF 600 P IP44 PNG (222.77 KB)
Product line drawing with letters
LN SF 600 P 18W WT IP4 4 SVG (9.74 KB)
Product line drawing with numbers
LN SF 600 P 18W WT IP4 4 SVG (17.05 KB)
Product line drawing - technical
LN SF 600 P 18W WT IP4 4 SVG (6.12 KB)

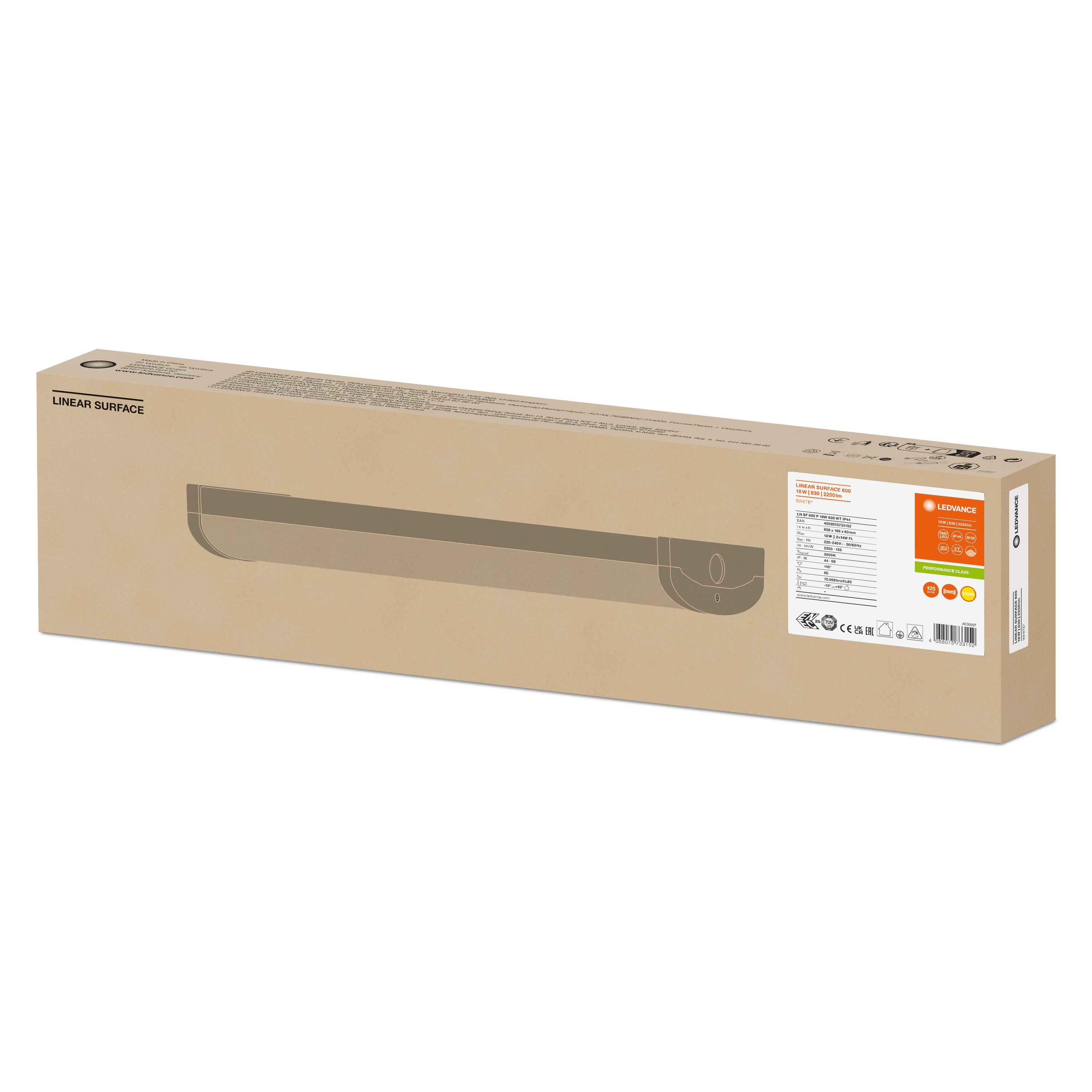

Packaging image, spacial
LinearSurface60018WWTI P44 JPG (1.53 MB)

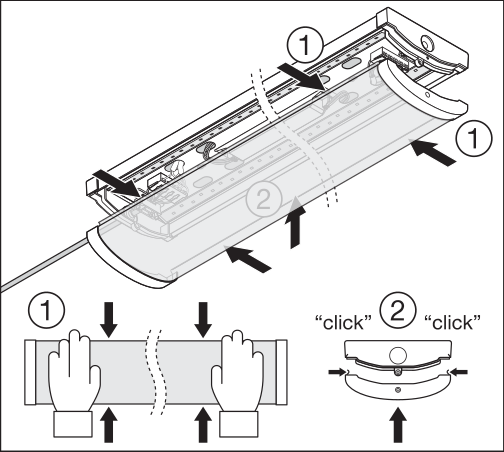

Catalog info 1
LN SF P WT IP44 PNG (292.23 KB)
Catalog info 2
LN SF WT IP44 PNG (35.08 KB)
Catalog info 3
LN SF P IP44 PNG (204.67 KB)

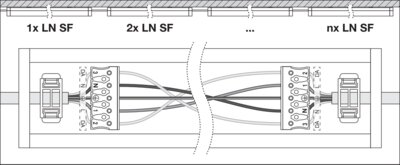

Catalog info 4
PNG (106.85 KB)
Catalog info 5
PNG (123.7 KB)
Catalog info 6
LN SF P WT IP44 PNG (105.95 KB)
IES file (IES)
LN SF 600 P 18W 830 WT IP44 IES (21.53 KB)
LDT file (Eulumdat)
LN SF 600 P 18W 830 WT IP44 LDT (27.01 KB)
ULD file (DIALux)
LN SF 600 P 18W 830 ULD (270.85 KB)
ROLF file (RELUX)
LN SF 600 P 18W 830 ROLF (176.05 KB)

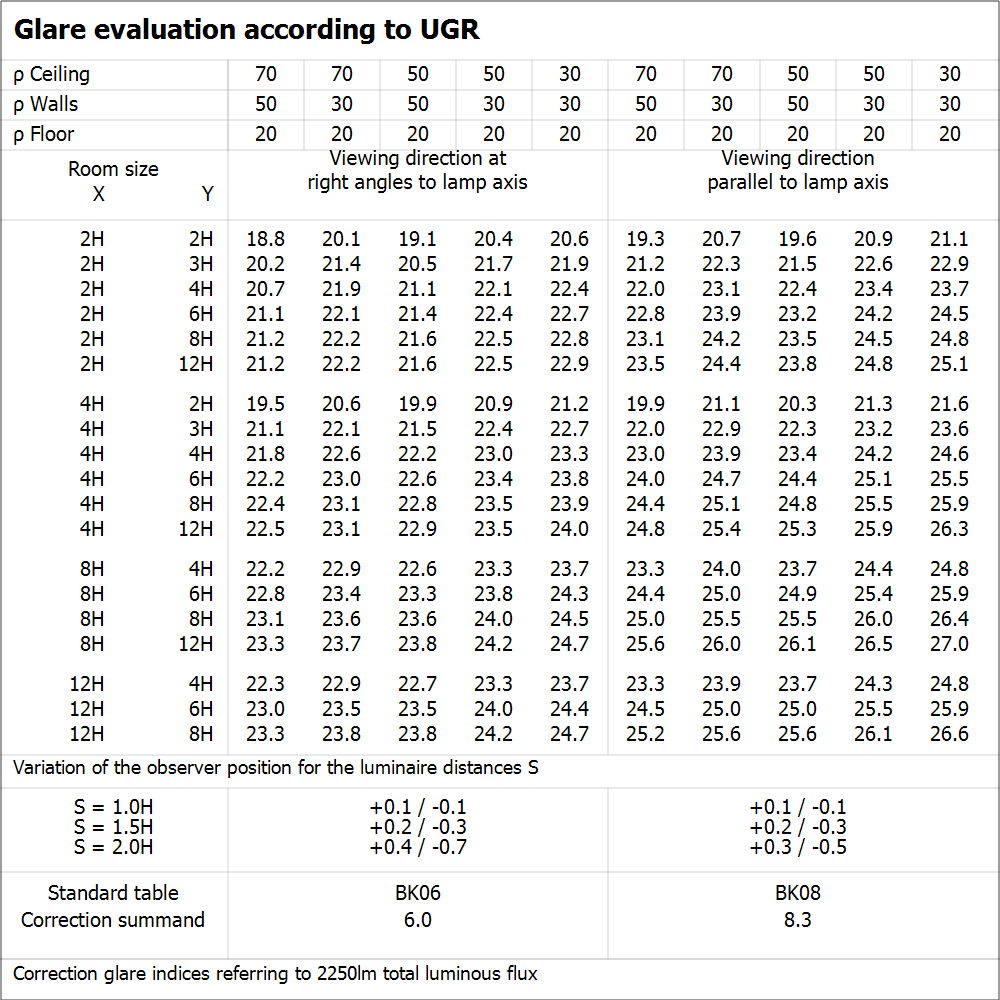

UGR file (UGR table)
LN SF 600 P 18W 830 WT IP44 PNG (60.72 KB)
Light distribution curve type cone
LN SF 600 P 18W 830 WT IP44 SVG (16.77 KB)
Light distribution curve type polar
LN SF 600 P 18W 830 WT IP44 SVG (17.43 KB)
BIM Revit 3D
Linear Surface IP44 G2 ZIP (6.87 MB)
CAD STEP 3D
LN ST IP44 G2 600 STEP (299.78 KB)
Tender documents
LINEAR SURFACE IP44 60 0 P 18W 830 WT-EN TXT (1.37 KB)
EAN SEG number STK number EFO number ELDAS number UK Org
4058075733152 7217299 4324762 3310232 941004070 435195768
